360TRAK™New
Interior Nonload-Bearing Flexible Track

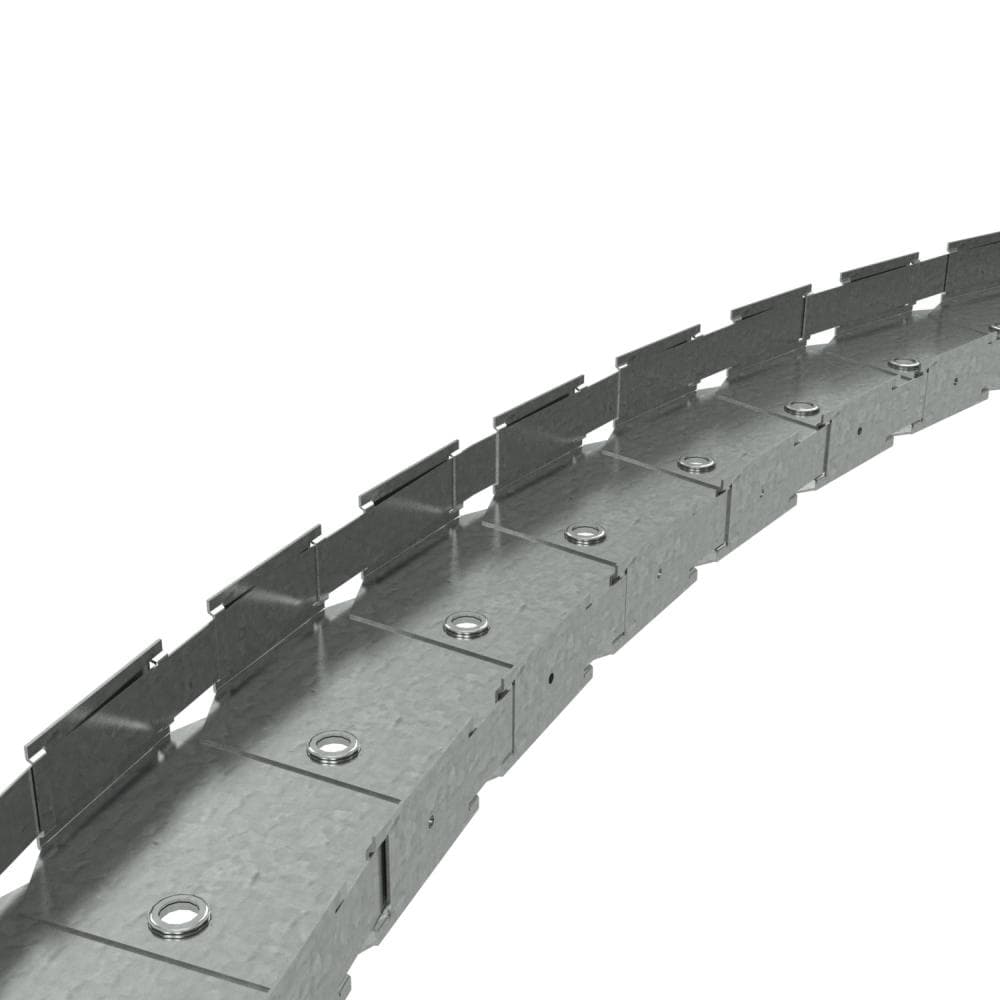

360TRAK™ is a flexible framing product that is a high-performance solution for creating intricate curves, bends, and variable radii for dramatic and distinctive walls and bulkheads in non-load bearing partitions and ceilings.
Quick Actions:

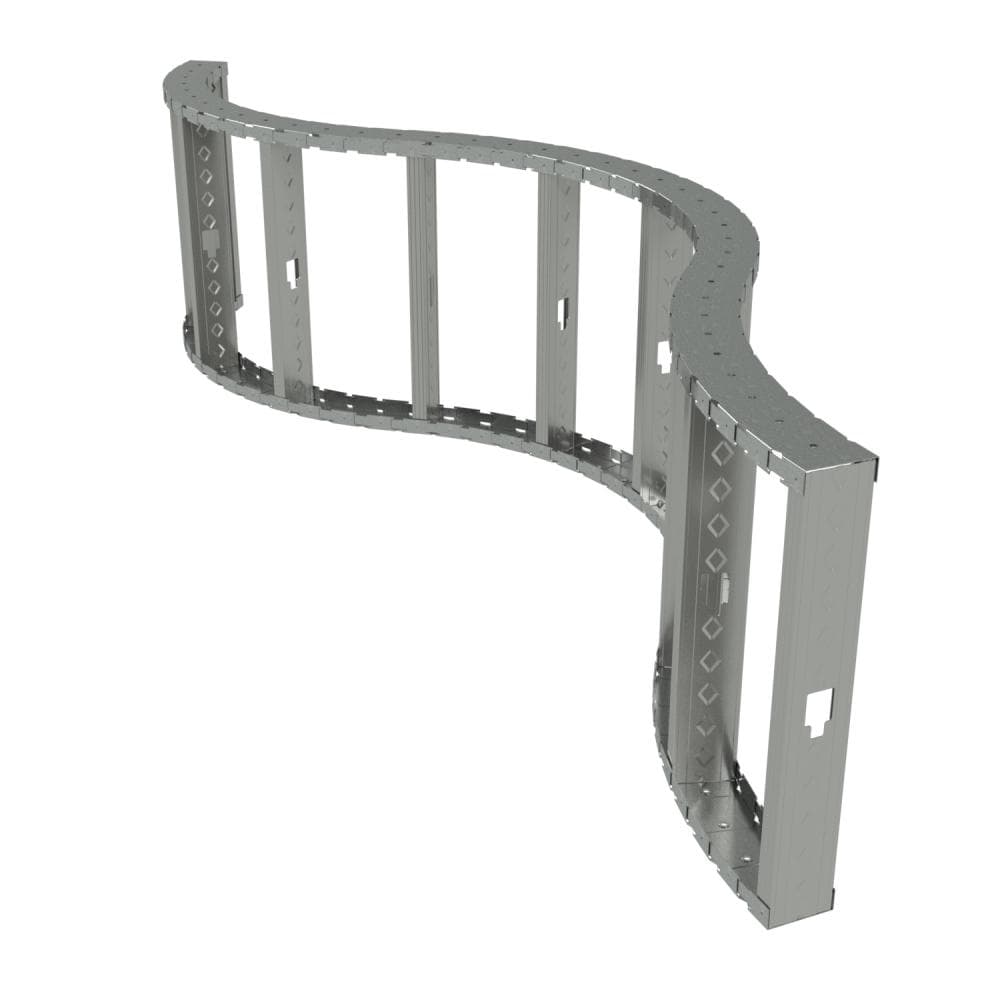

ClarkDietrich 360TRAK™ (Replacement for ClarkDietrich Contour Track) is a flexible framing product that is a high performance framing solution for non-load bearing curves, bends and variable radii. 360TRAK™ is used for dramatic and distinctive ceilings, walls and bulkheads. Today’s customers want elaborate and complex architecture including sweeping bulkheads, curved walls, wavy ceilings, and elliptical curves.

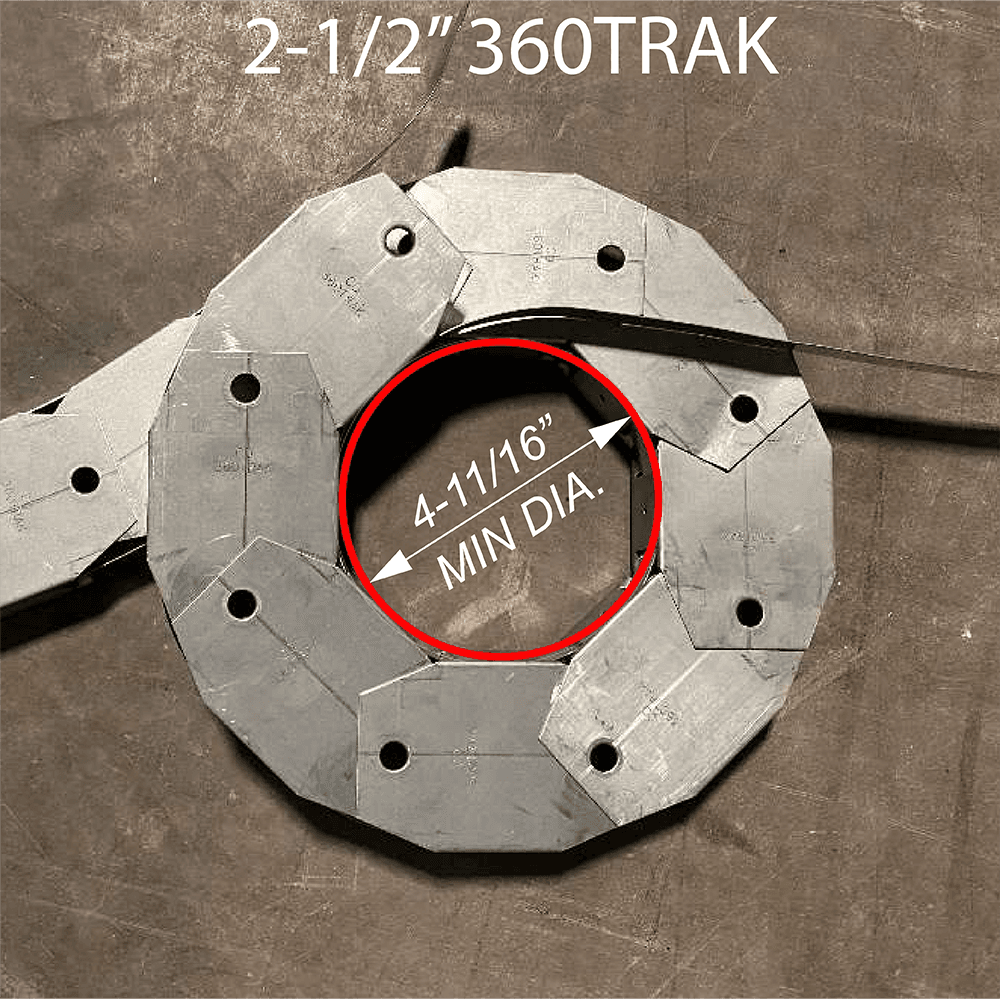

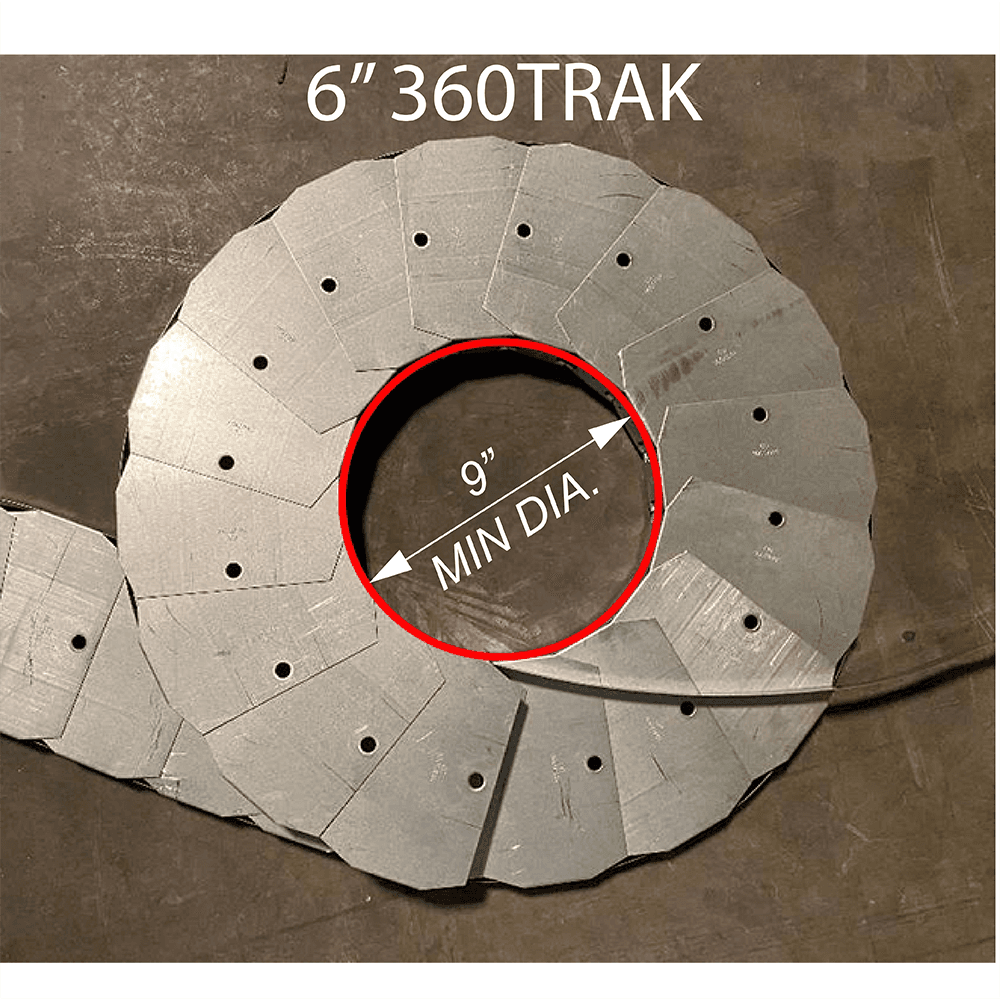

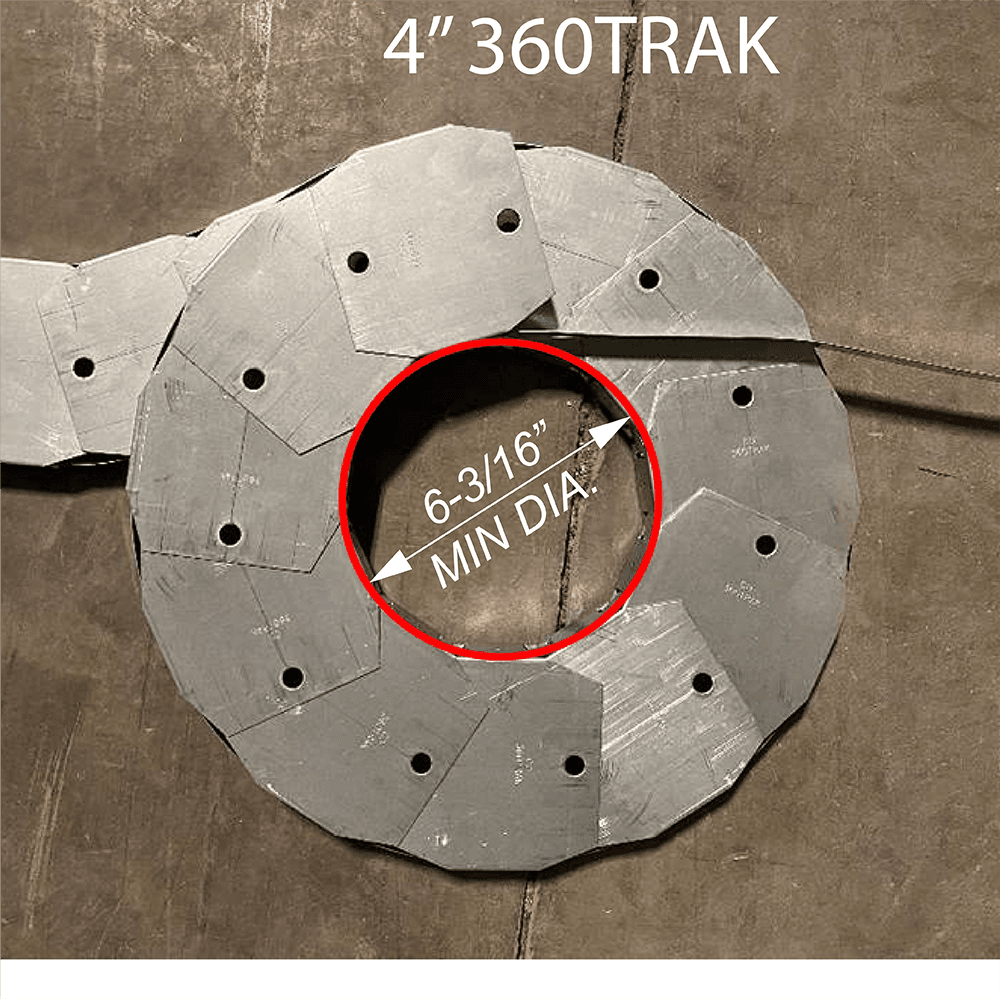

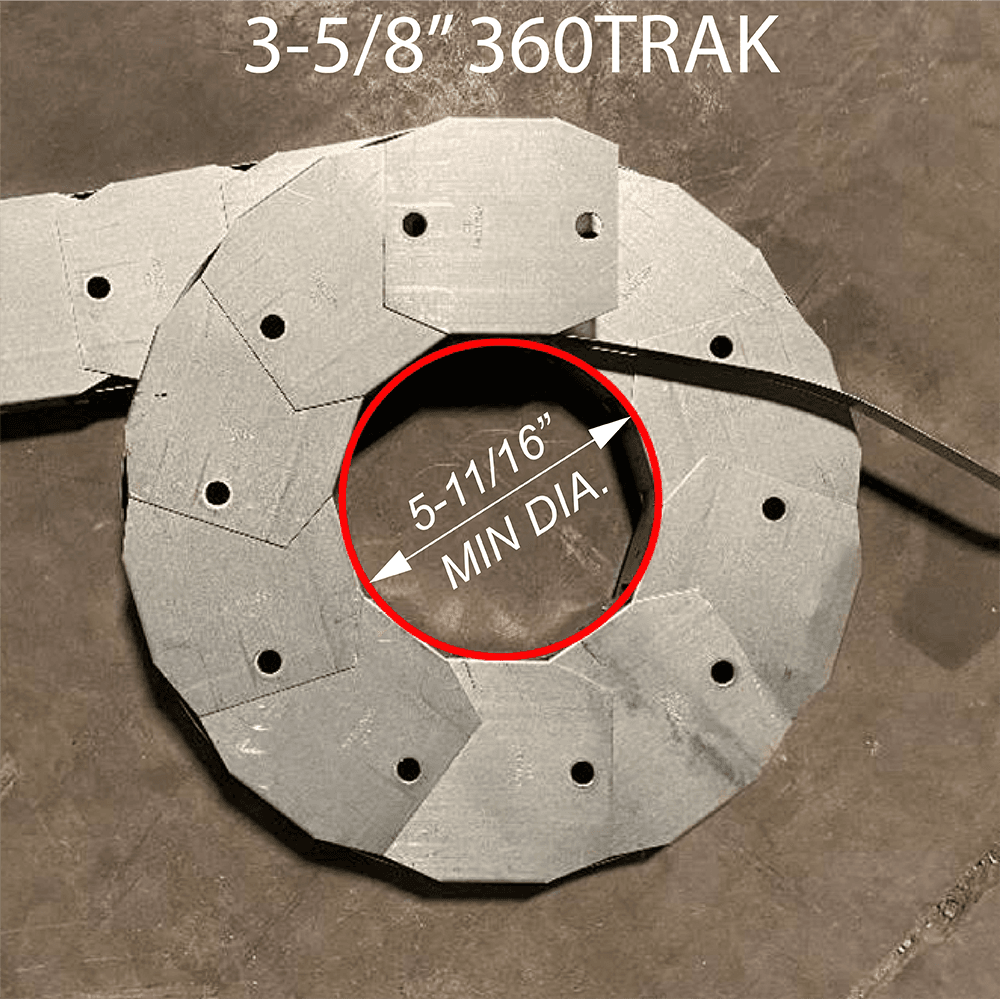

- Easily hand bends or forms to the desired curve or bend with varying radii
- Use with wood or steel studs
- Thickness: 30mils (20ga DW), 0.0312" Design Thickness, 0.0296" Min Thickness, 33ksi
- Coating: G40
- 10'-0" lengths
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Products Data & ordering information
| Product Code | Web Size | Packaging | Weight | Packaged Weight |
|---|---|---|---|---|
| 250-360TRAK-30 | 2-1/2" x 1-3/16" | 50 | 5.5 | 637 |
| 362-360TRAK-30 | 3-5/8" x 1-3/16" | 72 | 7.2 | 605.4 |
| 400-360TRAK-30 | 4" x 1-3/16" | 32 | 7.6 | 573.4 |
| 600-360TRAK-30 | 6" x 1-3/16" | 40 | 10.4 | 503 |
*Check with your representative for minimum ordering requirements.
