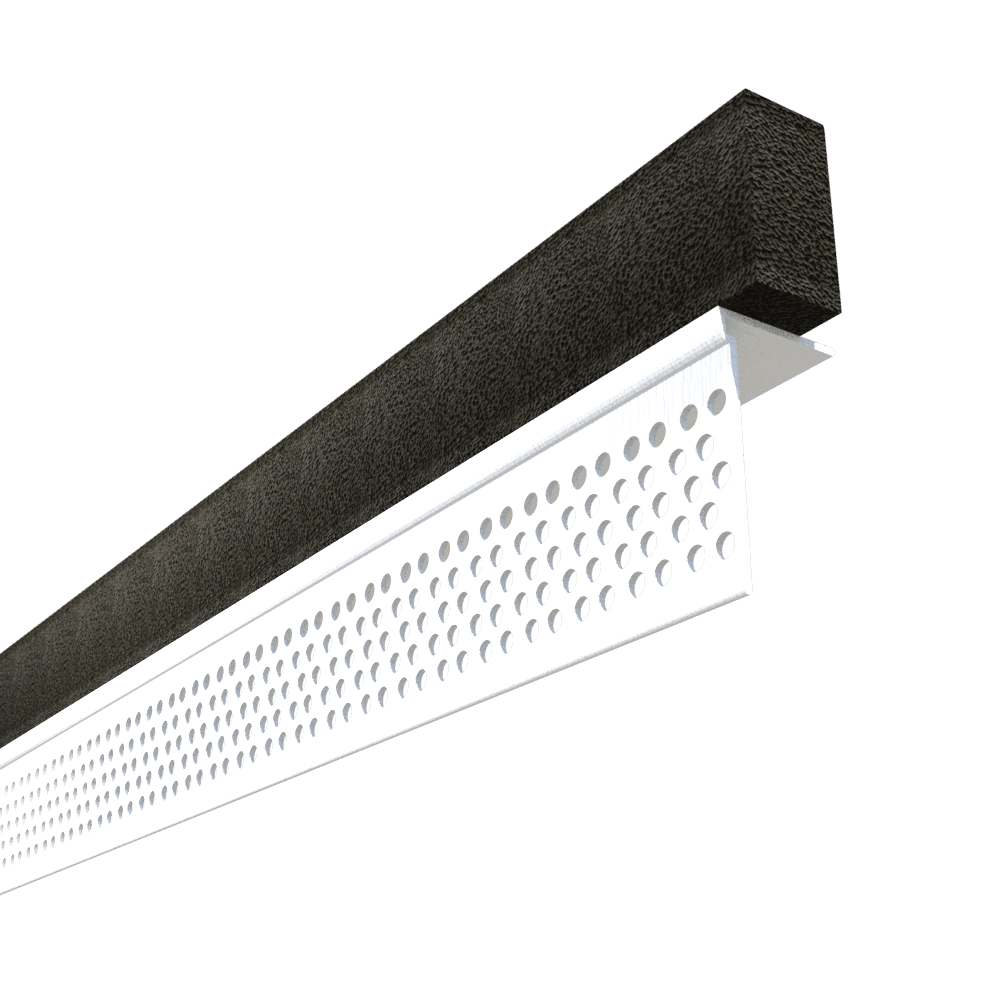

BlazeFrame® Perimeter L-Bead
VINYL L-Bead with Compressible Foam
Creates an easy attachment that is attained with staples through the bead flange.
Quick Actions:
BlazeFrame® Perimeter L-Bead creates an easy attachment that is attained with staples through the bead flange. Multiple perforations along the 1-1/8" flange enhance strong compound adhesion and the raised shoulder provides for a flush finish. Rigid vinyl is rust proof, dent resistant and easy to field cut without distorting profile or leaving sharp edges and burrs.
Composite Firestop/Framing for use in fire-resistant joint systems in or between fire-resistance-rated walls and floor/ceiling or roof/ceiling assemblies. Many assemblies can also be used in smoke barriers with tested air leakage (L ratings) well below the code defined maximum of 5 cfm per linear foot.
When used in conjunction with BlazeFrame Fire Stop Deflection Track Systems, BlazeFrame Perimeter L-Bead is UL 2079-fifth edition compliant. Provides joint protection for up to 1" with UL 2079 Class II or III Movement Capabilities at 80% compression.
U.S. Patent Number 11,725,401 and 11,486,150 on Perimeter L-Bead.
Product Data & Ordering Information:
| Profile | Width | Lenth | Wt./Ctn. | Pcs./Ctn. |
|---|---|---|---|---|
| Perimeter L-Bead | 1/2" | 8' | 24 lbs | 40 |
| Perimeter L-Bead with Rip Bead® | 1/2" | 8' | 18 lbs | 30 |
Vinyl Material: 0.028" PVC (Polyvinyl Chloride)

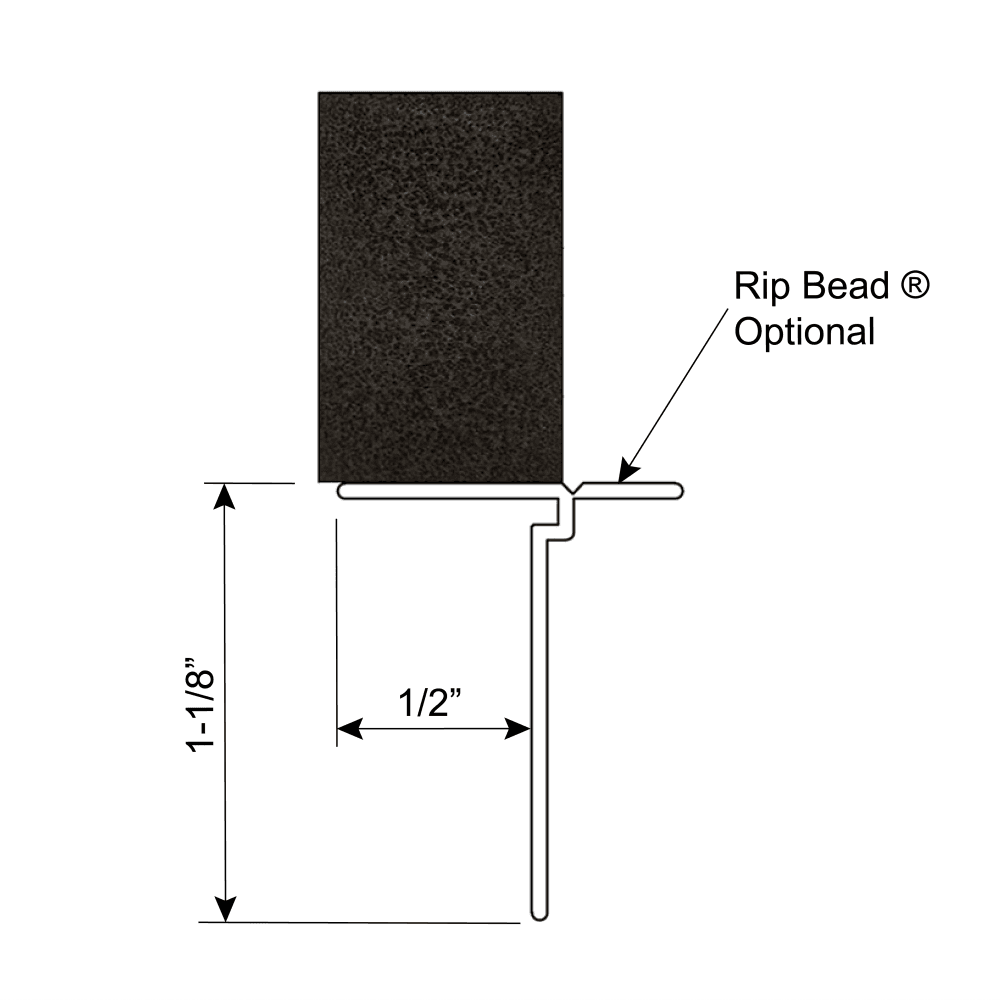

L-Bead Dimensions: 1/2" Leg x 1-1/8" Flange (available in rip bead)
Length: 8'-0"
Vinyl color: White
Foam color: Black
