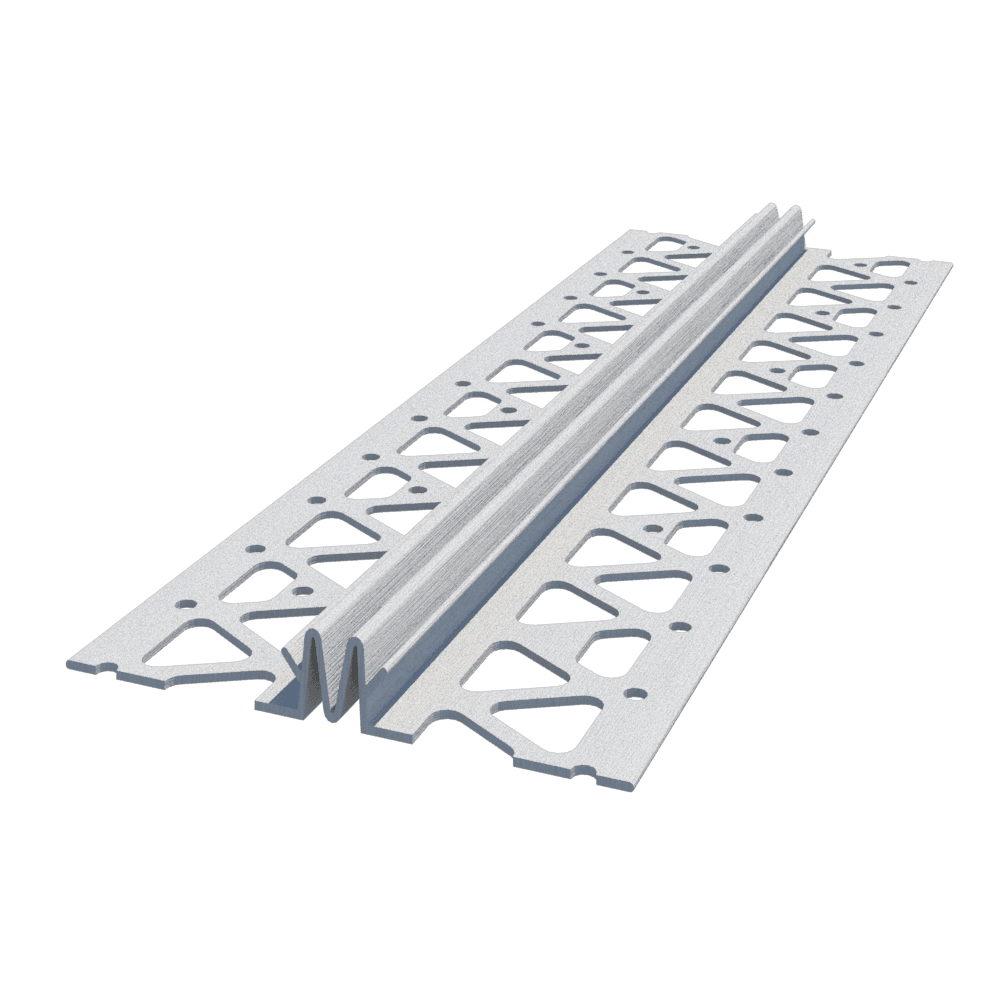

Control Joint
Designed to relieve stress and assist in controlling cracking in large areas of walls and ceilings
Flat flange for thinner, 1-Coat applications.
Quick Actions:

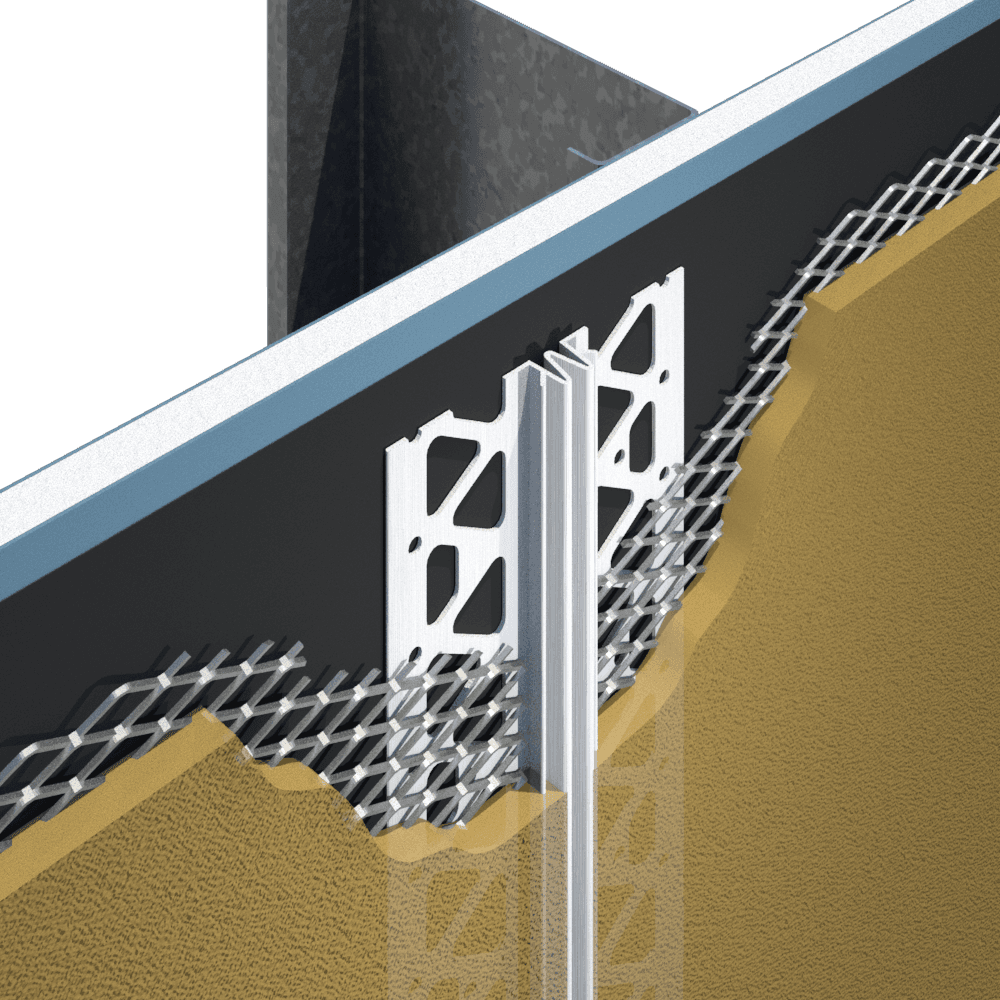

Designed to relieve stress and assist in controlling cracking in large areas of walls and ceilings. Flat flange for thinner, 1-Coat applications. Control Joints help with the embedment of the lath and flange while assisting with tying requirements of discontinuous lath to the joint.
Product Data & Ordering Information

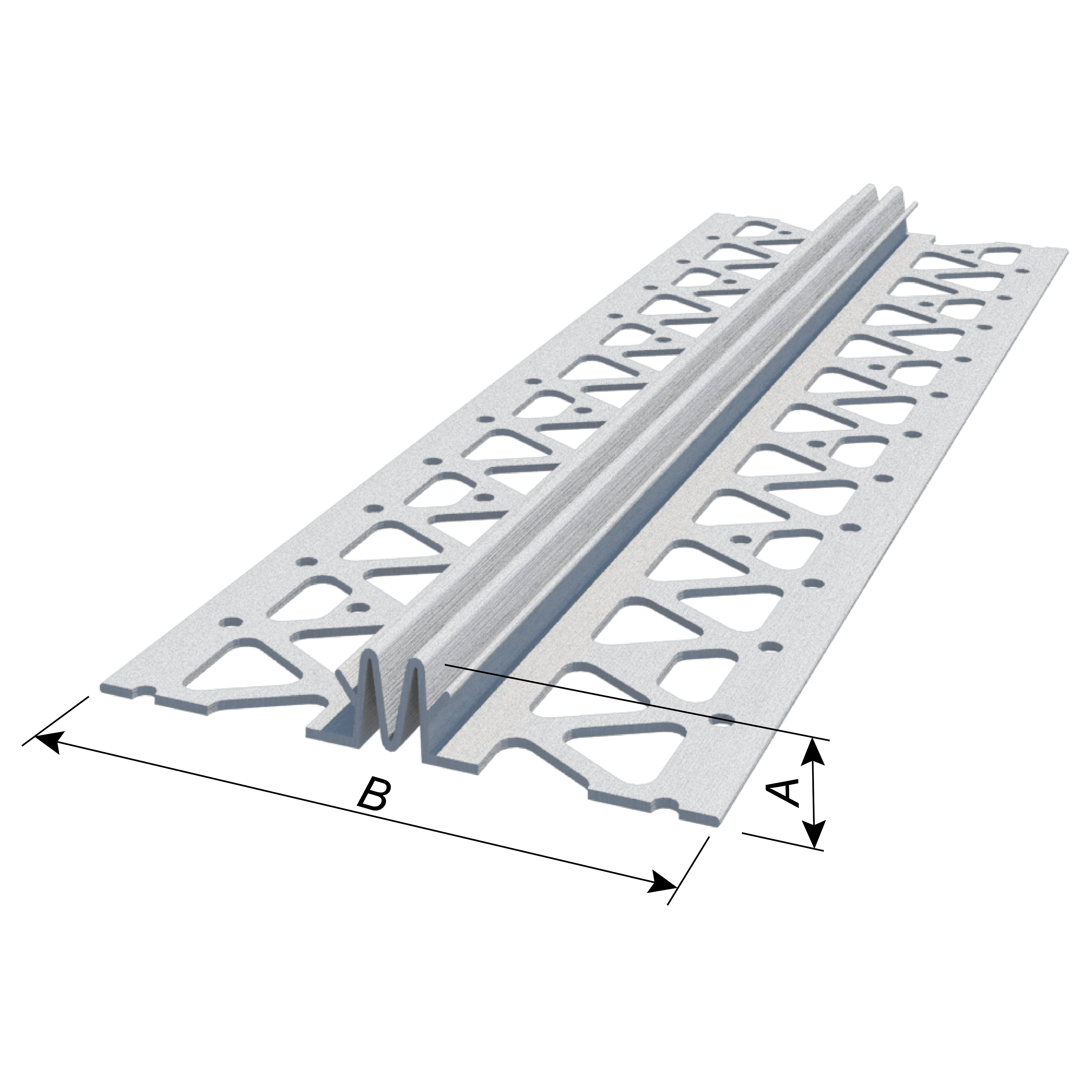

| Product code | Ground (A) | Overall width (B) | Length | Pcs./Box |
|---|---|---|---|---|
| 1538 | 3/8" | 4" | 10' | 35 |
| 1550 | 1/2" | 4" | 10' | 35 |
NOTE: Connector clips are provided except with 3/8" ground. Positive attachment of each flange or control joint to separate framing is required. Caulk all intersections, butt joints, ends and corners at time of installation.
