Drift FastClip™ Slide Clip (D-FCSC)New
Vertical and lateral building movement up to 2"

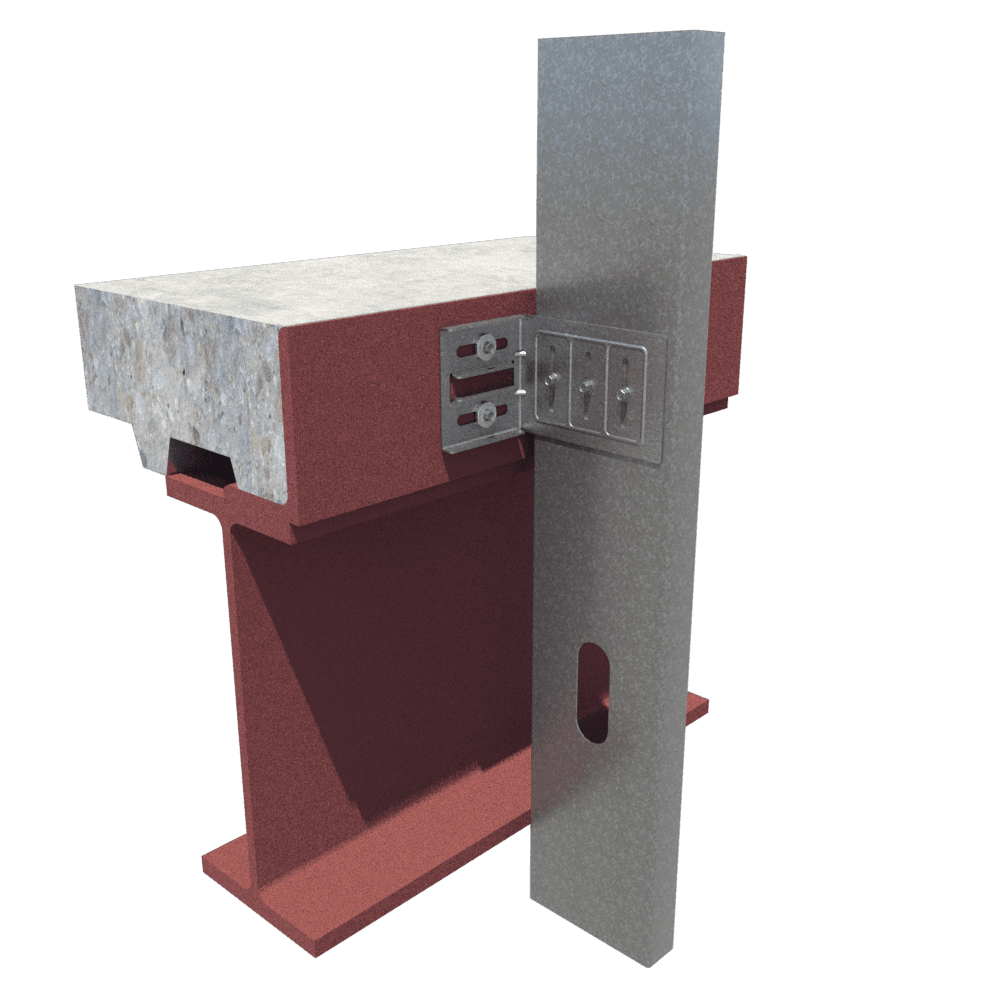

ClarkDietrich Drift FastClip™ Slide Clips 68mils (14ga) or 97mils (12ga) are used to attach exterior curtain-wall studs to the building structure and provide for both vertical and lateral movement.
Quick Actions:
Proprietary Deflection Screws are provided with each clip for attachment to the wall studs and allow for 2" vertical deflection (1" up and down) to ensure friction-free sliding. Step bushing are provided for the connection to the structure and allow for 2" lateral deflection (1" left and right).
U.S. Patent No. D814,905
Product Dimensions:
D-FCSC3.5: 3-3/4" x 4" x 3-1/2" long
D-FCSC6: 3-3/4" x 4" x 6" long
D-FCSC8: 3-3/4" x 4" x 7-3/4" long
Drift bushing and deflection screws
Step bushing are provided for the connection to the structure and allow for 2" lateral deflection (1" left and right). ClarkDietrich deflection clips include our Proprietary Deflection Screw that has been specifically designed to provide friction-free deflection. These fasteners eliminate drag, binding or resistance that can often occur with common fasteners.

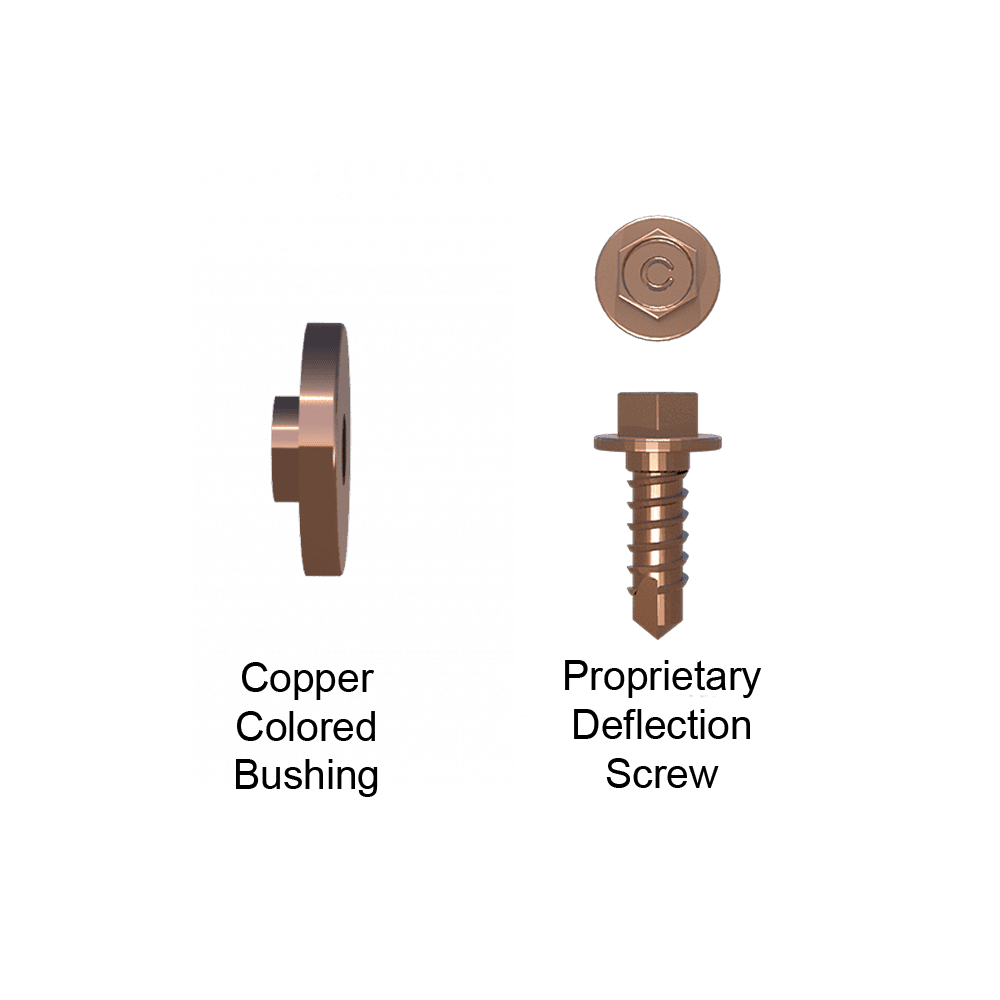

- Copper Colored Bushing for 14ga Clips

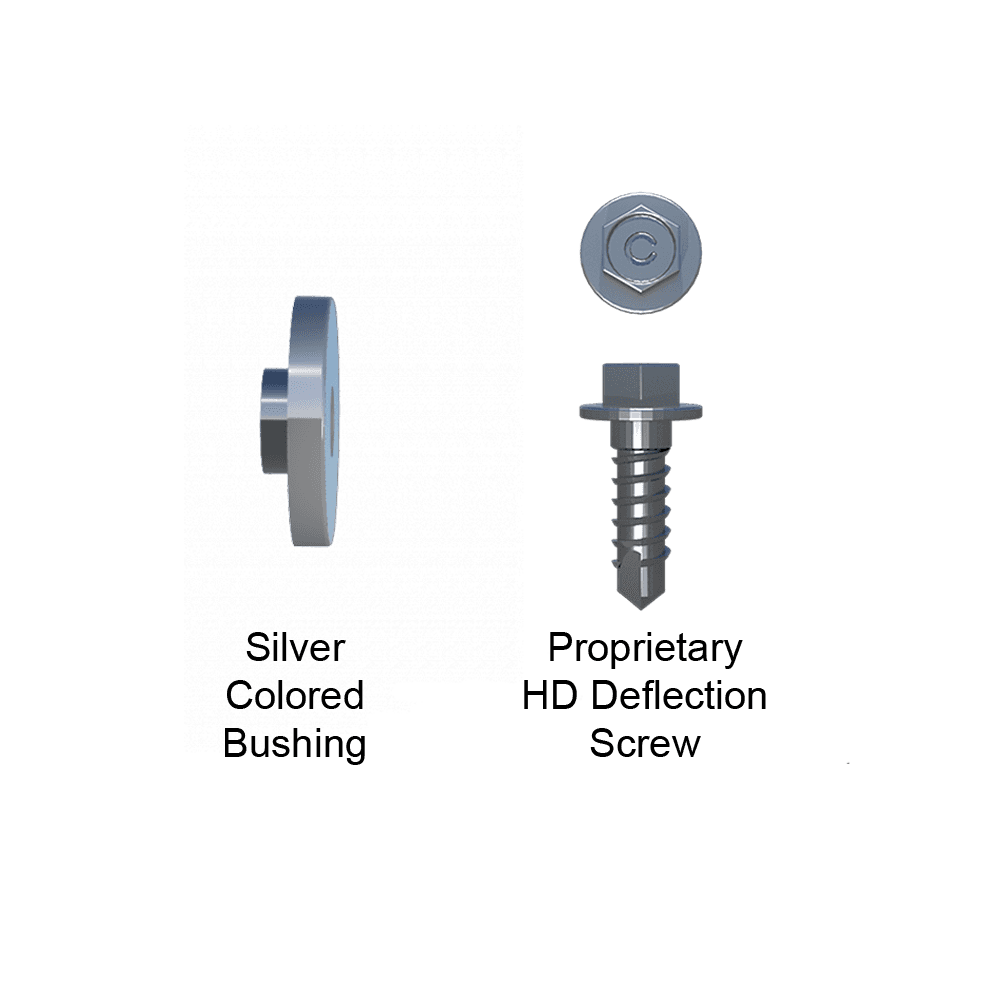

- Silver Colored Bushing for 12ga Clips
- Proprietary Deflection Screws for 14ga Clips
- Proprietary HD Deflection Screws for 12ga Clips
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
Click the below Product Code to view Tech Datasheet
| Product Code | Gauge | Mils | Design Thickness | Clip Length | Bushings per Clip | Slots/Deflection Screws per Clip |
|---|---|---|---|---|---|---|

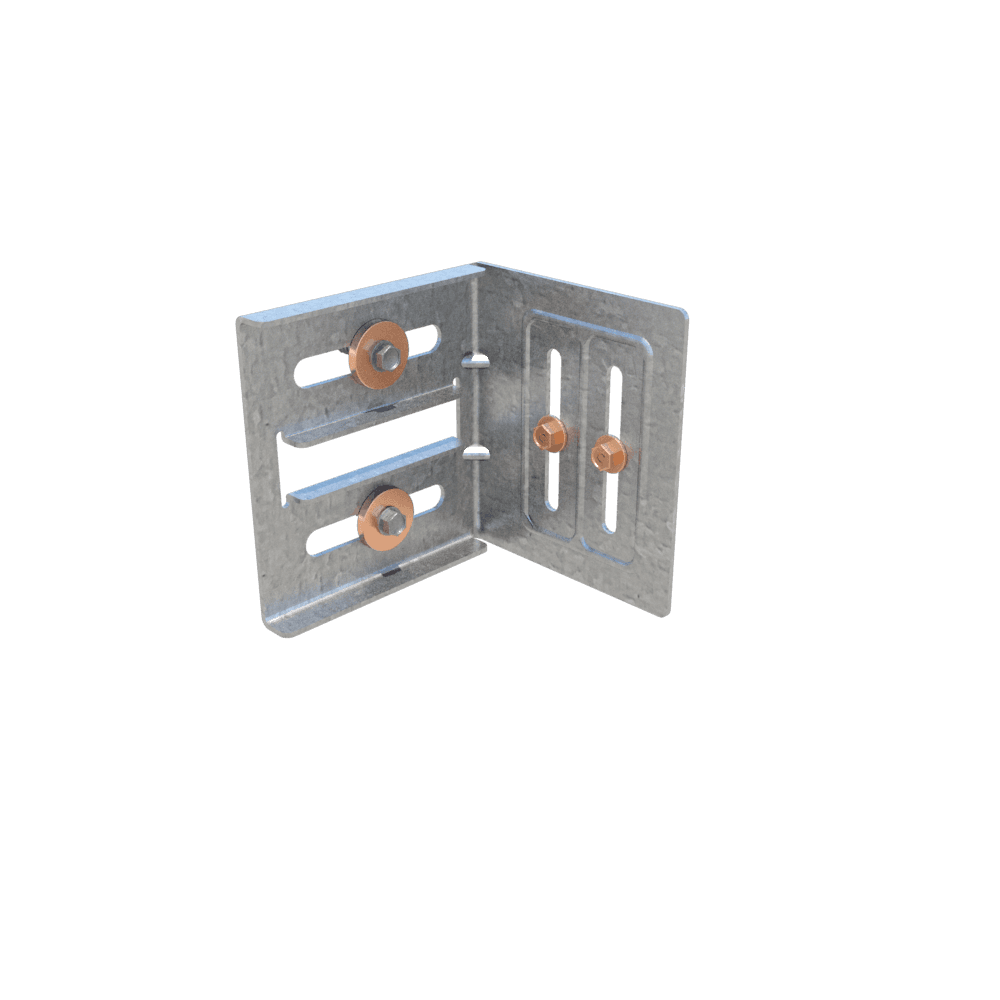

| D-FCSC3.5-68 | 14 | 68 | 0.0713" | 3-1/2" | 2 | 2 |

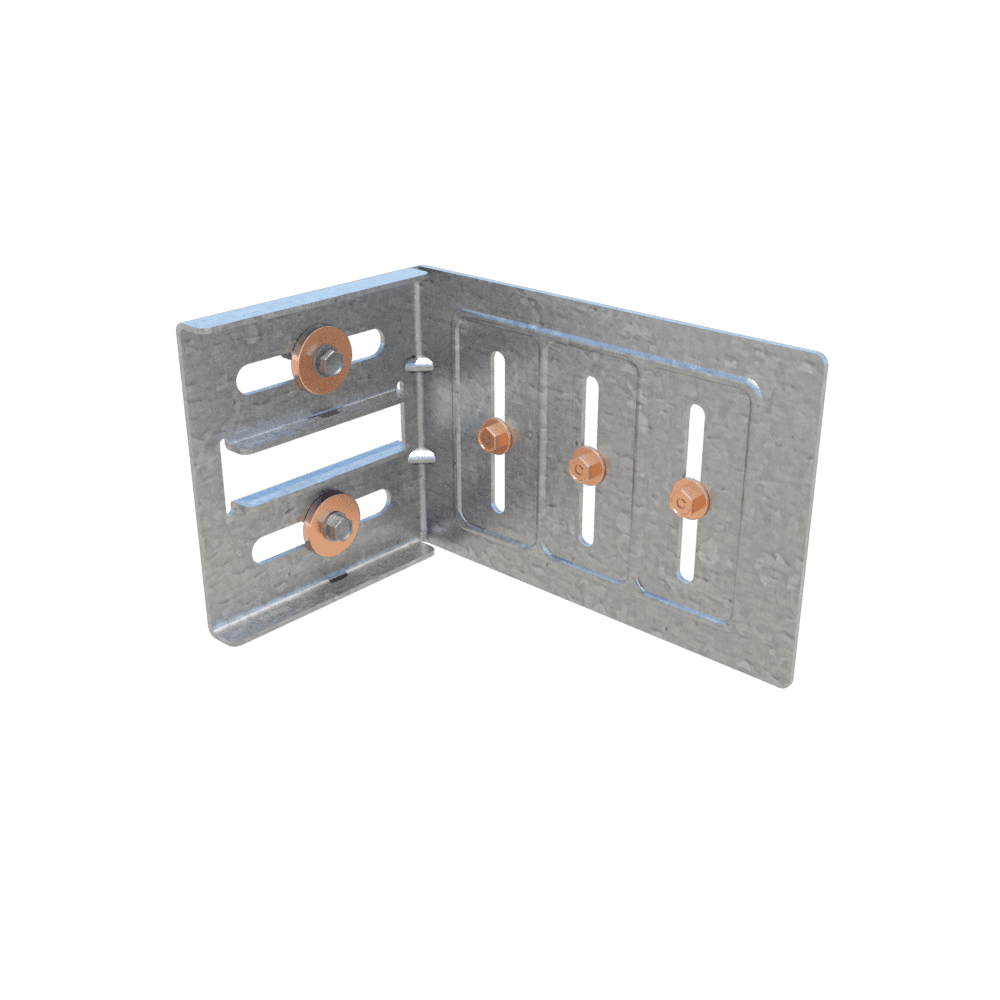

| D-FCSC6-68 | 14 | 68 | 0.0713" | 6" | 2 | 3 |

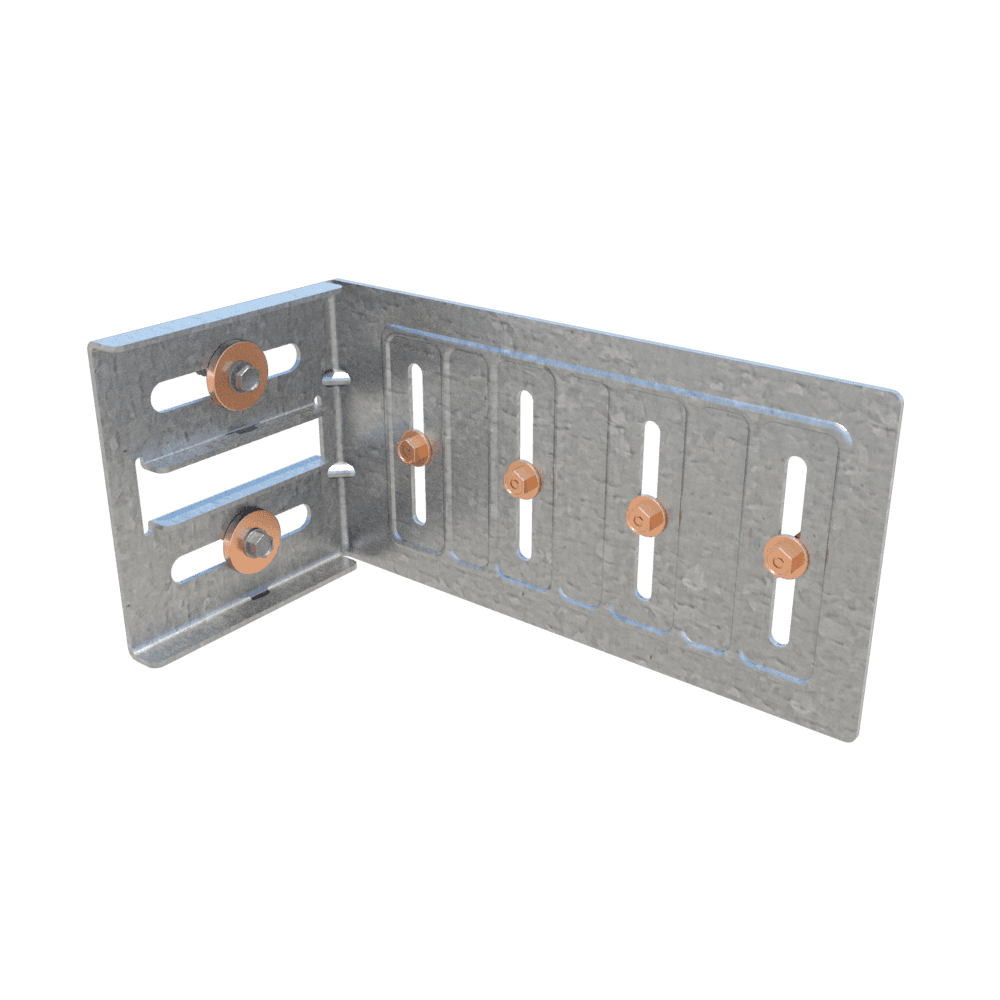

| D-FCSC8-68 | 14 | 68 | 0.0713" | 7-3/4" | 2 | 4 |
| D-FCSC3.5-97 | 12 | 97 | 0.1017" | 3-1/2" | 2 | 2 |

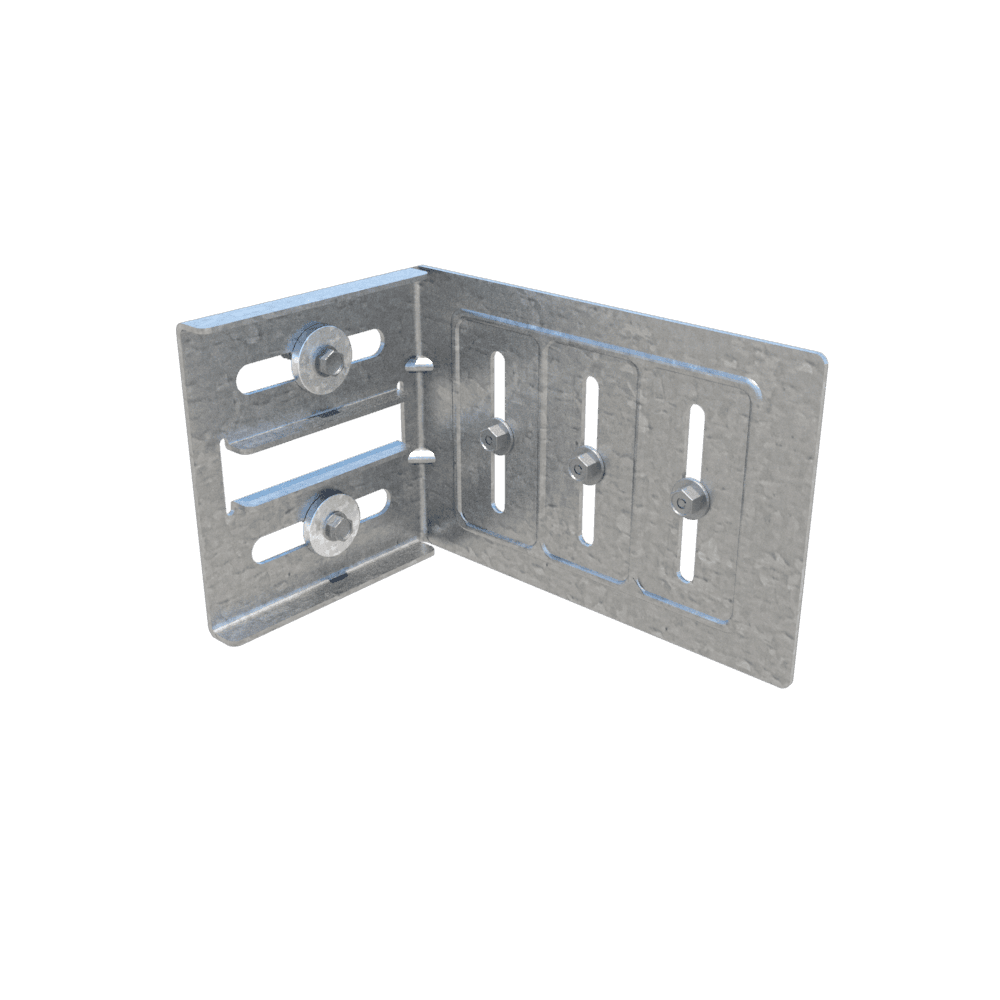

| D-FCSC6-97 | 12 | 97 | 0.1017" | 6" | 2 | 3 |

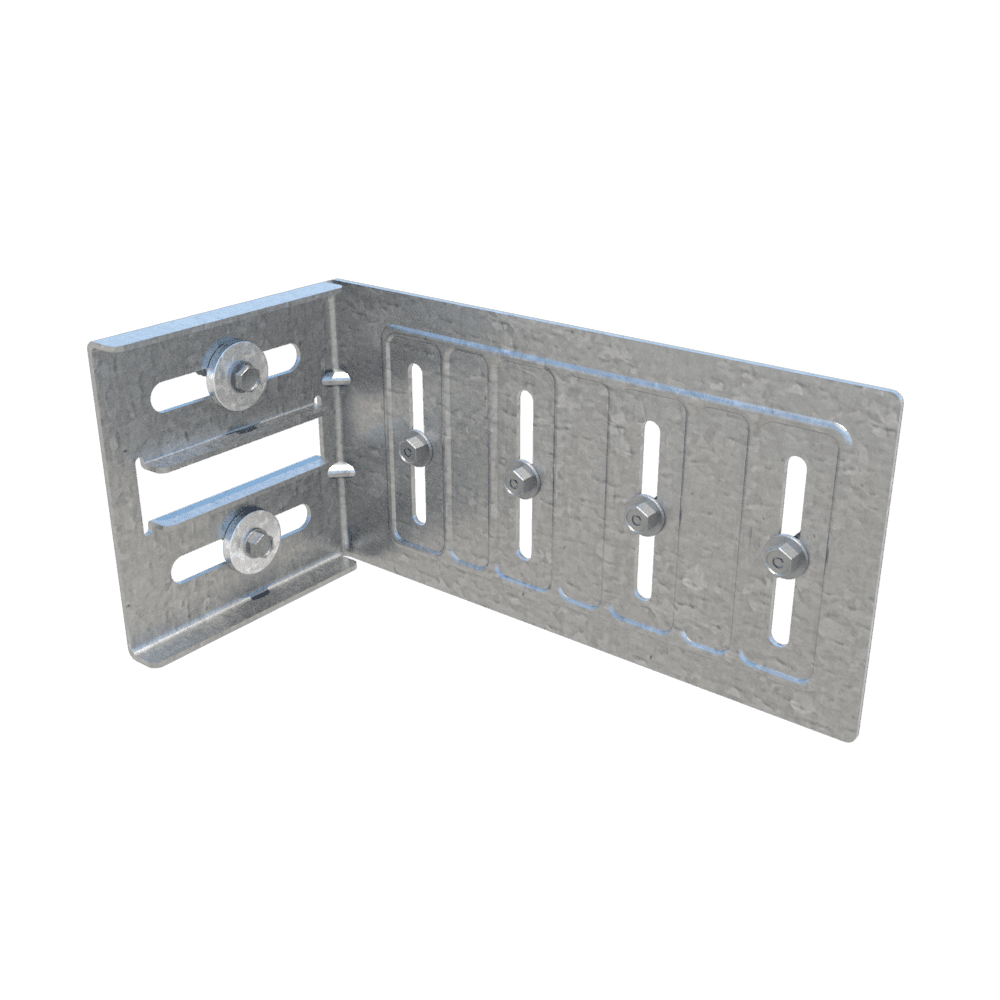

| D-FCSC8-97 | 12 | 97 | 0.1017" | 7-3/4" | 2 | 4 |
Packaging: 25 Clips per Bucket
1. D-FCSC3.5 includes (55) Proprietary Deflection Screws & (50) Bushings
2. D-FCSC6 includes (80) Proprietary Deflection Screws & (50) Bushings
3. D-FCSC8 includes (110) Proprietary Deflection Screws & (50) Bushings
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
