Deflection Track w/ ProTRAK LinerNew

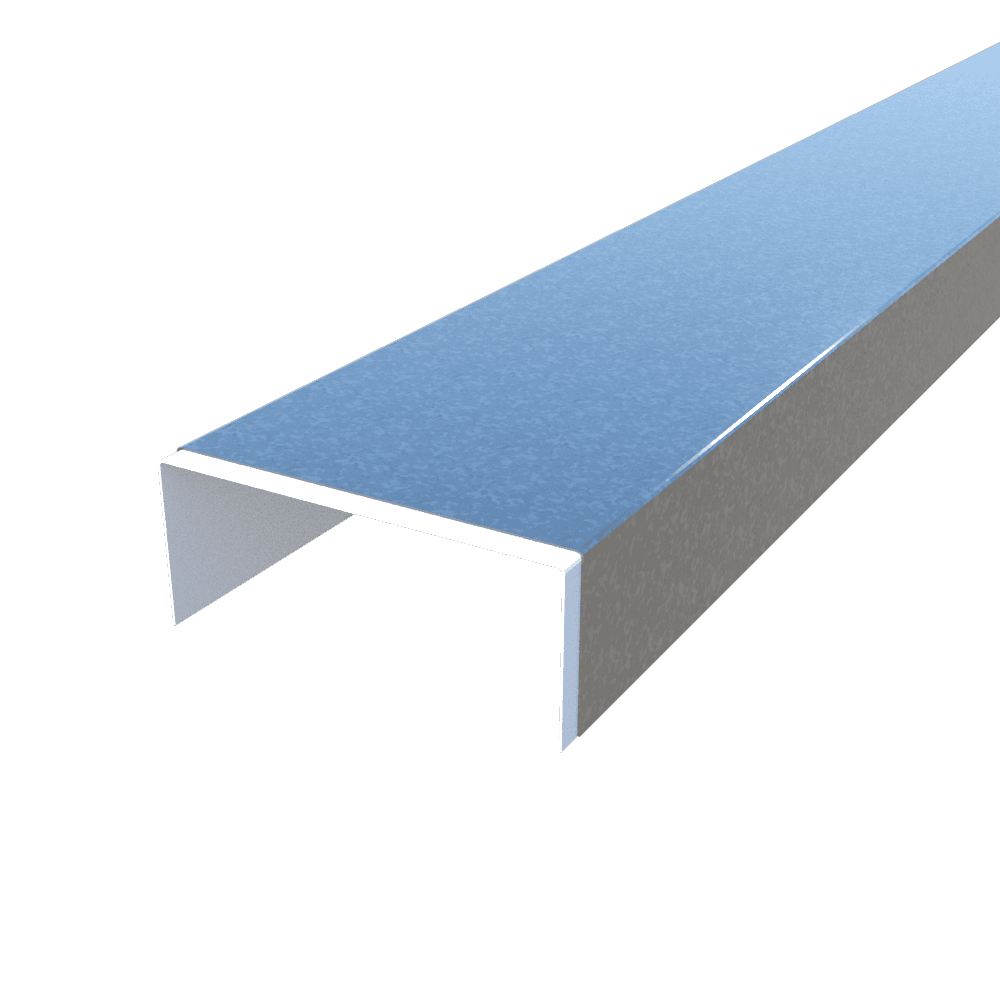

A vinyl sleeve insert used inside a deflection track for interior walls to break the steel-on-steel connection.

Quick Actions:

Sustainability

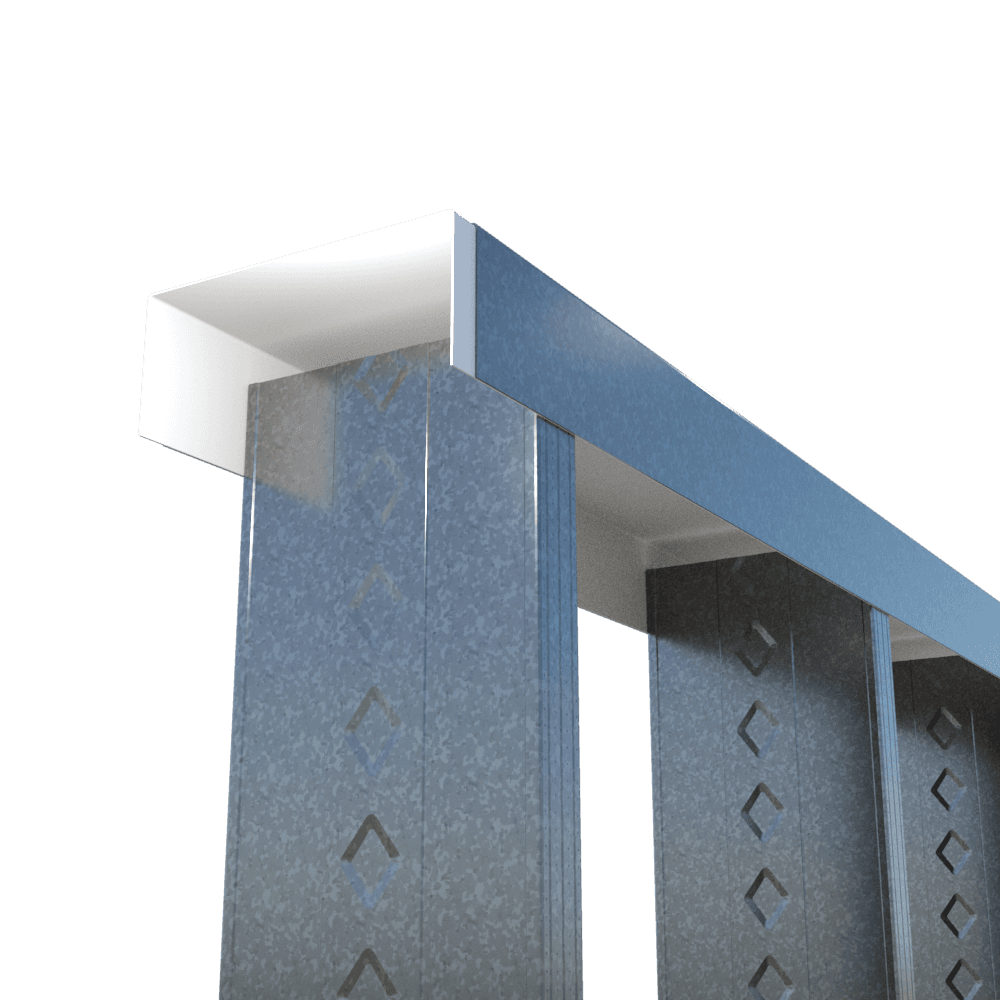

Deflection track for interior walls w/ ProTRAK Liner provides a vinyl barrier between framing members, serving as a break for metal-on-metal contact in head of wall assemblies. The ProTRAK Liner is friction fitted into a custom-size track and then shot in place using standard fastener attachments. ClarkDietrich ProSTUD is then installed in the usual manner. ProTRAK Liner is pliable and will not inhibit fastener attachment.

Not all ProTRAK Liner products are available in all markets. Please check with your local ClarkDietrich sales representative for availability in your area.

Product Data & Ordering Information:

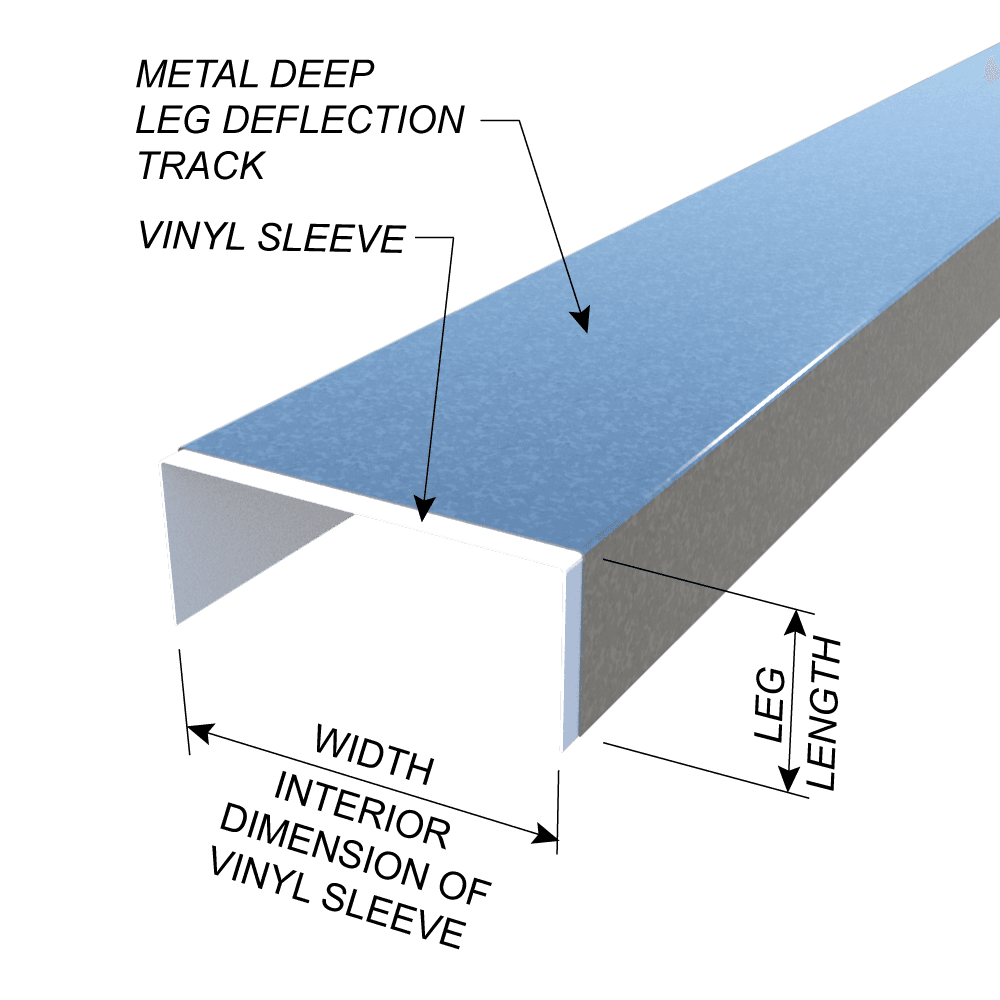

  • 2", 2-1/2" or 3" legs with an inside width equal to the depth of the stud
  • Standard widths available: 1-5/8", 2-1/2", 3-5/8", 4", and 6"
  • Length: 10'-0"

Deflection Track System
Coating: CP60 (CP90 available)
Thickness:

  • 33mils (20ga STR)
  • 43mils (18ga)
  • 54mils (16ga)
  • 68mils (14ga)

ProTRAK Liner
Thickness: 0.050" PVC (Polyvinyl Chloride)
