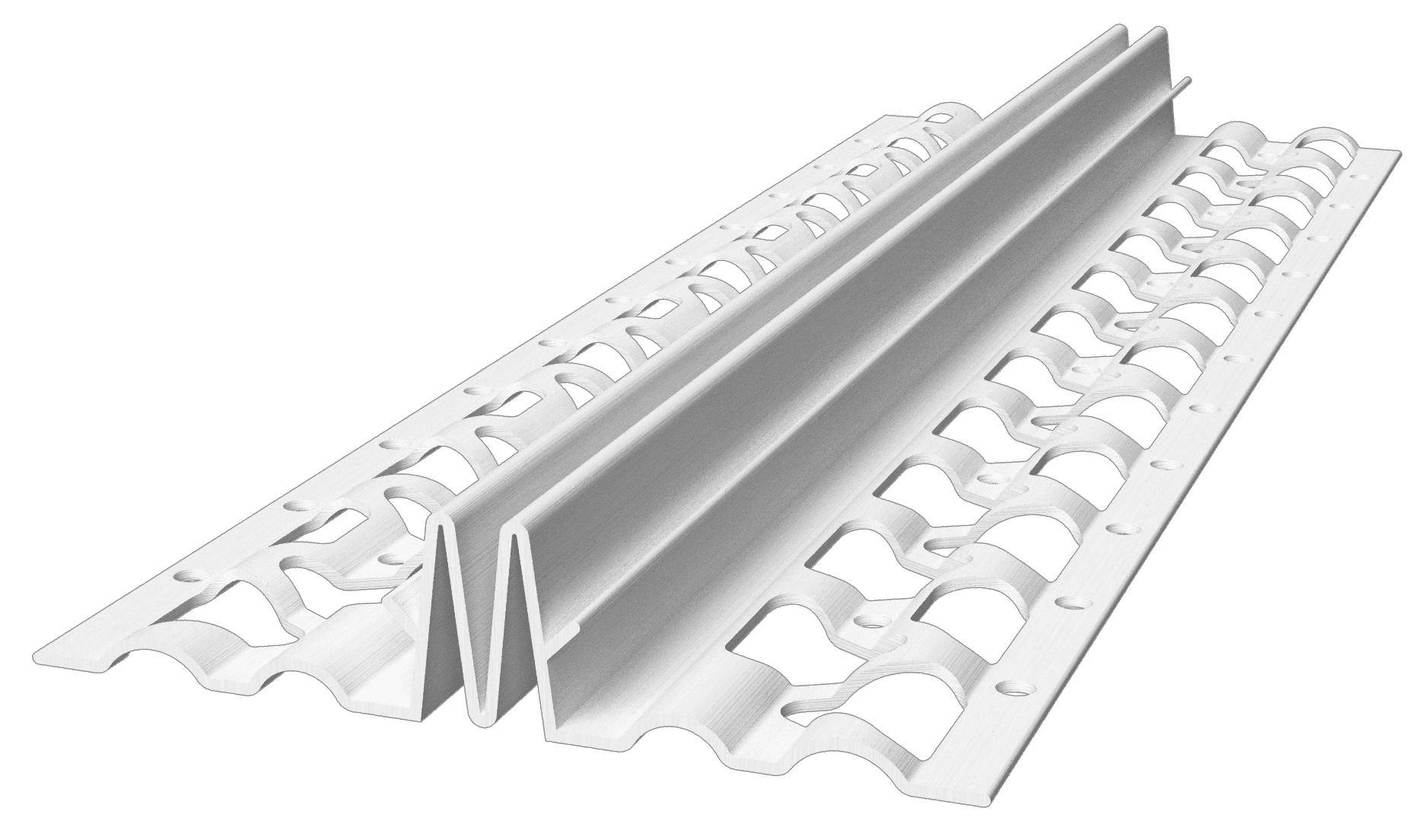

E-Flange™ Control JointNew
PVC Control Joint with Embeddable Flange design
Designed to relieve stress and assist in controlling cracking in large areas of walls and ceilings. Specially designed connector clips are provided for alignment and base for sealants.
Quick Actions:

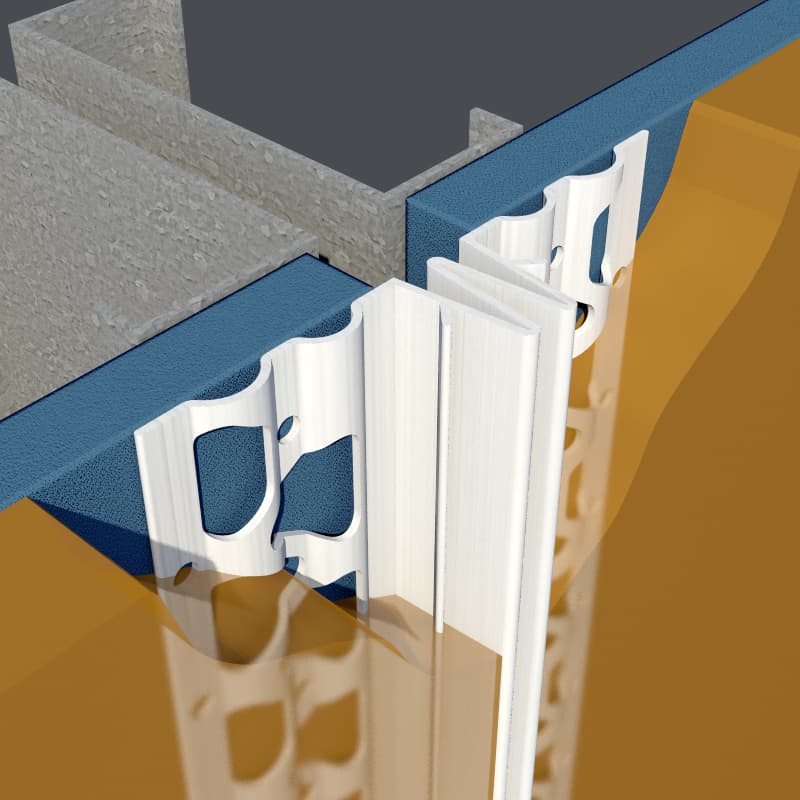

ClarkDietrich E-Flange™ Control Joint has flanges with more open triangles combined with a raised rib in the center of each flange improving plaster embedment by 80% and provides for easy lath tying to the flange itself. E-Flange allows for more stucco mix to flow through the flange, providing a more thorough and consistent embedment. The unique E-Flange shape also allows for quick and easy tying of lath and other accessories.
Product notes:
- Designed to relieve stress and assist in controlling cracking in large areas of walls and ceilings. Specially designed connector clips are provided for alignment and base for sealants.
- Raised flange height is approximately 3/16"
- Factory fabricated control joint intersections are available in cross, tee and right angle configurations. Contact sales representative for more information.
- U.S. Patent Number D842,497
Product Data & Ordering Information

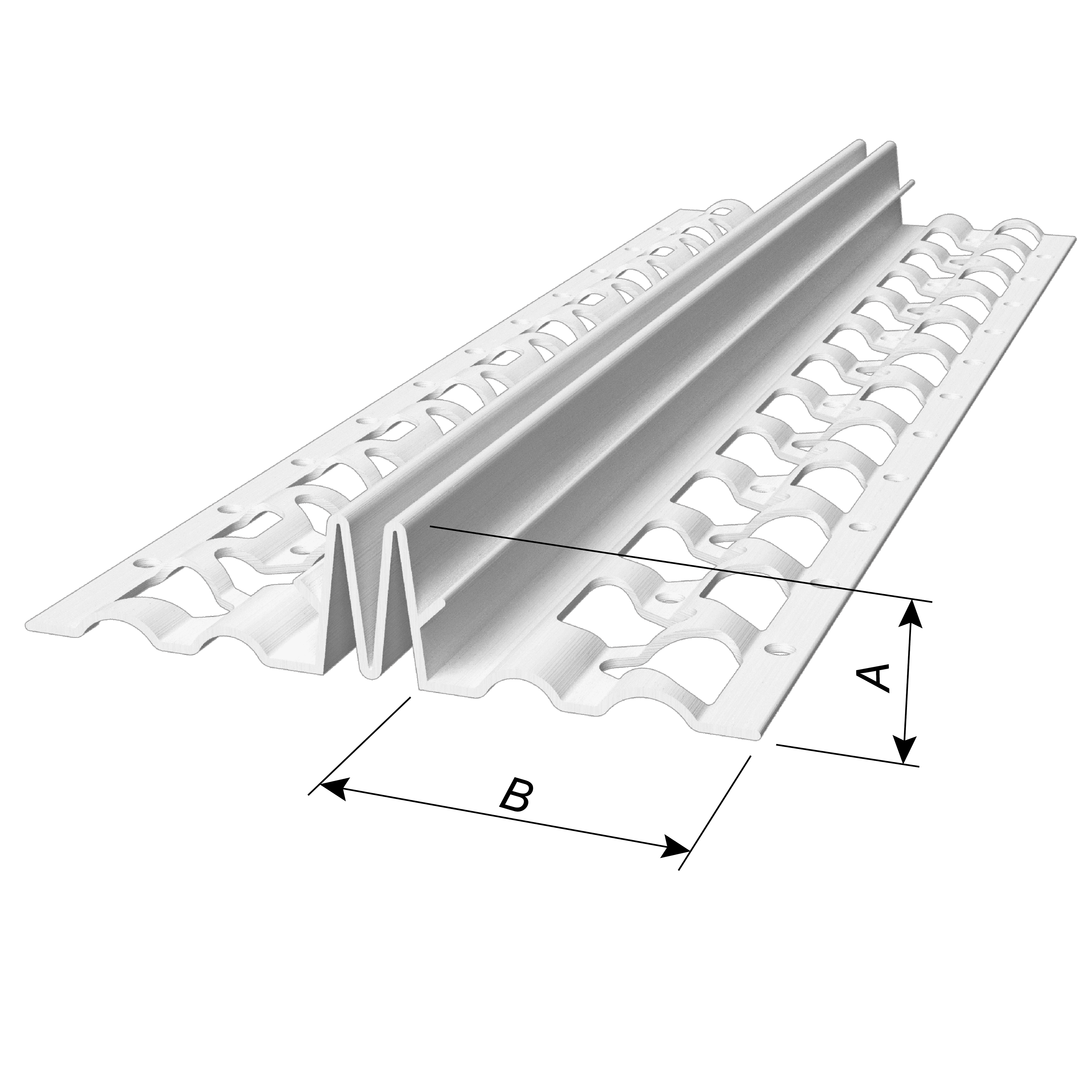

| Product code | Ground (A) | Flange width (B) | Length | Pcs./Box |
|---|---|---|---|---|
| 1558EF | 5/8" | 1-3/4" | 10' | 30 |
| 1575EF | 3/4" | 1-3/4" | 10' | 26 |
| 1578EF | 7/8" | 1-3/4" | 10' | 20 |
| 15100EF | 1" | 1-3/4" | 10' | 20 |
Lengths: Custom lengths upon request.

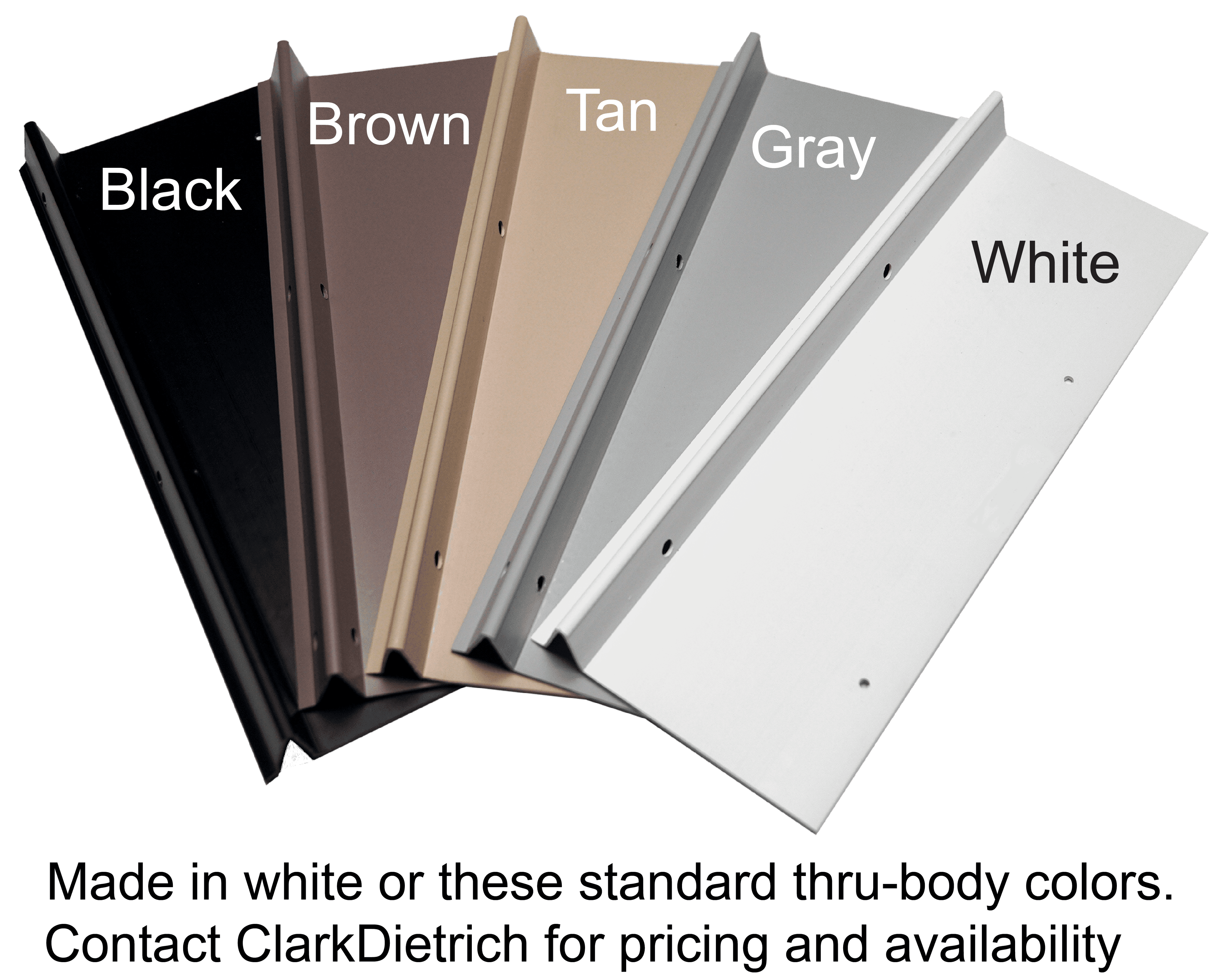

Colors: Available in white (tan/brown/gray available upon request)
