FastBack® Backing System (FBBC)New
Universal design-Works with studs in either direction
The FastBack backing system features a universal design that works with studs in either direction—concealing fasteners on the face of the product. Reduces screw pops and touch up work with no exposed fasteners on the face of the product.
Quick Actions:

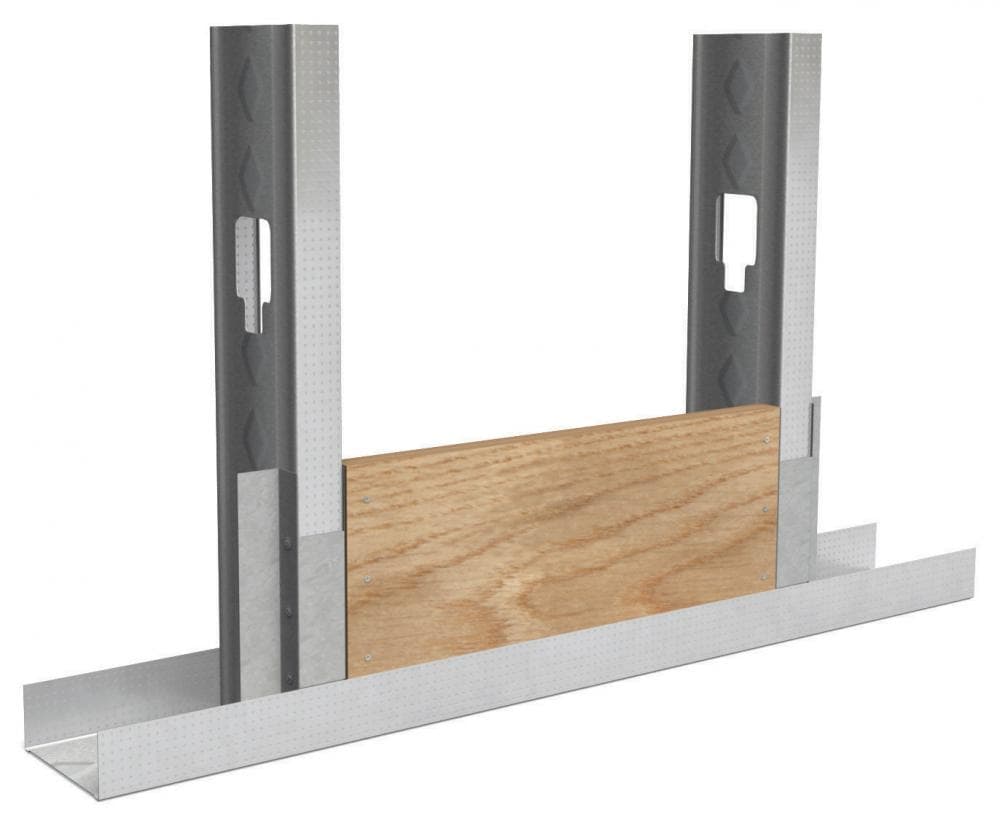

The system creates an interlocked design between the stud and track for baseboard backing installations; and a cutaway design allows backing and bracing to be installed all the way to the floor. Optional pre-cut and fire-retardant D-Blaze® or FlamePRO® Wood Backing is sized to fit 12," 16" and 24" o.c. spacing and can be used with the FBBC5 or FBBC10 clip. Available for overnight delivery.

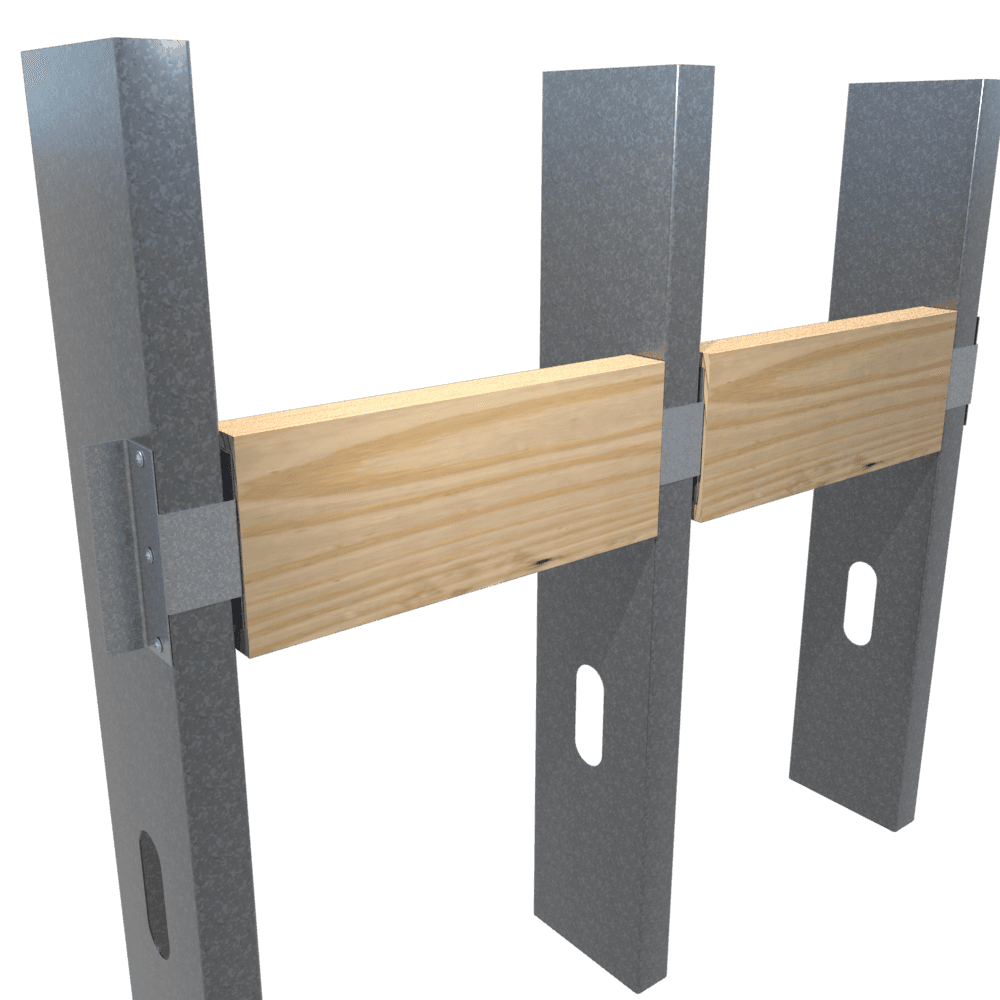

FBBC5-2X, 162-FBBC5-2X and 200-FBBC5-2X are designed to support traditional 2X lumber.
Perfect backing system for:
- Handrails
- Baseboards
- Door Jams and Wood Trim
- Cabinets and Vanities
D-Blaze® and FlamePRO® FRT is pressure-treated wood that is chemically treated to reduce the flamespread and smoke development. Both D-Blaze® and FlamePRO® are Class A fire retardant; EPA registered, and comply with all national codes including the International Building Code (IBC) and the International Residential Code (IRC).
D-Blaze® is a registered trademark of Viance, LLC.
FlamePRO® is a registered trademark of Koppers Performance Chemicals, Inc.
FastBack® - U.S. Patent Nos. 7,882,676 is owned by Jeffery Thomas Ellis
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information

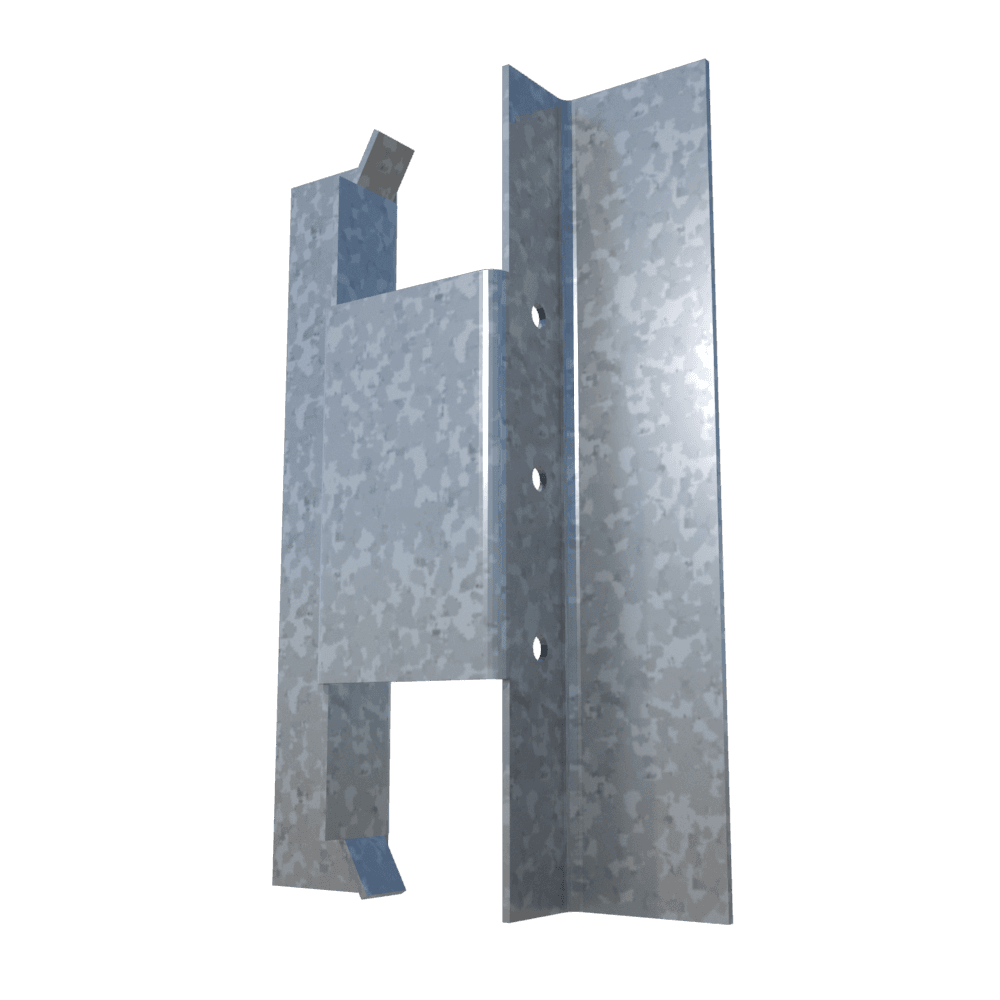

FastBack® Backing Clip

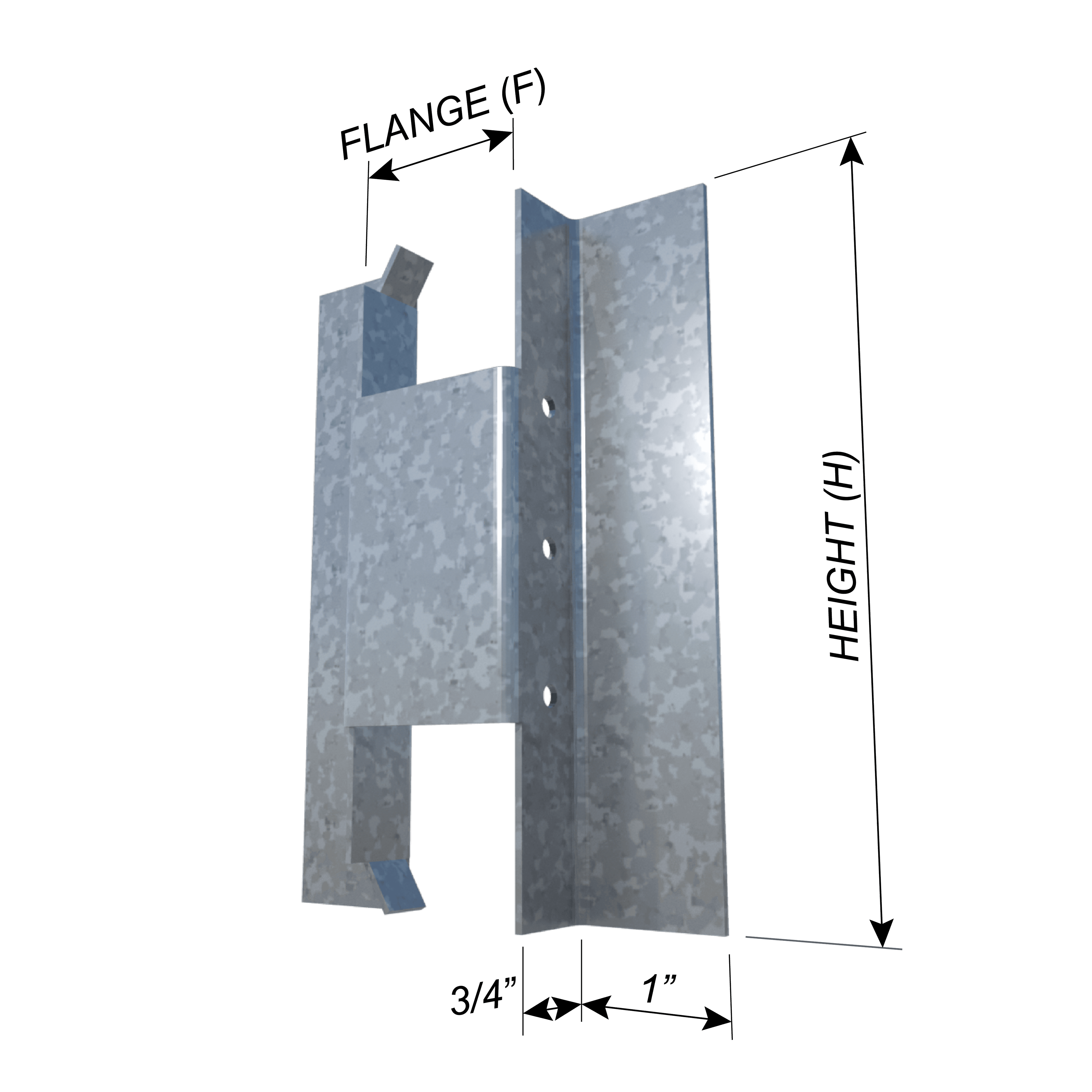

| Product Code | Stud Flange Width | Height | Backing Thickness | Pcs./Ctn. |
|---|---|---|---|---|
| FBBC5 | 1-1/4" | 5-1/8" | 3/4" (5 ply) | 50 |
| FBBC10 | 1-1/4" | 10-1/4" | 3/4" (5 ply) | 50 |
| FBBC5-2X | 1-1/4" | 5-1/8" | 1-1/2" (2X Lumber) | 50 |
| 162-FBBC5-2X | 1-5/8" | 5-1/8" | 1-1/2" (2X Lumber) | 50 |
| 200-FBBC5-2X | 2" | 5-1/8" | 1-1/2" (2X Lumber) | 50 |
Clip Material: Grade 50ksi min. yield strength, G90
33mils: 20ga STR, 0.0346”Design Thickness, 0.0329“ Min. Thickness

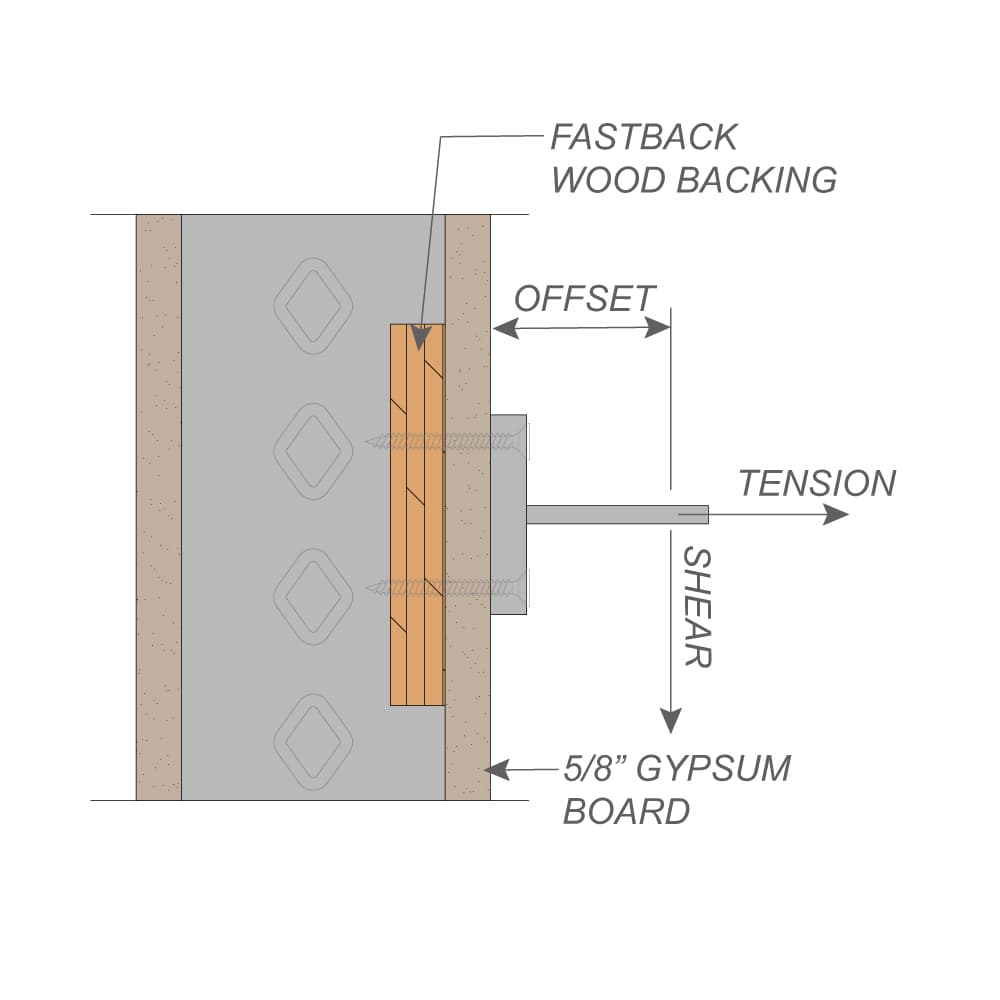

D-Blaze® or FlamePRO® Wood Backing
| Product Code | Thickness | Width | Height | For Stud Spacing | Pcs./skid |
|---|---|---|---|---|---|
| 5FBW12 | 3/4" (5 ply) | 5-1/8" | 10-1/2" | 12"o.c. | 720 |
| 5FBW16 | 3/4" (5 ply) | 5-1/8" | 14-1/2" | 16"o.c. | 540 |
| 5FBW24 | 3/4" (5 ply) | 5-1/8" | 22-1/2" | 24"o.c. | 360 |
| 10FBW12 | 3/4" (5 ply) | 10-1/4" | 10-1/2" | 12"o.c. | 720 |
| 10FBW16 | 3/4" (5 ply) | 10-1/4" | 14-1/2" | 16"o.c. | 540 |
| 10FBW24 | 3/4" (5 ply) | 10-1/4" | 22-1/2" | 24"o.c. | 360 |
