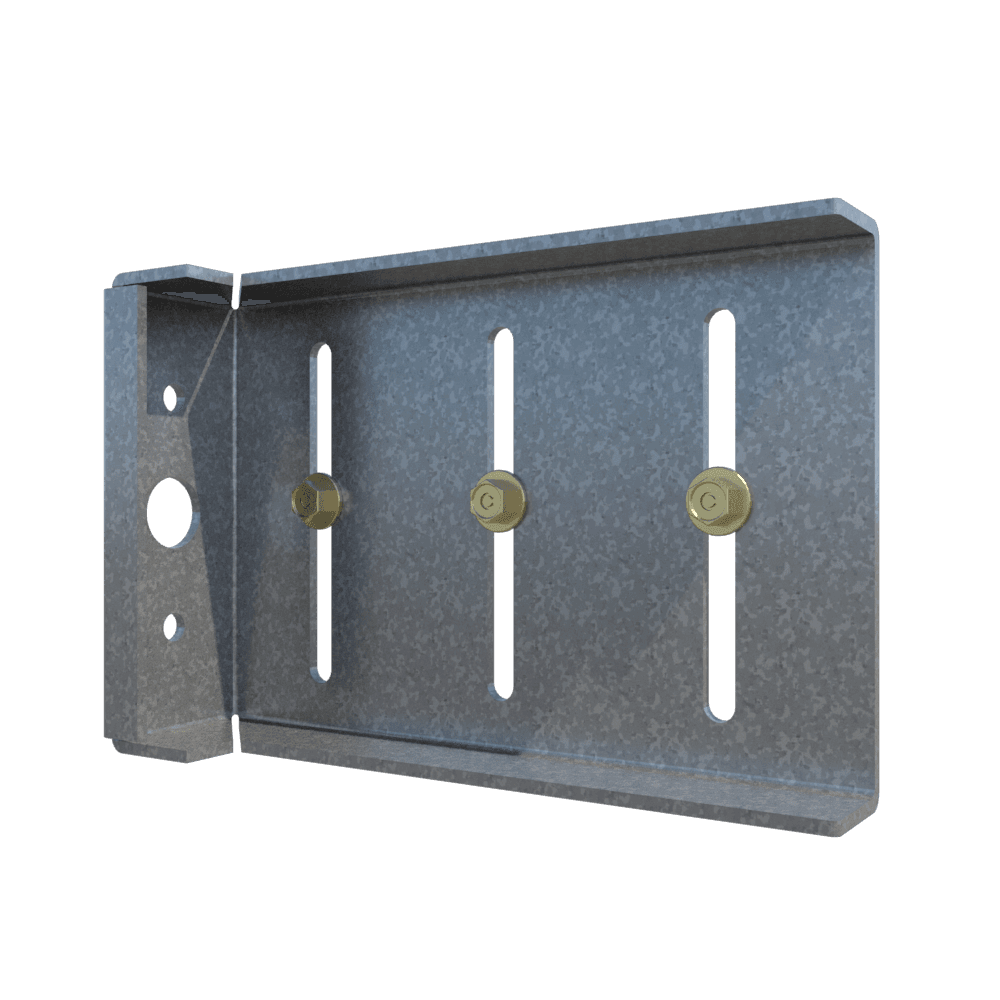

FastClip™ Slide Clip (FCSC-HD) w/Anchor HolesNew
Vertical building movement up to 3"

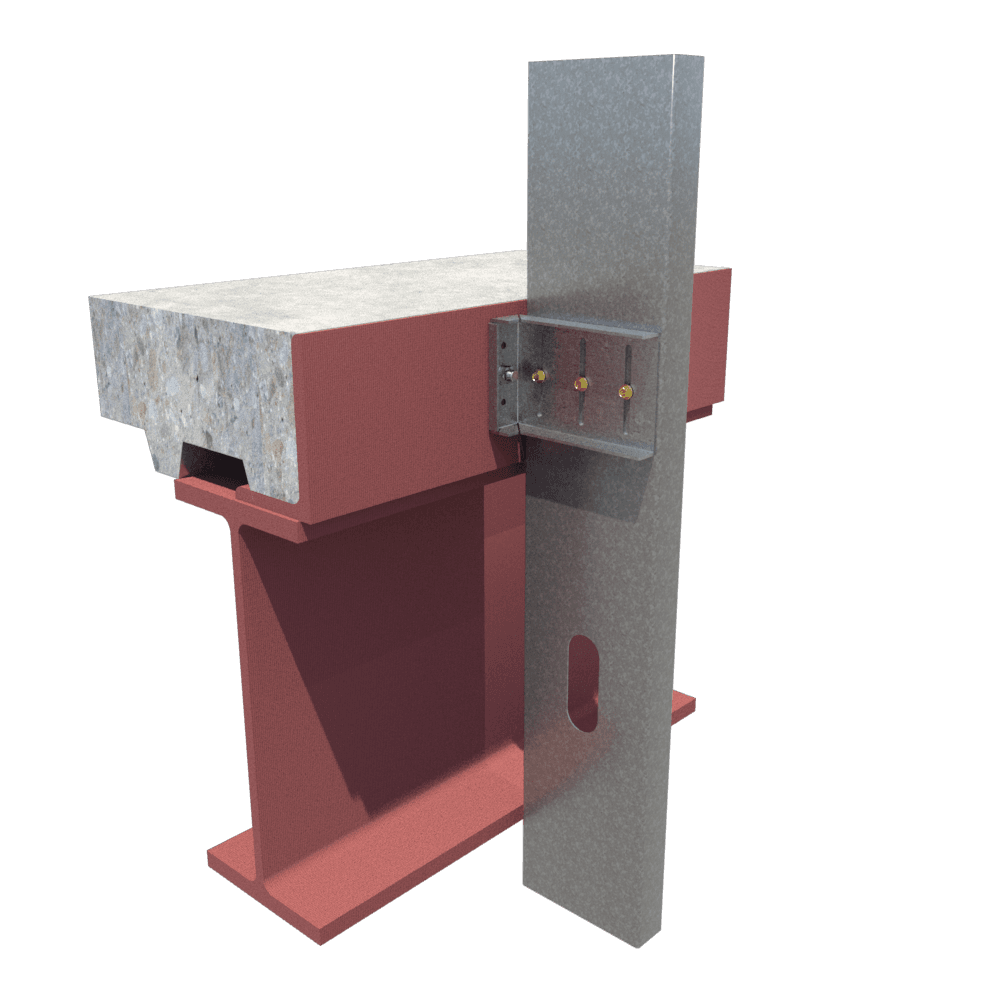

ClarkDietrich FCSC-HD 68mils (14ga) is used to attach exterior curtain-wall studs to the building concrete structure and provide for vertical building movement independent of the cold-formed steel framing.
Quick Actions:

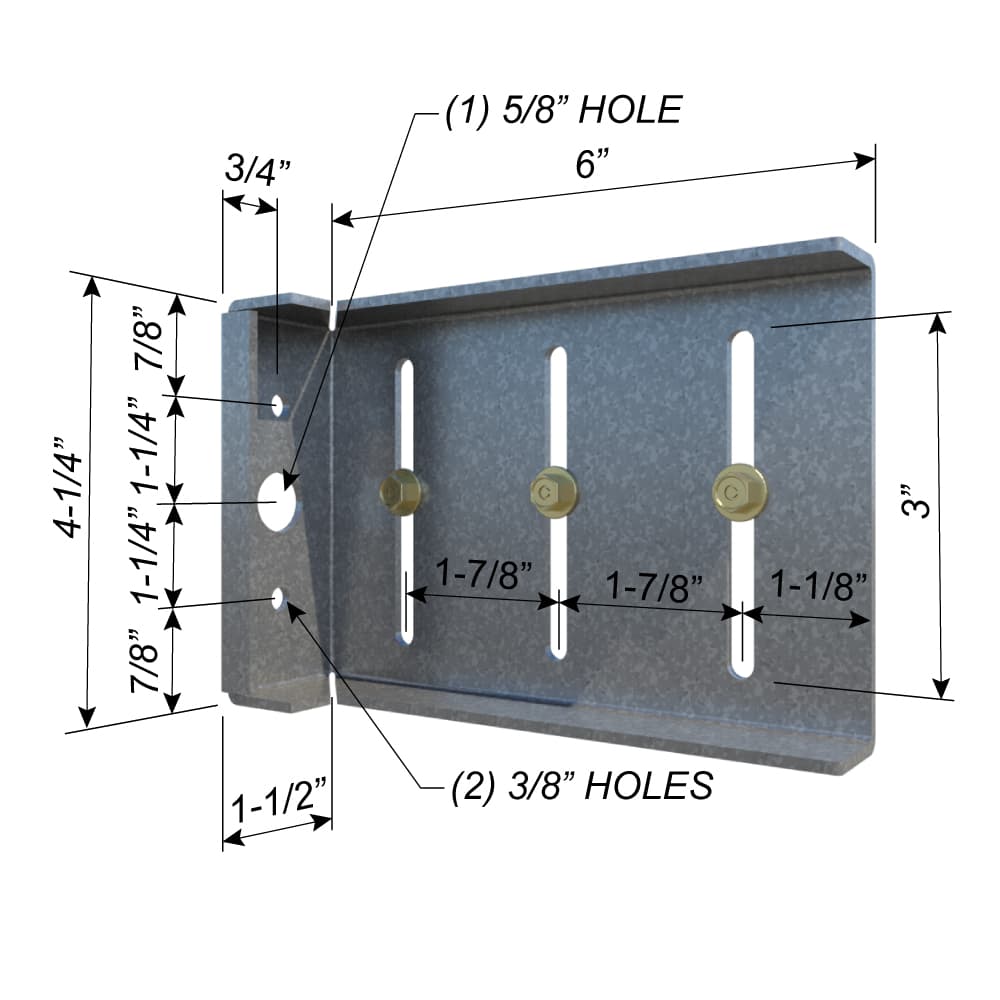

Proprietary Deflection Screws are provided with each clip for attachment to the wall studs and allow for 3" vertical deflection (1-1/2" up and down) to ensure friction-free sliding. A 5/8" hole in the short leg of the clip allows for a 1/2" concrete anchor to be attached to the slab. (2) 3/8" holes allow for 1/4" anchors.
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information:
| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Pcs./Bucket |
|---|---|---|---|---|---|
| FCSC-HD | 14 | 68 | 0.0713" | 1-1/2" x 4-1/4" x 6" long | 25 |
Includes 80 Proprietary Deflection Screws per bucket
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
