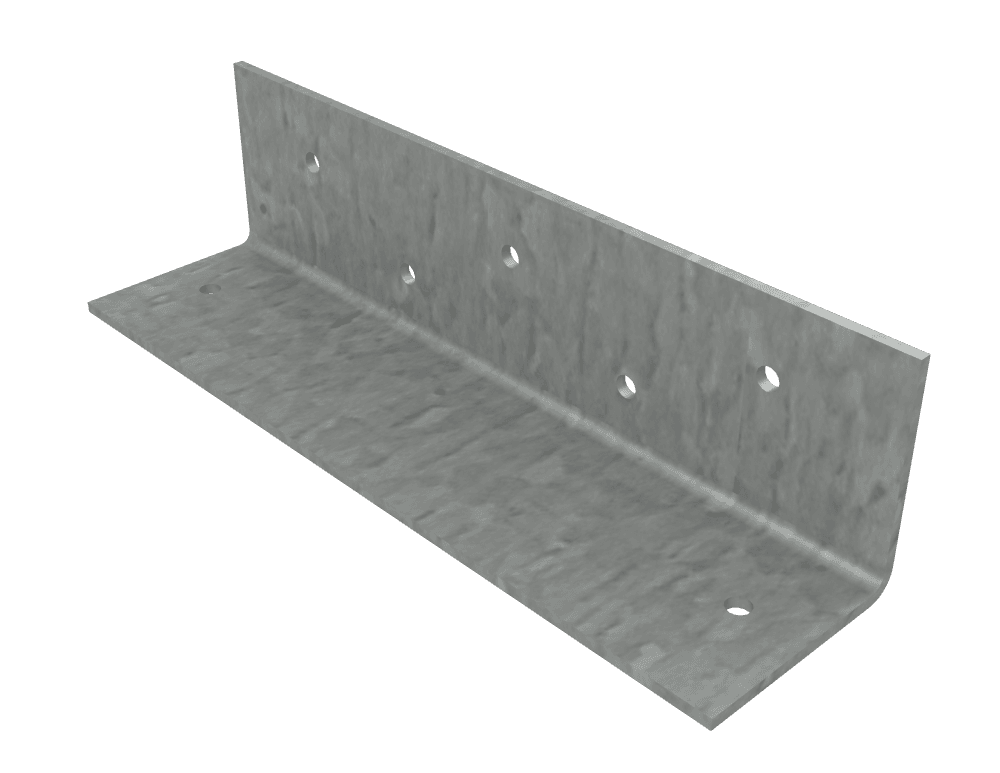

Header Cripple Stud Clip
The Header Cripple Stud Clip eliminates header track material, simplifies attachment to RedHeader PRO and HDS headers, and leaves the top open for easy insulation installation.
Quick Actions:

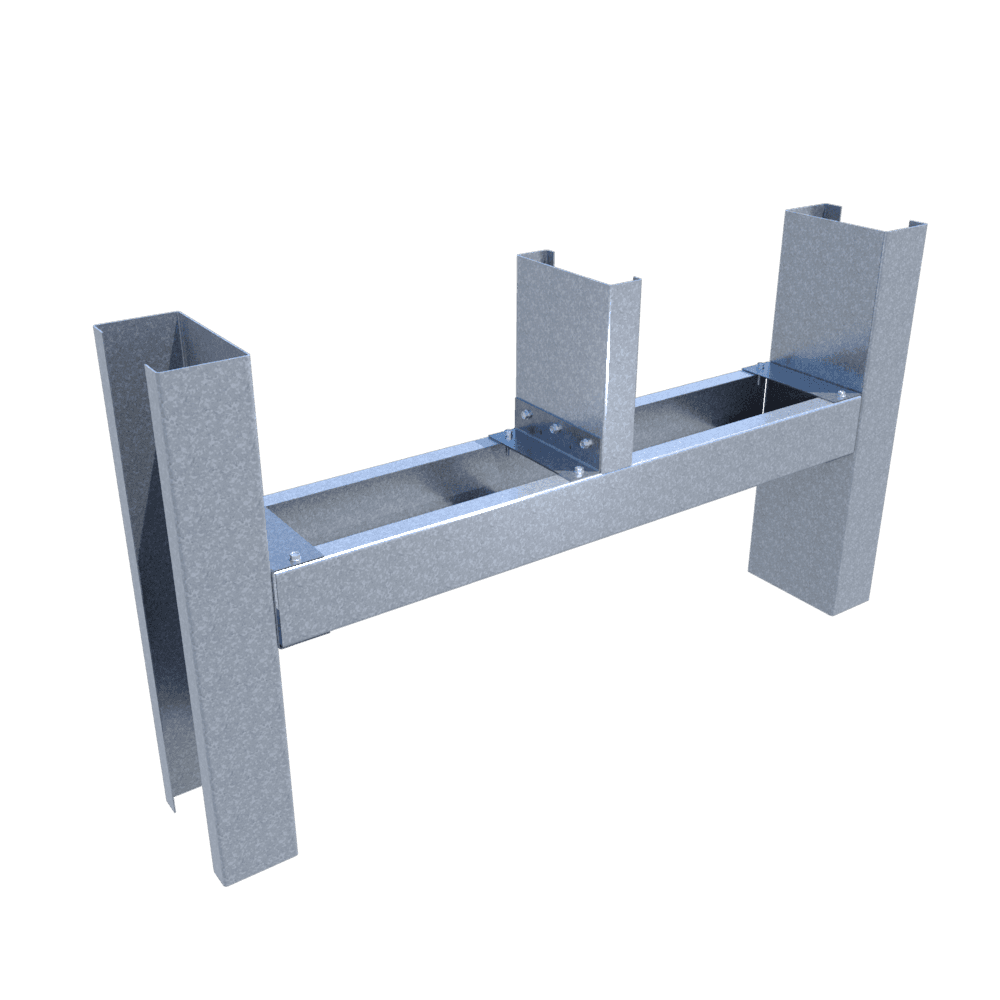

Why use a header Cripple Stud Clip with the RedHeader PRO or HDS Framing System?
- Eliminates the header track material and is a more economical alternative
- Extra long return legs on RedHeader PRO and HDS allows for ease of attachment
- Top of header is open, allowing for easy install of the insulation. No need to "pre-insulate" headers prior to installation

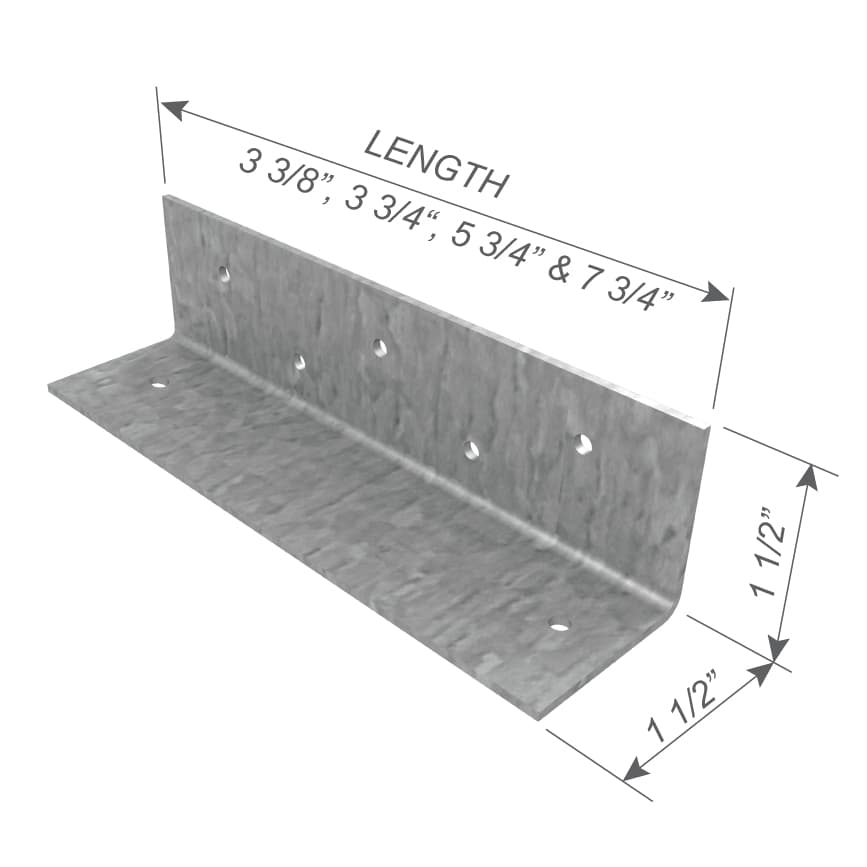

- Lengths available in 3-3/8", 3-3/4", 5-3/4", and 7-3/4"
- Available in 16 and 14 gauge
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
| Product code | Gauge | Mils | Design thickness (in) | Size (in) | For Header Size | Pcs./Bucket |
|---|---|---|---|---|---|---|
| RCSC3-54 | 16 | 54 | 0.0566" | 1-1/2" x 1-1/2" x 3-3/8" | 3-5/8" Web | 400 |
| RCSC4-54 | 1-1/2" x 1-1/2" x 3-3/4" | 4" Web | 200 | |||
| RCSC6-54 | 1-1/2" x 1-1/2" x 5-3/4" | 6" Web | 100 | |||
| RCSC8-54 | 1-1/2" x 1-1/2" x 7-3/4" | 8" Web | 100 | |||
| RCSC3-68 | 14 | 68 | 0.0713" | 1-1/2" x 1-1/2" x 3-3/8" | 3-5/8" Web | 200 |
| RCSC4-68 | 1-1/2" x 1-1/2" x 3-3/4" | 4" Web | 200 | |||
| RCSC6-68 | 1-1/2" x 1-1/2" x 5-3/4" | 6" Web | 100 | |||
| RCSC8-68 | 1-1/2" x 1-1/2" x 7-3/4" | 8" Web | 100 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
