Mega Lath

Mega Lath is an engineered product that provides easy attachment for both wood and steel construction. Specifically designed for stucco applications that require extra reinforcing, Mega Lath can be used as an alternative to 3.4 lb/yd² diamond mesh metal lath specified in ASTM C847 and at 1.95 lb/yd², Mega Lath can be installed 24" o.c. over open framing. Mega Lath is recommended wherever 2.5 lb/yd² or 3.4 lb/yd² metal sheet lath is specified.

Find out more about Structa Wire here

NEW INNOVATIVE PRODUCT

• Mega Lath is made with less metal but has more strength than any other product available – including sheet lath products
• It is engineered to meet weight requirements for architectural stone product installations

DESIGN FEATURES

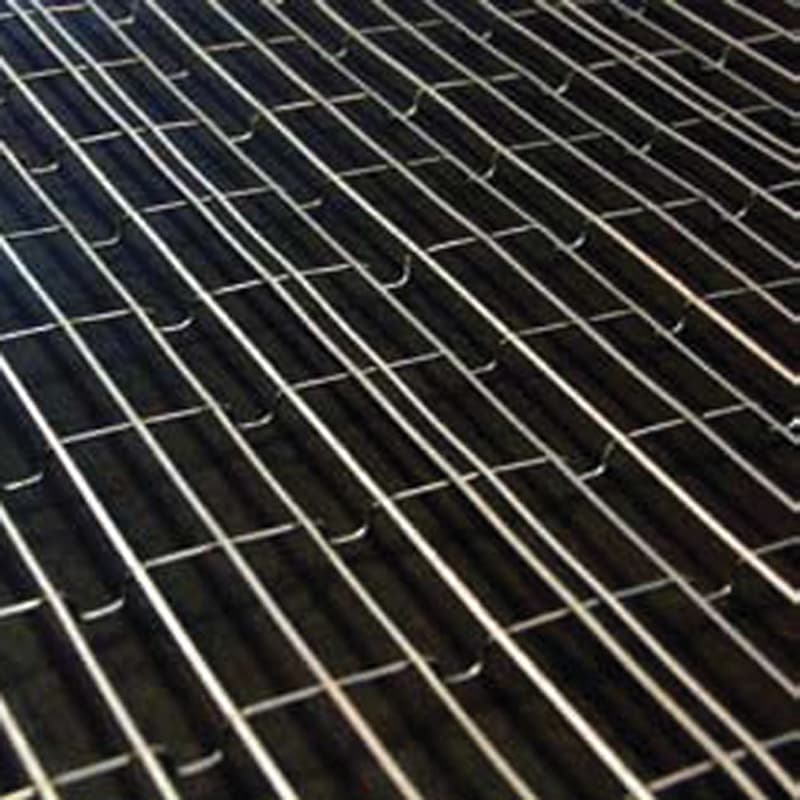

• Dense product is made from 16ga X 17ga galvanized steel wire welded to form 11/16" x 1.5" openings

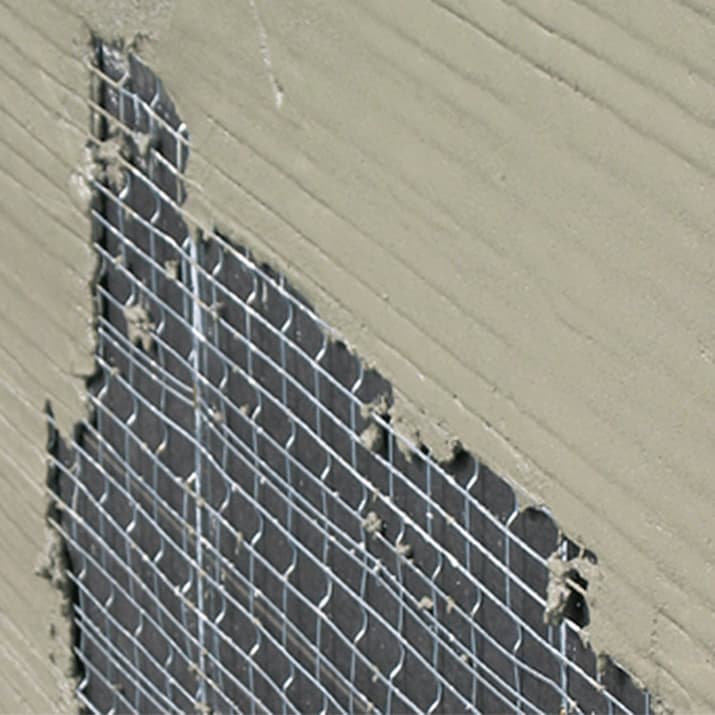

• Its design promotes uniform plaster thickness
• A series of flat-bottomed V-shaped furrs ensure a full 3/8" scratch coat
• Furr will not puncture the vapour barrier

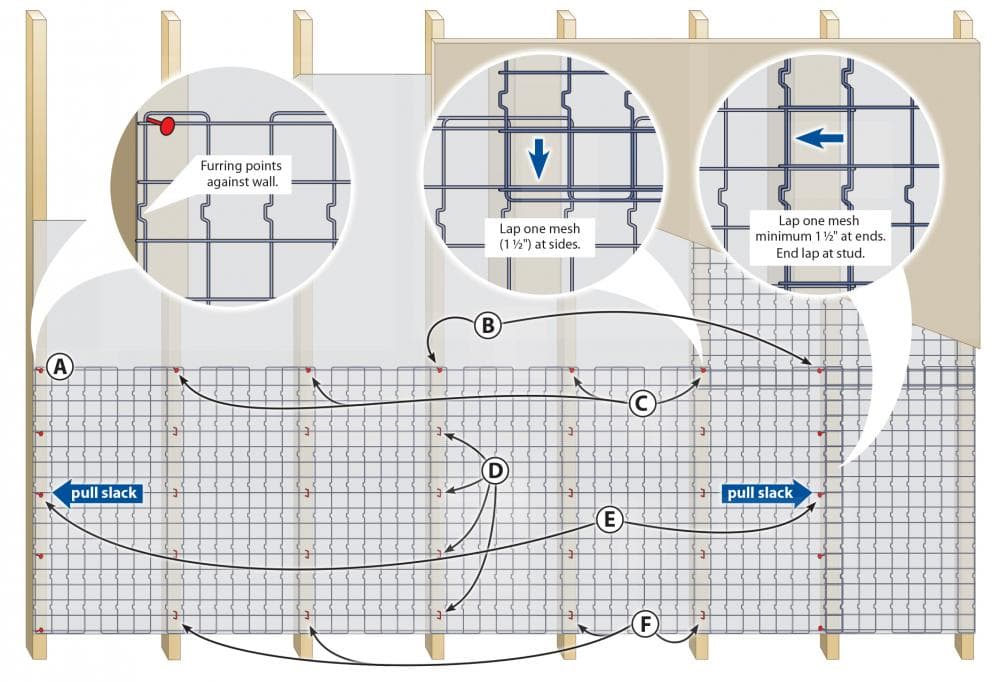

• Additional cold-rolled longitudinal wires form a twin track that simplifies attachment, for greater productivity and job satisfaction
• The cold-rolled technology produces flat wires that reduce curvature memory, for an easy-to-handle roll
• Rolls are more manageable than sheet products and make for easy installation
• MegaLath is also available in stainless steel. Click here for a submittal

MEGALATH IS PART OF ClarkDietrich's EASY EMBEDMENT SYSTEM (EES)

FOR SALES AND TECHNICAL QUESTIONS:

• East Coast to Texas: (800) 543-7140
• West of Texas to California: (800) 887-4708
