Paper-Faced Corner Bead
Lowering Labor Costs by removing one coat of compound

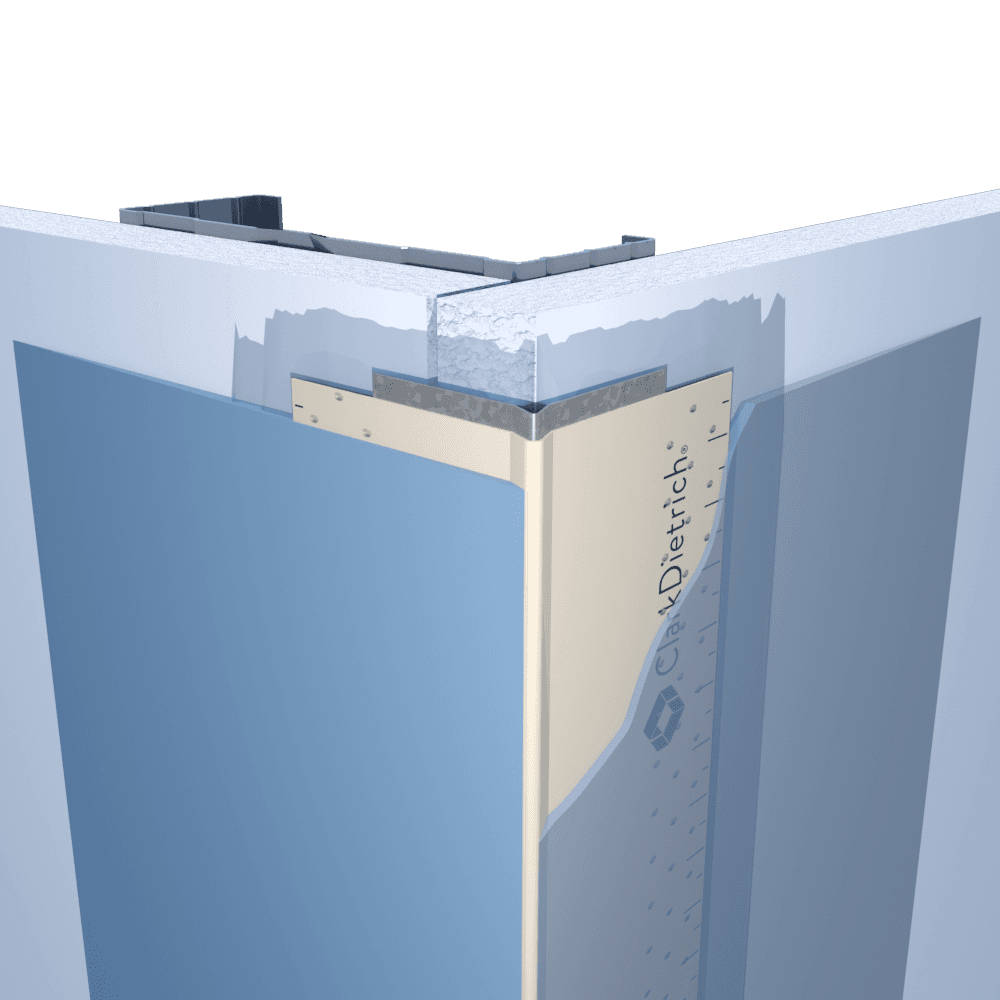

Paper-faced tape-on beads combine galvanized metal corner and edge protection with high-grade paper to provide cost-effective, problem-free outside drywall corner finishing
Quick Actions:
Paper-faced beads are available in several different widths to suit most wallboard applications. Wider flange beads are used to cover imperfect corners, while shorter flanges are used to achieve maximum efficiency.
Paper-faced beads virtually eliminate corner cracks, edge chips and nail pops. These beads are applied using joint compound that embeds the paper bead to the wallboard paper. No mechanical fasteners like nails, screws, staples or crimps are used. Paper-faced beads save on materials by reducing the amount of joint compound and fasteners required, as well as lowering labor costs by eliminating one pass of finishing.
- Does not require mechanical fastening (no nails, staples, screws or crimps)
- Will not fuzz-up when sanded
- Superior adhesion and bonding strength
- U.S. Patent Nos. 5,613,335 and 5,836,122
Material: 0.0125 galvanized coating
Product Data & Ordering Information
| Product code | USG Reference | Style | Dimensions | Pcs. /Ctn. | Ctns/Skid | |||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | |||||
| CD1-WU | B1W | Standard Leg | 5/8" | 1/2" | 3/4" | 5/8" | 50 | 40 |
| CD1-WE | B1EL | Equal Leg | 3/4" | 3/4" | 3/4" | 3/4" | 50 | 40 |
| CD1-XWU | B1XW | Extra Wide | 3/4" | 7/8" | 5/8" | 3/4" | 50 | 40 |
| CD1-XWE | B1XW EL | Extra Wide Equal | 5/8" | 7/8" | 7/8" | 5/8" | 50 | 40 |
| CD1-SWE | B1 Super Wide | Super Wide Equal | 5/8" | 1- 1/8" | 1- 1/8" | 5/8" | 50 | 40 |
Standard lengths are 8' and 10'. Other lengths available.

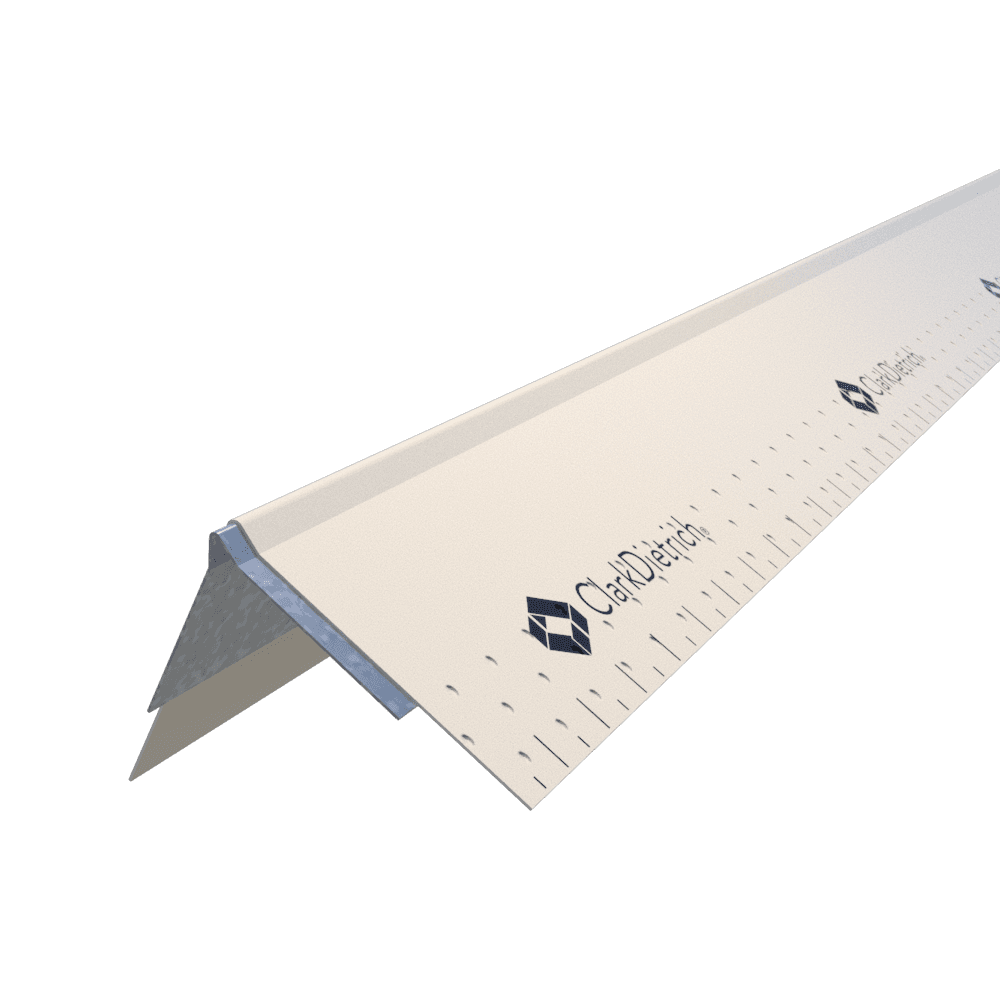

Picture shown is standard leg.
