ProChannel Ci™ VerticalNew
Continuous insulation Rainscreen Framing system
ProChannel Ci Vertical Cladding Support System is a thermally and structurally efficient exterior wall cladding support system utilizing the self-sealing Grip-Deck TubeSeal® fastening system from TruFast Walls.
Quick Actions:

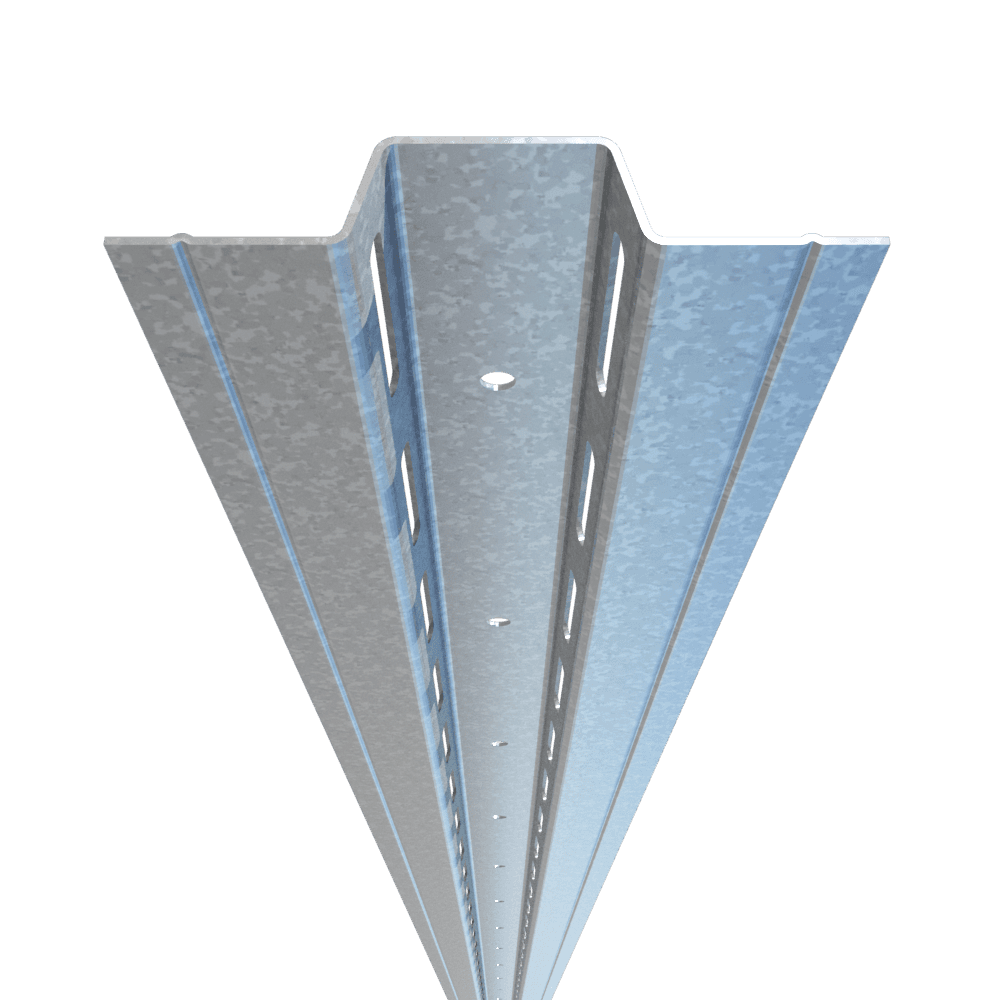

ProChannel Ci Rail

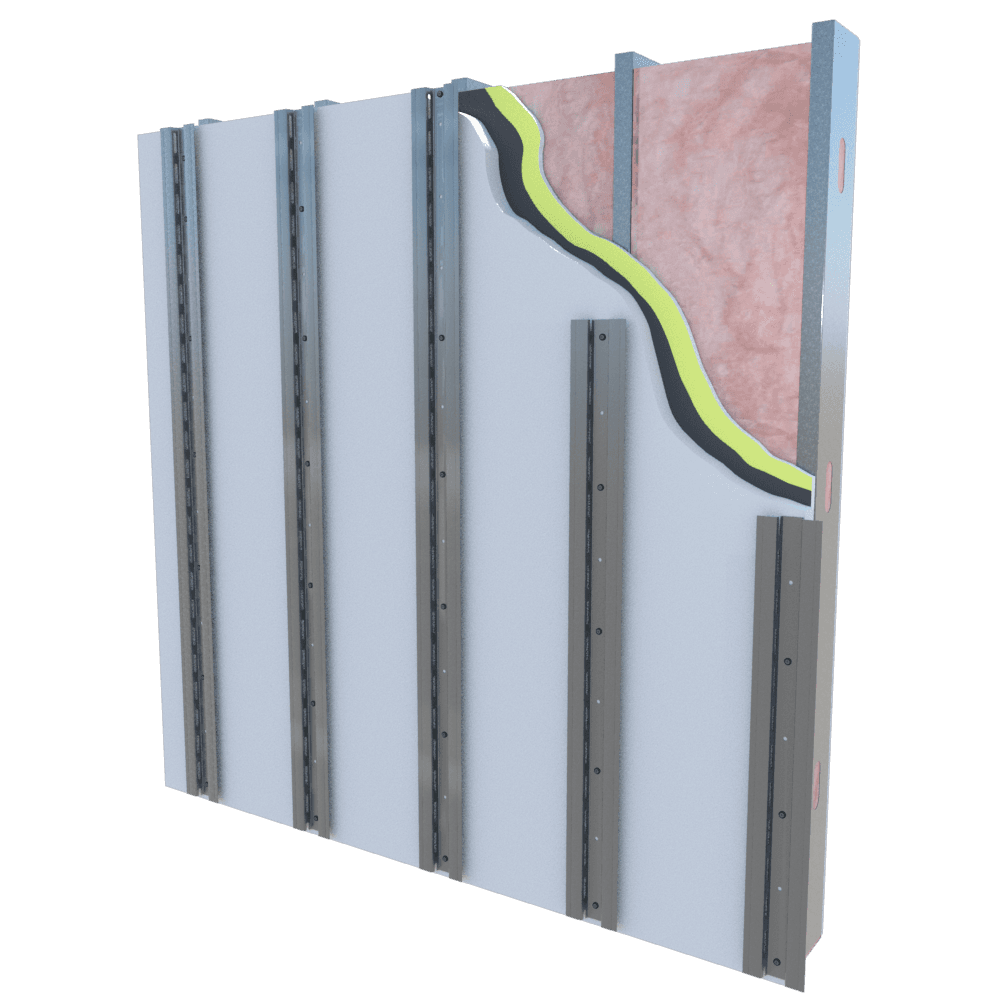

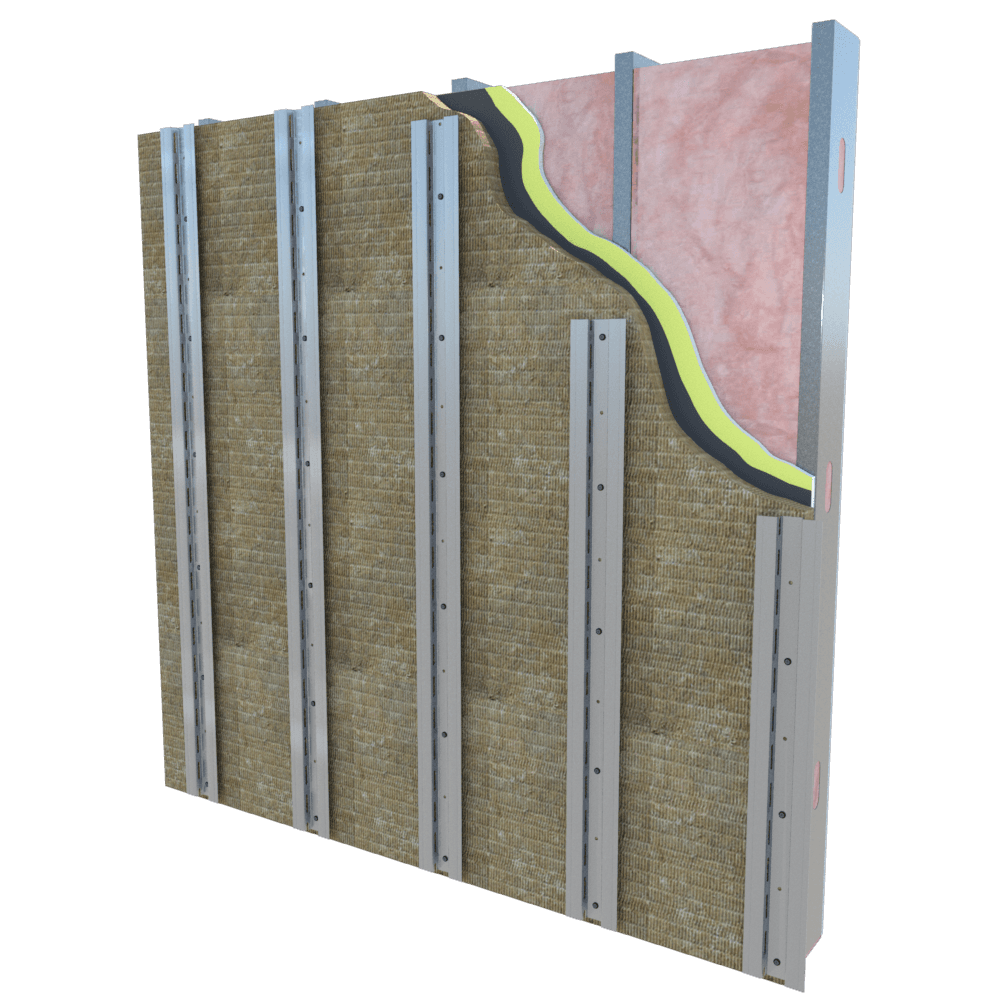

ProChannel Ci Vertical Cladding Support with Grip-Deck TubeSeal® technology is a thermally and structurally efficient exterior rainscreen wall cladding system that is intended to minimize penetrations through the insulation layer to hold an exterior rainscreen cladding in place. This system can be installed with the hat channel running vertically.

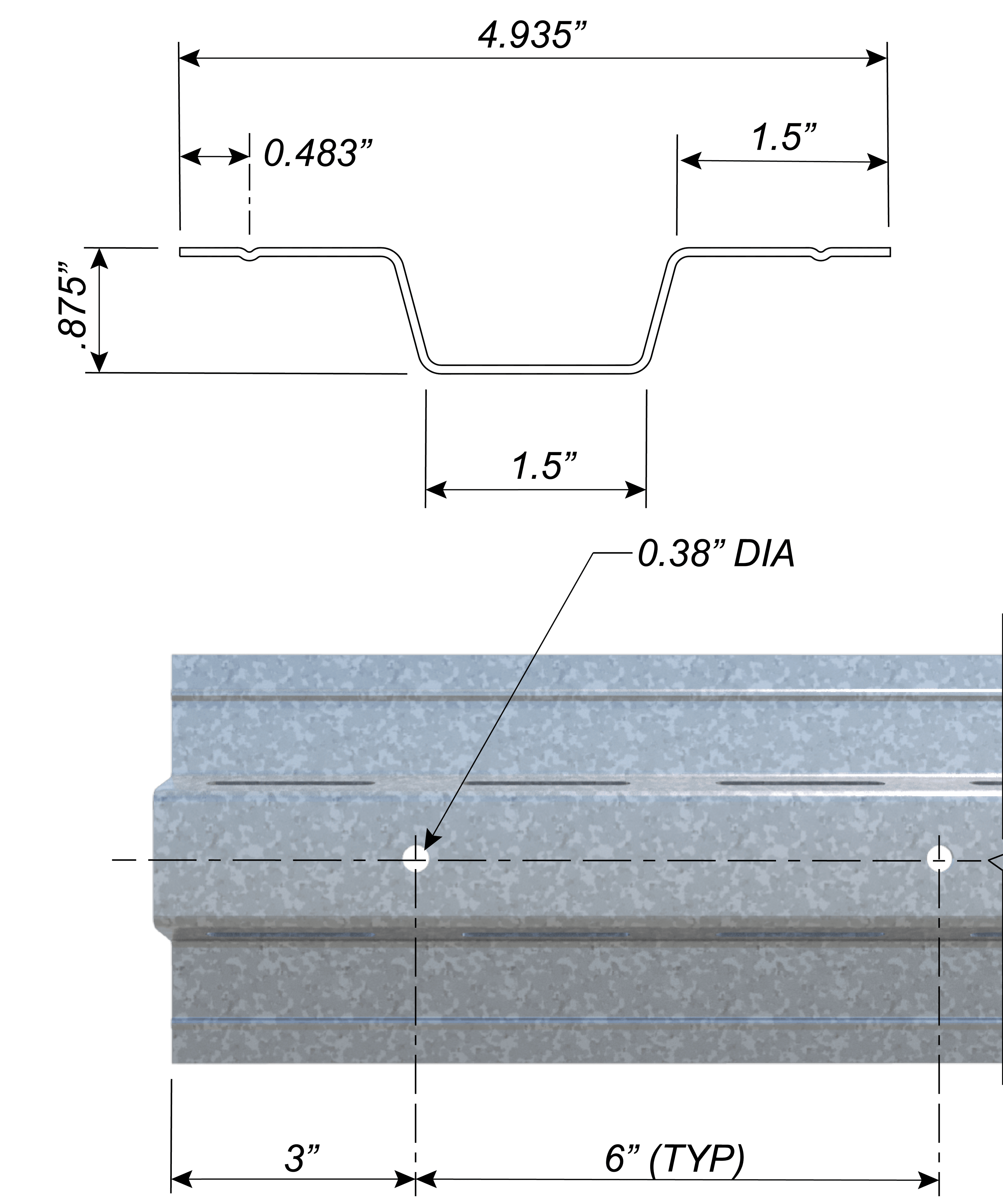

- Creates a 7/8" vented rainscreen air cavity
- Standard 12'-0" length
- Thermal performance and load capacity tables available
- Stocked in 54 mils (16ga) galvanized CP90 steel.
- 1-1/2” wide flanges for easy screw attachment.
- Slotted holes moisture weeping and air movement

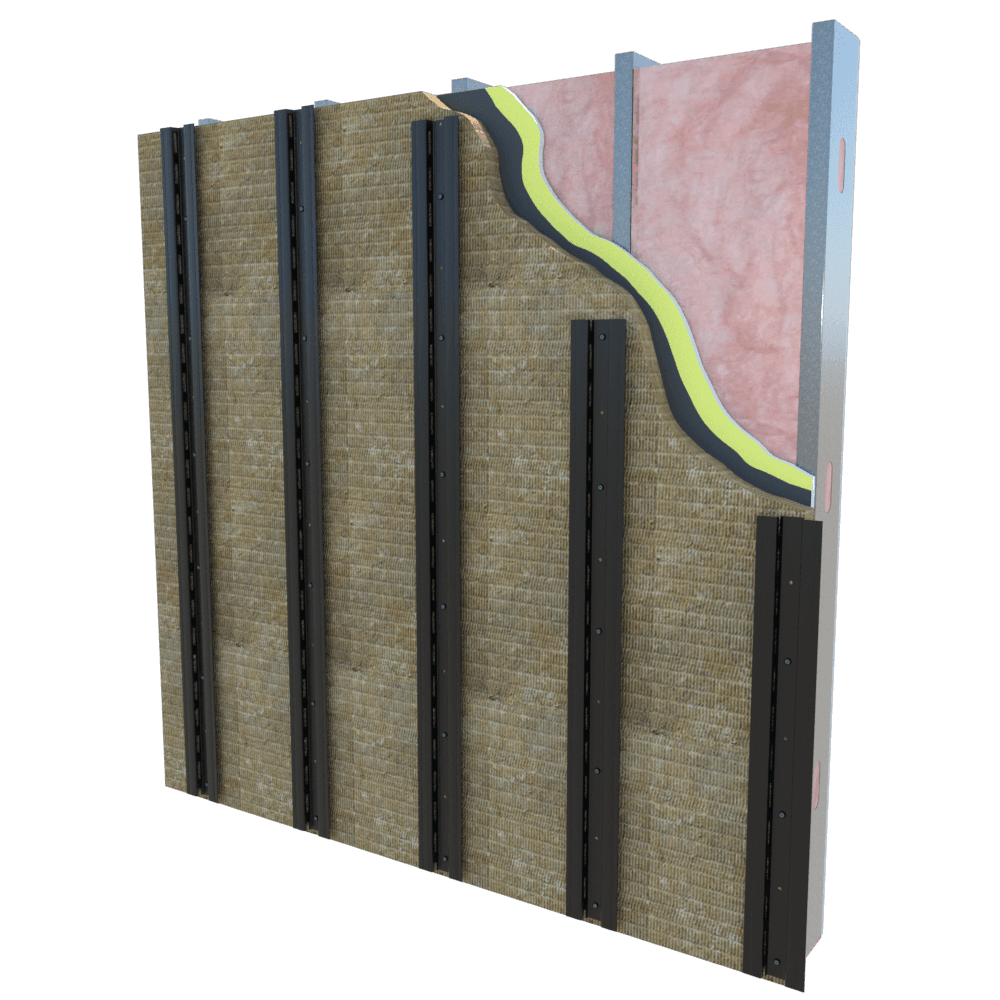

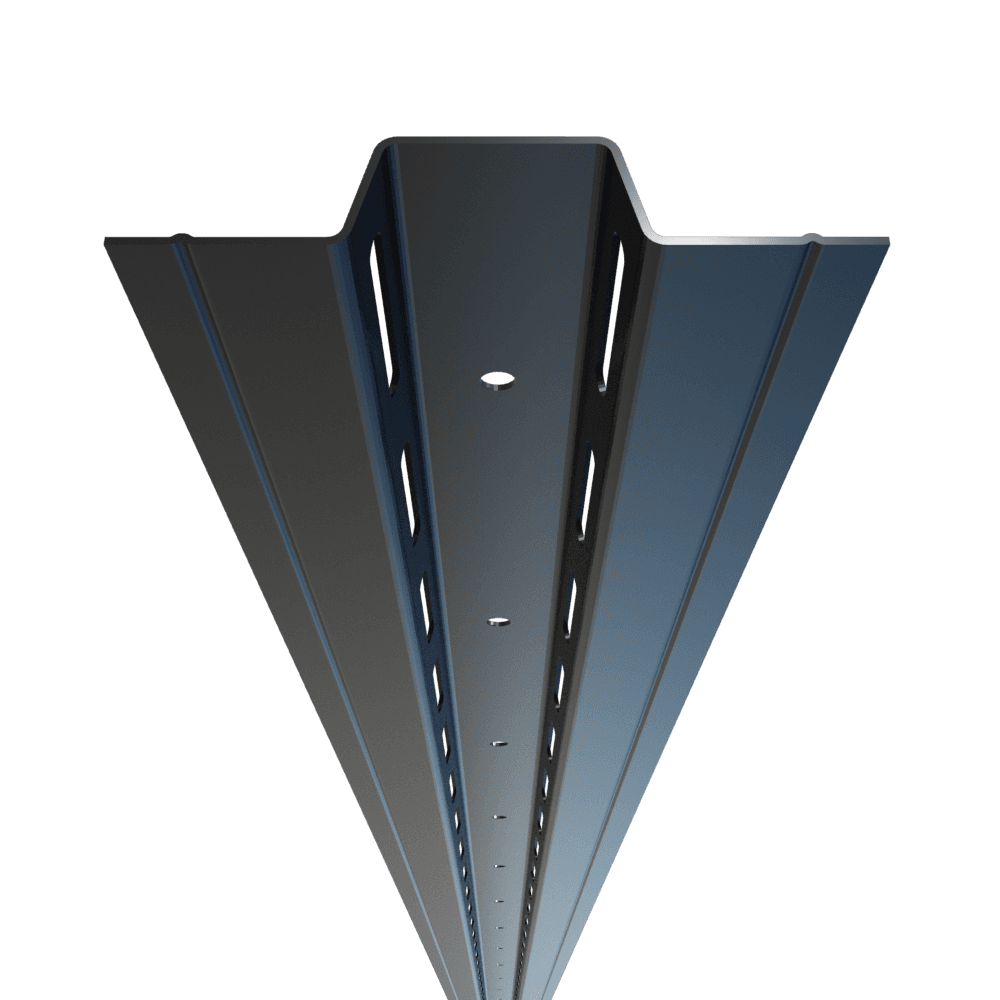

- Also available with a black finish for open joint cladding systems.
Contact ClarkDietrich Technical Services at 888-437-3244 for thermal values.

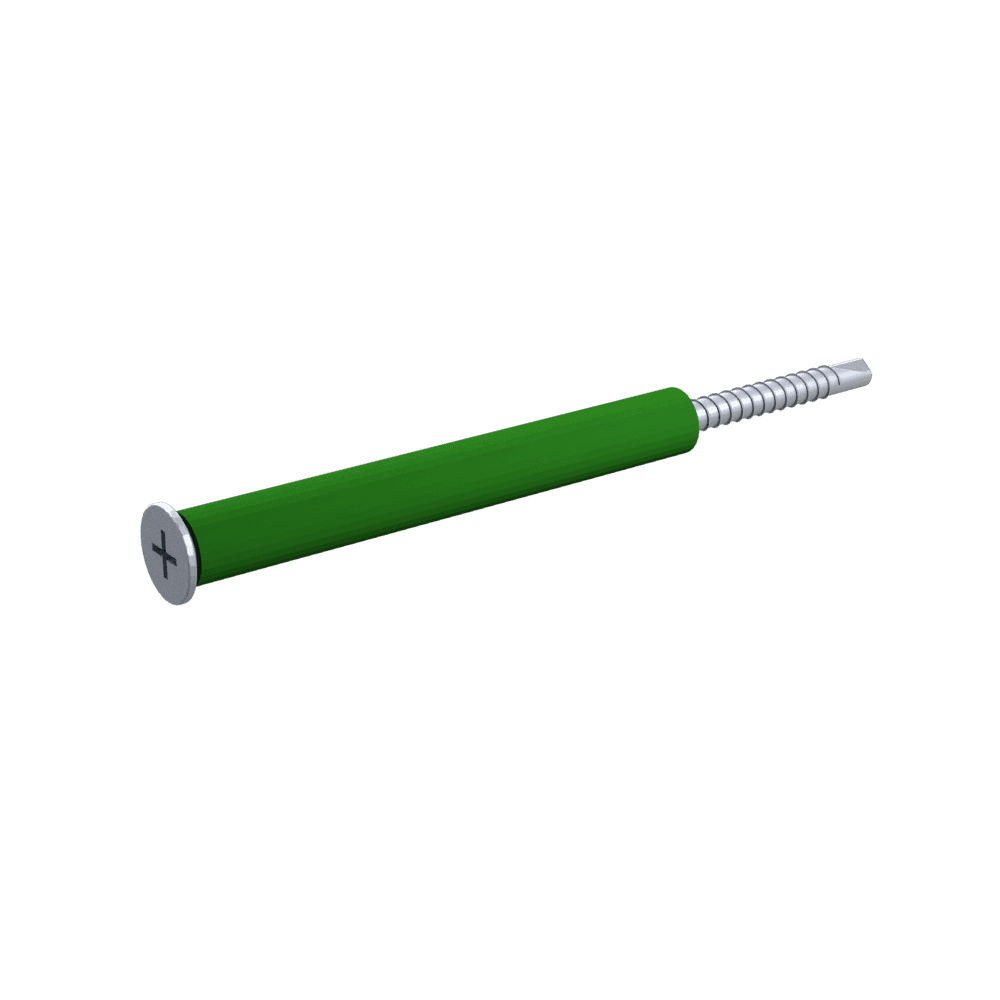

Grip-Deck TubeSeal™ fasteners

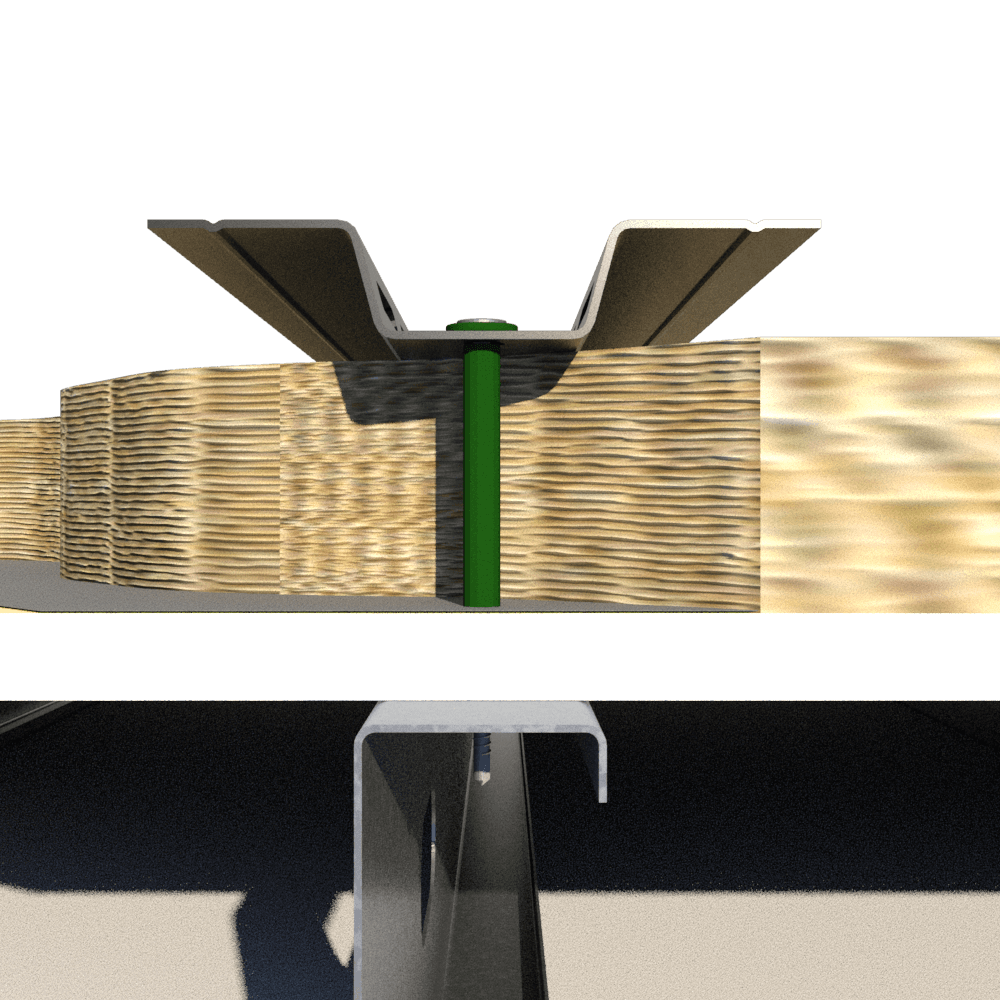

The Grip-Deck TubeSeal® fastening system from TruFast Walls seals the fastener penetrations against air and water leakage, and it does not use any clips, girts, or other large penetrations through the insulation to affix the rainscreen to the structure.
| Insulation Depth | SDS #10 Length | PCS Per Box | PCS Per Bucket |
|---|---|---|---|
| 1" * | 3" | 250 | 500 |
| 1-1/2" | 3-1/2" | 250 | 500 |
| 2" | 4" | 250 | 500 |
| 2-1/2" * | 4-1/2" | 250 | 500 |
| 3" | 5-1/2" | 250 | 500 |
| 3-1/2" * | 6" | 250 | 500 |
| 4" | 6" | 250 | 500 |
* Screw lengths not stocked at ClipExpress. please contact ClarkDietrich Sales for lead-time information.
** HiLo (wood) screws available upon request.
