ProSTUD® Drywall Framing System

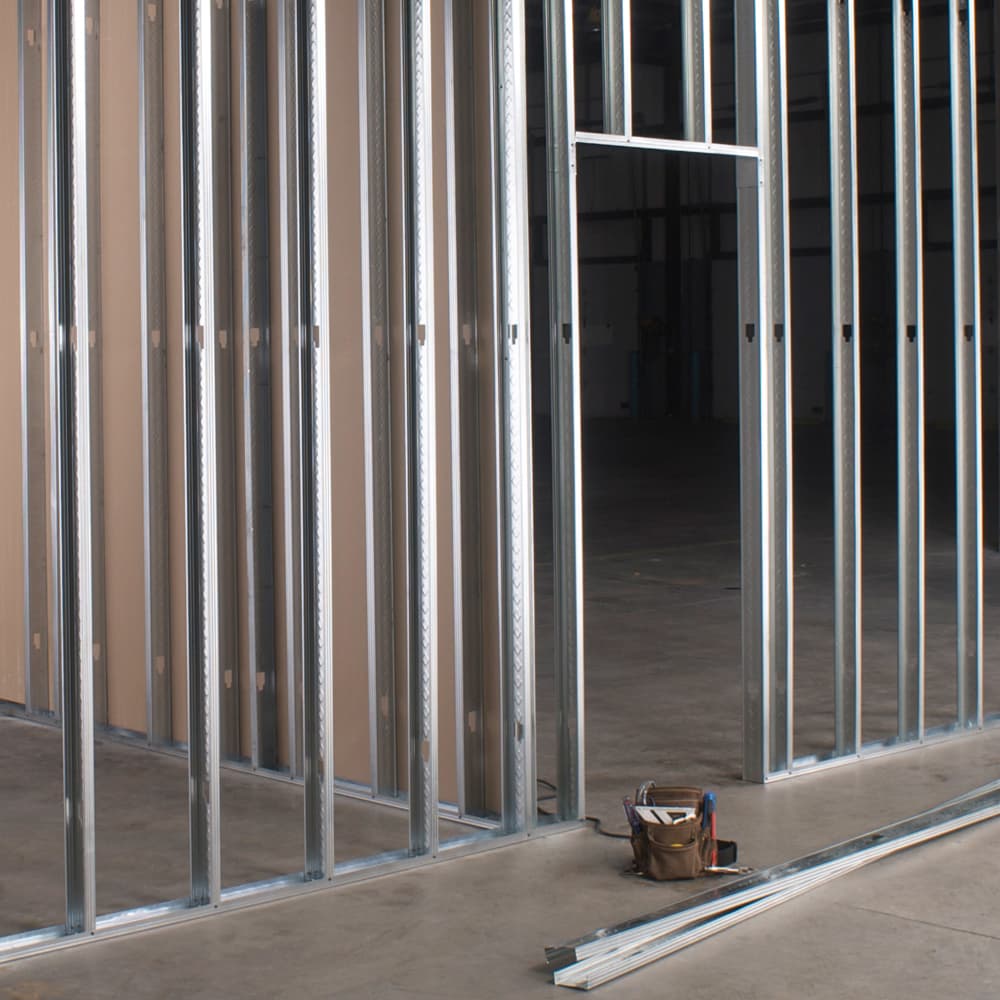

ClarkDietrich ProSTUD metal stud wall framing

Steel Drywall Studs with smart edge™ technology

ProSTUD Drywall Framing System (ProSTUD® and ProTRAK®) with Smart Edge™ Technology is the innovative steel drywall stud that sets a new industry benchmark for high performance. Its patented design combines high-strength steel with additional stiffening enhancements for a drywall framing stud previously unimagined.

Quick Actions:

BIM
Architectural Specs
AIA / CEU
Sustainability

When we set out to develop this revolutionary drywall framing system, we wanted it to be the best and the most innovative. So, we called in the pros – the guys that work with the product day in and day out. ProSTUD Drywall Framing was developed, tested and approved in the field. The result? Drywall framing performance designed by the pros for the pro.

What’s more, ProSTUD Drywall Framing is backed by comprehensive laboratory testing for strength, fire and sound. No other drywall framing system has been as thoroughly tested as ProSTUD. So not only is it a dream to work with, but it also has the performance to meet the requirements of today’s building codes. ProSTUD is available nationwide.

U.S. Patent No. 9,010,070

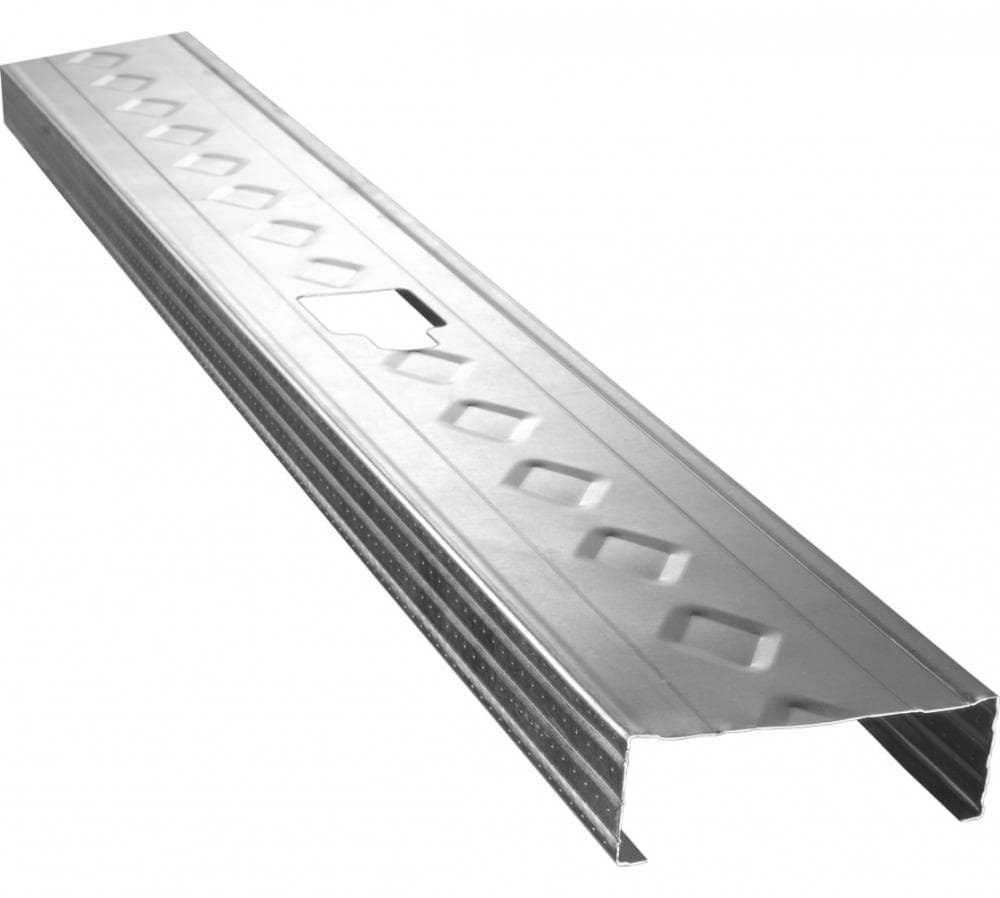

ProSTUD Profile Information

Web widths: 1-5/8" (162), 2-1/2" (250), 3-1/2" (350), 3-5/8" (362), 4" (400), 5-1/2" (550), & 6" (600)
Flange: 1-1/4"
Lip: Varies by stud size
Smart Edge™ Technology

Material Thicknesses:

  • ProSTUD 25 / 15mil (25ga EQ) 50ksi
  • ProSTUD 20 / 18mil (20ga EQ) 70ksi
  • ProSTUD 30MIL 33ksi
  • ProSTUD 33MIL 33ksi

Coatings:

  • G40EQ is standard, G40 available on request.
  • Other coatings available as special order: G40EQ DiamondPlus®, G60 and G90.
  • G40EQ Diamond Plus is only available in select markets and thicknesses. Contact your ClarkDietrich Sales Representative for market availability.
Product description

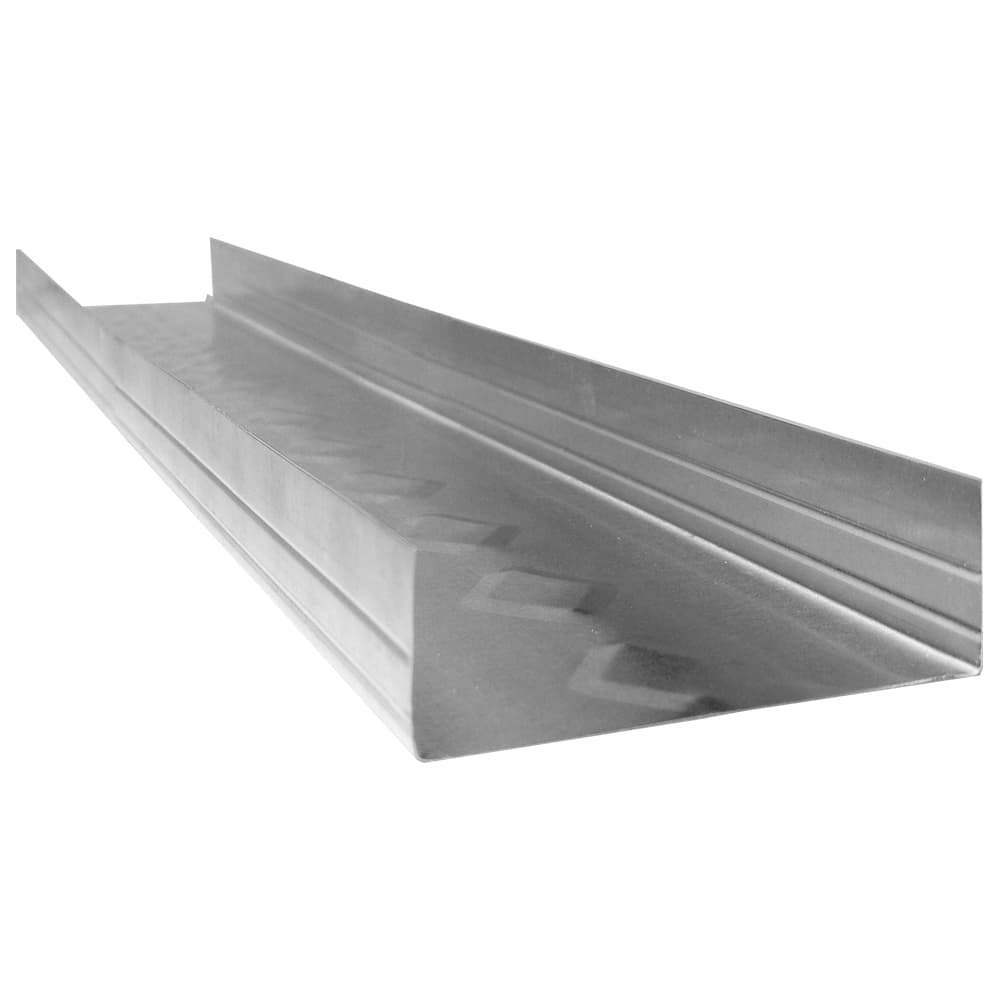

ProTRAK Profile Information

Web widths: 1-5/8", 2-1/2", 3-1/2", 3-5/8", 4", 5-1/2", & 6"
Legs: 1", 1-1/4", 1-1/2", 2", 2-1/2", & 3"

Not all combinations of web,leg and gauge are available. Contact your local sales office for details.

Material Thicknesses:

  • ProTRAK 25 / 15mil (25ga EQ) 50ksi
  • ProTRAK 20 / 18mil (20ga EQ) 50ksi
  • ProTRAK 30MIL 33ksi
  • ProTRAK 33MIL 33ksi

Coatings:

  • G40EQ is standard, G40 available on request.
  • Other coatings available as special order: G40EQ DiamondPlus®, G60 and G90.
  • G40EQ Diamond Plus is only available in select markets and thicknesses. Contact your ClarkDietrich Sales Representative for market availability.
Product description

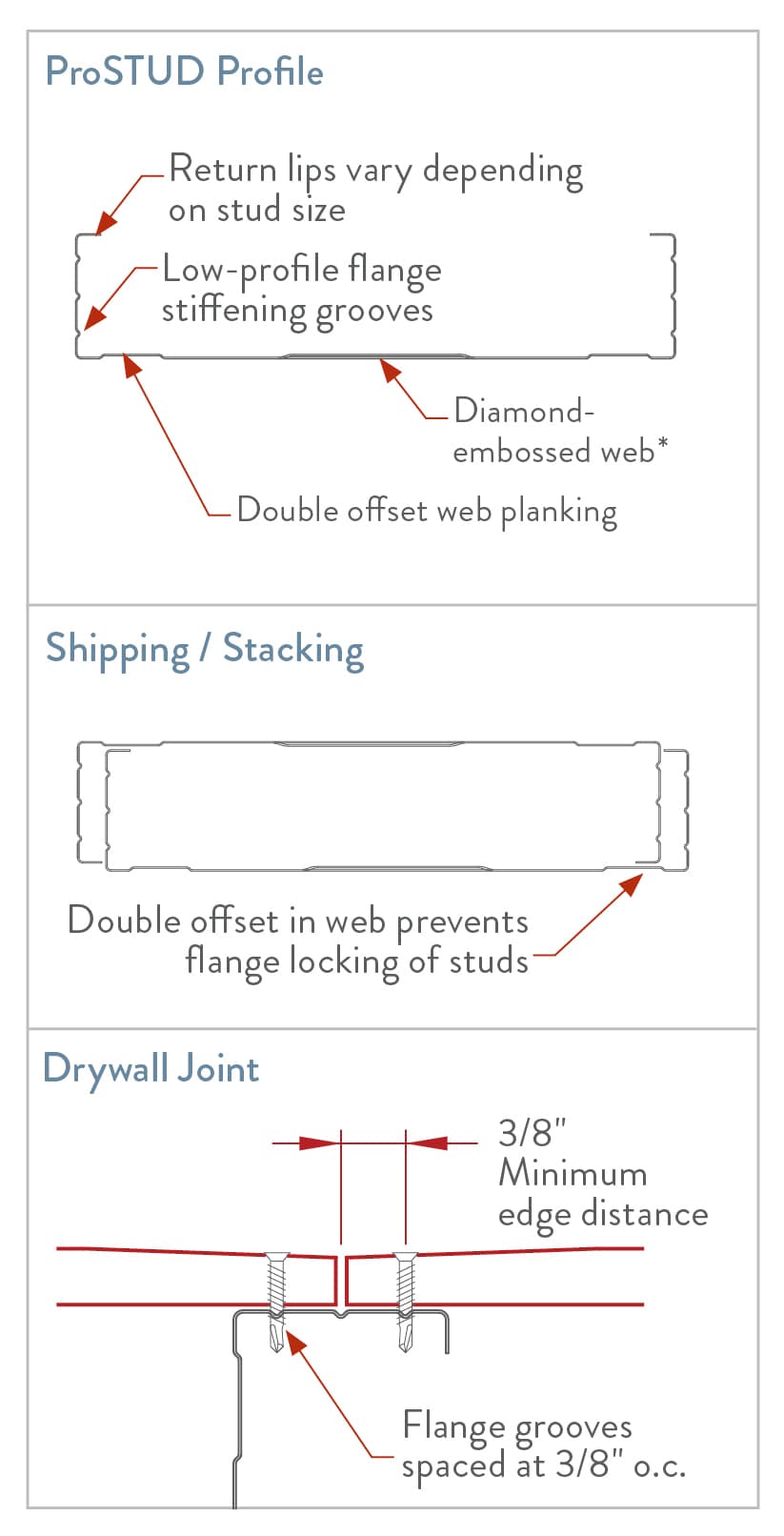

Construction Advantages:

  • High strength steel combined with low-profile flange stiffening grooves and double offset web planking increases strength and provides greater limiting heights
  • Diamond embossed web creates stiffness, reducing flange fade and screw spinout during drywall installation
  • Strong, lightweight stud and track cuts and handles easier than conventional flat steel studs
  • Flange grooves provide sight line for drywall alignment and aid in positioning screws at drywall joint to maintain the 3/8" edge requirement
  • Web and leg enhancements in ProTRAK® provide straight and rigid members, making it the best choice for framing walls, headers, soffits, and bulkheads

Design Advantages:

  • Designed to meet the additional strength requirements of today’s building codes:
  • IBC 2024, AISI S100, S220, S916 and ICC-ES AC46 and AC86
  • UL Classified with listing in over 50 designs, including U419, V438, and chase wall assemblies
  • Exceptional sound performance in over 50 tested sound assemblies
  • Independent Product Certification: Intertek - CCRR 0207
  • Can contribute LEED® points in LEED v4.1 or v4. EPD and HPD verifications also available.
  • National availability

Limitations of Use

  • ProSTUD is designed for interior non-load-bearing walls only.
  • Do not stack
