RC Deluxe® Resilient Channel (RCSD)
SINGLE LEG RESILIENT CHANNEL
RC Deluxe is one of the most effective, low-cost methods of improving sound transmission loss through wood and steel frame partitions.
Quick Actions:

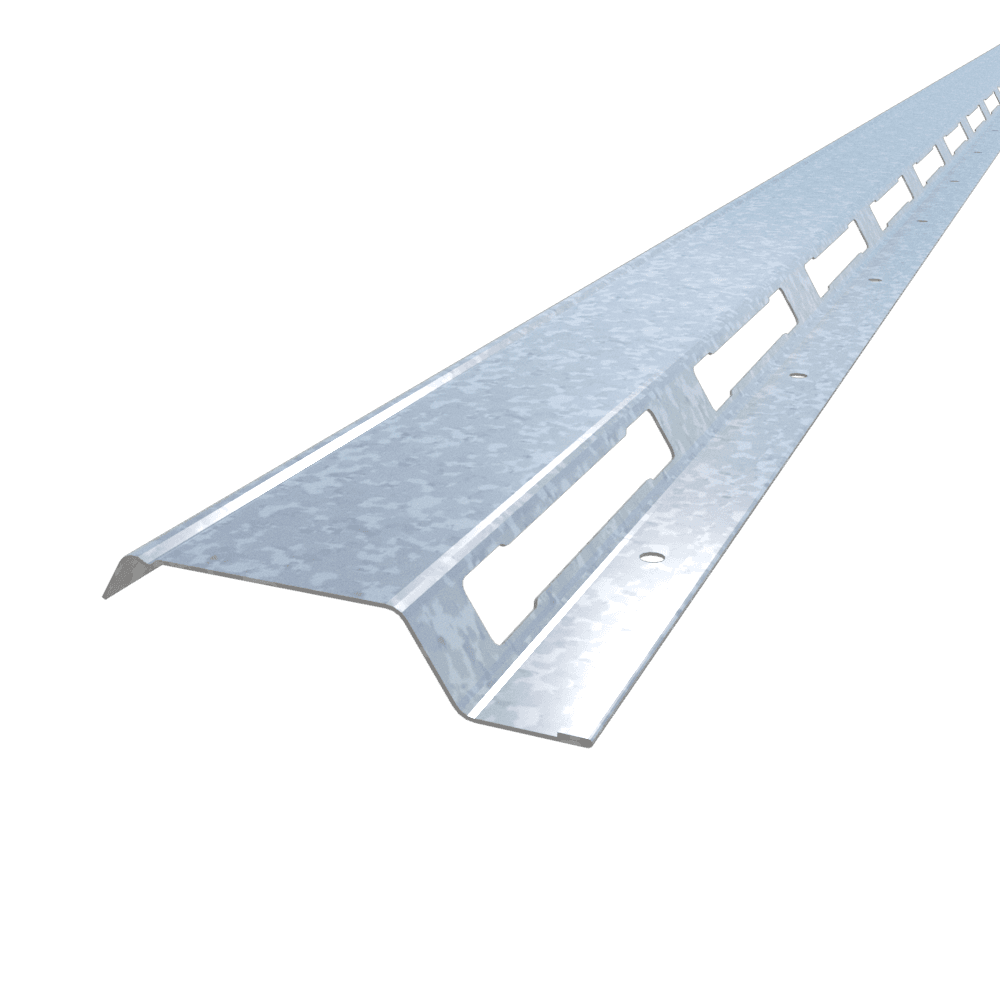

Made of 22mil steel, RC Deluxe is one of the most effective, low-cost methods of improving sound transmission loss through wood and steel frame partitions. RC Deluxe is the preferred resilient channel because of its extra-wide 1-1/2” flange for the installation of the gypsum board. Ink jetted to assist in proper installation orientation.

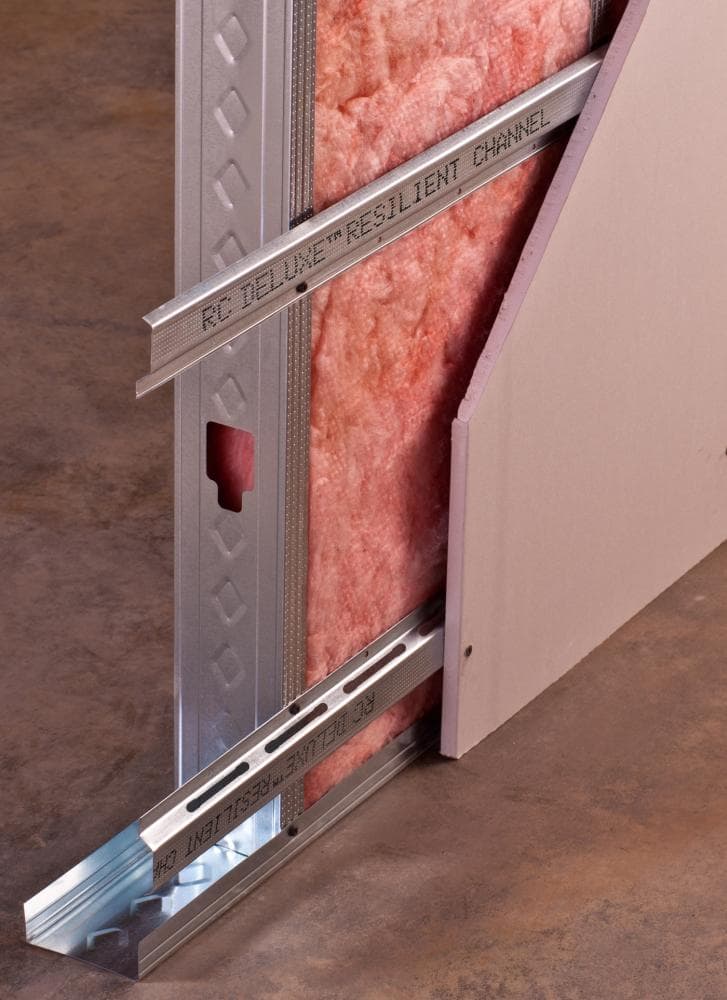

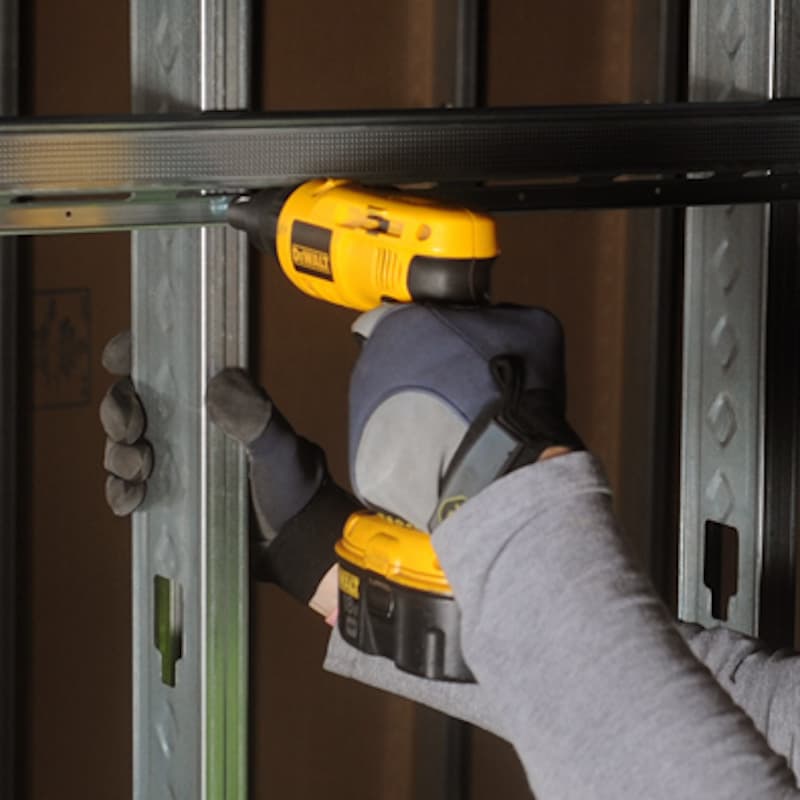

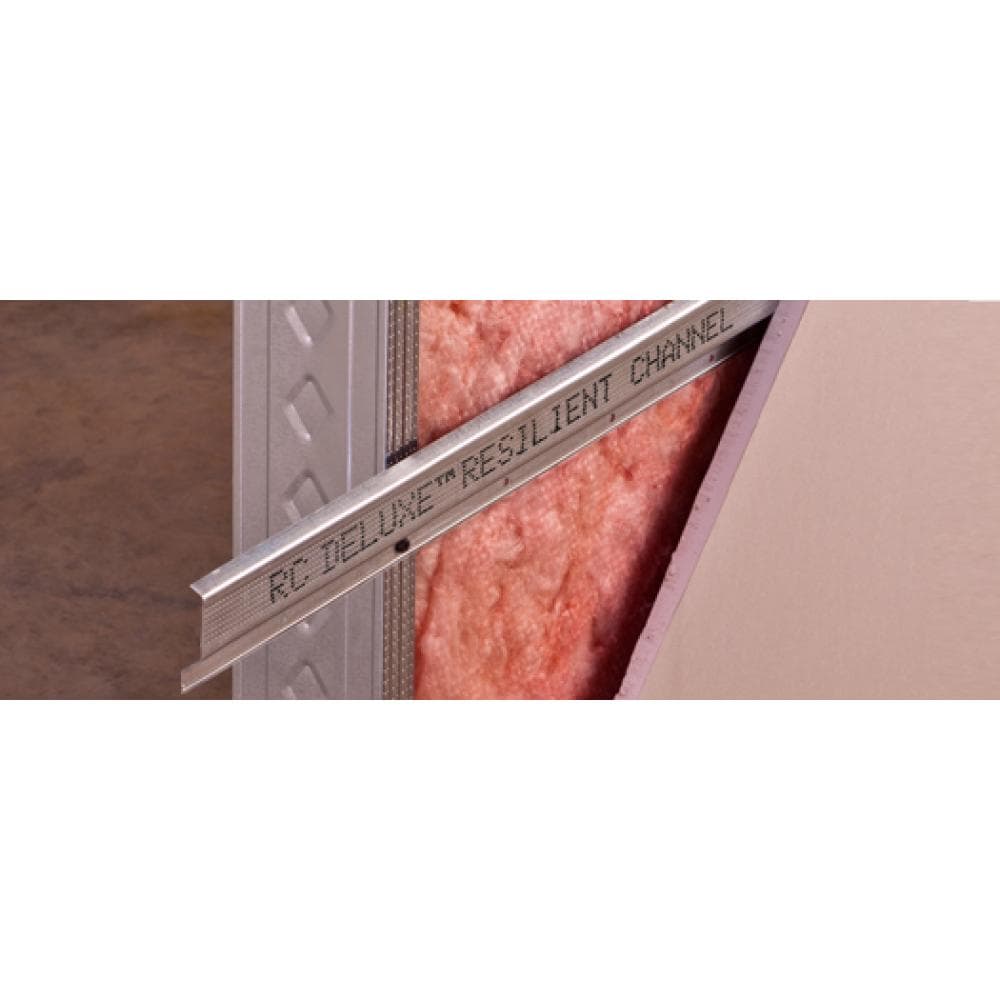

Resilient channel should be installed perpendicular to the framing members with the attachment flange of the RC Deluxe installed along the bottom edge. Channel is pre-punched for screw attachments to wood or steel framing members. Nails are not recommended for attaching RC Deluxe resilient channel to framing members. No more than 7.5 lbs/sf of gypsum panels should be installed to resilient furring channel for wall or ceiling applications. For reference, common 5/8” thick gypsum panels weigh upwards of 2.5 lbs/sf.
Product Data & Ordering Information
| Yield Strength | Coating* | Dimensions | Length |
|---|---|---|---|

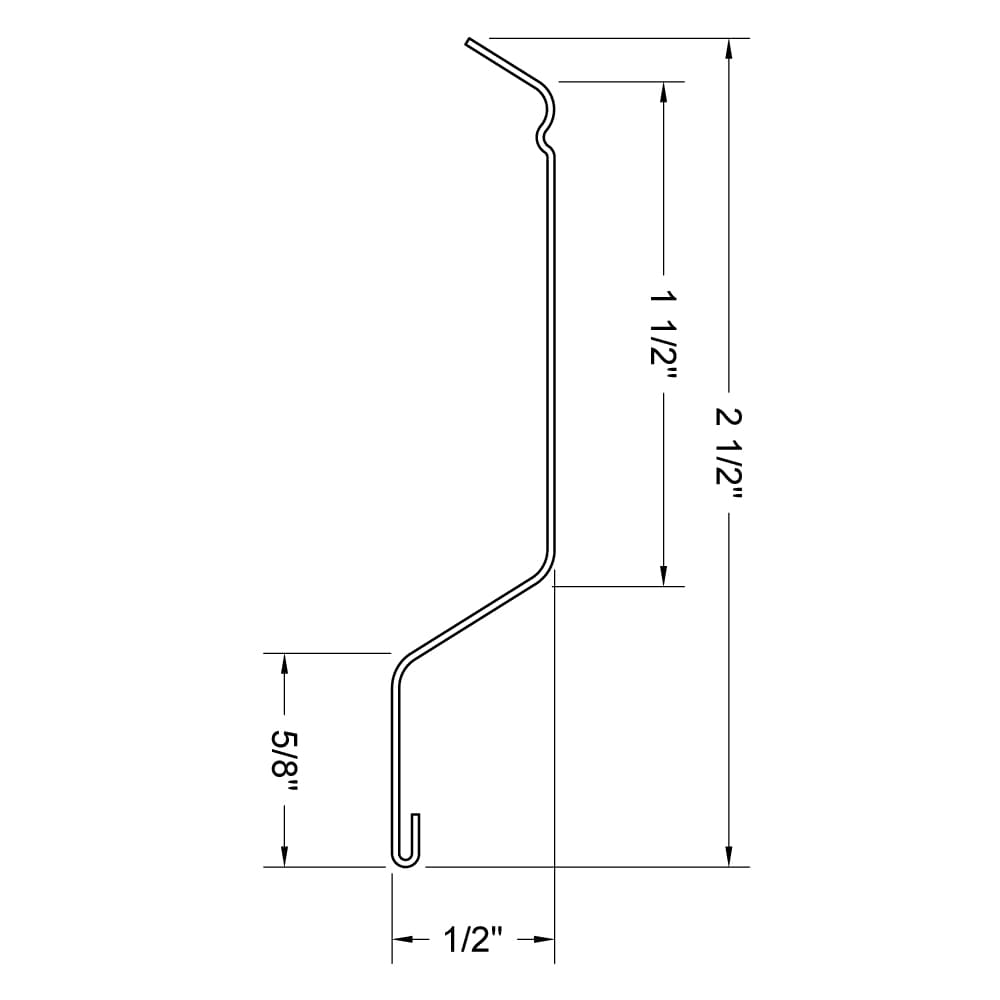

| 33ksi min. | G40EQ | 2-1/2" x 1/2" deep with 1-1/2" screw flange | 12' |
*(G40 or G60 available)
Material Thickness: 22mil, 0.0232" Design Thickness, 0.022" Min. Thickness
Packaging weight: 0.220 lbs. each or 220 lbs./1000 ft.
