Strut PlateNew
ClarkDietrich Strut Plate connects steel studs to other studs, beams, or columns while allowing vertical movement and preventing load transfer. It enables direct fastening when aligned with the stud web, eliminating extra framing and materials.
Quick Actions:

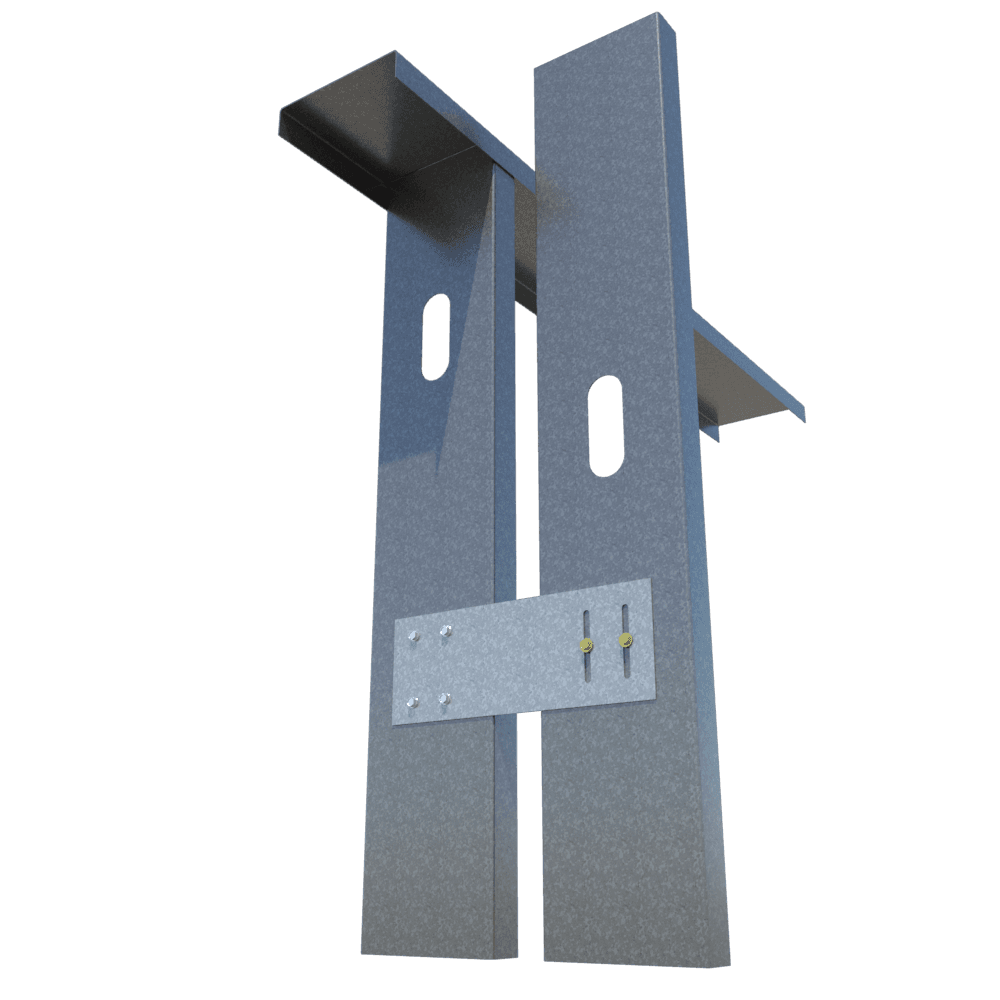

Designed to accommodate vertical movement, this plate connects steel studs while preventing the transfer of vertical loads. It is ideal for conditions where one stud projects beyond another or where a stud terminates at the face of a concrete pier or column. When the attachment surface aligns with the stud web, the plate allows for direct fastening, reducing the need for added materials or framing buildup commonly required with traditional connectors.
Key Features
- Vertical movement up to 2-1/2” (1-1/4” up and 1-1/4” down)
- Reduces framing buildup
- Proprietary Deflection Screws included
Product Data & Ordering Information
Material Specifications
Gauge: 16 gauge (54mils)
Design Thickness: 0.0566 inches
Gauge: 14 gauge (68mils)
Design Thickness: 0.0713 inches
Material: 50 ksi
Protective Coating: G90
| Product code | Design Thickness | Connector Dimensions | Connectors/Bucket | Deflection Screws/Bucket |
|---|---|---|---|---|

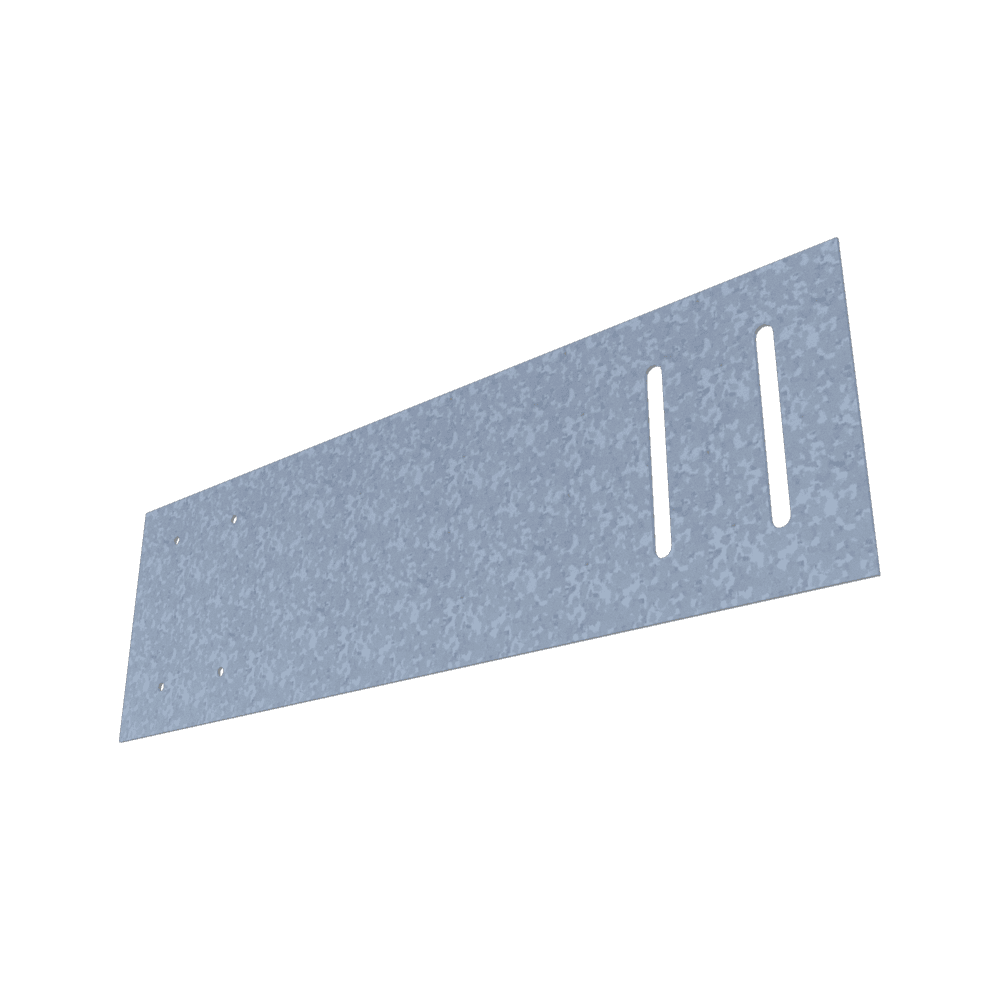

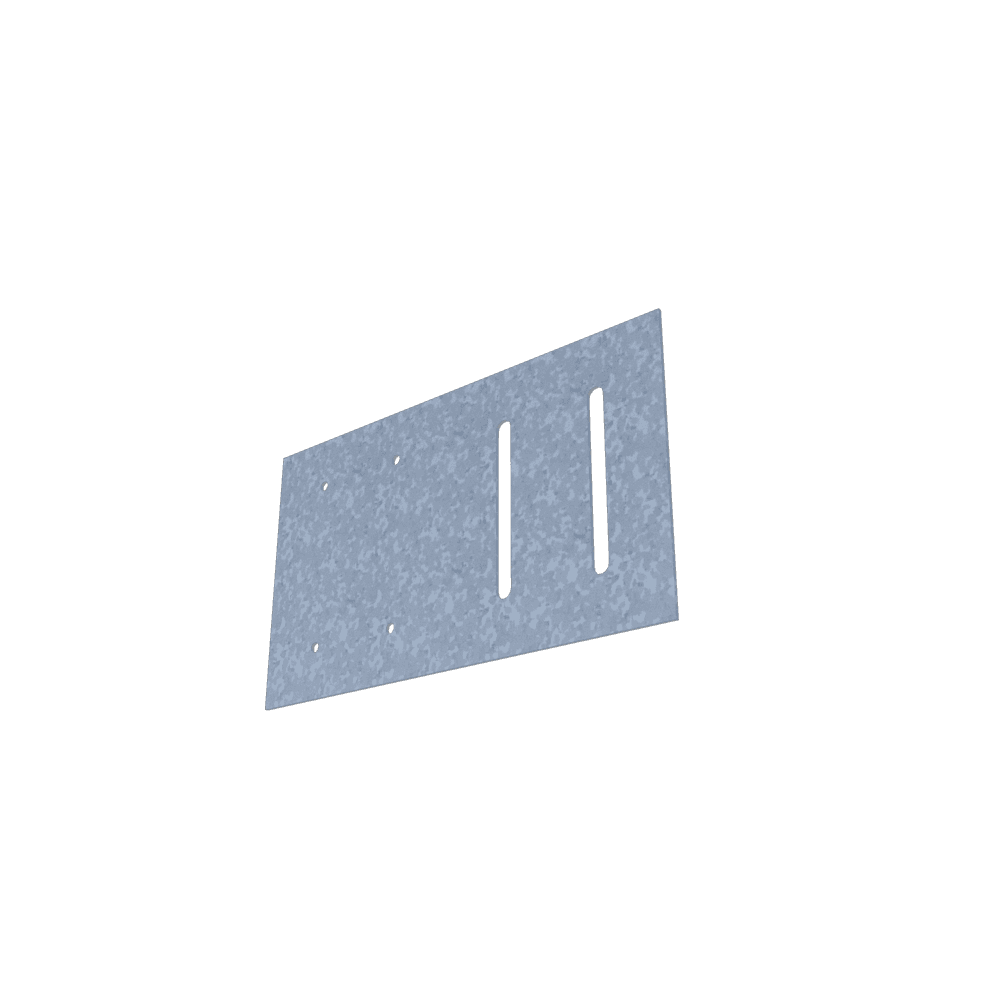

| SP7-54 | 0.0566" | 4" x 7" | 25 | 55 |
| SP7-68 | 0.0713" | 4" x 7" | 25 | 55 |

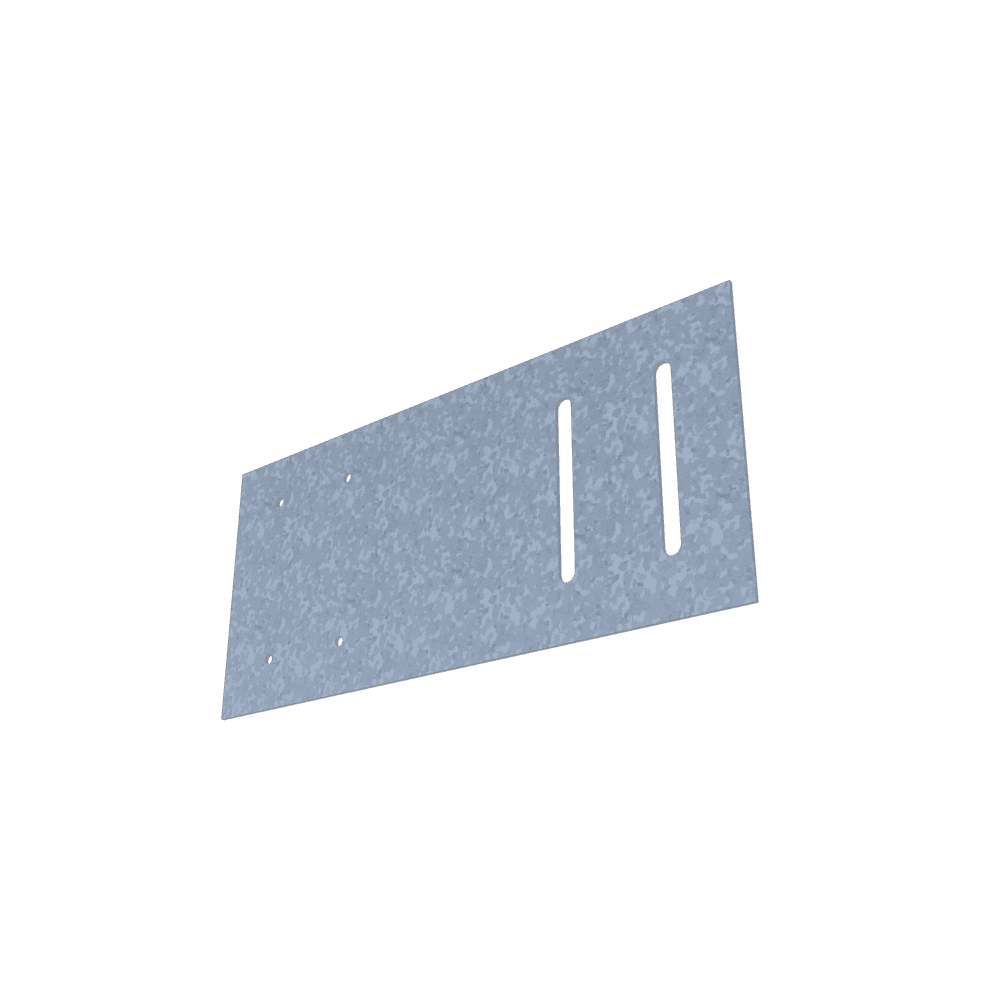

| SP9-54 | 0.0566" | 4" x 9" | 25 | 55 |
| SP9-68 | 0.0713" | 4" x 9" | 25 | 55 |

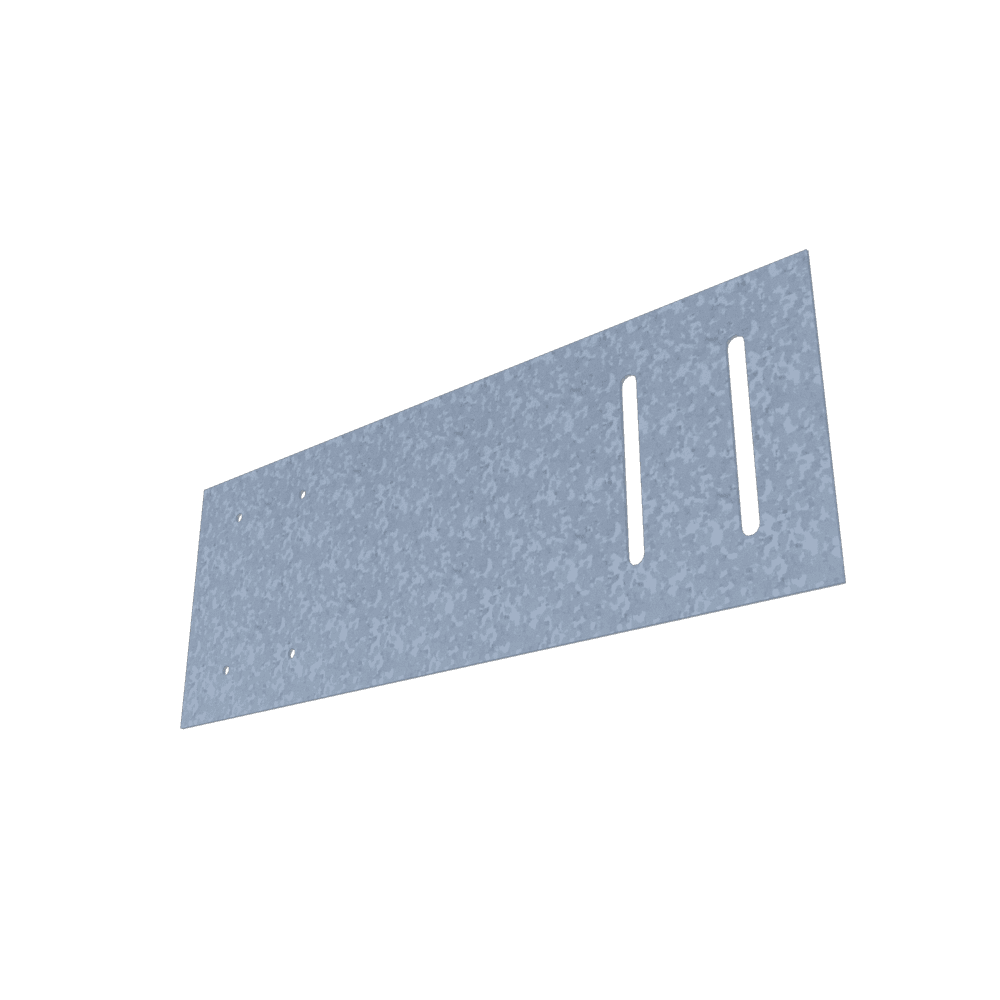

| SP11-54 | 0.0566" | 4" x 11" | 25 | 55 |
| SP11-68 | 0.0713" | 4" x 11" | 25 | 55 |
| SP13-54 | 0.0566" | 4" x 13" | 25 | 55 |
| SP13-68 | 0.0713" | 4" x 13" | 25 | 55 |
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
