SwiftClip™ 300 x 300 LA-Series Support Clip

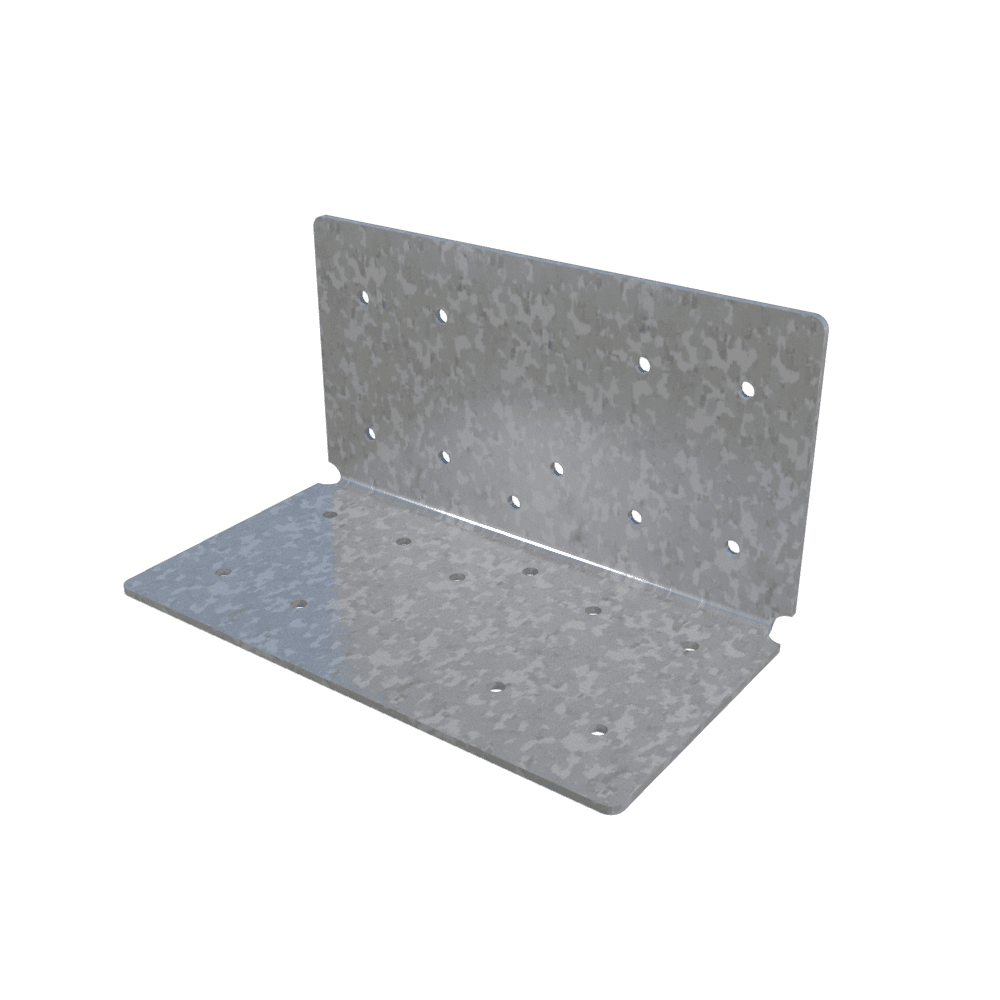

SwiftClip™ 3" x 3" (LA-Series)

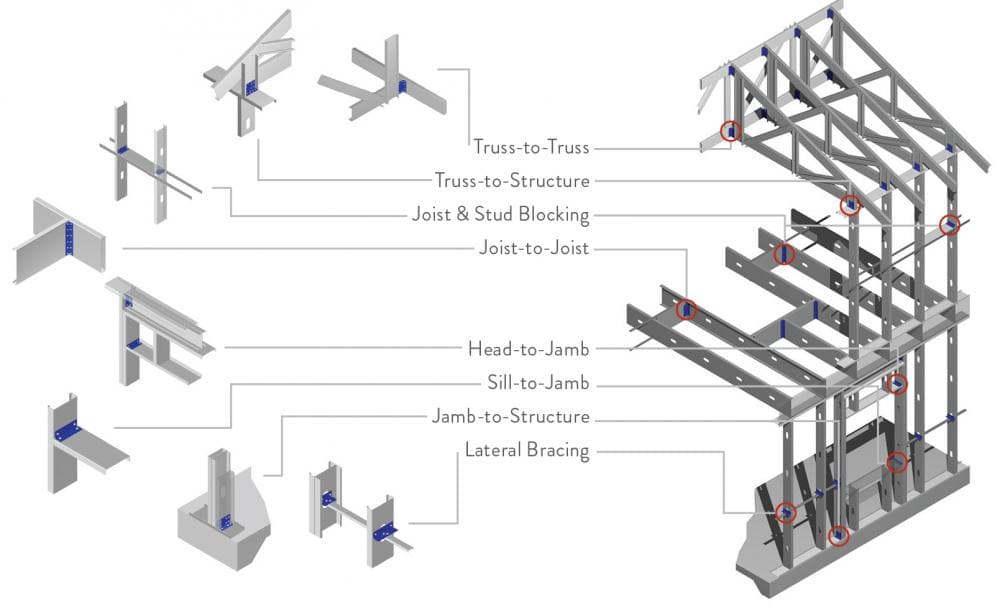

Pre-punched SwiftClips™ are used for multiple construction applications. 3" leg x 3" leg clips are commonly used for floor joist hangers and truss connections.
Quick Actions:
Pre-punched SwiftClips™ are used for multiple construction applications. 3" leg x 3" leg clips are commonly used for floor joist hangers and truss connections. Fixed clips should not be used in place of a deflection clip.
Alternative Products:
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information

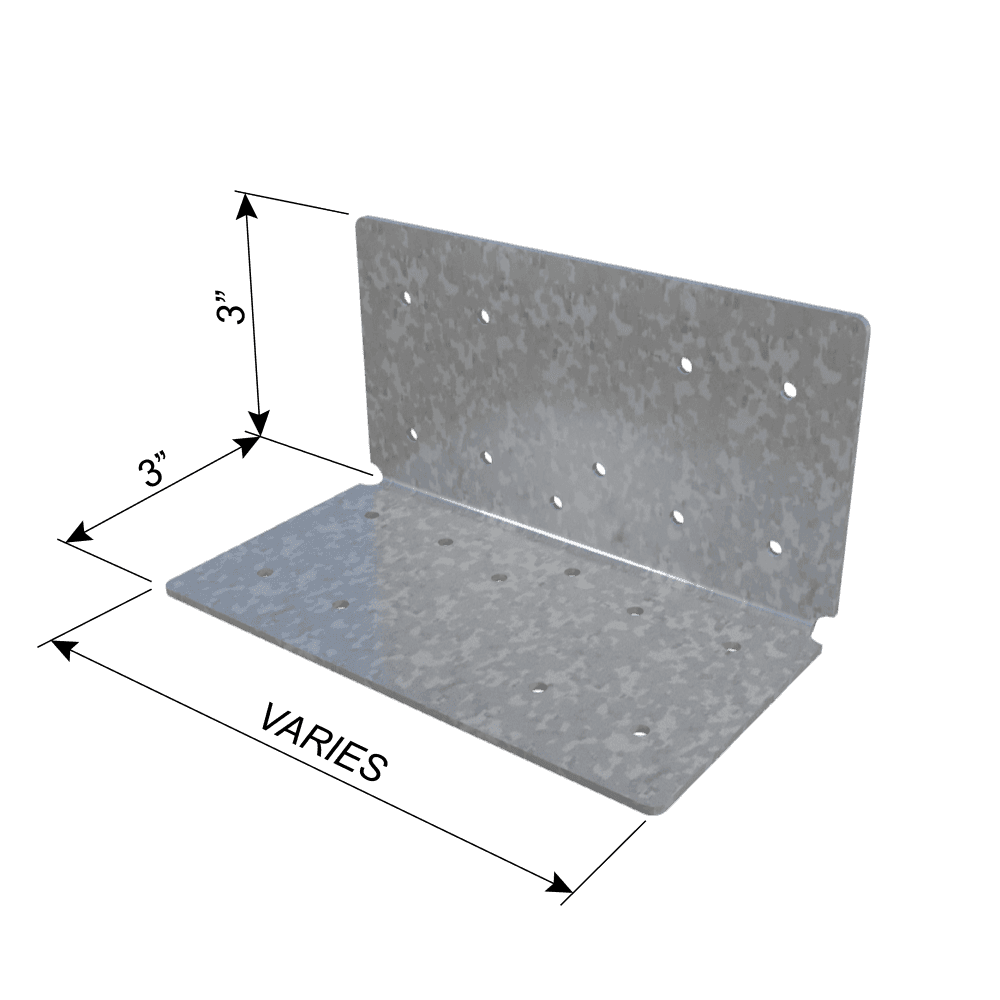

| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Common application | Pcs/Bucket |
|---|---|---|---|---|---|---|
| LA543 | 16 | 54 | 0.0566 | 3 x 3 x 3-1/4 | Joists/Trusses | 100 |
| LA683 | 14 | 68 | 0.0713 | Joists/Trusses | 100 | |
| LA973 | 12 | 97 | 0.1017 | Joists/Trusses | 50 | |
| LA545 | 16 | 54 | 0.0566 | 3 x 3 x 5-1/2 | Joists/Trusses | 100 |
| LA685 | 14 | 68 | 0.0713 | Joists/Trusses | 50 | |
| LA975 | 12 | 97 | 0.1017 | Joists/Trusses | 50 | |
| LA547 | 16 | 54 | 0.0566 | 3 x 3 x 7-1/4 | Joists/Trusses | 50 |
| LA687 | 14 | 68 | 0.0713 | Joists/Trusses | 50 | |
| LA977 | 12 | 97 | 0.1017 | Joists/Trusses | 50 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
