Top Vent Track for Rainscreen - TVTRSNew
Designed to be used at the top of entangled mesh rainscreen assemblies.
Quick Actions:
The Top Vent Track for Rainscreen provides venting and draining for the entangled mesh rainscreen or other medium as defined by IBC & IRC codes on plywood and OSB sheathing for exterior. This component serves as a vented Casing Bead because of its 1” vent slots in the top ground to manage allow air flow into the air space behind the cladding.
Product Data & Ordering Information:

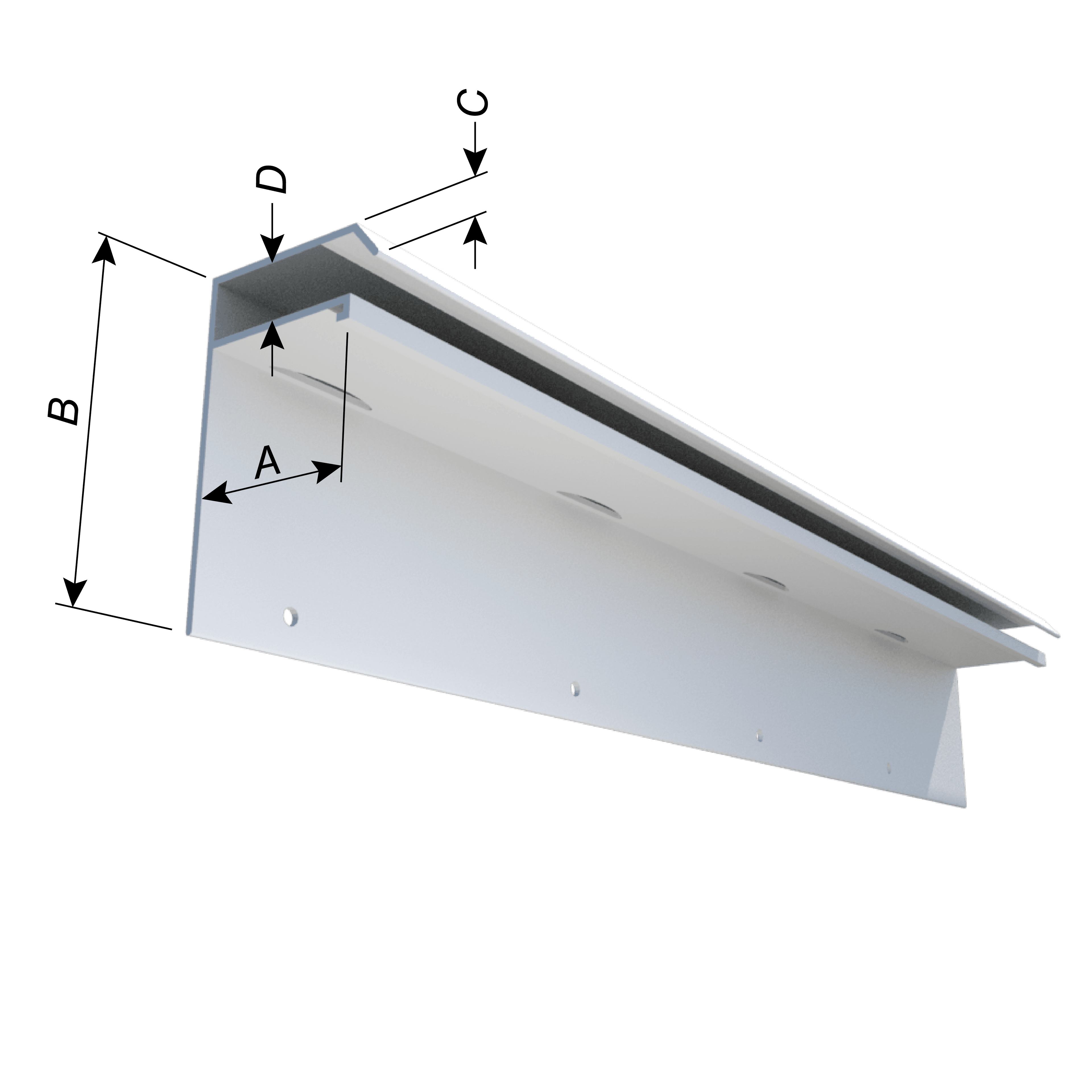

| Product code | Rainscreen Thickness | Overall Ground (A) | Flange (B) | Drip (C) | Air Channel (D) | Length | Packaging |
|---|---|---|---|---|---|---|---|
| TVT78-RS6 | 6mm | 1-1/8" | 2-1/4" | 1/4" | 3/8" | 10' | 20 per box |
| TVT78-RS10 | 10mm | 1-1/4" | 2-1/4" | 1/4" | 3/8" | 10' | 20 per box |
U.S. Patent No. - 1115066, 1115061, 1115063, 1115062
Click here for the corresponding vented drip flashing track at the bottom of the wall (DFL78-RS)
