TradeReady® Steel JoistNew
The premier floor joist system for both commercial and residential framing

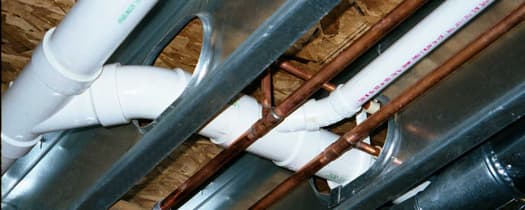

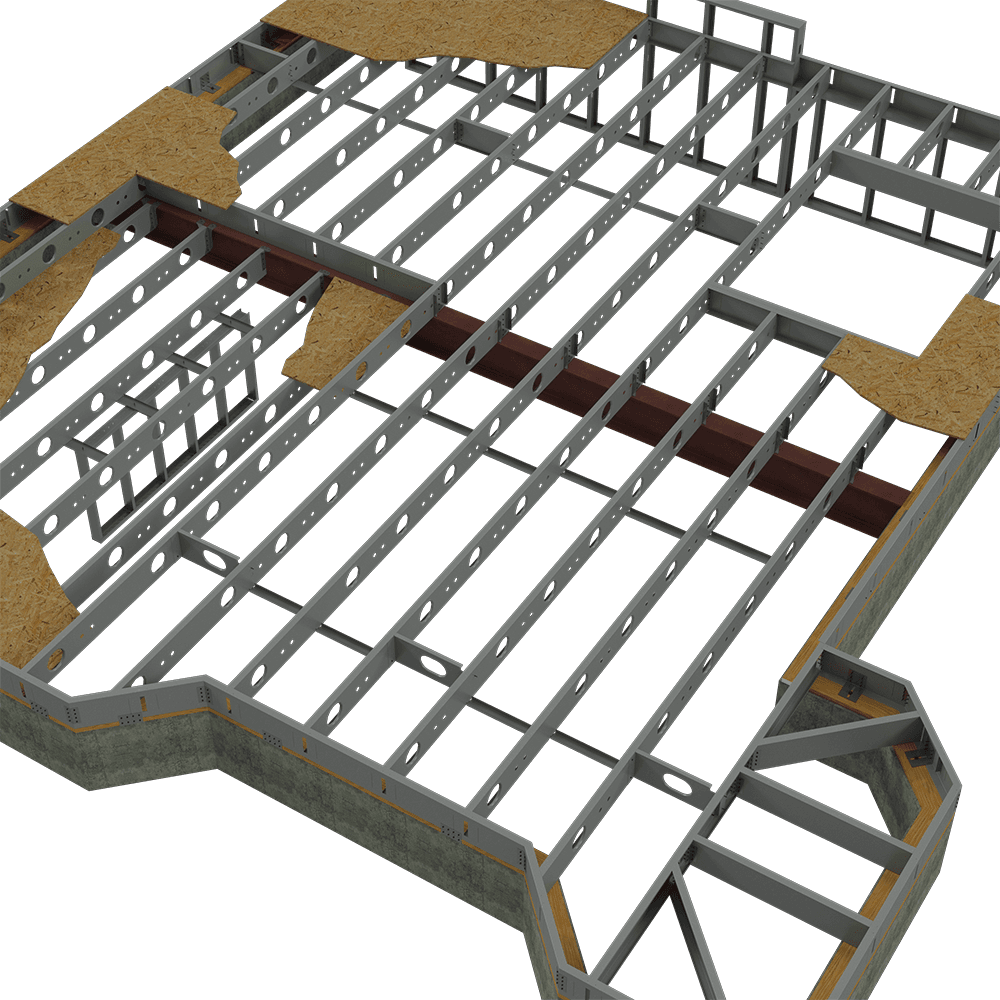

TradeReady® steel joists are one of the primary components that make up the TradeReady® floor system. These joists feature large extruded holes that accommodate HVAC, mechanical, plumbing and sprinkler runs.
Quick Actions:
TradeReady® steel joists are precision manufactured from corrosion-resistant galvanized steel. Steel joists offer consistent quality, predictable performance and high strength to weight ratio, and they are dimensionally stable. They won’t expand, contract or shrink; they won’t warp, crack or twist. Steel joists integrate easily with other building materials such as structural steel, concrete, ICF and wood construction.
Joists can be ordered in standard lengths or to your exact specifications to minimize waste. Consult the ClarkDietrich Technical Design Team or the TradeReady® Steel Joist Design Guide for physical and structural properties, span charts and loading data.
- Span capacities to accommodate typical building layouts and floor/roof loads.

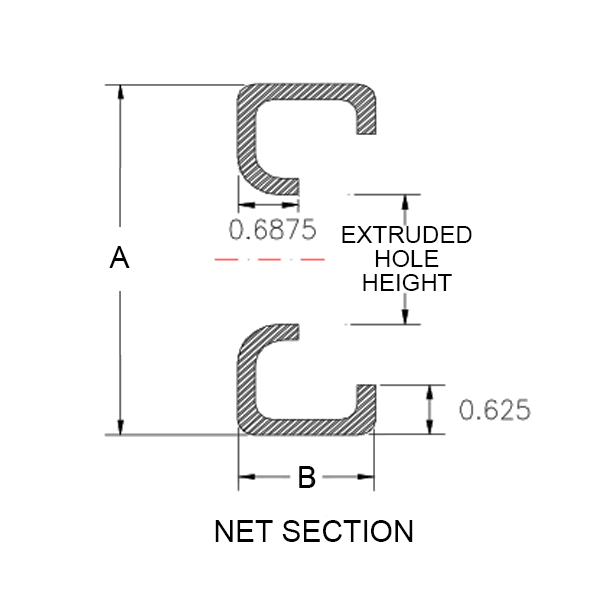

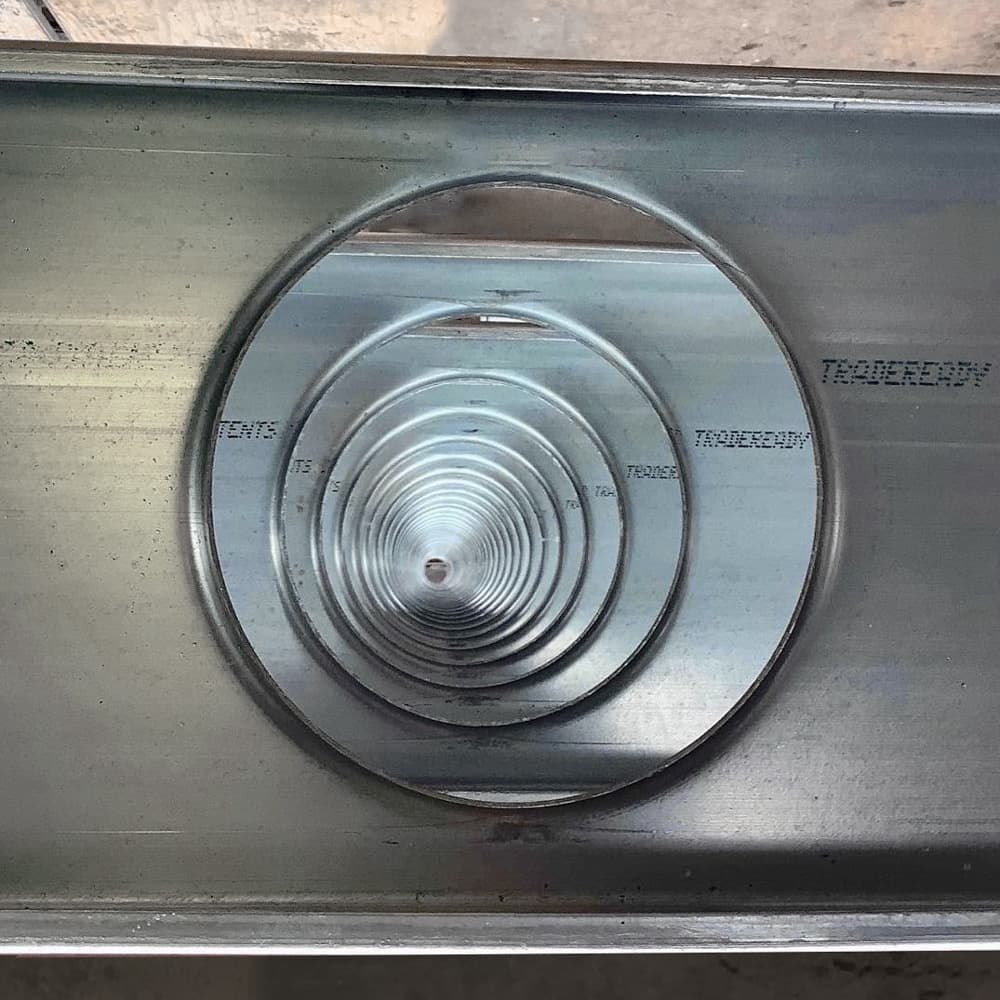

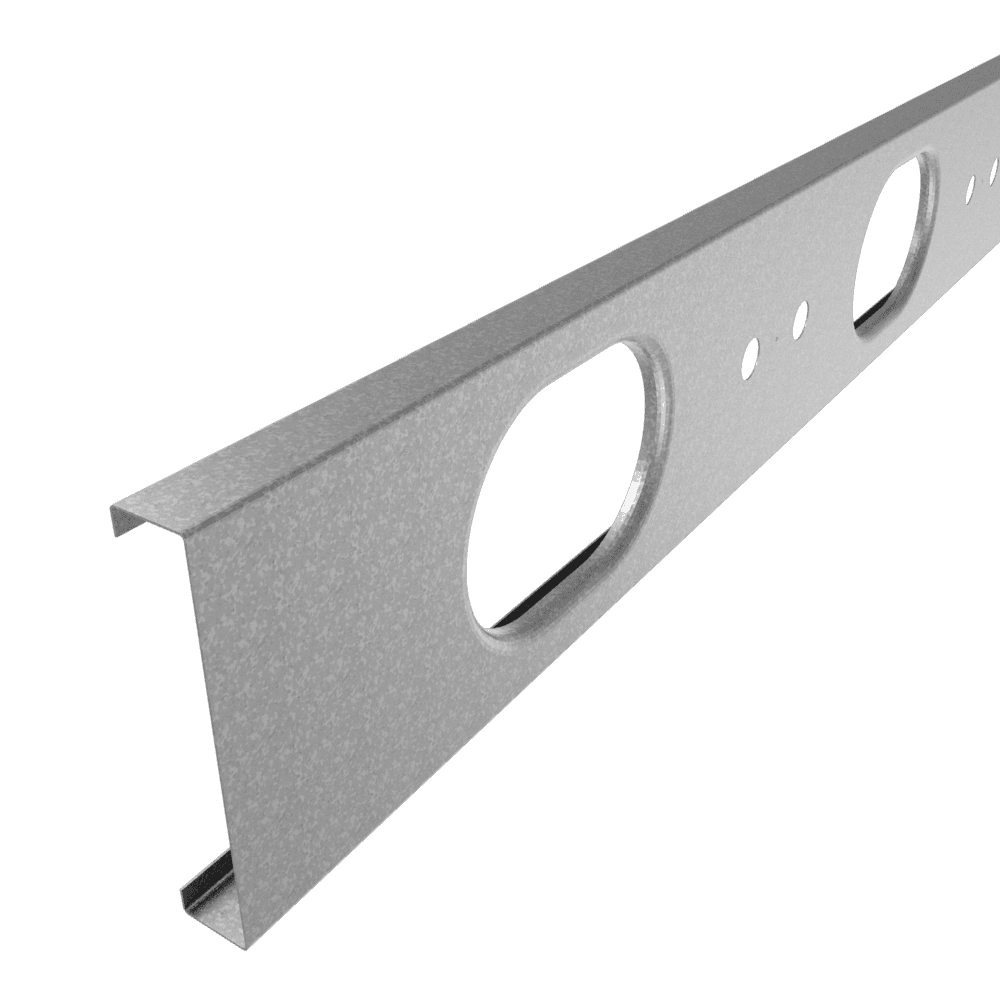

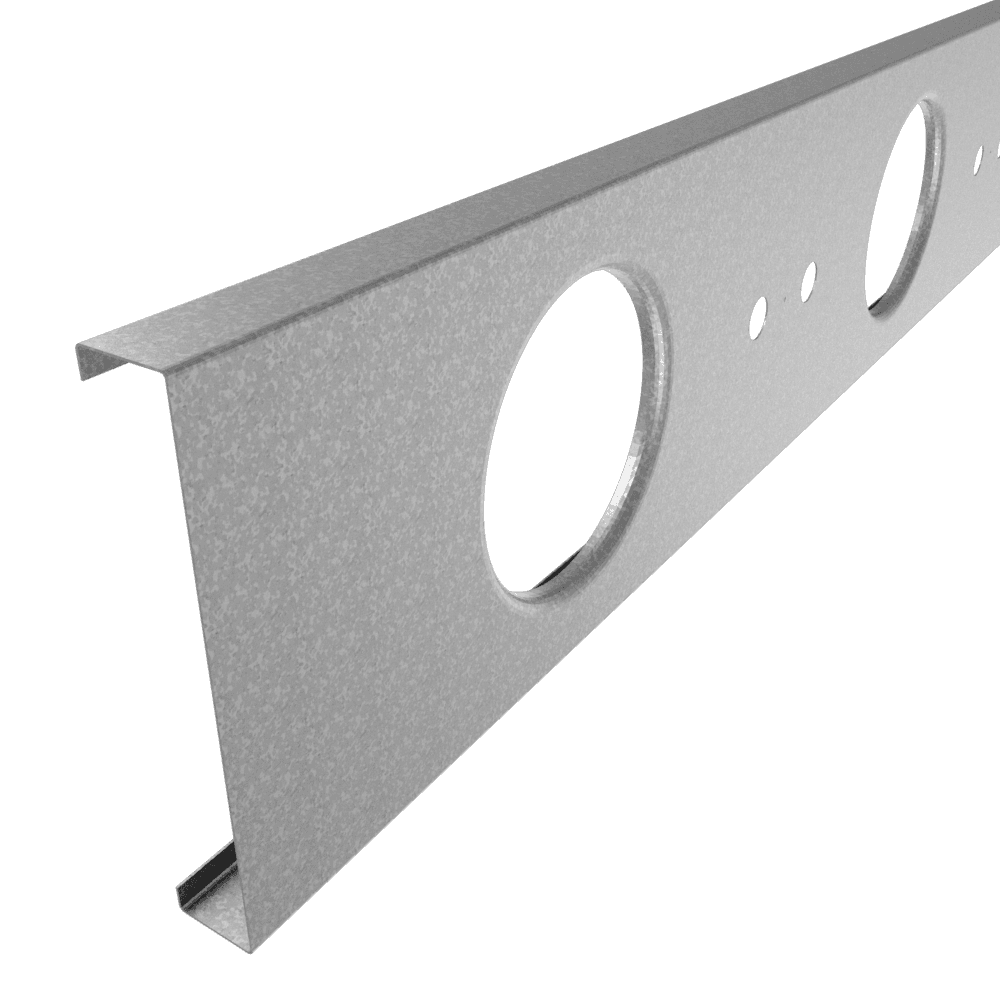

- Extruded hole sizes range from 4-1/4” oval to 10” round based on member depth
- Superior strength permits wider o.c. spacing
- Pre-cut to your exact specifications—no waste
- Available in 7-1/4”, 8”, 9-1/4”, 10”, 11-1/4”, 12” and 14” deep members

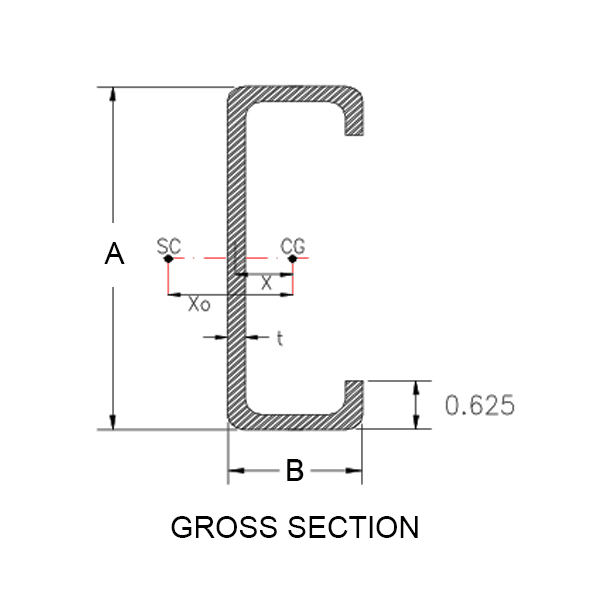

- Symmetrical flange sizes include 1-3/4” and 2”
- Eliminates soffit framing
- UL Listed assemblies
Accessory Products
For a full line of products that work with TradeReady see iTools Floor Framing Connections
