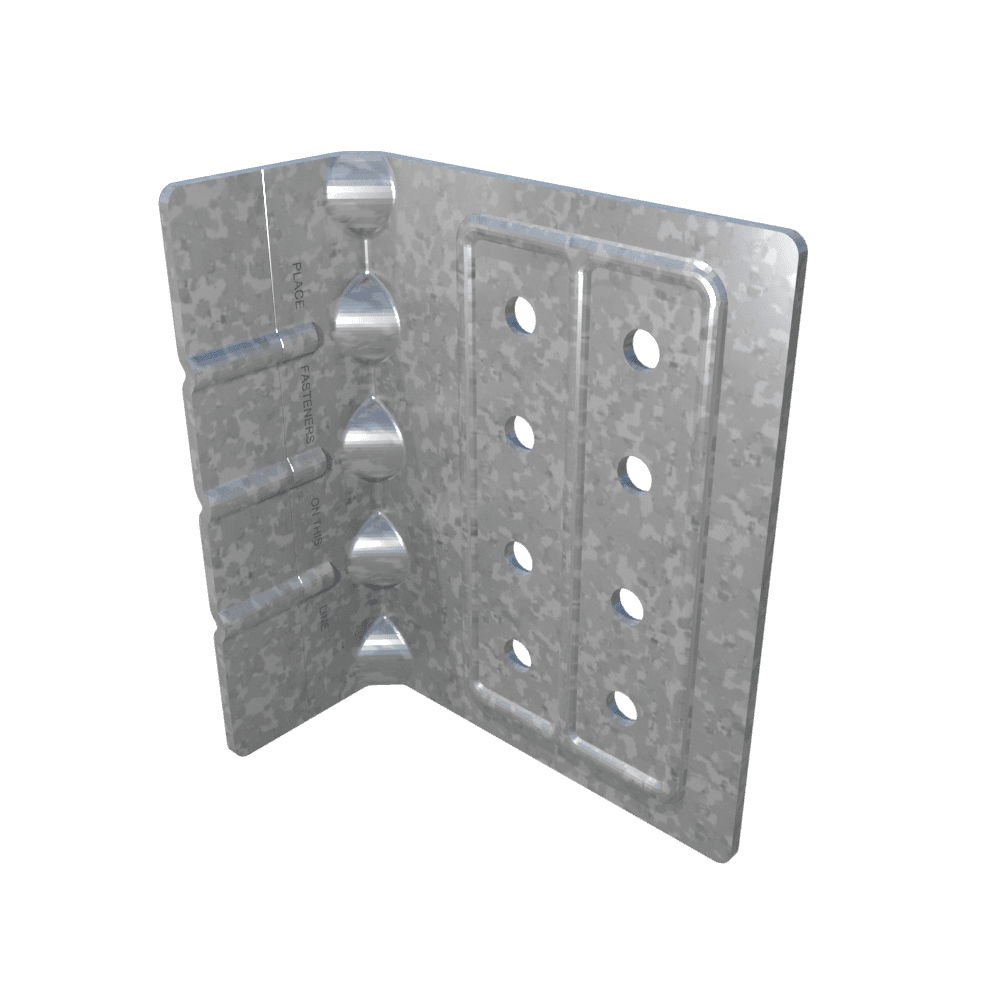

Uni-Clip™ End Clip (UCEC)
14 Gauge rigid connection clip
ClarkDietrich’s Uni-Clip™ framing clip is a universal framing clip used to attach and support numerous rigid framing conditions.
Quick Actions:

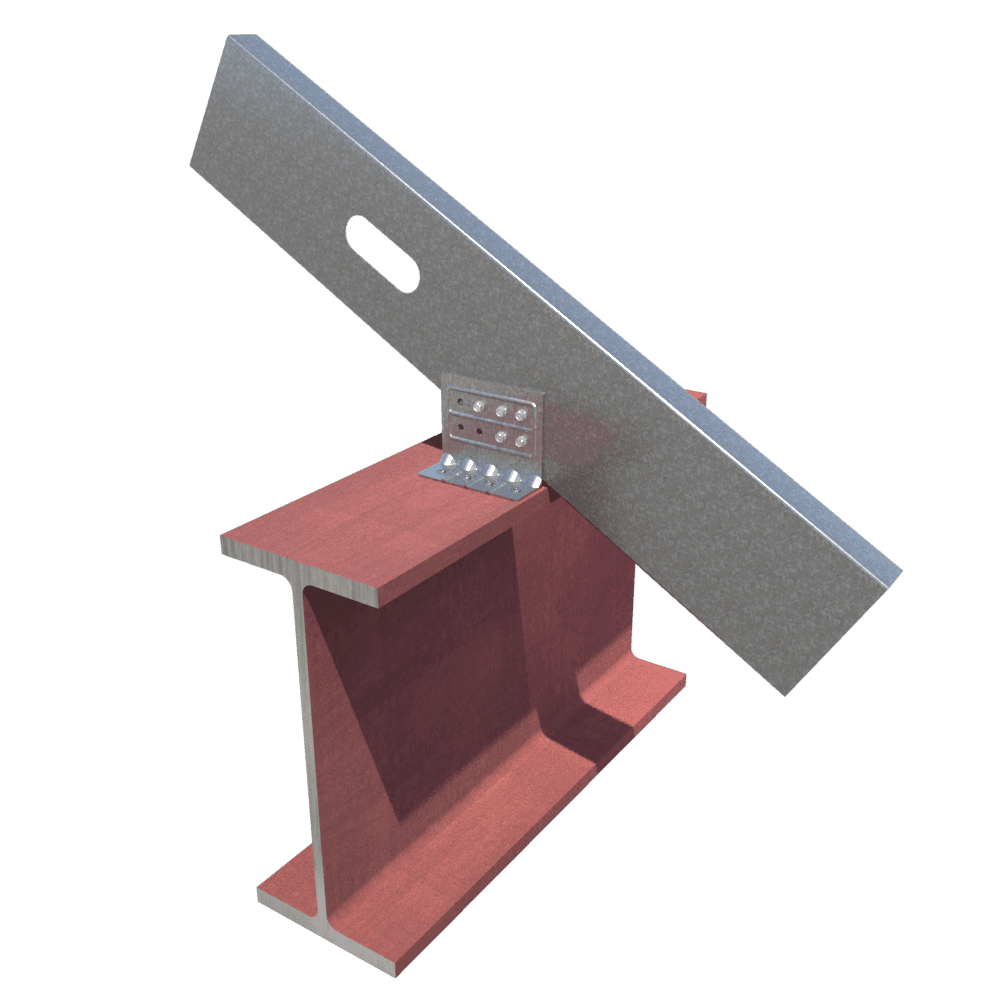

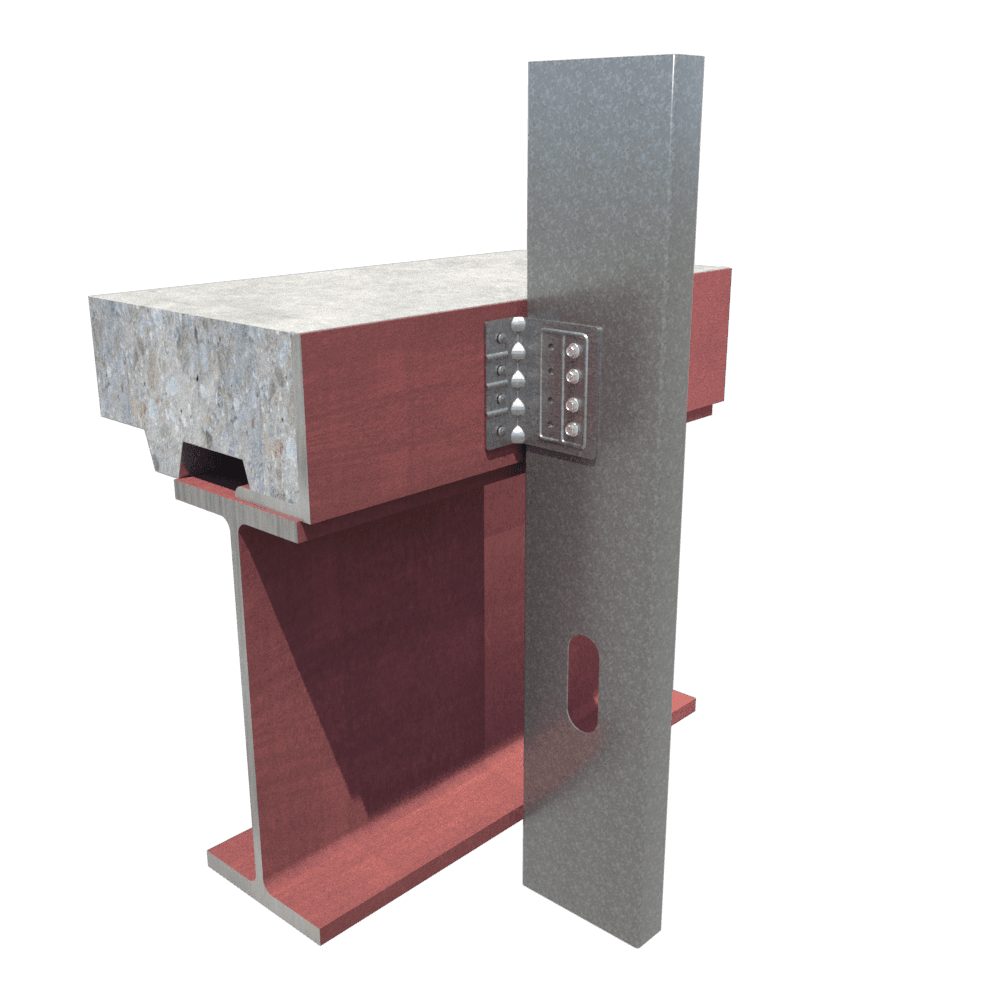

The Uni-Clip™ framing clip has stiffened corners that provide superior design values and are installed easily with screws or powder-actuated fasteners. This clip is ideal for most rigid connections, including shear, tension and two-axis loading.
- Designed to transfer large horizontal and vertical loads.
- Universal multi-application connector.
- Stiffened corners result in superior design values.
- Embossed fastening patterns to ensure accurate placement of fasteners.
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
Click the below Product Code to view Tech Datasheet
| Product Code | Gauge | Mils | Design Thickness (in) | Size (in) | Packaging Pcs./Ctn |
|---|---|---|---|---|---|

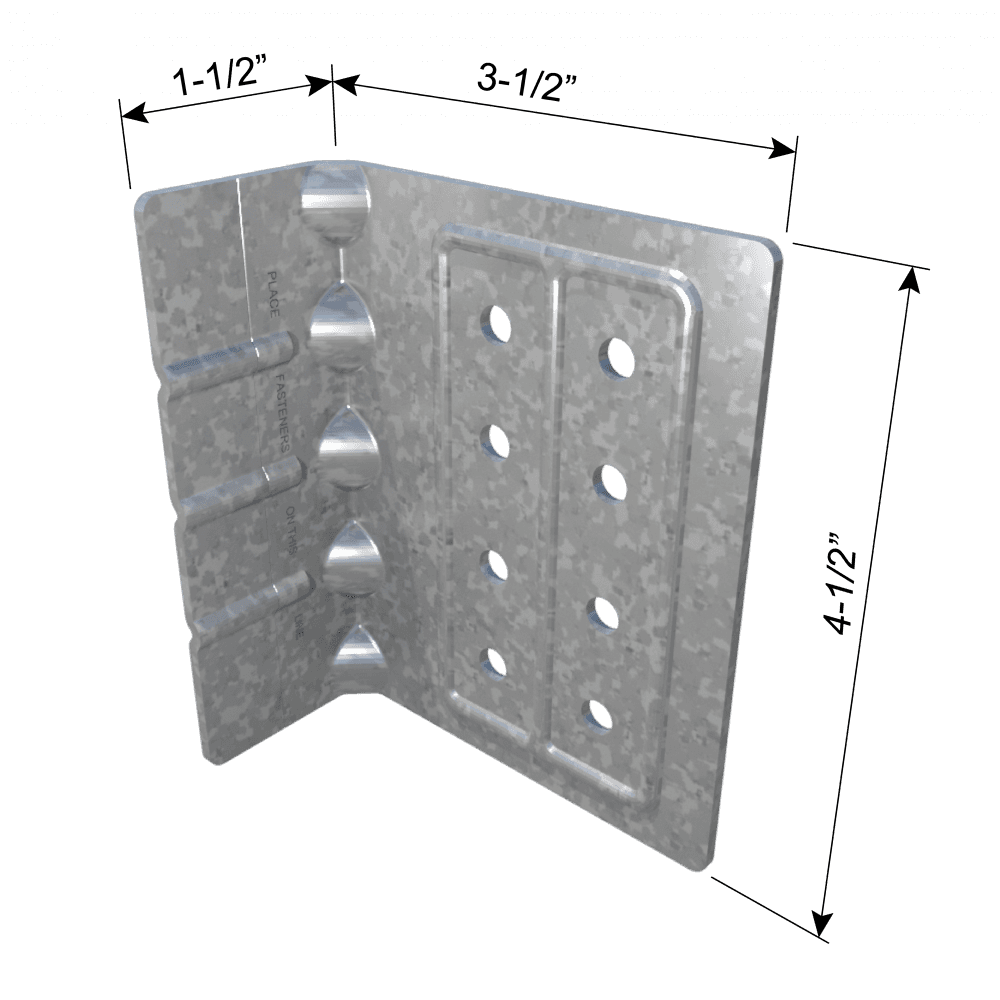

| UCEC | 14 | 68 | 0.0713 | 3-1/2 x 1-1/2 x 4-1/2 | 25 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
