Universal Joist Hanger (UJH)New
Floor joists connection to structural steel beams or CFS headers

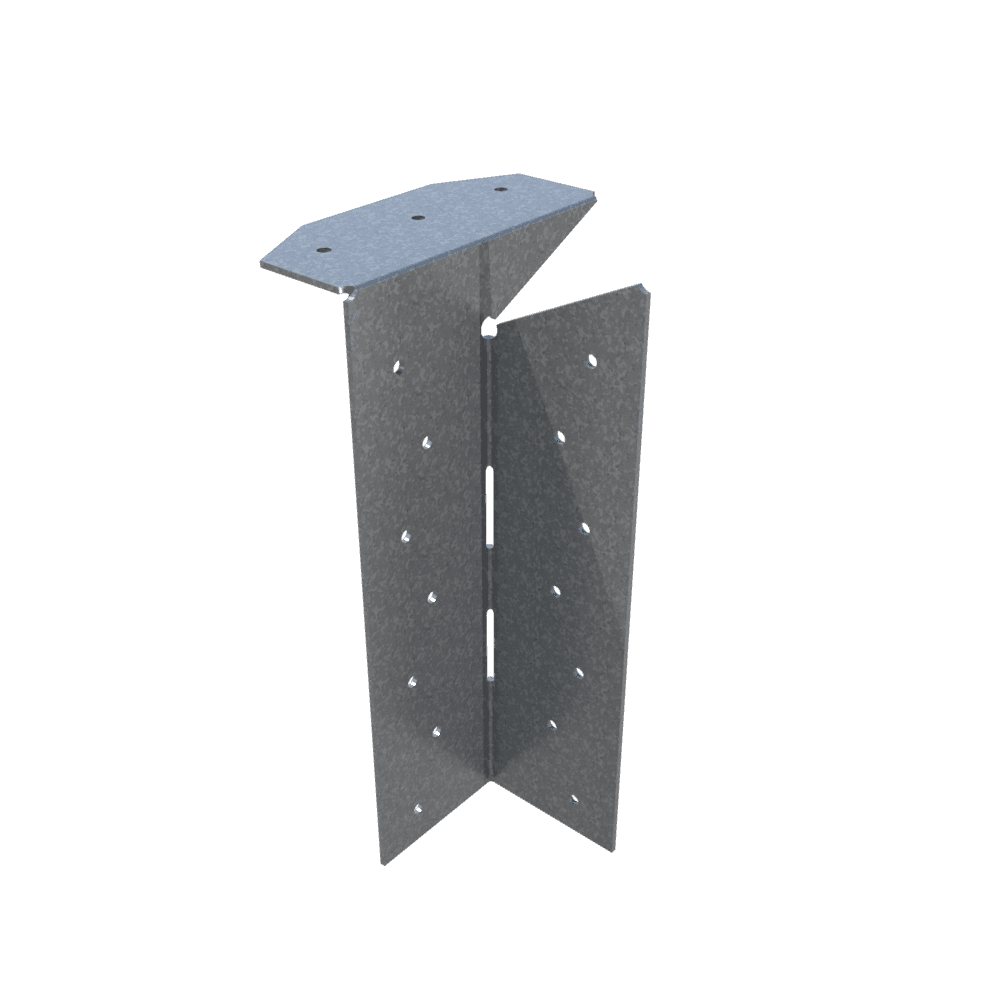

The Universal Joist Hangers (UJH) are used to connect joists to CFS headers and steel I-beams.
Quick Actions:

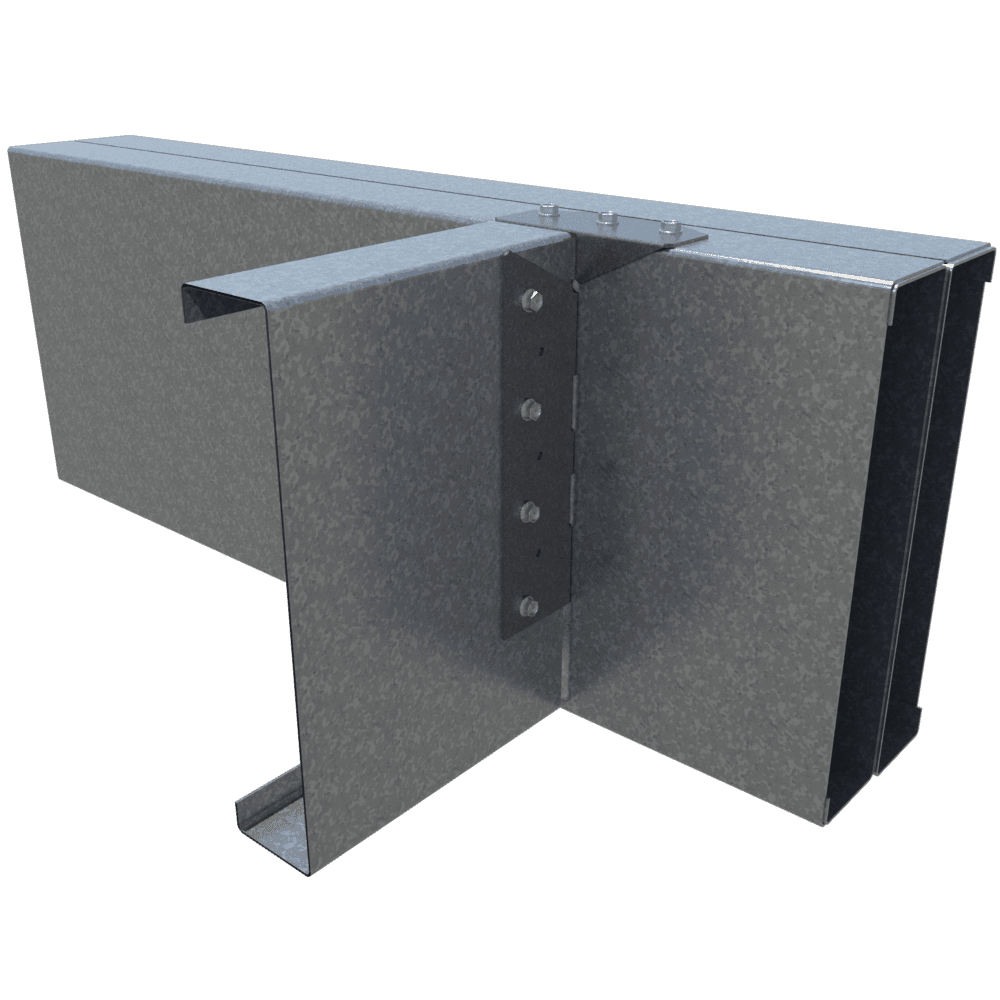

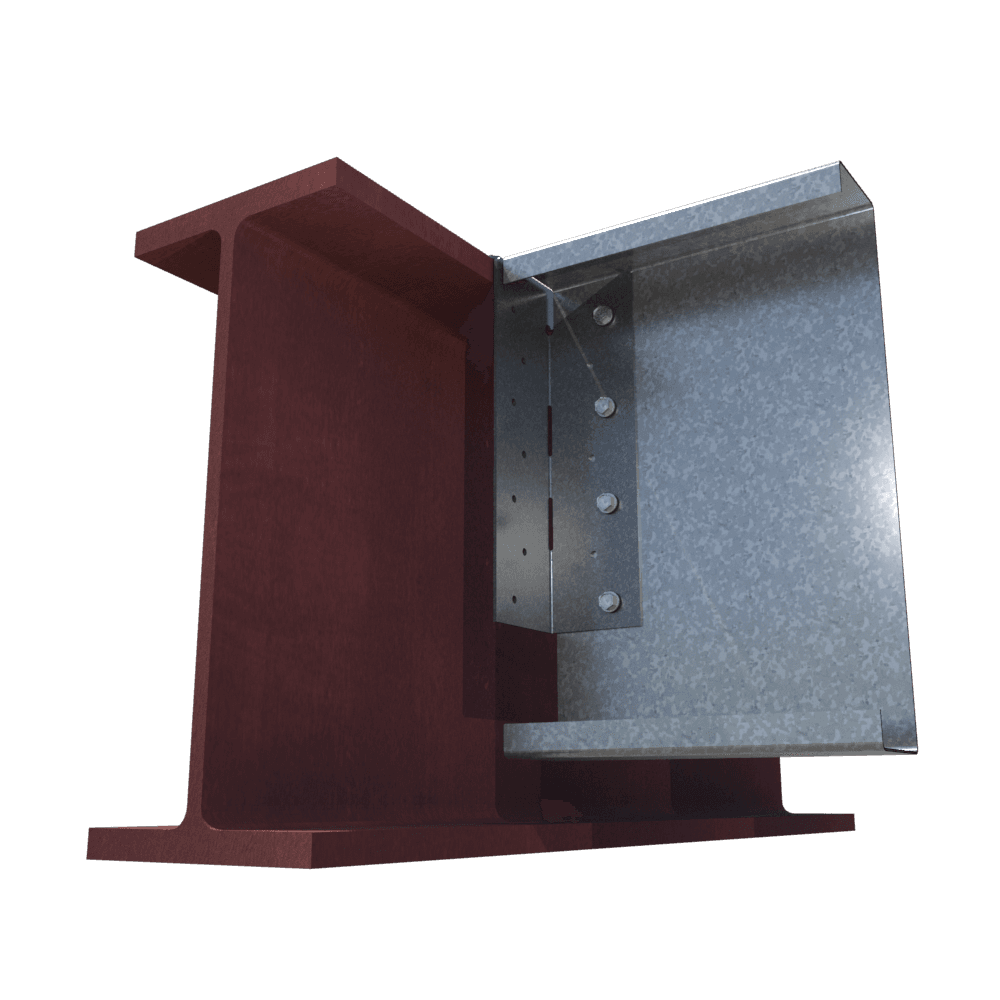

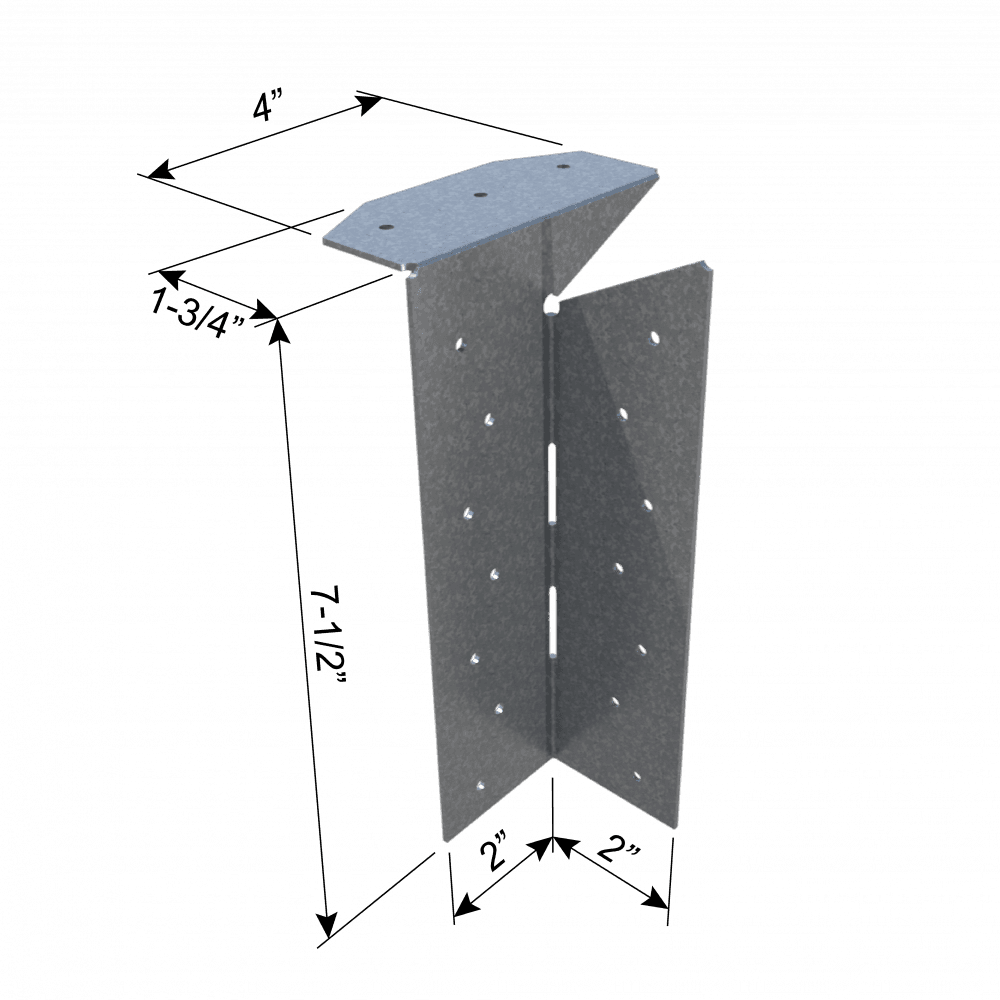

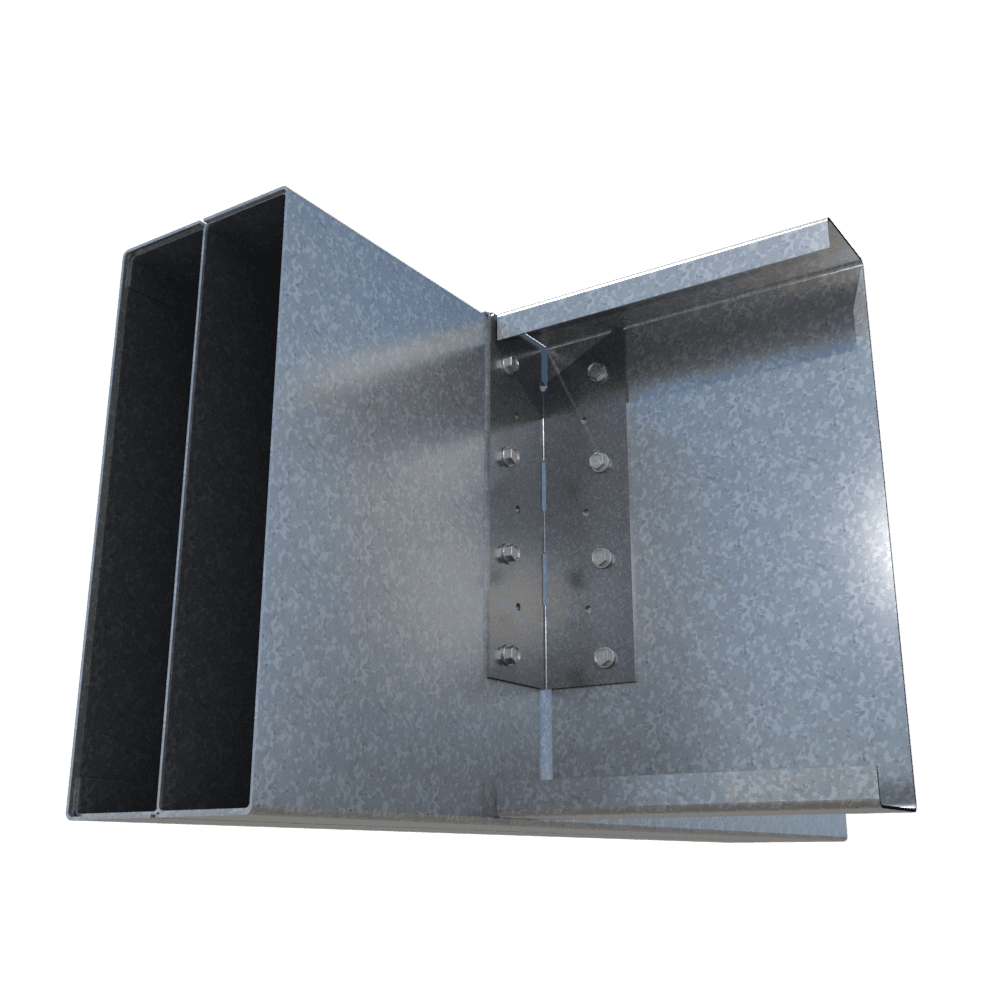

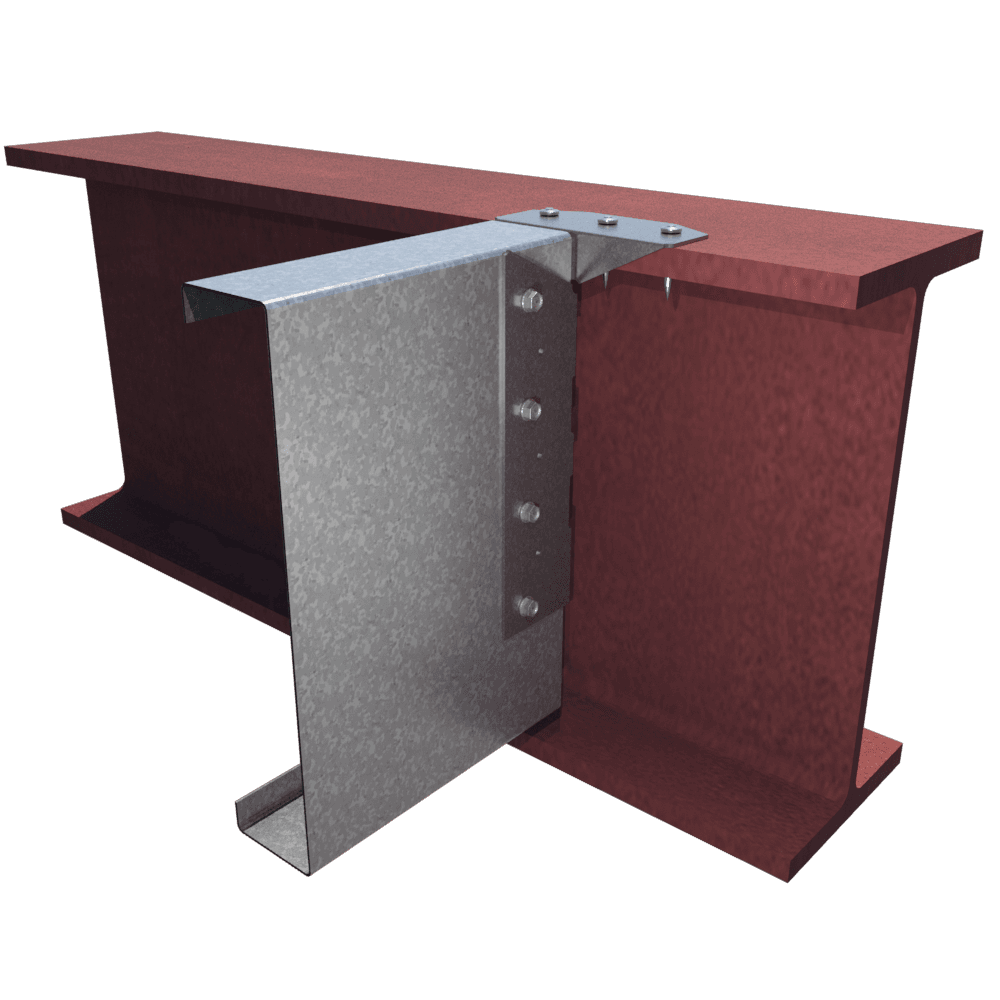

The Universal Joist Hangers (UJH) 68mils (14ga) or 97mils (12ga) are used to connect joists to CFS headers (with screws, welds or PAF fasteners) and steel I-beams (with welds or PAF fasteners). The UJH is sized to fit joist sizes from 8" to 14" deep.
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
| Product code | Mils | Gauge | Design Thickness | Pcs./Bkt |
|---|---|---|---|---|
| UJH-68 | 68 | 14 | 0.0713" | 50 |
| UJH-97 | 97 | 12 | 0.1017" | 50 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
