Z-Girt for Rainscreen FramingNew
Z Girt for RainScreen framing
Galvanized Z-Girt with standard depths to match common exterior insulation thicknesses. Can be installed in a vertical or horizontal orientation to accommodate a variety of cladding panel attachment methods.
Quick Actions:

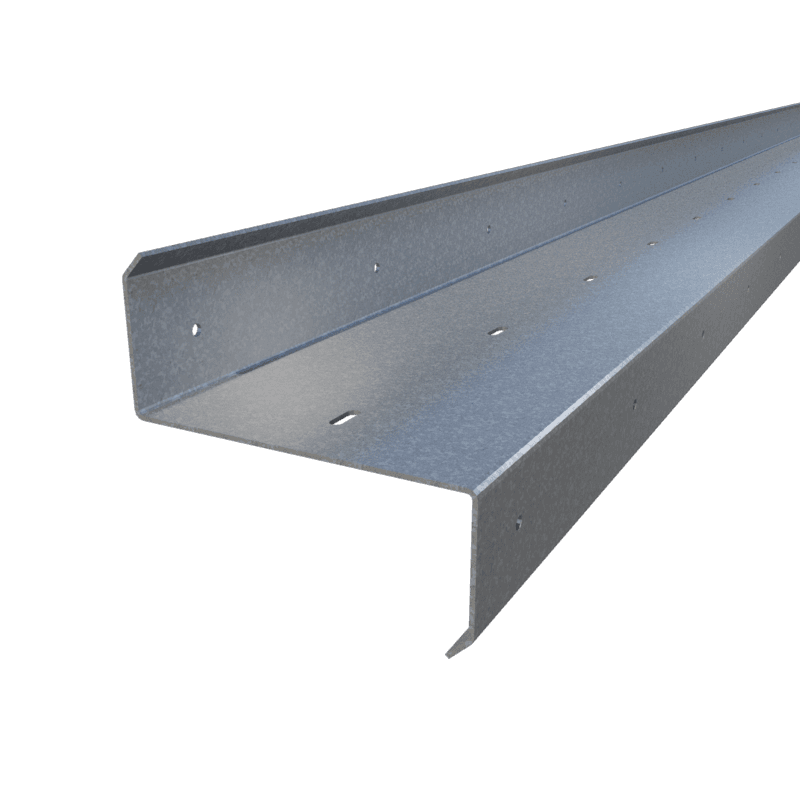

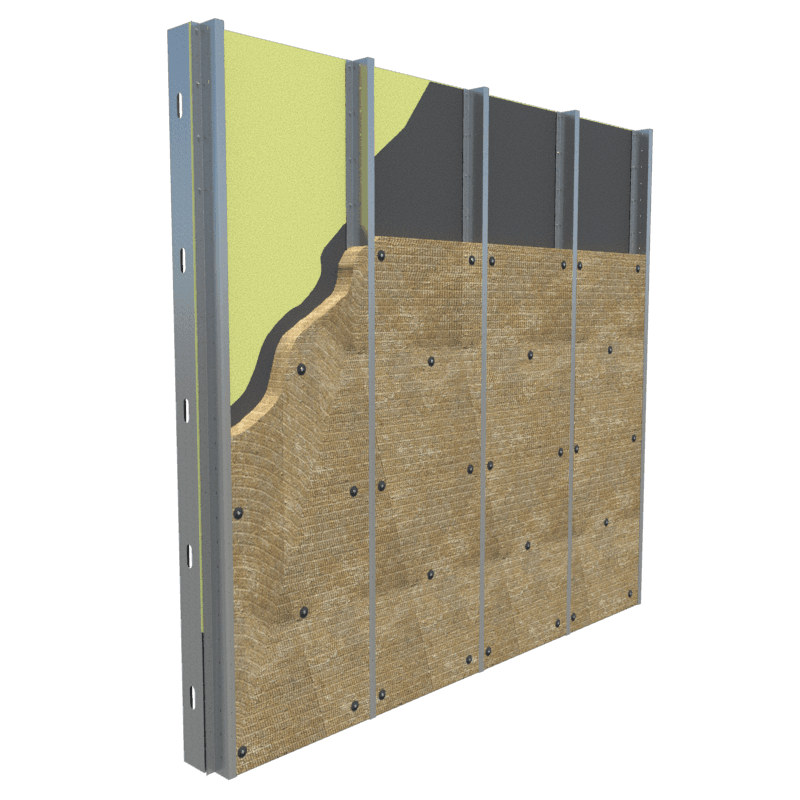

ClarkDietrich Z-Girt is used as a primary rainscreen framing component with depths matching common exterior insulation thicknesses while providing a uniform plane for cladding attachment. It can be installed in a horizontal or vertical orientation. The type of fastener and spacing will vary based on application.

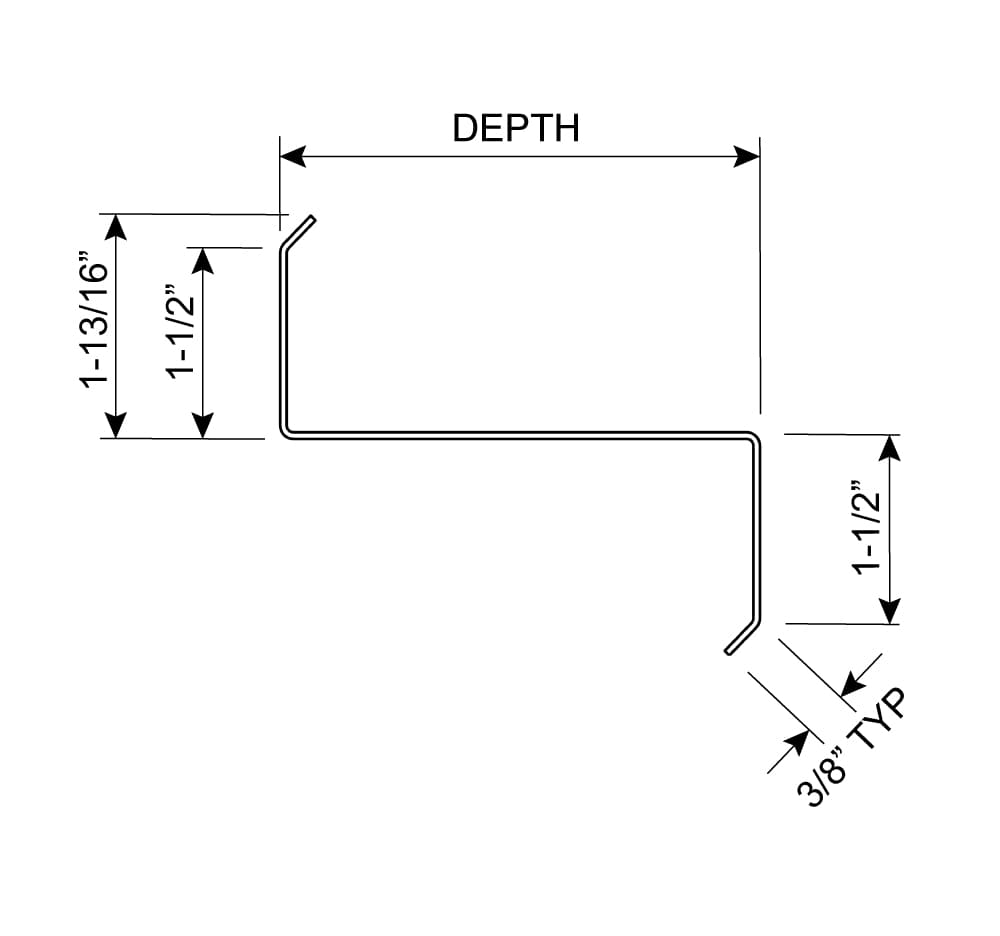

- Available in various depths from 1-1/2" to 4"
- Standard 12'-2" length
- Structural properties and load capacity tables available
- 1-1/2” wide flange for easy screw attachment
- Prepunched holes in flanges at 4" o.c. for easy attachment
- Slotted holes in web for moisture weeping
- ”Toed in” leg for strength and to grip rigid insulation
Click on Submittal tab for a link to all of ClarkDietrich's Standard Z-Girt Sizes.
Contact ClarkDietrich Technical Services at 888-437-3244 for thermal values.
| Product Code | Material | Size | Gauge | Design Thickness |
|---|---|---|---|---|
| 150ZG-43 | 33ksi, G90 | 1-1/2" | 43mils (18ga) | 0.0451" |
| 200ZG-54 | 50ksi, G90 | 2" | 54mils (16ga) | 0.0566" |
| 200ZG-43 | 33ksi, G90 | 2" | 43mils (18ga) | 0.0451" |
| 250ZG-43 | 33ksi, G90 | 2-1/2" | 43mils (18ga) | 0.0451" |
| 300ZG-54 | 50ksi, G90 | 3" | 54mils (16ga) | .0566" |
| 400ZG-54 | 50ksi, G90 | 4" | 54mils (16ga) | 0.0566" |
