E-Screen (Drainage Mat)New
Rainscreen Drainage Mat

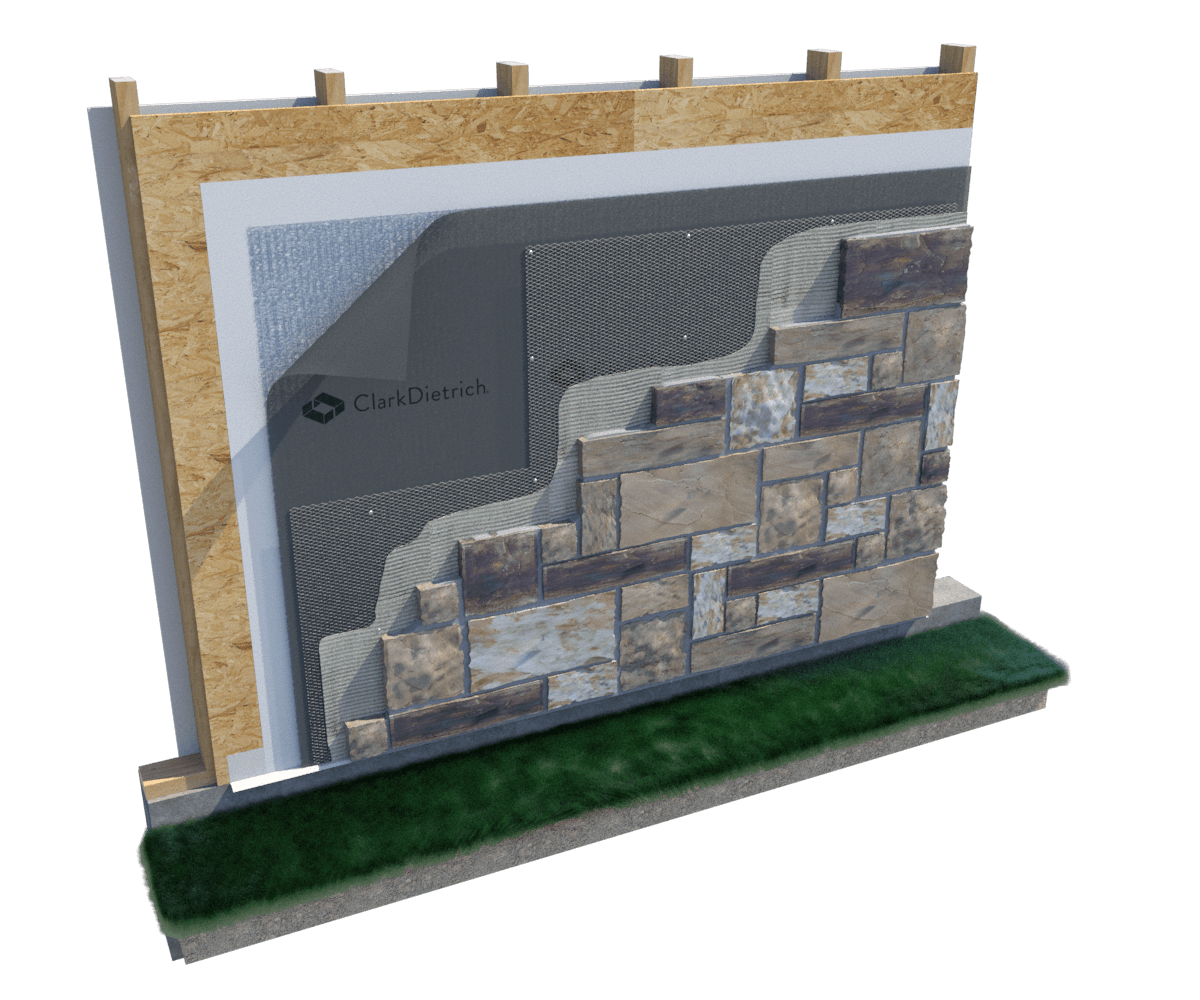

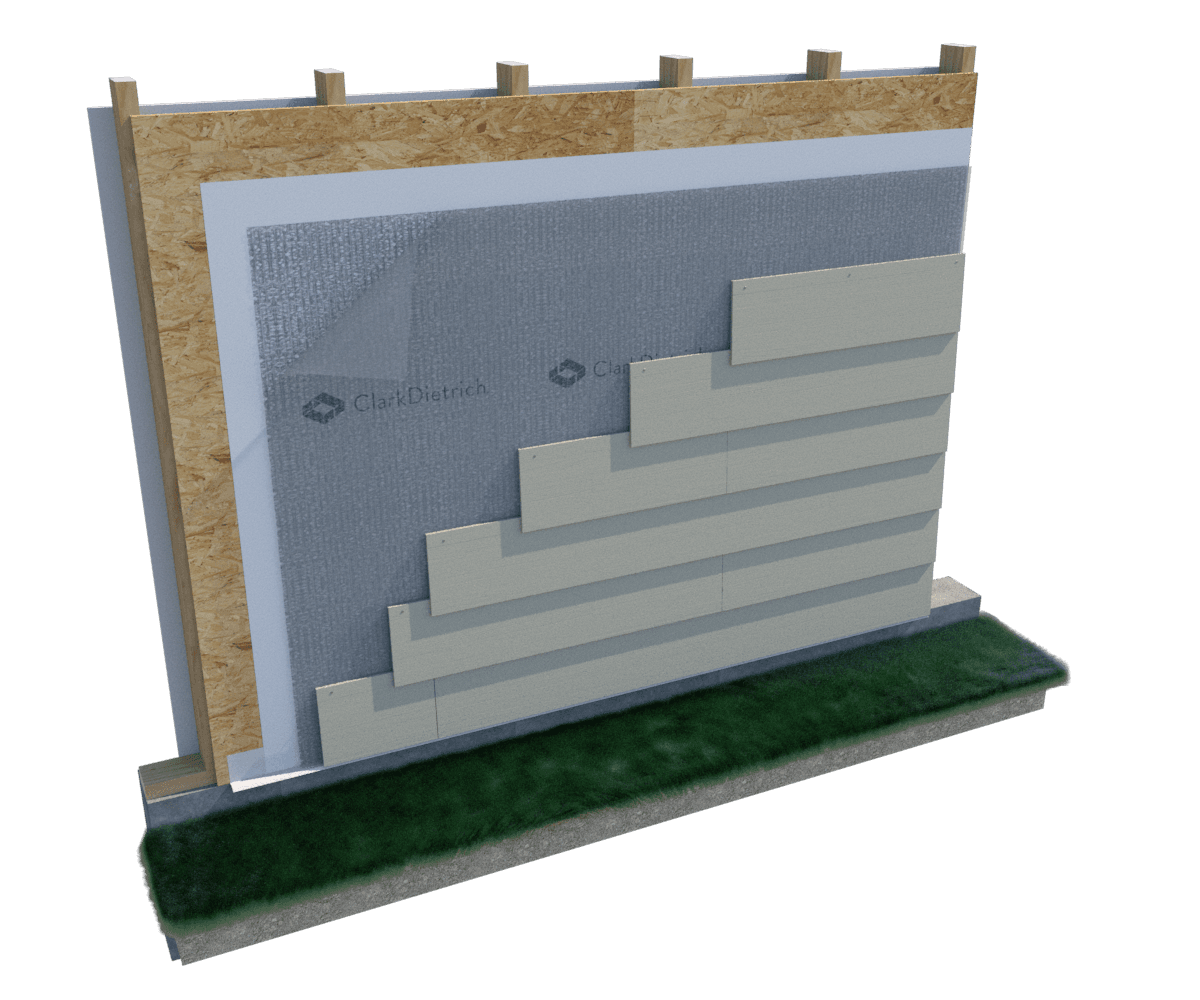

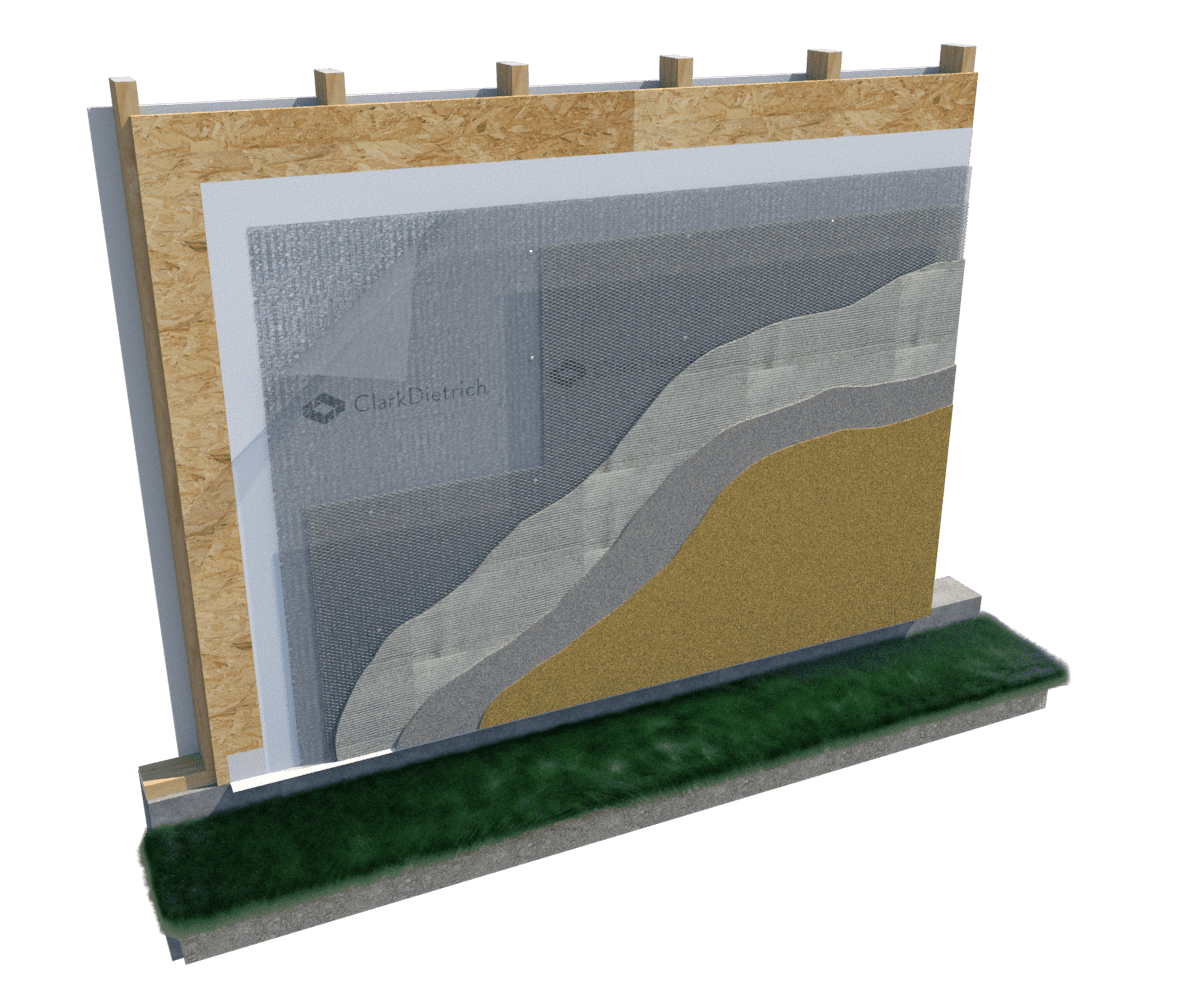

ClarkDietrich E-Screen can be used in stucco, stone veneer, brick, or under various siding installations to provide an effective method for drainage and ventilation in the wall system.
Quick Actions:
Moisture penetration is a prevalent issue in these wall systems and creates a range of problems from cracking to complete failure of the wall. Without a rainscreen, moisture can intrude past the outer surface of the wall and become trapped in the system, creating issues with rusting and mold growth that can structurally compromise the system. By using ClarkDietrich E-Screen, the water inside the wall is drained away more efficiently and the increased ventilation properties allows the system to dry out more effectively.
- Patent Pending
Key Features
- 95% open design creates a continuous capillary break and a channel for moisture to drain away from the wall system while accelerating the drying time
- The durable polymer material is corrosion-resistant, rust-proof and mildew/mold-resistant
- Minimizes cracking, staining, peeling, and blistering of exterior finishes
- Easy to Install - more cost effective and easier to install than traditional furring methods

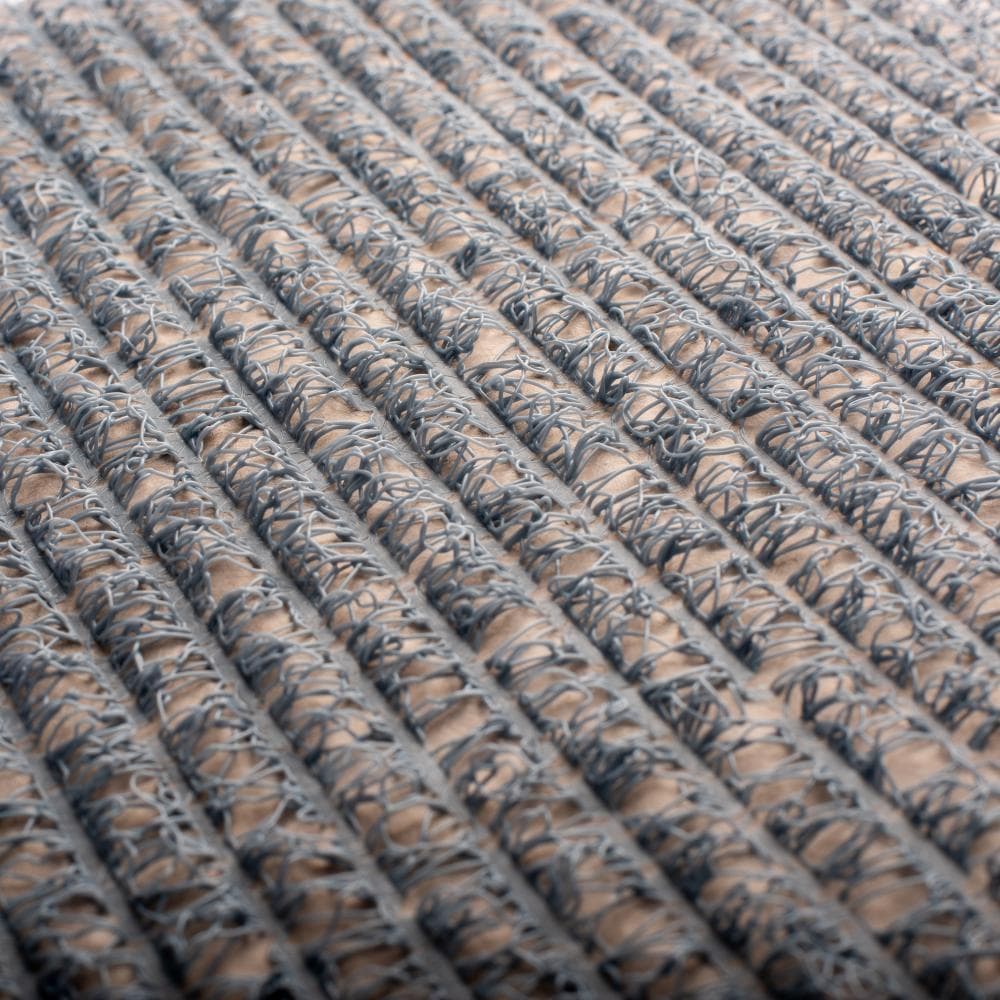

- The 2-Ply design is comprised of a backer fabric that deflects the stucco away from the open design and improves the tensile and compressive strength properties of the rainscreen - this fabric also provides a built-in insect screen
WARRANTY:

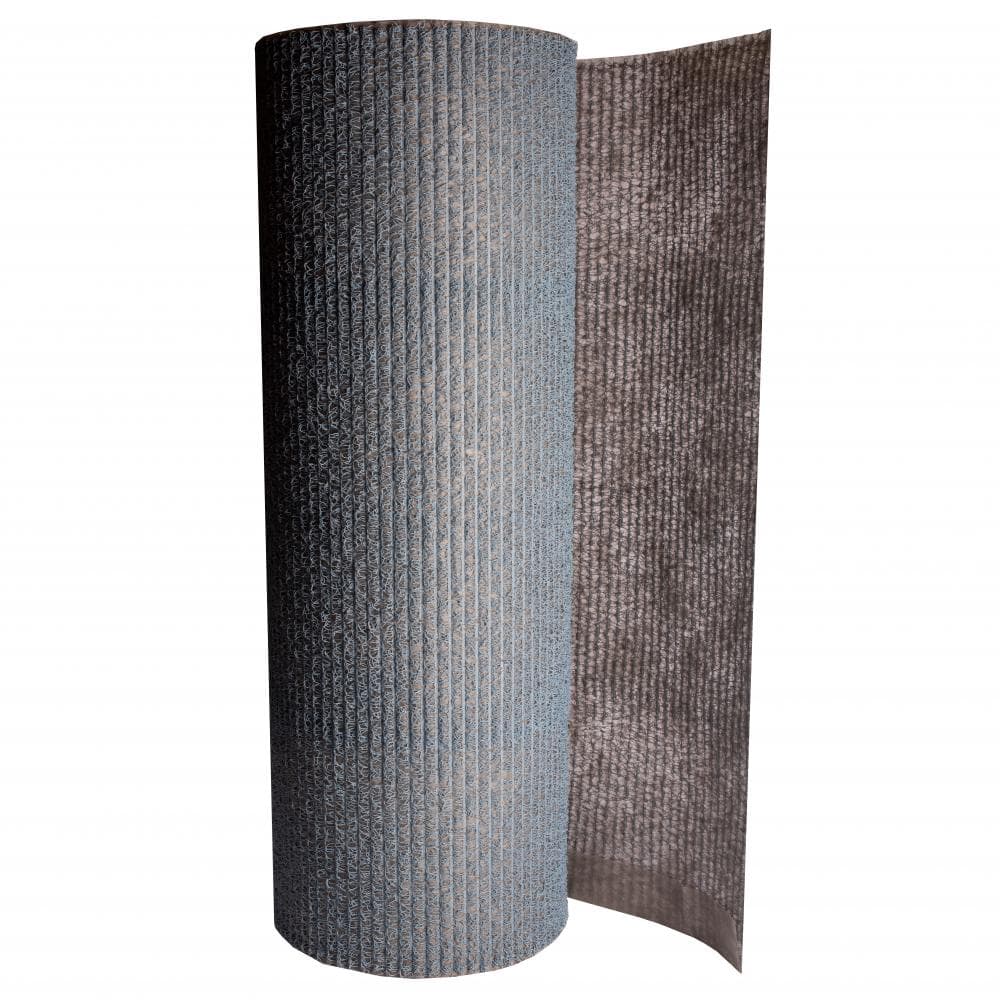

| E-Screen 6mm | E-Screen 10mm | |
|---|---|---|
| Core Material: | Polypropylene (Cornrow) | Polypropylene (Waffle) |
| Thickness: | .25 in (6mm) | .40 in (10mm) |
| Roll Length: | 61.5 ft (18.75m) | 40 ft (12.19m) |
| Roll Width: | 39 in (99.06cm) | 39 in (99.06cm) |
| Roll Weight: | 14 lbs (6.35kg) | 16 lbs (7.26kg) |
| Coverage Area: | 200 sq. ft. (18.58m2) | 130 sq. ft. (12.08m2) |
| Mortar Deflection, Ventilation & Drainage Mat Options | E-Screen 6mm | E-Screen 10mm |
|---|---|---|
| Mortar Deflection & Ventilation Material Thickness | .25 in (6mm) | .40 in (10mm) |
| Density / Specific Gravity (ASTM D792, Method A) | 0.901 g/cm3 | 0.903 g/cm3 |
| Porosity (Open Space) ECTCTASC00197 | 93.80% | 95.30% |
| Mass / Unit Area (Composite) (ASTM D5261 / ASTM D6566) | 11.25 oz/sq. yd | 15.10 oz/sq. yd |
| Hydraulic Transmissivity (ASTM D4716) | 4.22 gpm/ft width | 7.01 gpm/ft width |
| Air Transmissivity (ASTM D4716, mod) | 15.8 cu. ft/min/ft width | 54.5 cu. ft/min/ft width |
| Flame Spread & Smoke Index (ASTM E84) | Class A Fire Rated | Class A Fire Rated |
RECOMMENDED ACCESSORy:

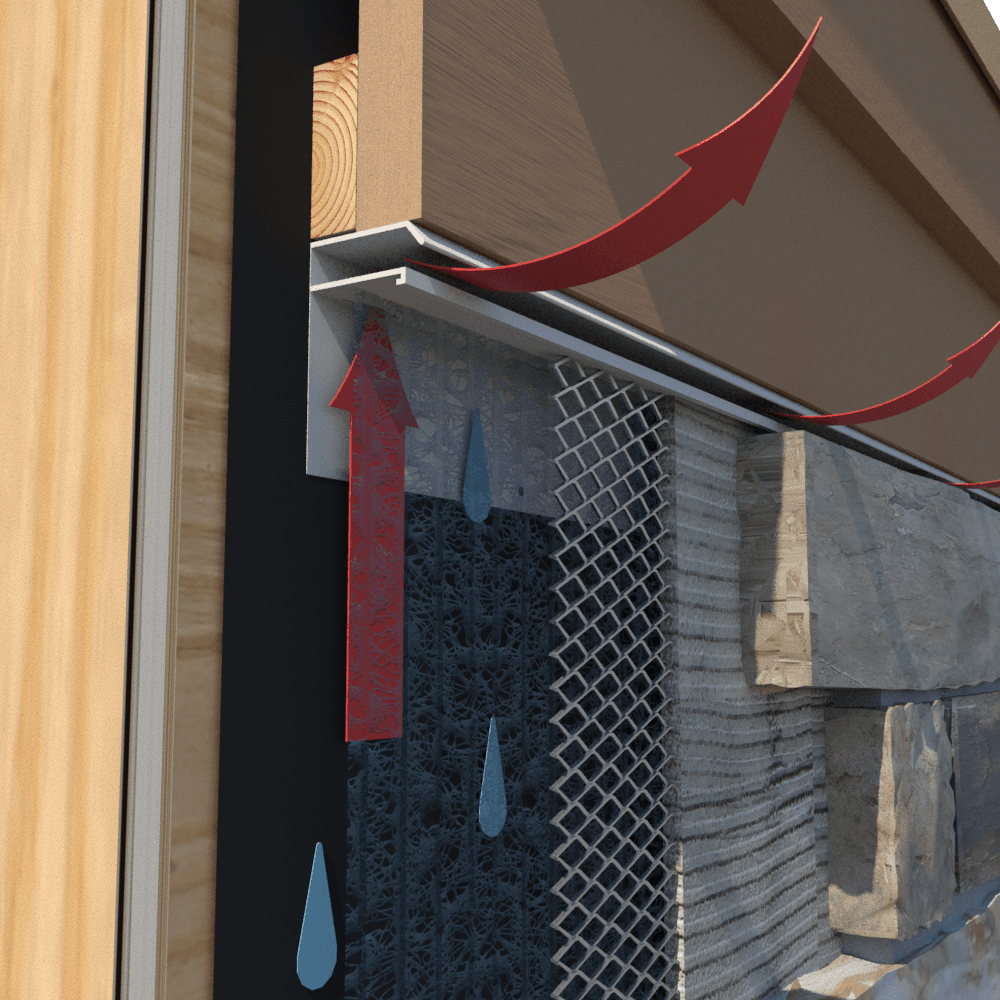

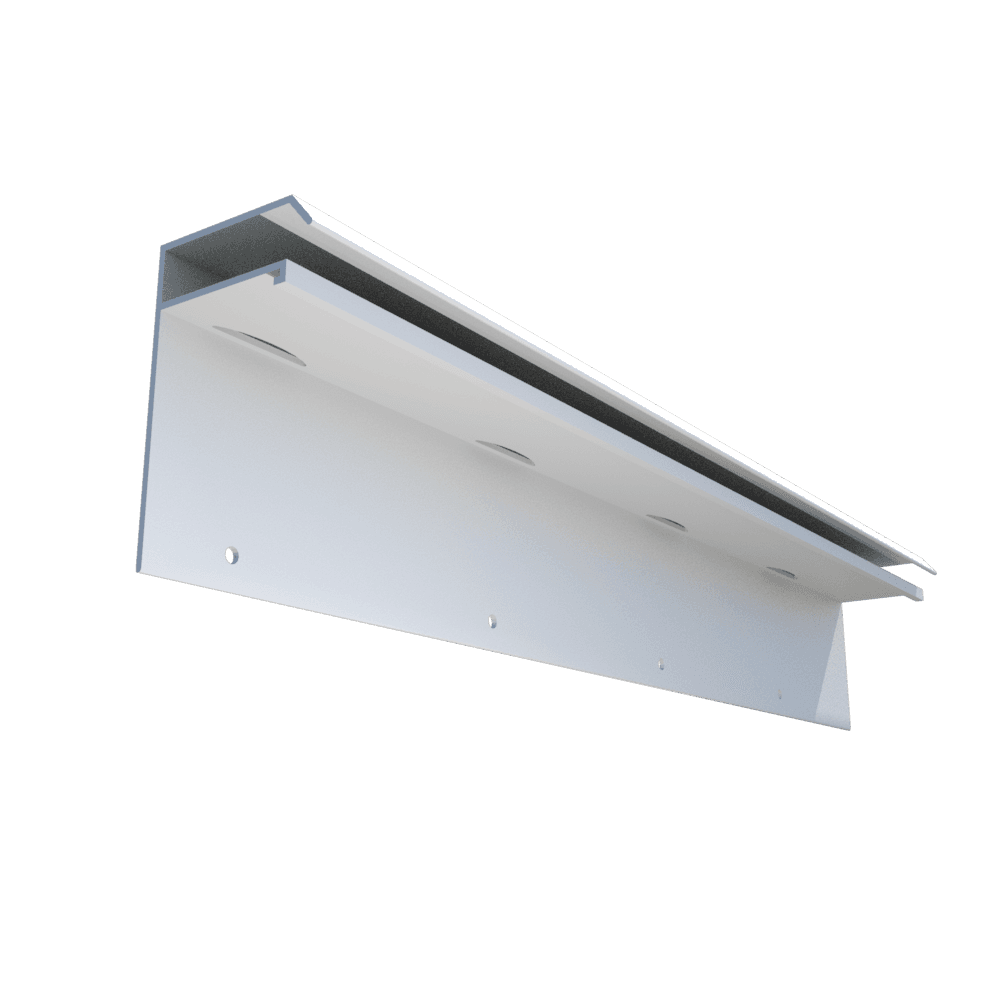

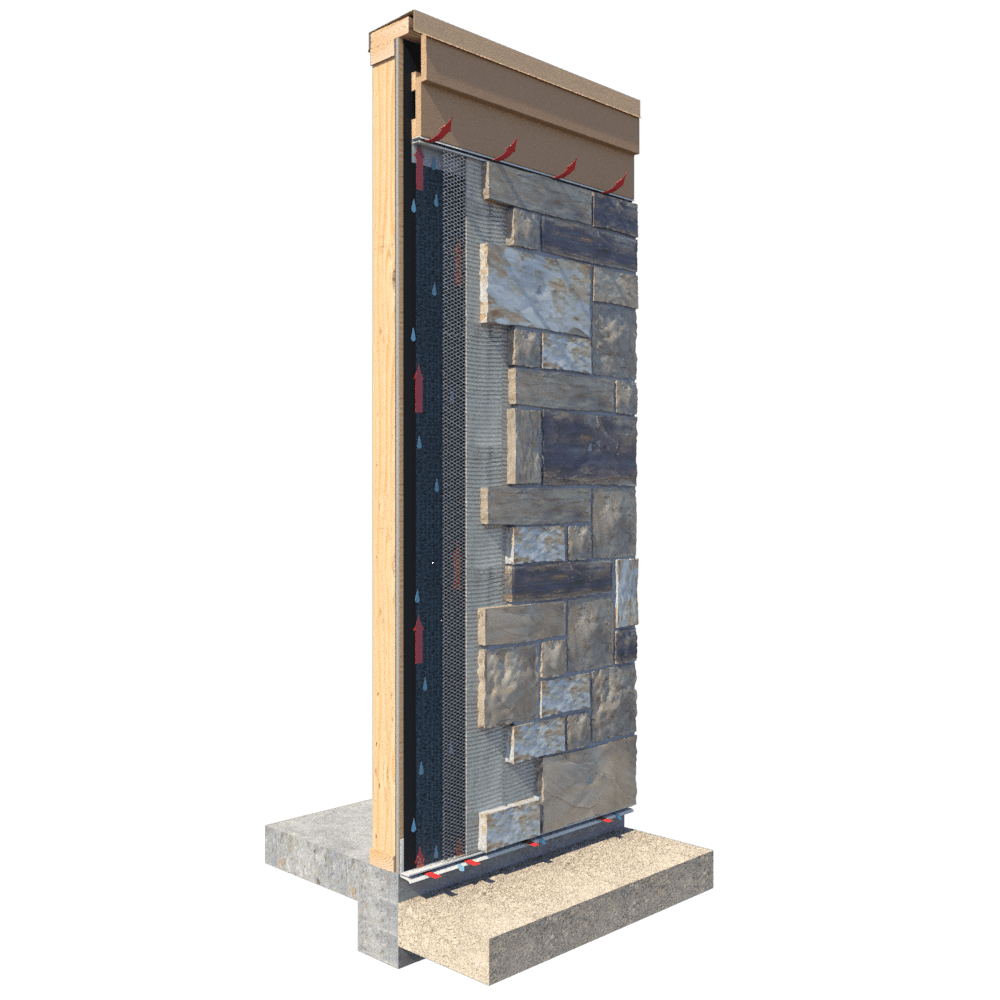

The Top Vent Track for Rainscreen provides venting and draining for the entangled mesh rainscreen or other medium as defined by IBC & IRC codes on plywood and OSB sheathing for exterior. This component serves as a vented Casing Bead because of its 1” vent slots in the top ground to manage allow air flow into the air space behind the cladding.
- Patent Pending
RECOMMENDED ACCESSORy:

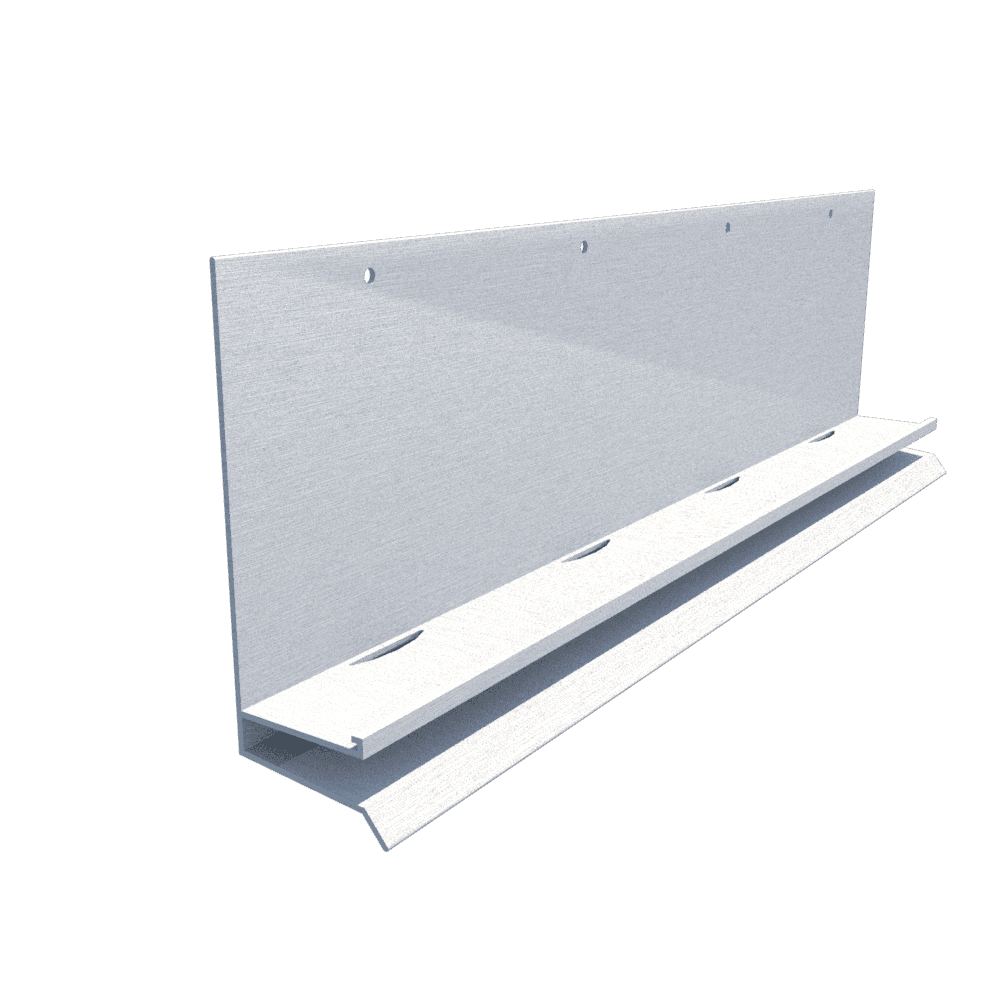

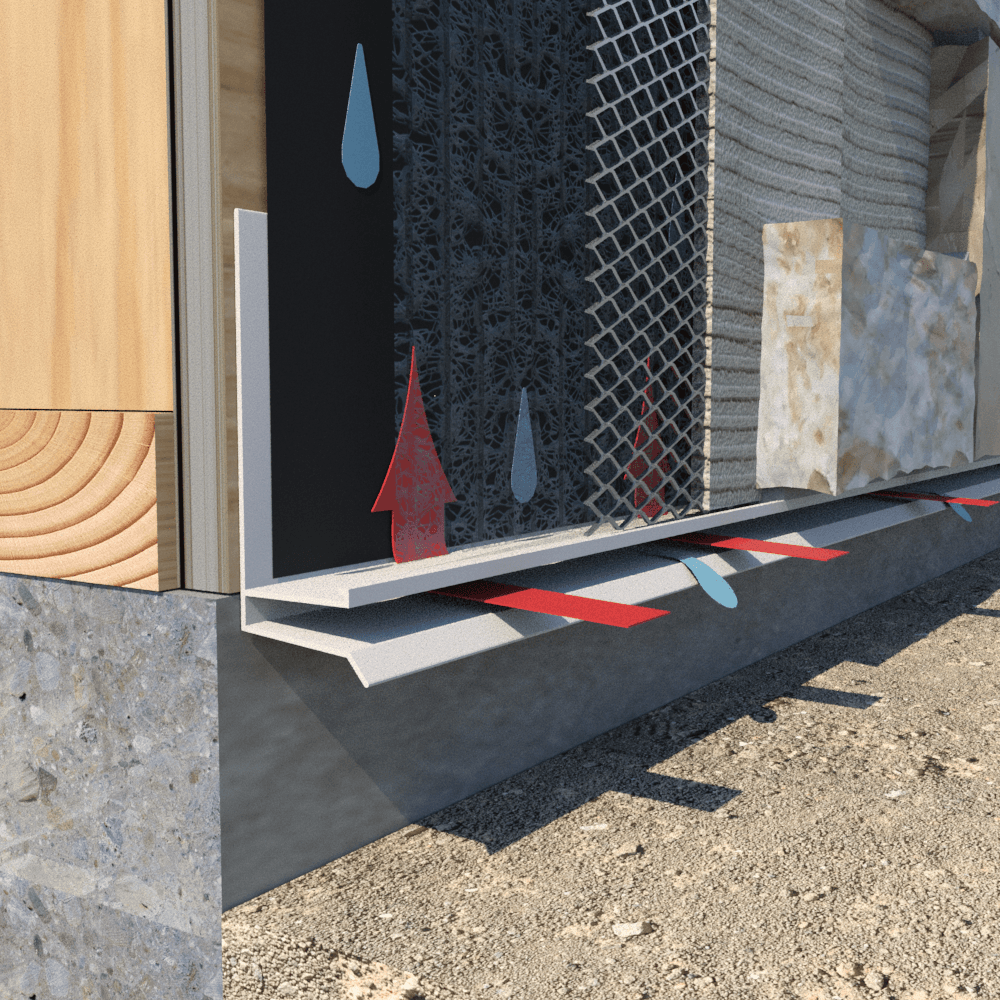

The Drip Flange for Rainscreen provides venting and draining for entangled mesh rainscreens or other medium as defined by IBC & IRC codes on plywood and OSB sheathing for exterior. This component serves as the Foundation Weep Screed because of its 3.5” attachment flange and has drainable holes in the bottom ground to manage moisture out and allow air flow into the air space behind the cladding.
- Patent Pending
