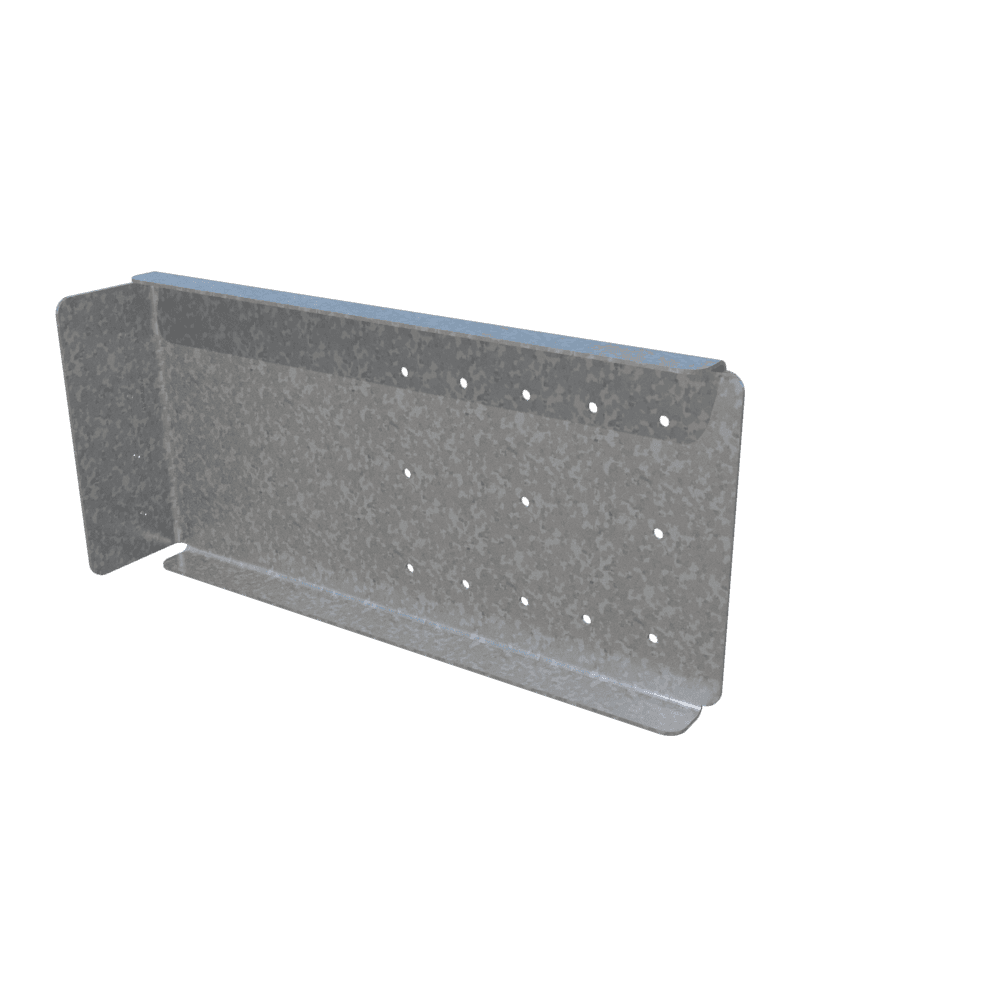

Extended Uni-Clip™ (UXRC)
14 Gauge Rigid Connection Clip

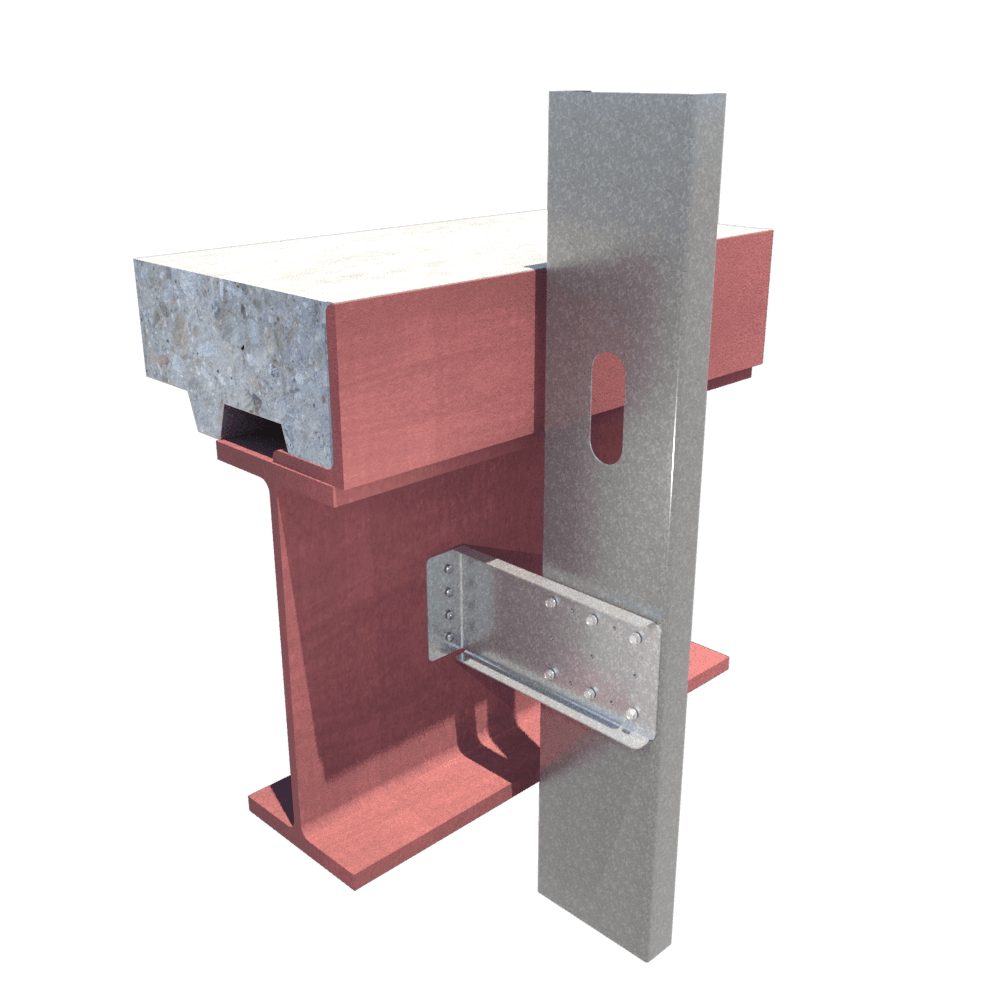

ClarkDietrich’s Extended Uni-Clip™ rigid framing clip is used to attach exterior wall studs to the structure of the building.
Quick Actions:
Designed to transfer horizontal and vertical loads, the extended rigid clips install easily with screws, powder-actuated fasteners, or welds. This clip is ideal for all medium and large standoff conditions.
Alternative Products:
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information

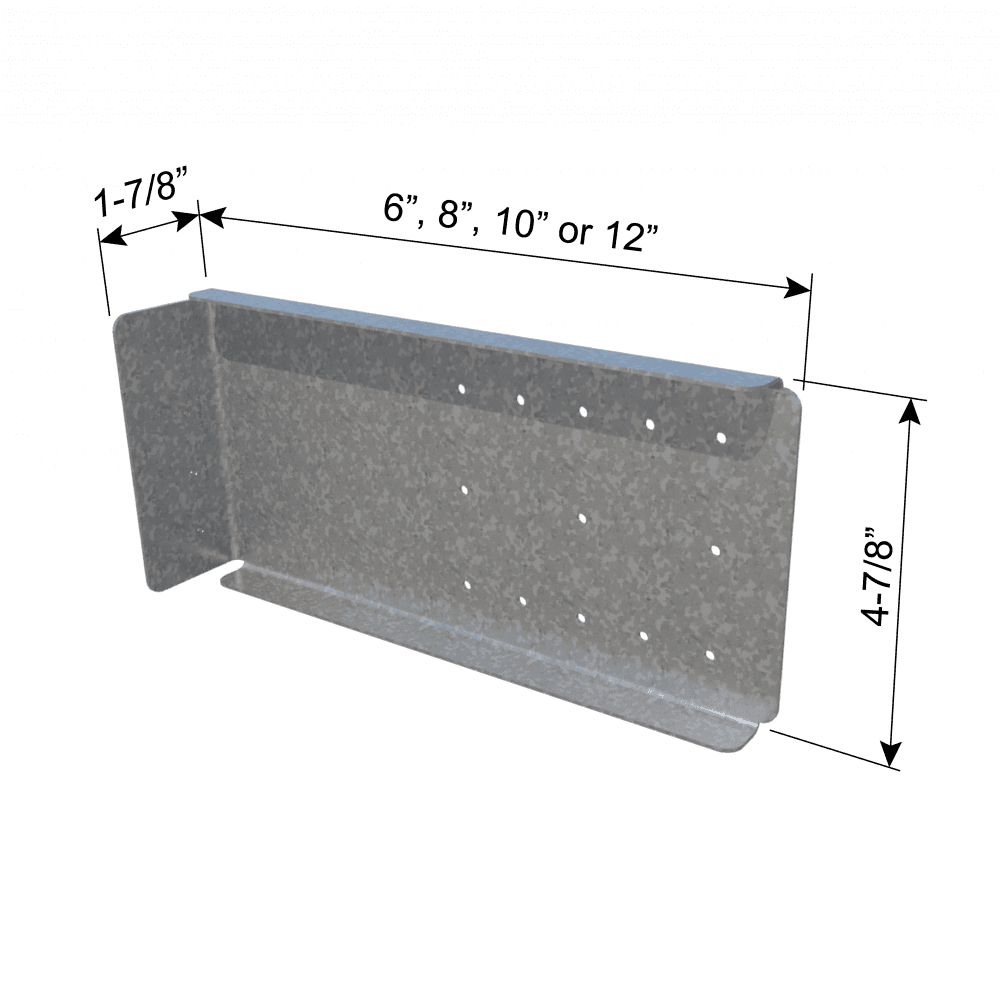

| Product Code | Gauge | Mils | Design Thickness (in) | Size (in) | Packaging Pcs./Bucket |
|---|---|---|---|---|---|
| UXRC 6" | 14 | 68 | 0.0713 | 1-7/8 x 4-7/8 x 6 | 25 |
| UXRC 8" | 14 | 68 | 0.0713 | 1-7/8 x 4-7/8 x 8 | 25 |
| UXRC 10" | 14 | 68 | 0.0713 | 1-7/8 x 4-7/8 x 10 | 25 |
| UXRC 12" | 14 | 68 | 0.0713 | 1-7/8 x 4-7/8 x 12 | 25 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
