Universal Bypass Clips (UBC)New
Provides either a rigid connection OR deflection movement up to 3”.
Universal Bypass Clips are used to attach exterior curtain wall studs to the building structure and provide either a rigid connection or deflection connection for vertical building movement independent of the cold-formed steel framing.
Quick Actions:

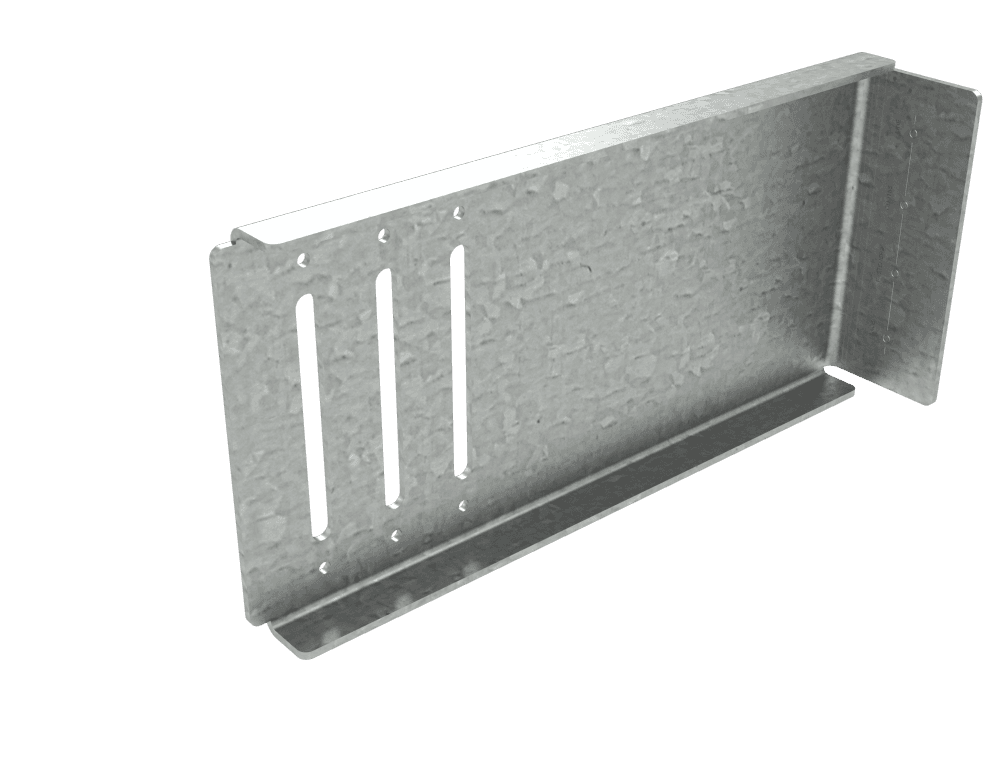

The clips are available in standard lengths of 6", 8”, 10” and 12” and are ideal for medium to larger standoff conditions. UNIVERSAL BYPASS CLIPS install quickly with screws, welds or powder-actuated fasteners, and provide adjustable standoff to ensure a plumb wall plane. For deflection application, proprietary deflection screws are provided with each clip to ensure friction-free sliding.
- Eliminates shims and scabs.
- Provides vertical movement up to 3" (1-1/2" up and 1-1/2" down) when installed as a deflection application.
- Specially designed to simplify welding installation.
- Fast, one-piece universal installation. No left or right handed clips.
- Proprietary deflection screws provide frictionless slip connections. One bag (80 screws) included.
Alternative Products:
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Pcs./Bucket |
|---|---|---|---|---|---|

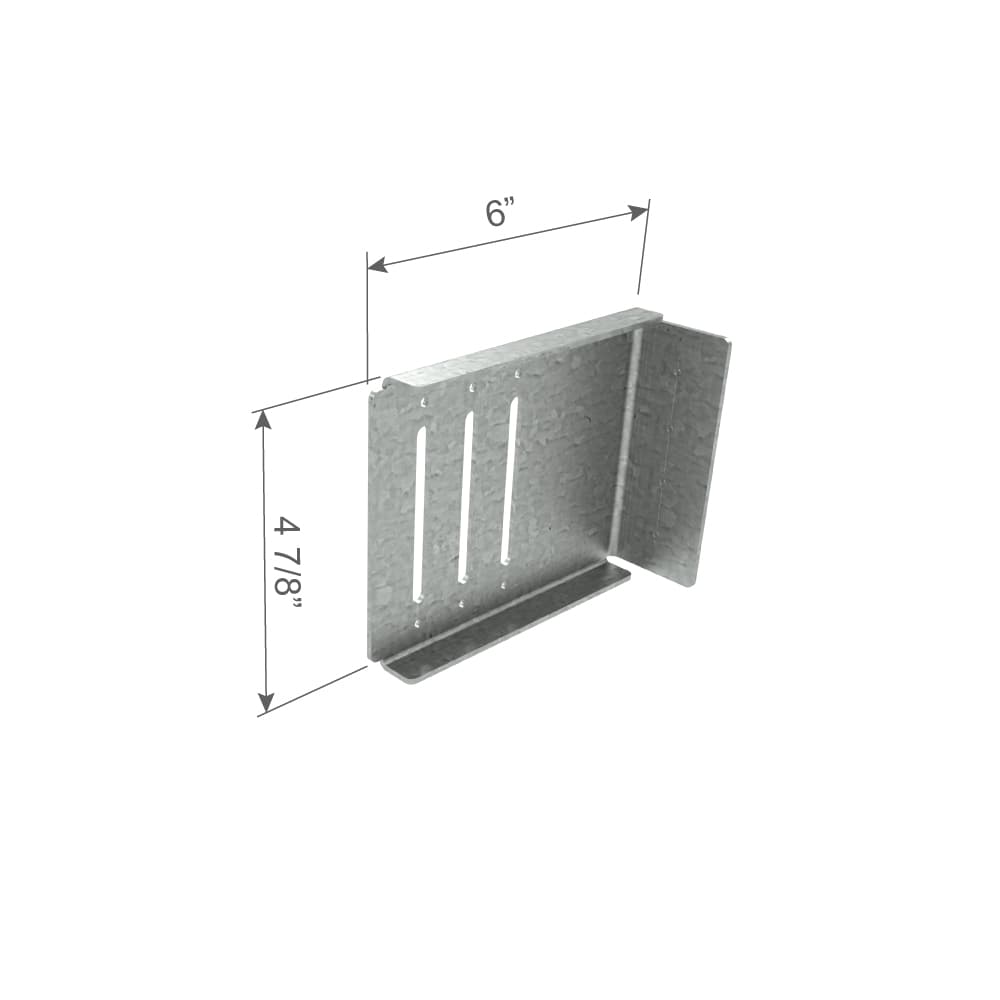

| UBC6-68 | 14 | 68 | 0.0713 | 1-7/8" x 6" x 4-7/8" | 25 |

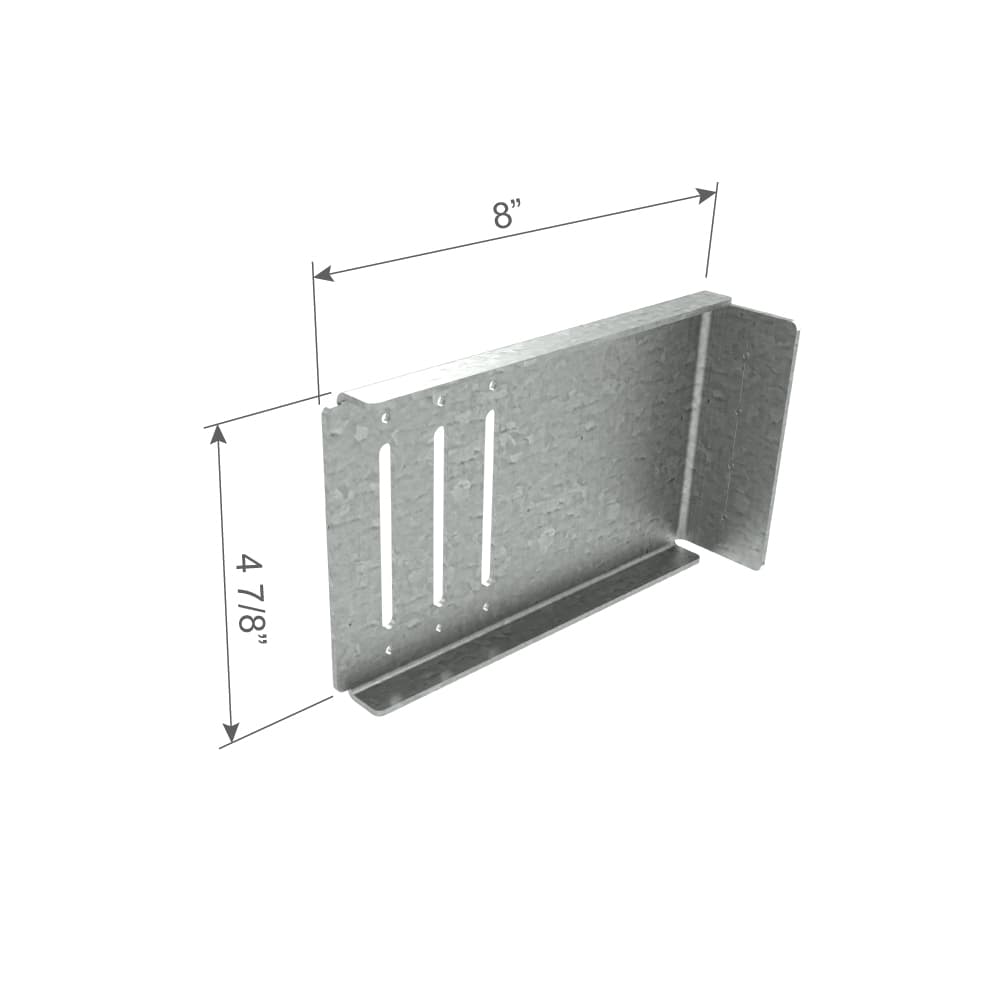

| UBC8-68 | 14 | 68 | 0.0713 | 1-7/8" x 8" x 4-7/8" | 25 |

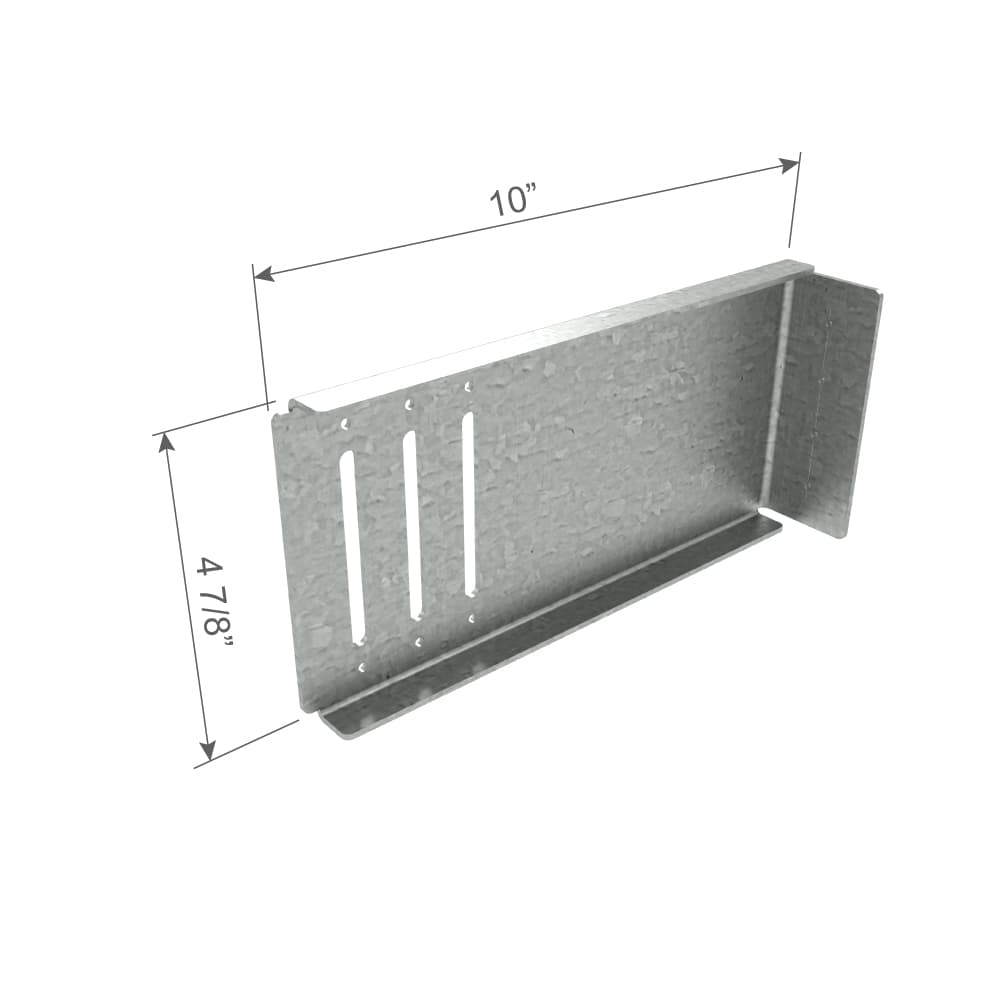

| UBC10-68 | 14 | 68 | 0.0713 | 1-7/8" x 10" x 4-7/8" | 25 |

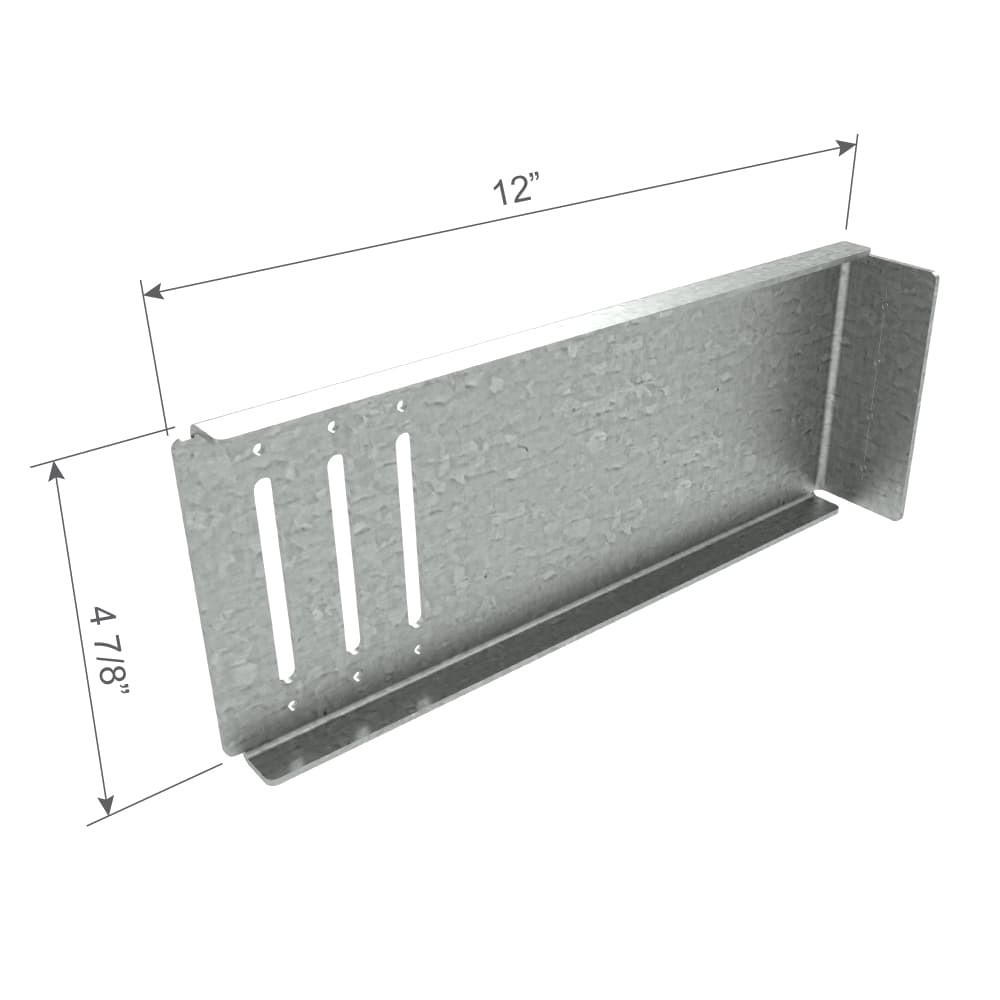

| UBC12-68 | 14 | 68 | 0.0713 | 1-7/8" x 12" x 4-7/8" | 25 |
| UBC6-97 | 12 | 97 | 0.1017 | 1-7/8" x 6" x 4-7/8" | 25 |
| UBC8-97 | 12 | 97 | 0.1017 | 1-7/8" x 8" x 4-7/8" | 25 |
| UBC10-97 | 12 | 97 | 0.1017 | 1-7/8" x 10" x 4-7/8" | 25 |
| UBC12-97 | 12 | 97 | 0.1017 | 1-7/8" x 12" x 4-7/8" | 25 |
- Includes one bag of 80 proprietary deflection screws per bucket
- Material Structural Grade 50 Type H (ST50H), 50ksi
- Coating G90 (Z275) hot-dipped galvanized coating
- See submittals for product weights
