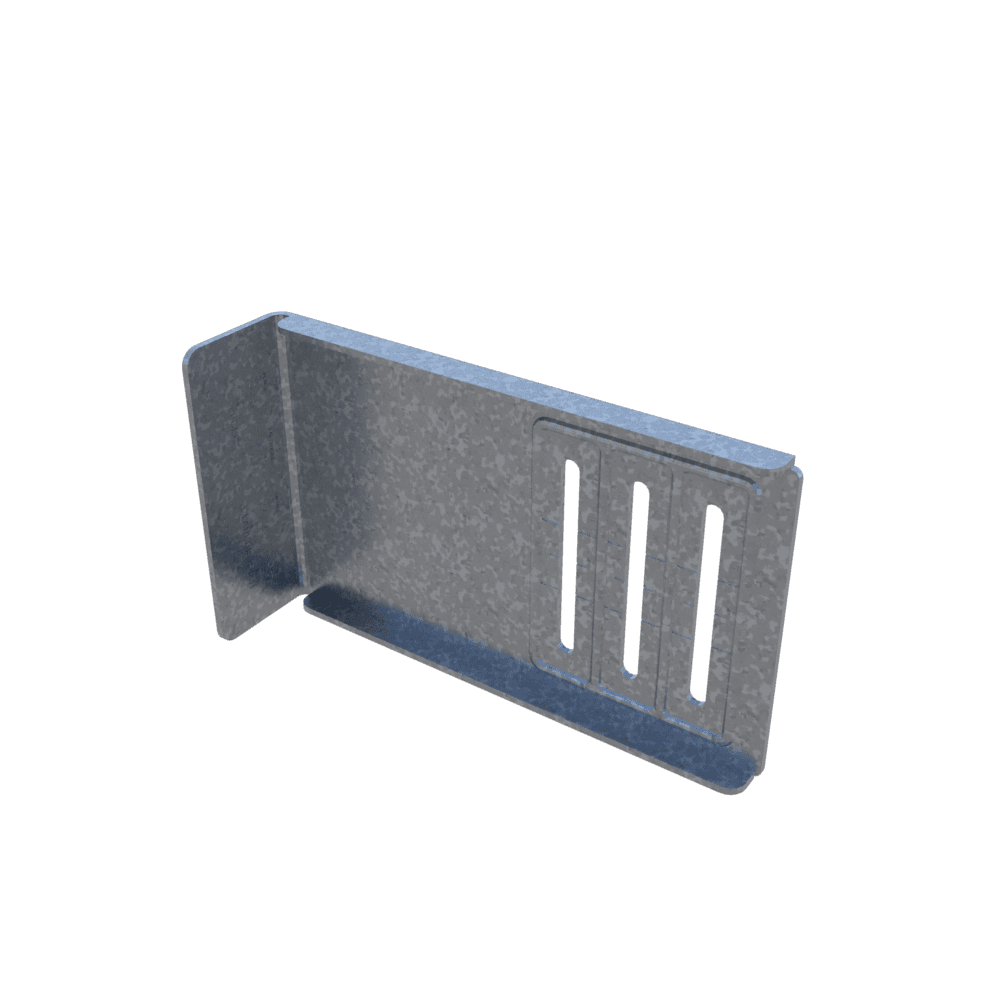

Extended FastClip™ (FCEC)
Provides for vertical building movement up to 3” and is commonly used for large standoff conditions

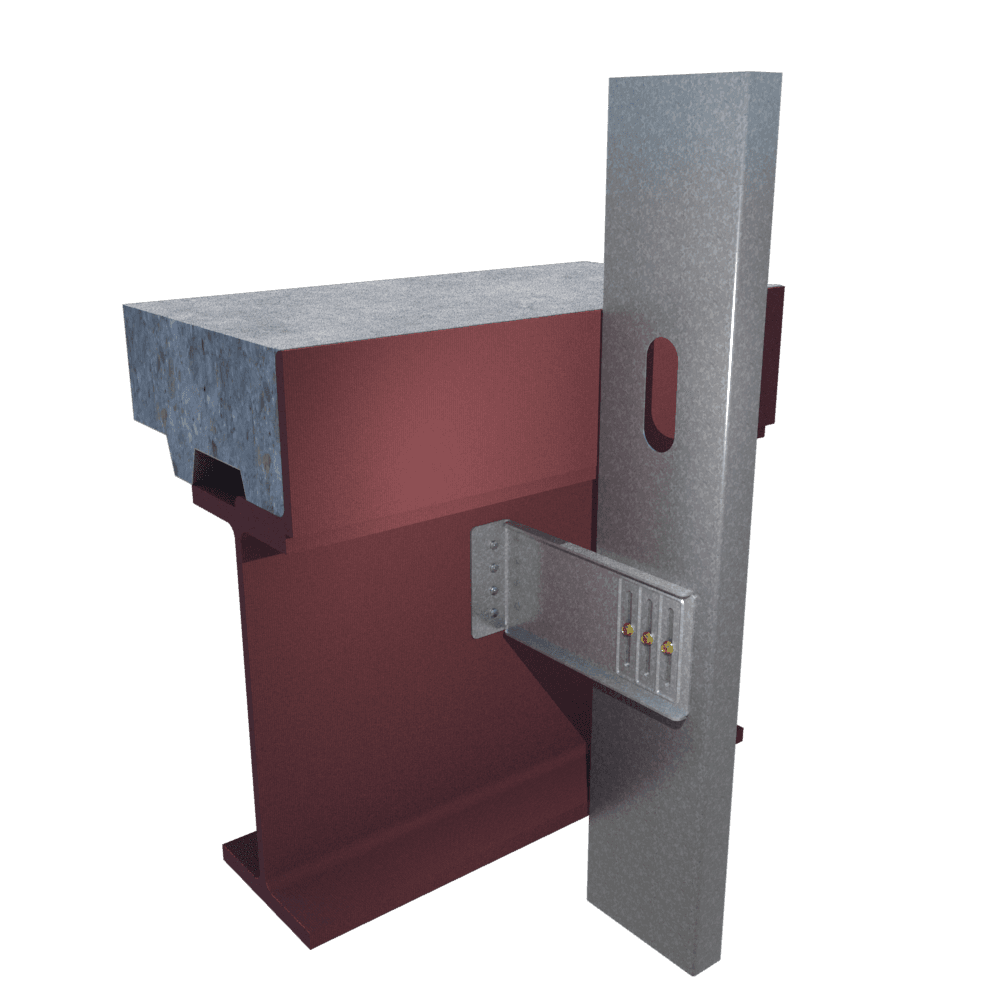

Extended FastClip™ Slide Clip™ (FCEC) deflection clips are used to attach exterior curtain wall studs to the building structure and provide for vertical building movement independent of the cold-formed steel framing.
Quick Actions:

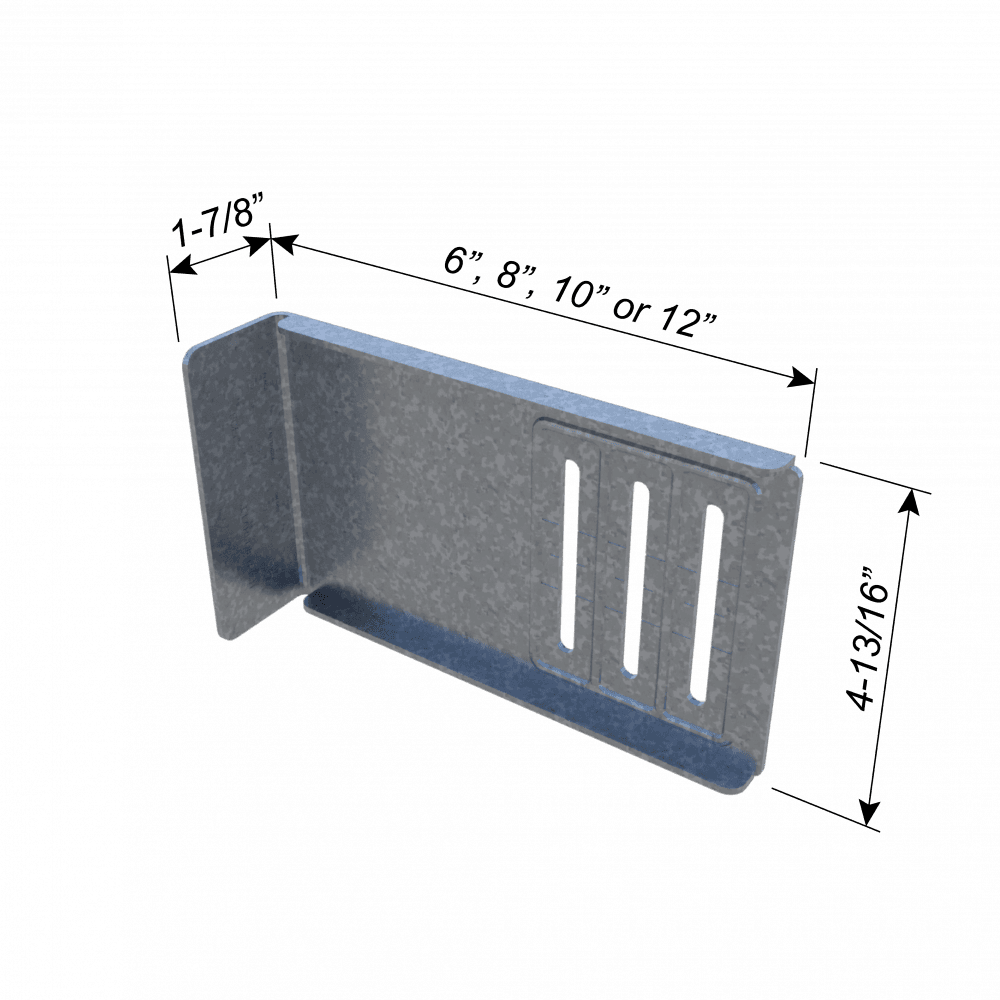

The clips are available in standard lengths of 6", 8”, 10” and 12” and are ideal for medium to larger standoff conditions. Extended FastClip™ deflection clips install quickly with screws, welds or powder-actuated fasteners, and provide adjustable standoff to ensure a plumb wall plane. Proprietary Deflection Screws are provided with each clip to ensure friction-free sliding.
- Eliminates shims and scabs.
- Vertical movement up to 3" (1-1/2" up and 1-1/2"down).
- Specially designed to simplify welding installation
- Fast, one-piece universal installation. No left or right handed clips
- Proprietary Deflection Screws (included) provide frictionless slip connections
- Custom and longer lengths available
- U.S. Patent No. 6,688,069
Meets SFIA Certification for Manufacturing Compliance Program for Connectors for Cold-Formed Steel Construction.
Alternative Products:
Product Data & Ordering Information
| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Pcs./Bucket |
|---|---|---|---|---|---|
| FCEC 6-68 | 14 | 68 | 0.0713 | 1-7/8" x 6" x 4-13/16" | 25 |
| FCEC 6-97 | 12 | 97 | 0.1017 | 1-7/8" x 6" x 4-13/16" | 25 |
| FCEC 8-68 | 14 | 68 | 0.0713 | 1-7/8" x 8" x 4-13/16" | 25 |
| FCEC 8-97 | 12 | 97 | 0.1017 | 1-7/8" x 8" x 4-13/16" | 25 |
| FCEC 10-68 | 14 | 68 | 0.0713 | 1-7/8" x 10" x 4-13/16" | 25 |
| FCEC 10-97 | 12 | 97 | 0.1017 | 1-7/8" x 10" x 4-13/16" | 25 |
| FCEC 12-68 | 14 | 68 | 0.0713 | 1-7/8" x 12" x 4-13/16" | 25 |
| FCEC 12-97 | 12 | 97 | 0.1017 | 1-7/8" x 12" x 4-13/16" | 25 |
Includes 80 proprietary deflection screws per box
Material: Structural Grade 50 Type H (ST50H), 50ksi
Coating: G90 (Z275) hot-dipped galvanized coating
See submittals for product weights.
