Used for large standoff conditions

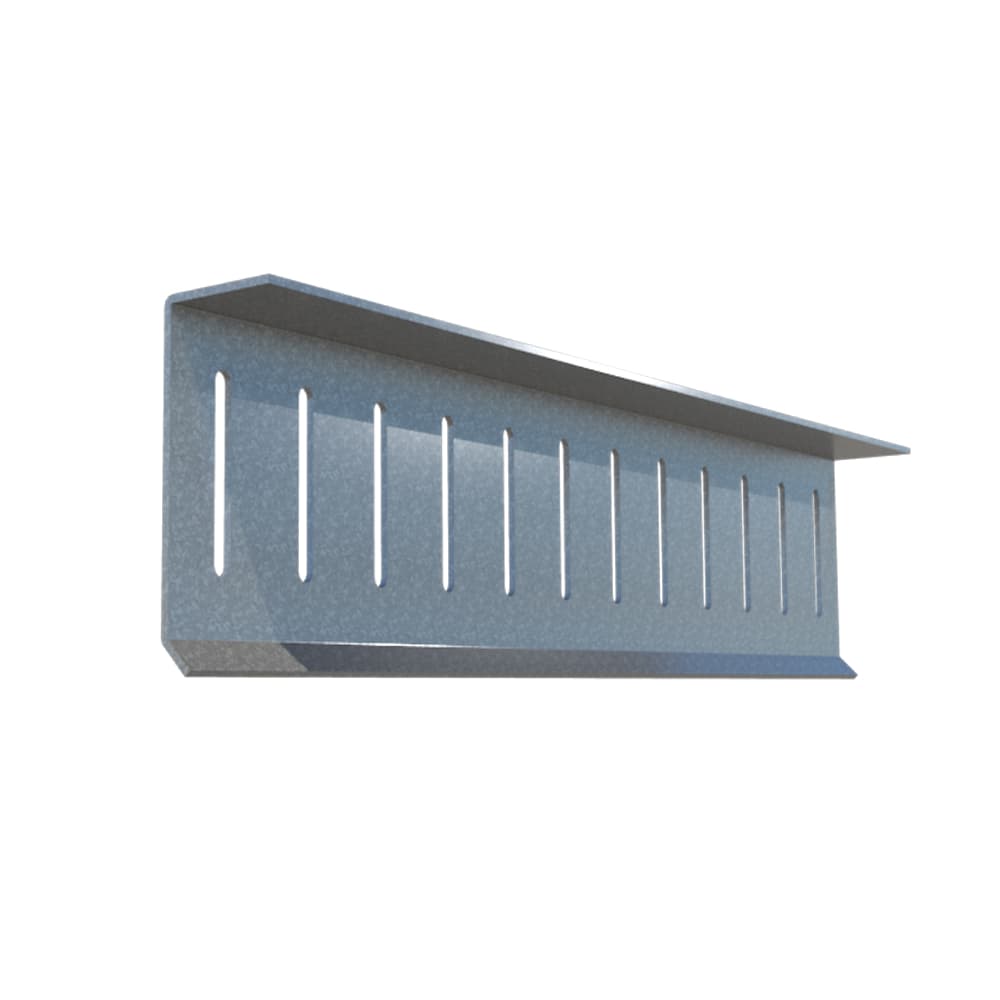

ClarkDietrich Fast Strut™ curtain-wall connector employs the Fast Clip™ technology for curtain-wall stud attachment and is commonly used when large stand-off conditions exist. Provides vertical movement up to 2-1/2" (1-1/4" up and 1-1/4" down).

Quick Actions:

BIM
Architectural Specs
AIA / CEU
Sustainability

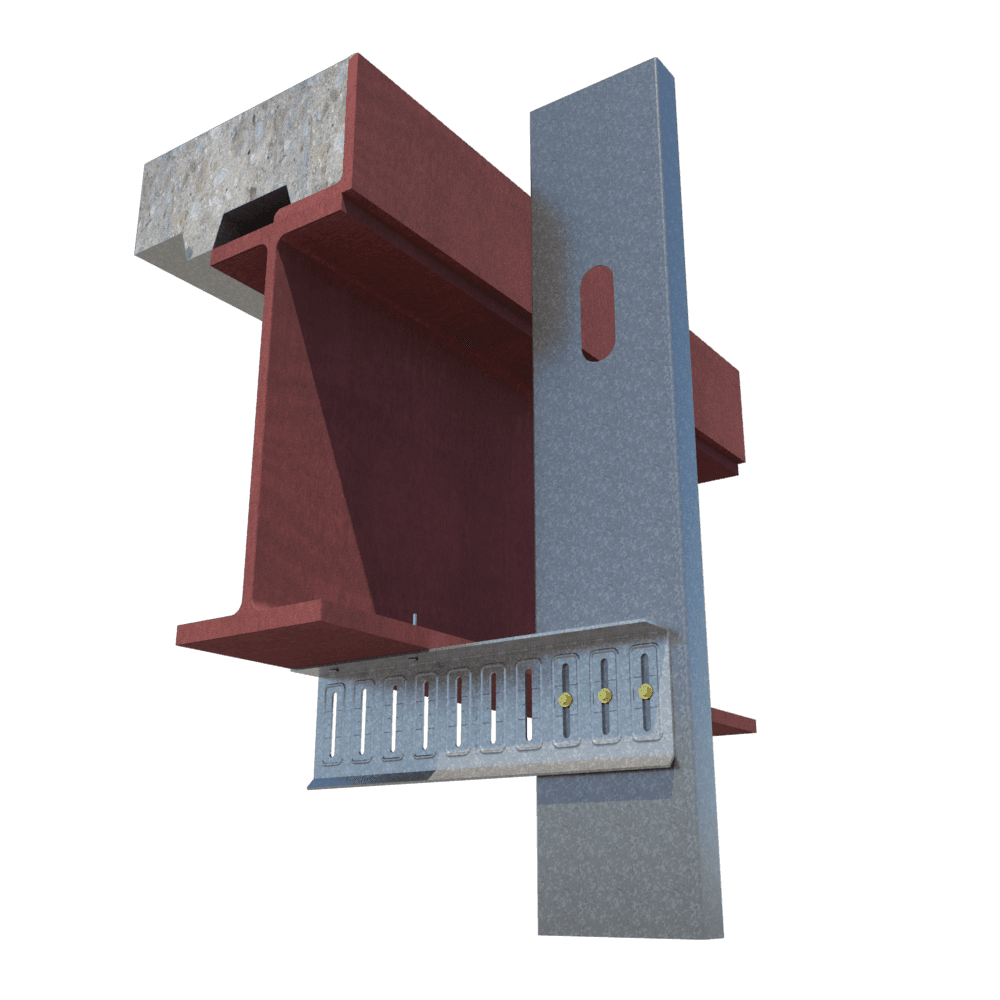

Fast Strut™ products are available in standard lengths of 12-1/4" and 15-1/4" and custom lengths of up to 24" long to allow framing attachment well beyond the perimeter of the structural steel or when the spandrel beams are set back from the edge of the structure. Struts are attached to the underside of structural members with screws, welds, or powder-actuated fasteners. Proprietary Deflection Screws are provided with each strut to ensure friction-free sliding. FS12 and FS15 are embossed with fastening patterns to ensure accurate placement of the fasteners.

  • Vertical movement up to 2-1/2" (1-1/4" up and 1-1/4" down).
  • Allows for standoff from the primary frame.
  • Proprietary Deflection Screws (included) provide frictionless slip connection.
  • U.S. Patent No. 6,688,069

Alternative products:

Product Data & Ordering Information

Product codeGaugeMilsDesign Thickness (in)Size (in)Pcs./Ctn.

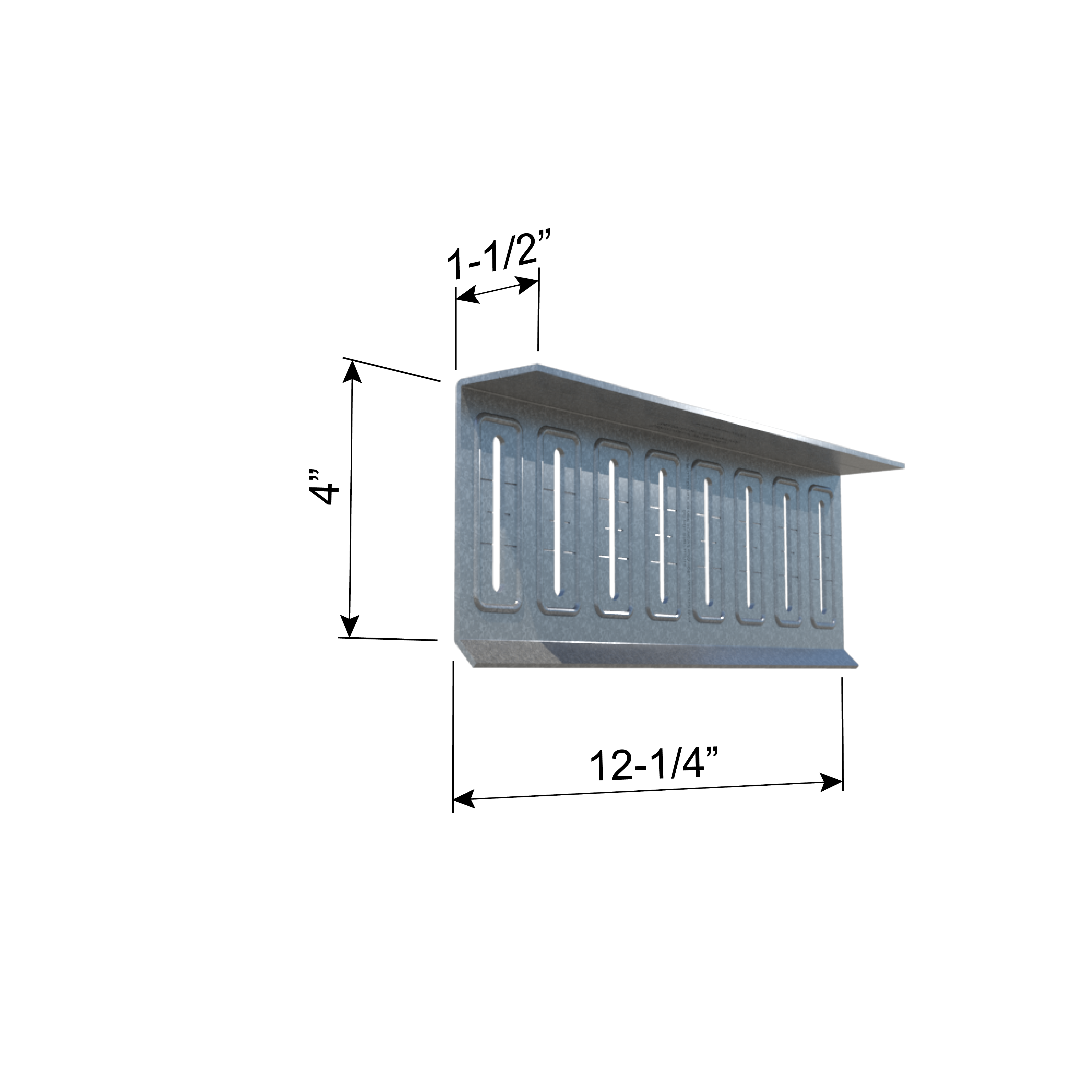

FS1214680.07134 x 1-1/2 x 12-1/410

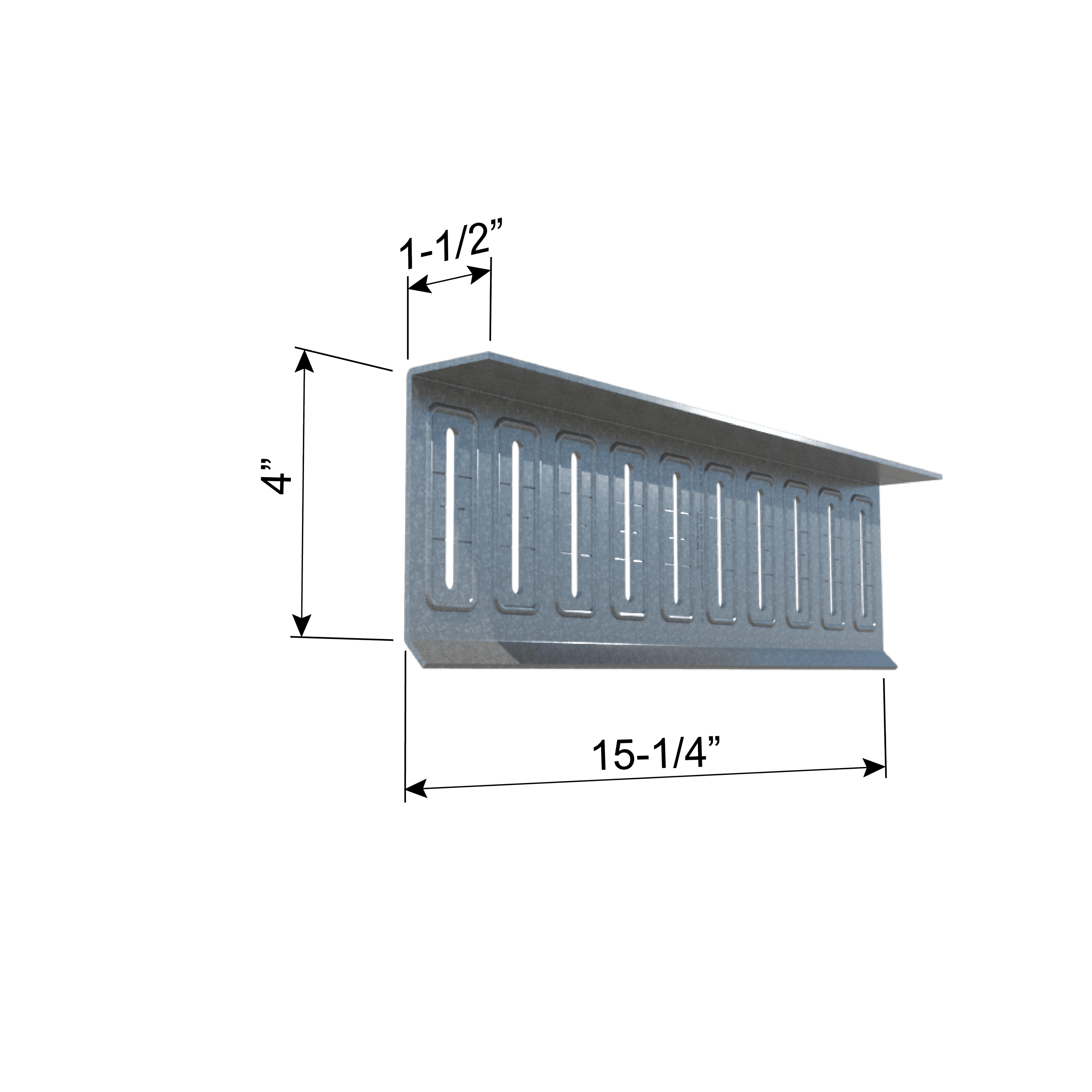

FS1514680.07134 x 1-1/2 x 15-1/410

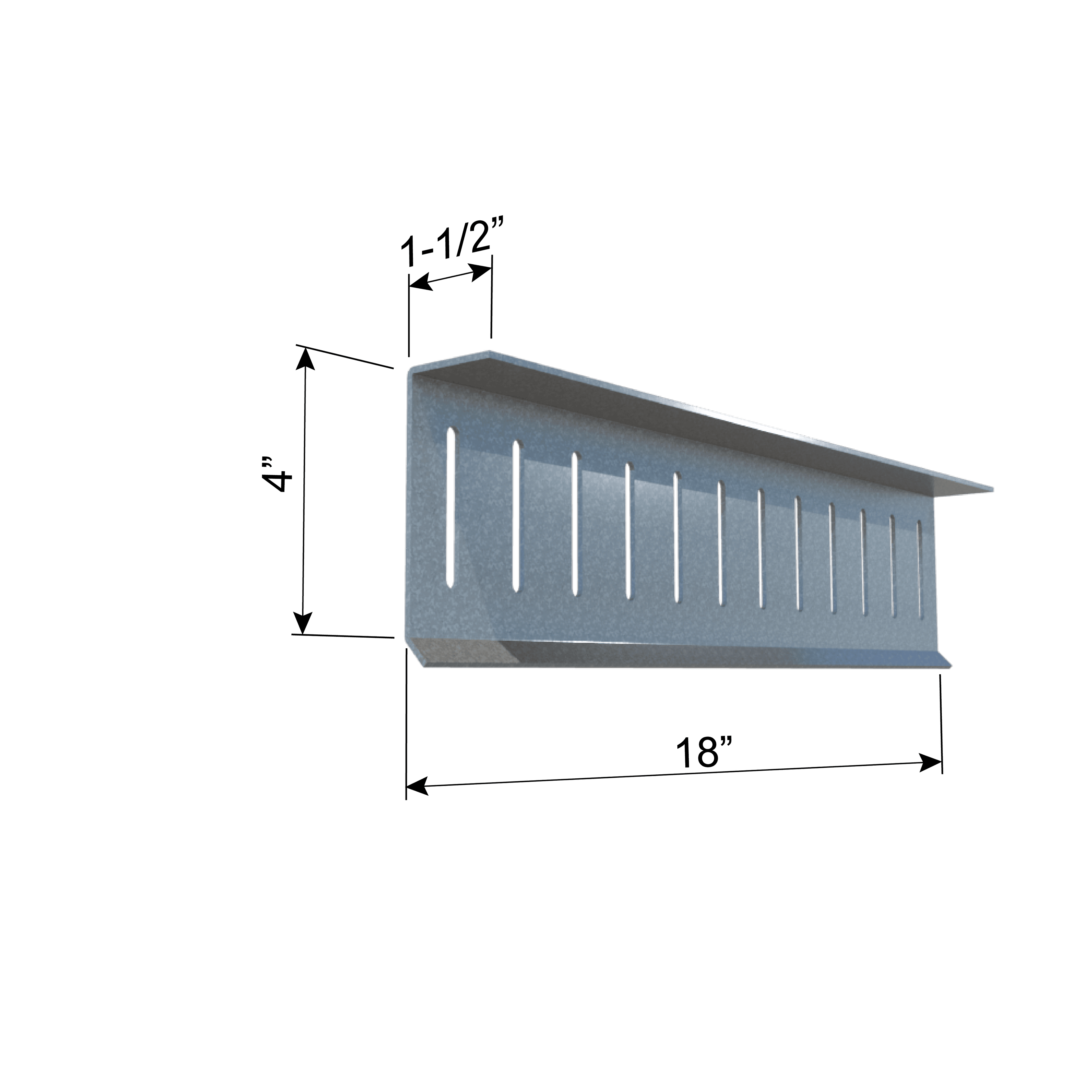

FS1814680.07134 x 1-1/2 x 1810

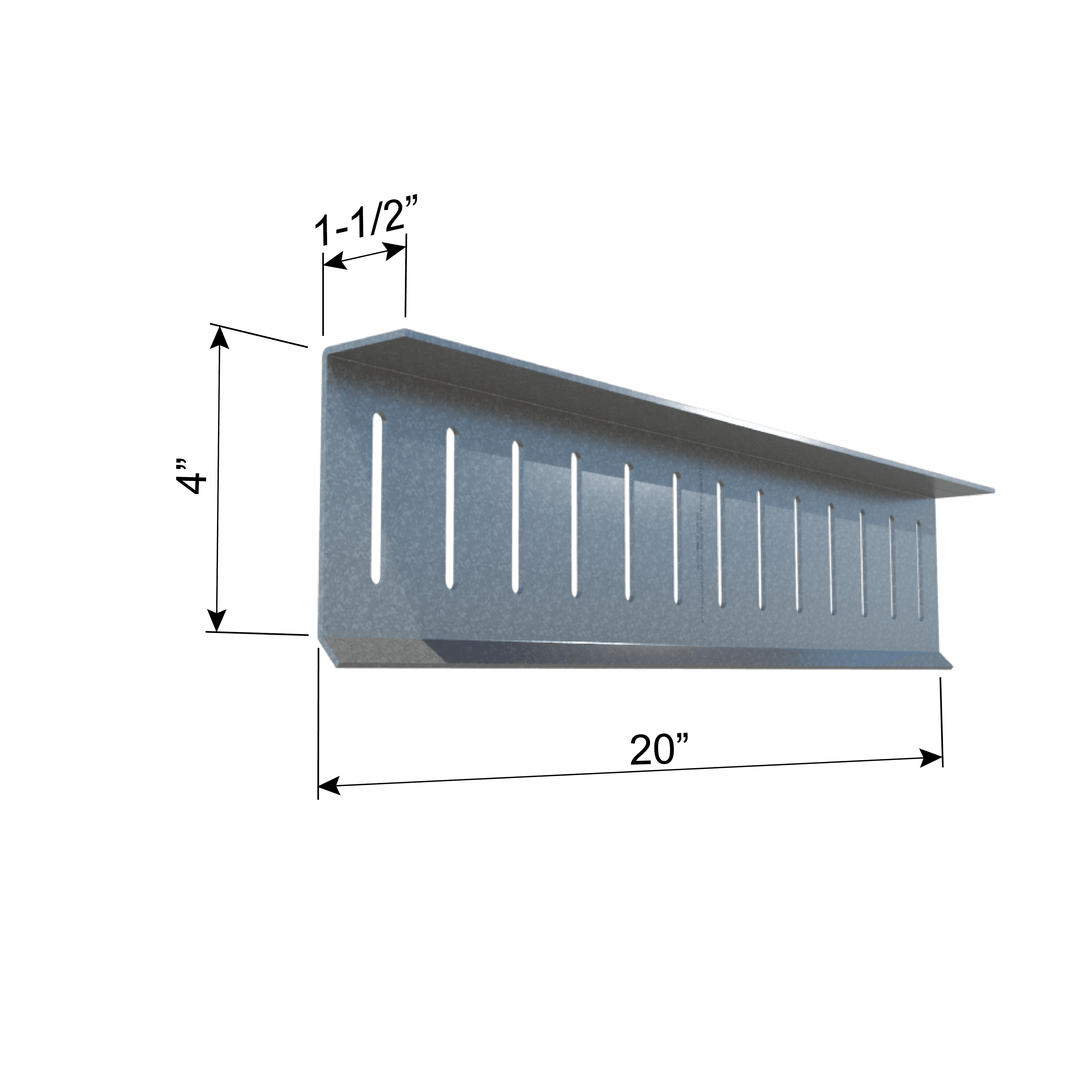

FS2014680.07134 x 1-1/2 x 2010

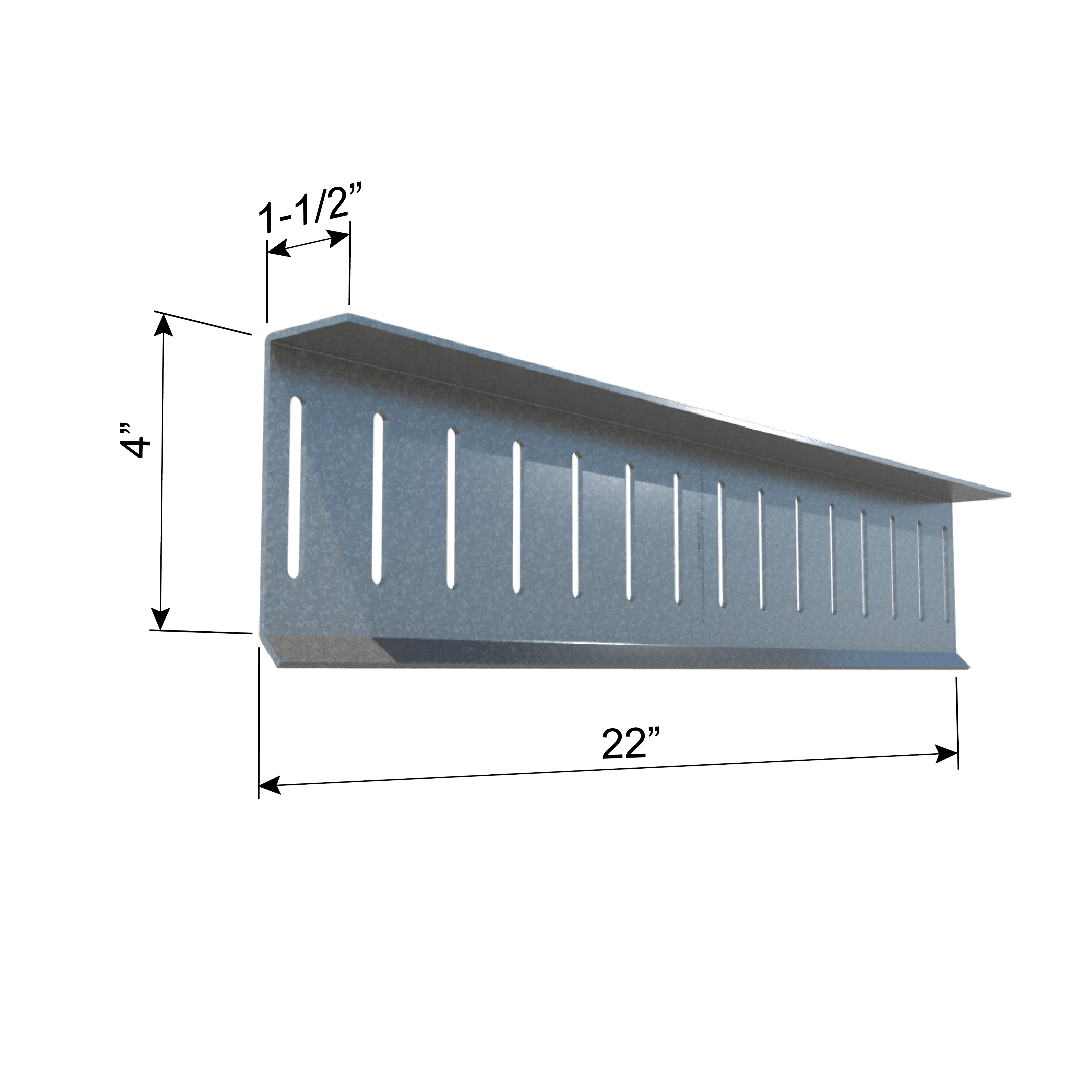

FS2214680.07134 x 1-1/2 x 2210

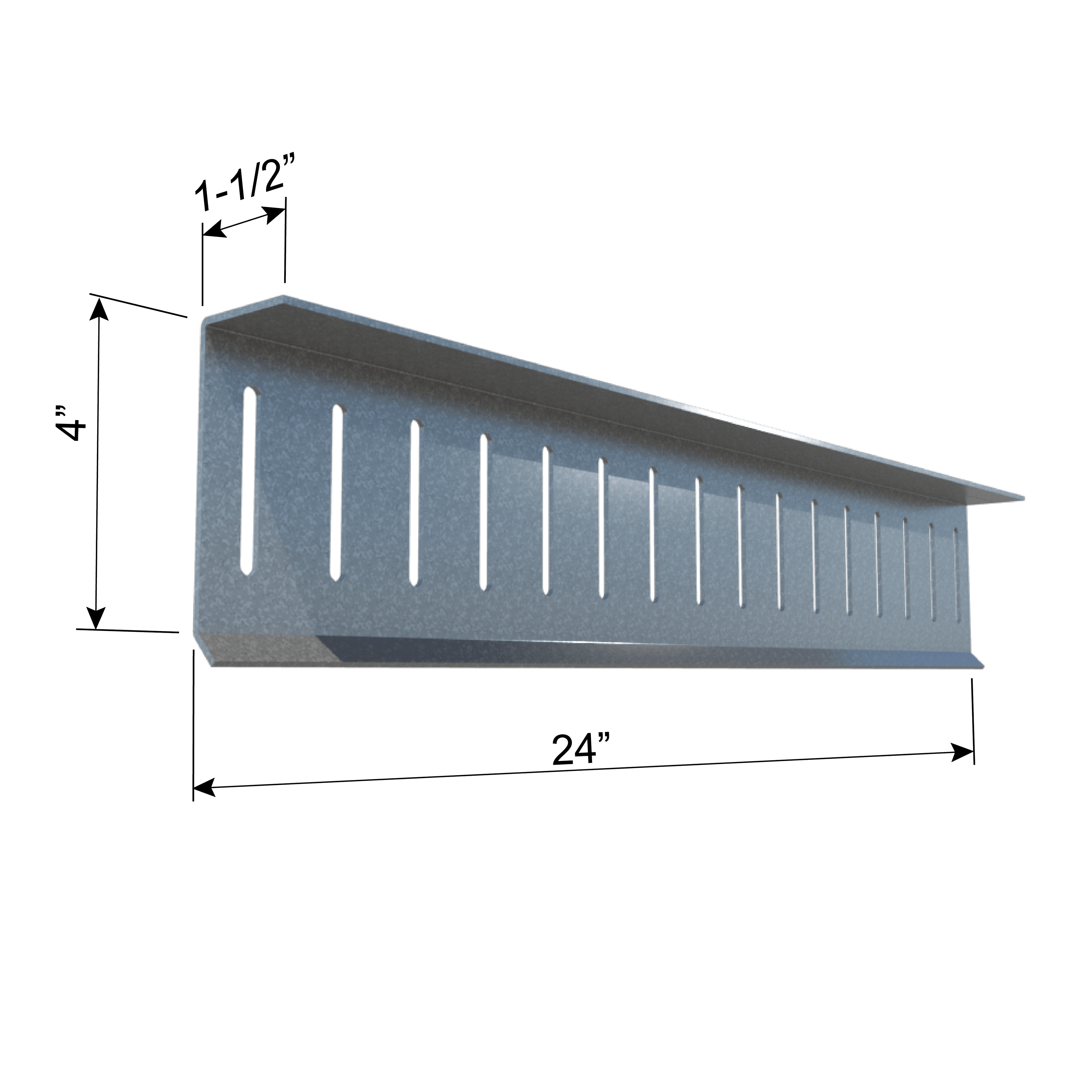

FS2414680.07134 x 1-1/2 x 2410

Includes 55 Proprietary Deflection Screws per box
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
