Flat Tail™ Slide Clip (FTSC)New
Allows for vertical building movement and provides a horizontal standoff

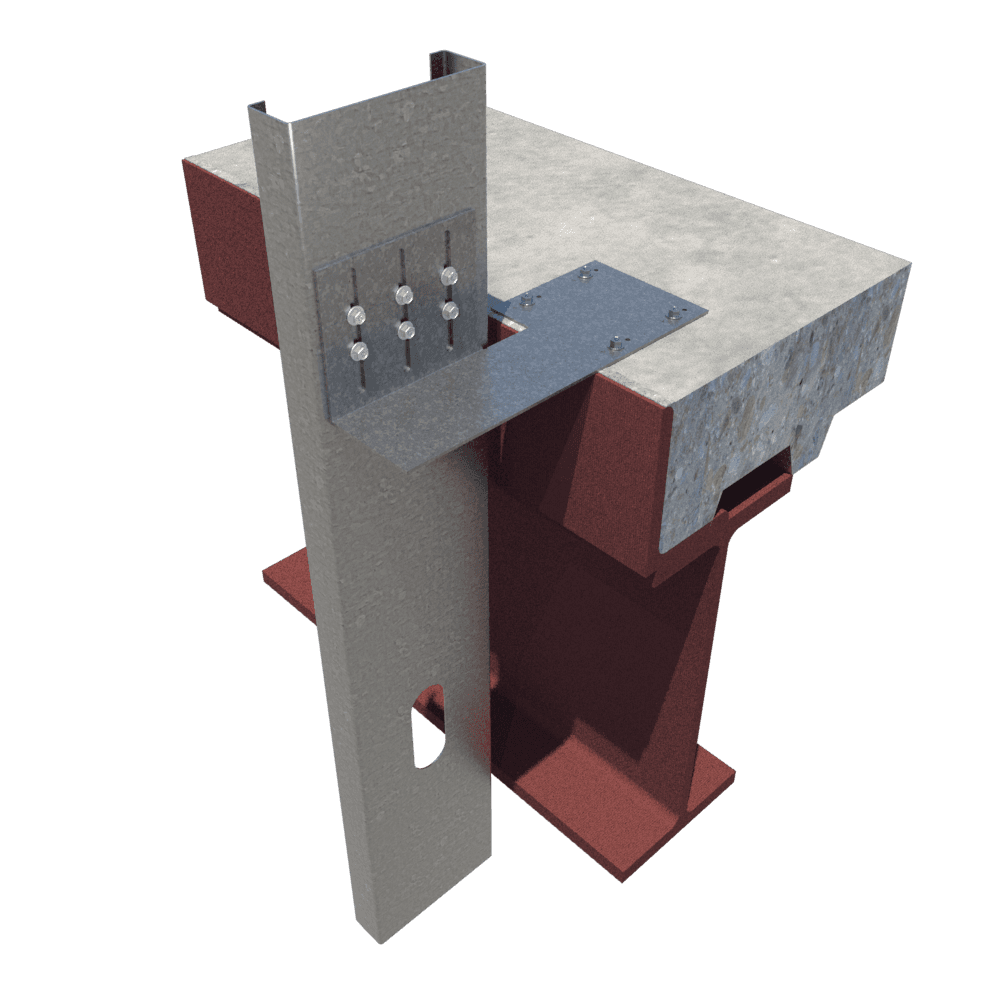

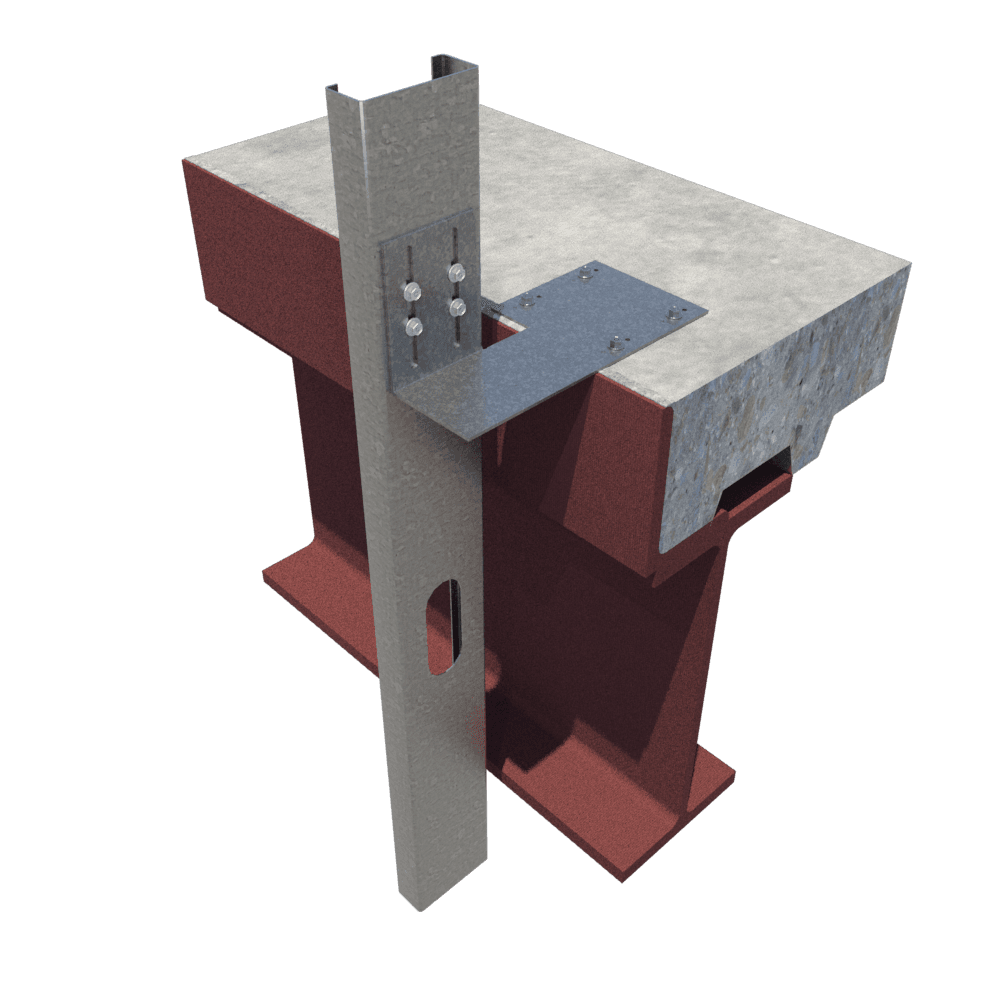

ClarkDietrich Flat Tail™ Slide Clip is used to attach exterior curtain-wall studs to the building structure and provide for 2-1/4" vertical building movement independent of the cold-formed steel framing. A Flat Tail Slide Clip provides variable standoff and eliminates the need for shims or additional framing components.
Quick Actions:
The clip easily fastens to the floor/ceiling beam and is secured to the stud with ClarkDietrich Proprietary Deflection Screws. The clip restricts lateral movement, but enables vertical building movement.
- Ideal for variable standoff conditions
- Vertical movement up to 2-1/4” (1-1/8” up and 1-1/8” down)
- Proprietary Deflection Screws (included) provide frictionless slip connection

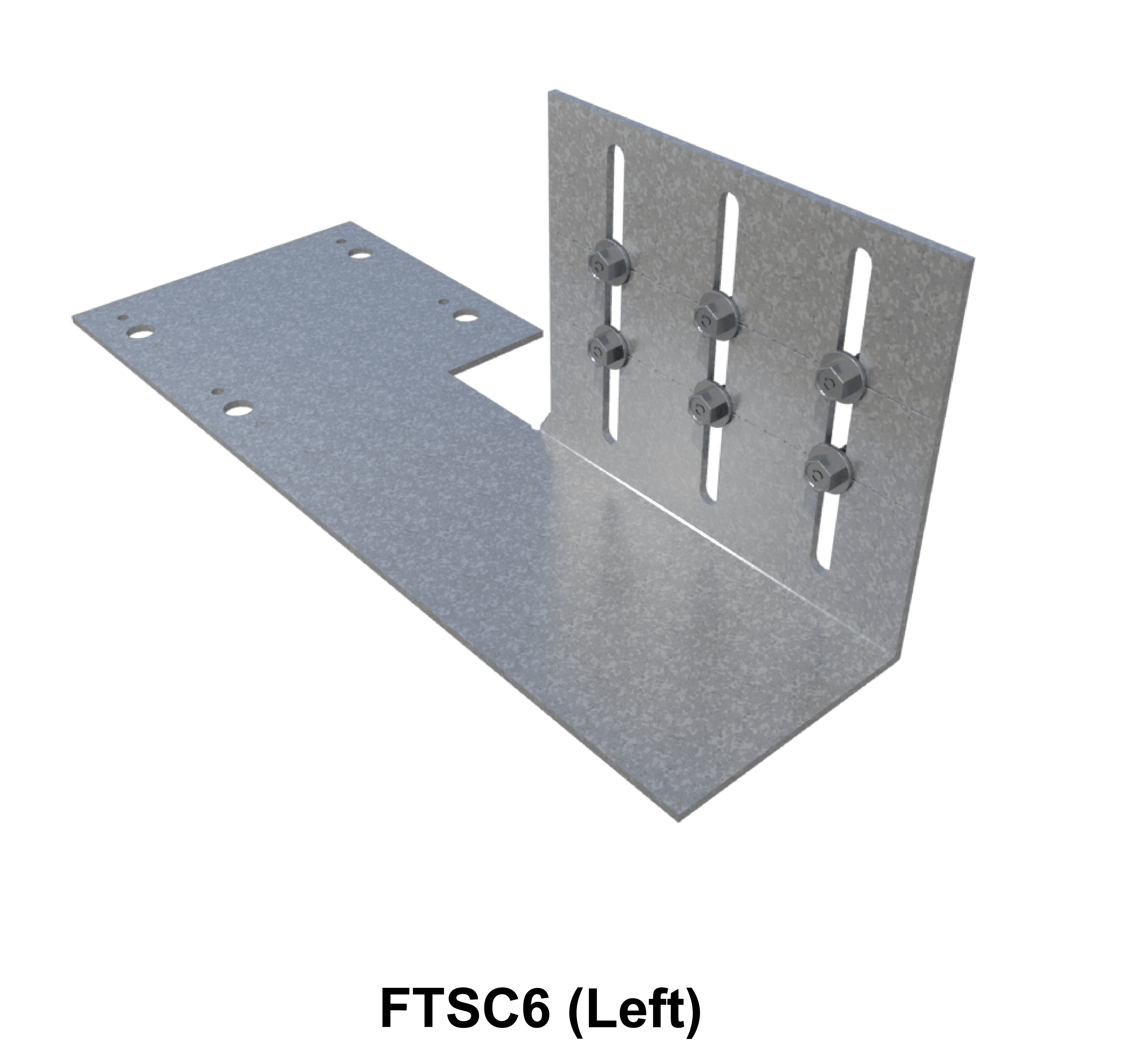

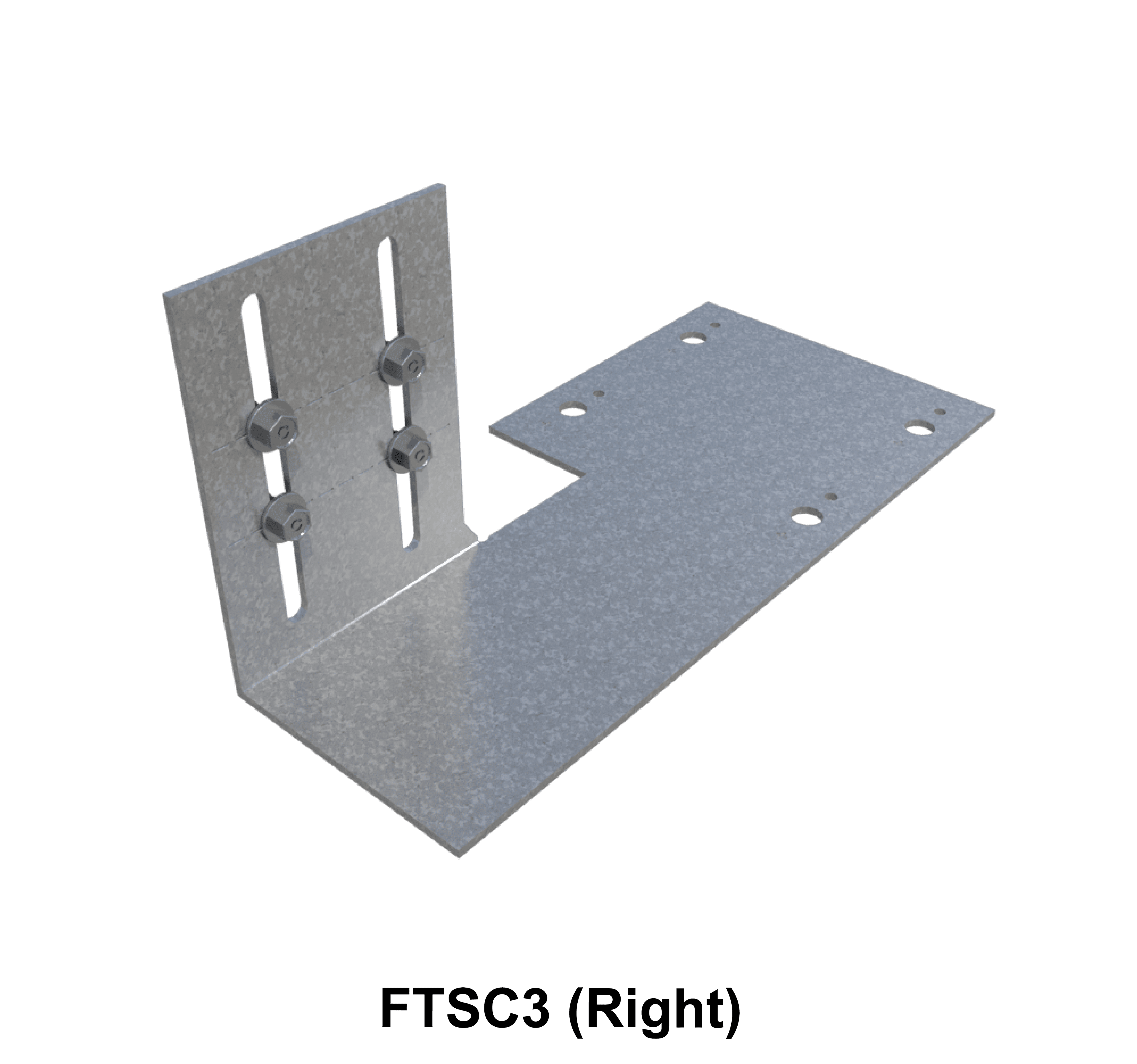

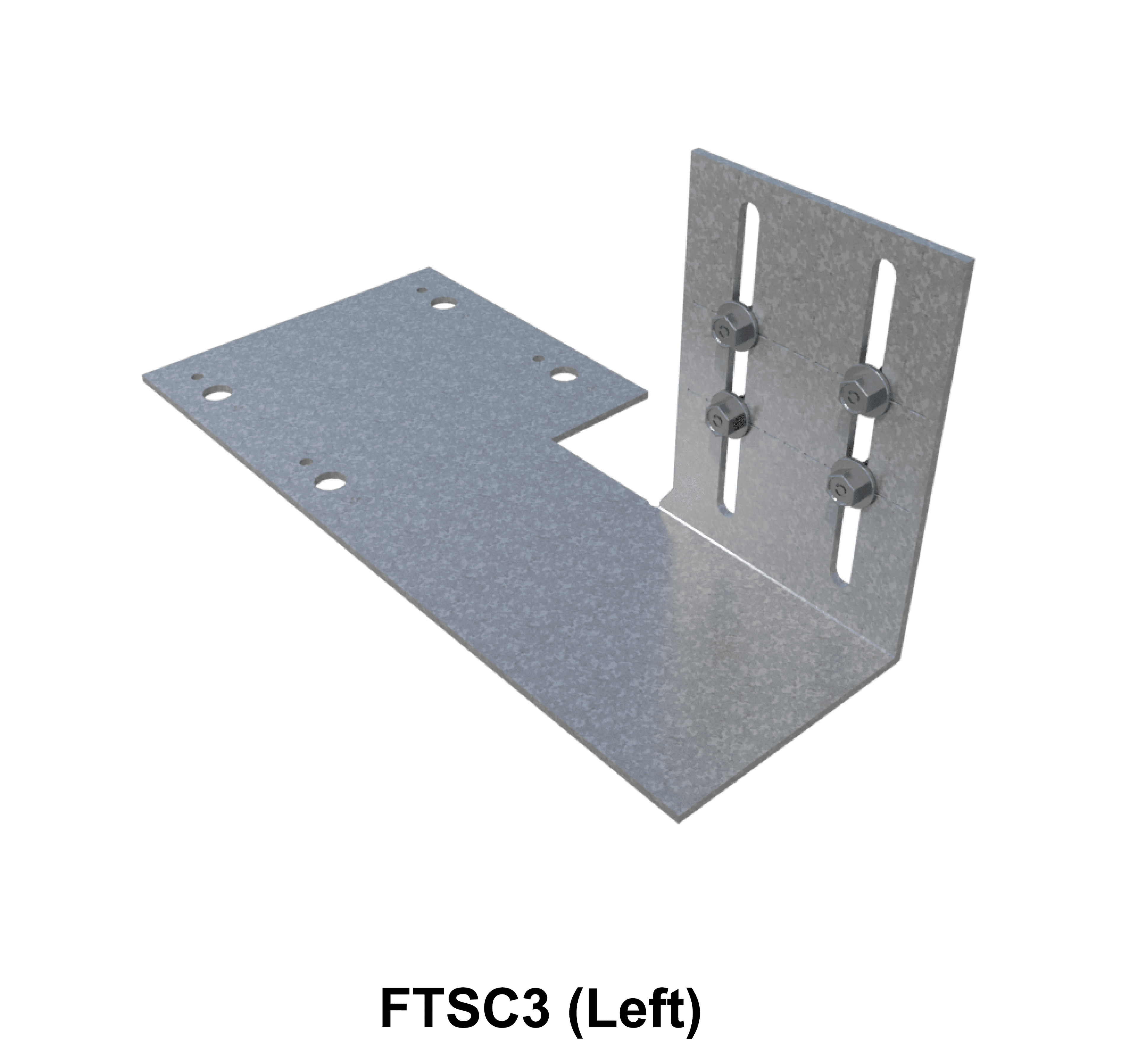

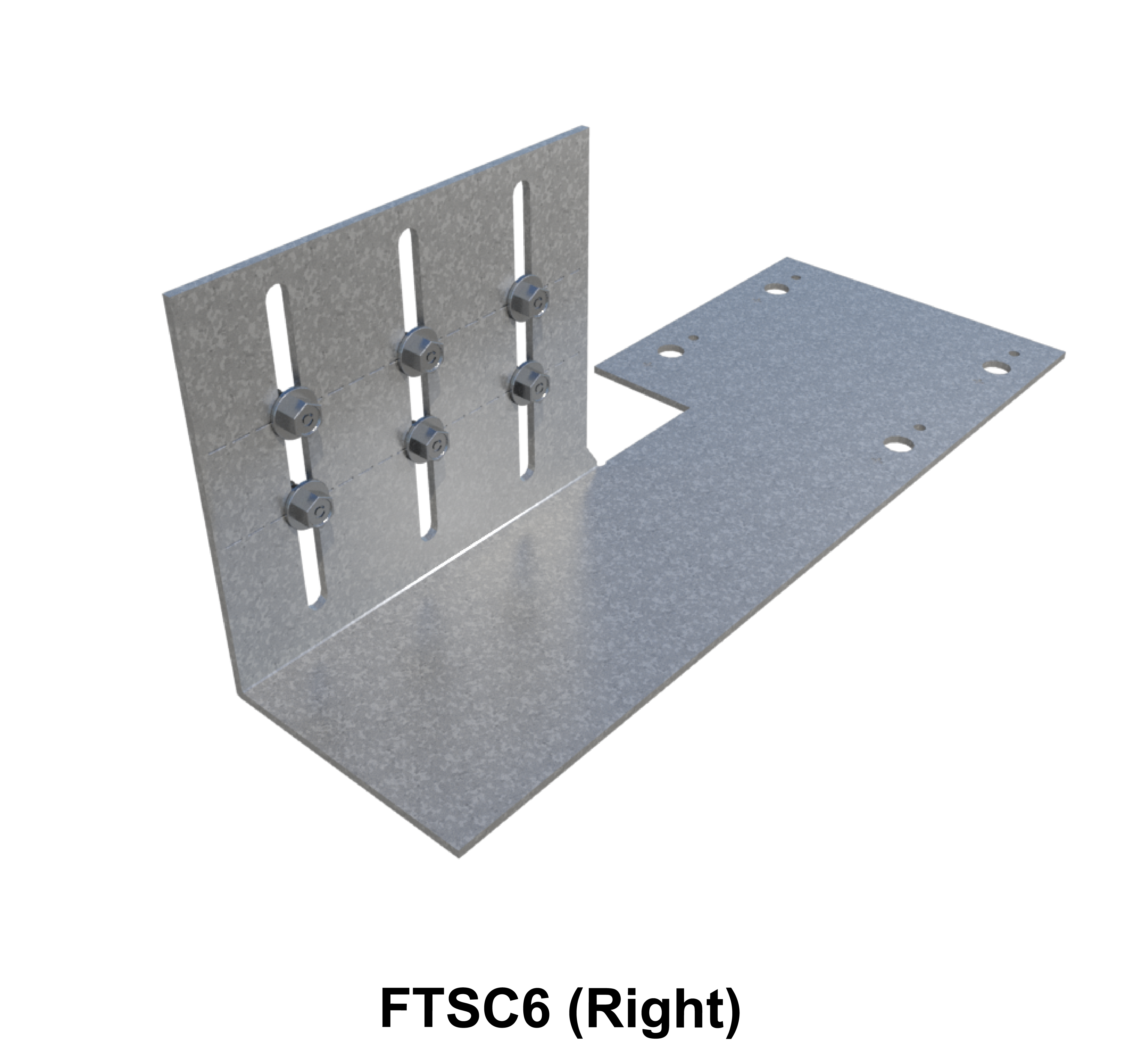

- Available in right and left versions
Alternative products
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
Click the below Product Code to view Tech Datasheet

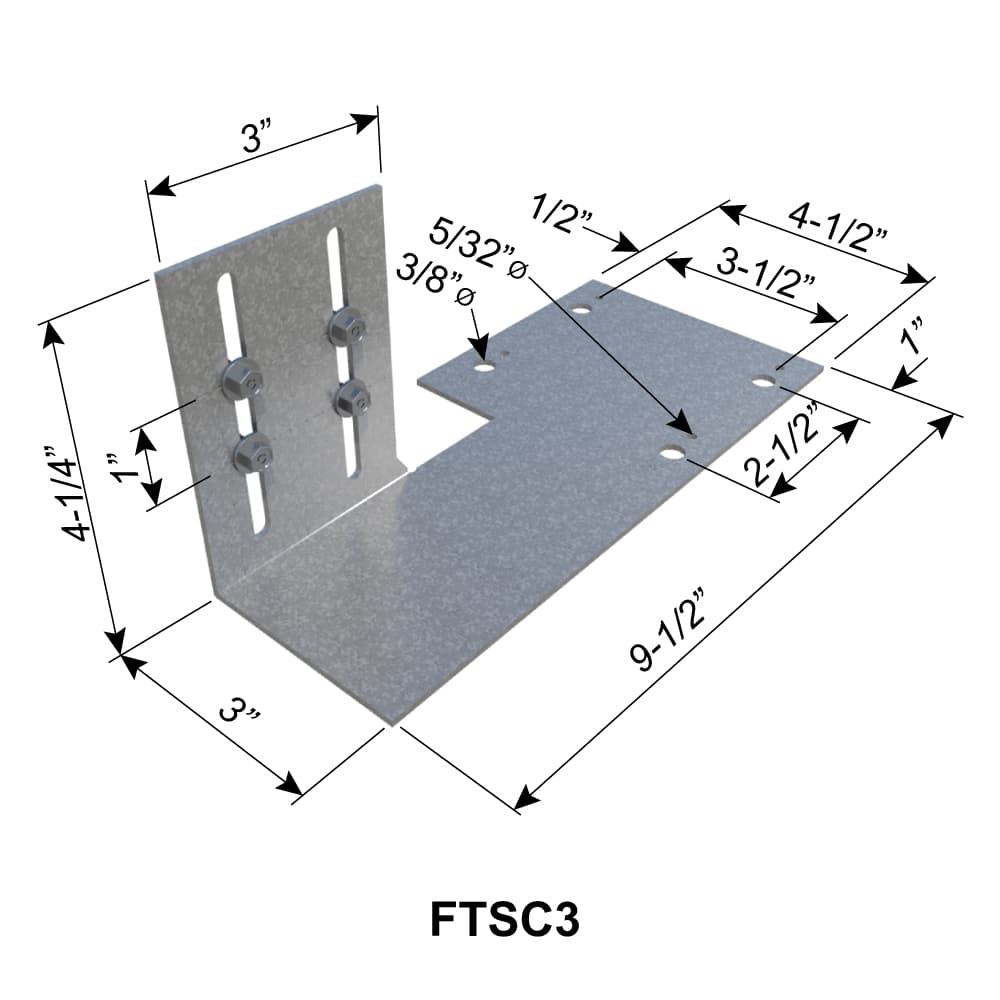

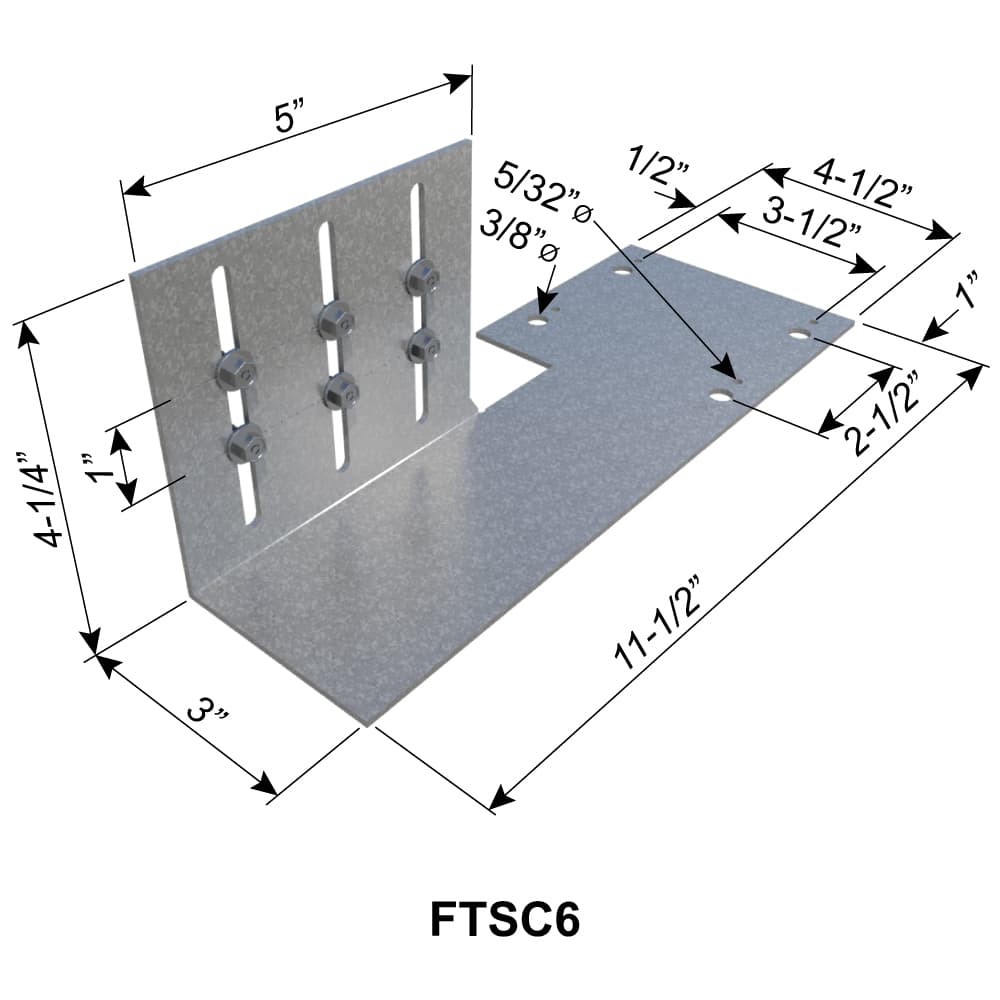

| Product Code | Gauge | Mils | Design Thickness (in) | Stud Width | Packaging Pcs./Bucket |
|---|---|---|---|---|---|
| FTSC3-97 | 12 | 97 | 0.1017 | 3-5/8" | 25 |
| FTSC3-118 | 10 | 118 | 0.1242 | 3-5/8" | 25 |
| FTSC6-97 | 12 | 97 | 0.1017 | 6" - 8" | 25 |
| FTSC6-118 | 10 | 118 | 0.1242 | 6" - 8" | 25 |
Includes 110 Proprietary Deflection Screws for FTSC3 per bucket
Includes 160 Proprietary Deflection Screws for FTSC6 per bucket
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
