FastClip™ Slide Clips (FCSC)
Provide for vertical building movement up to 3"

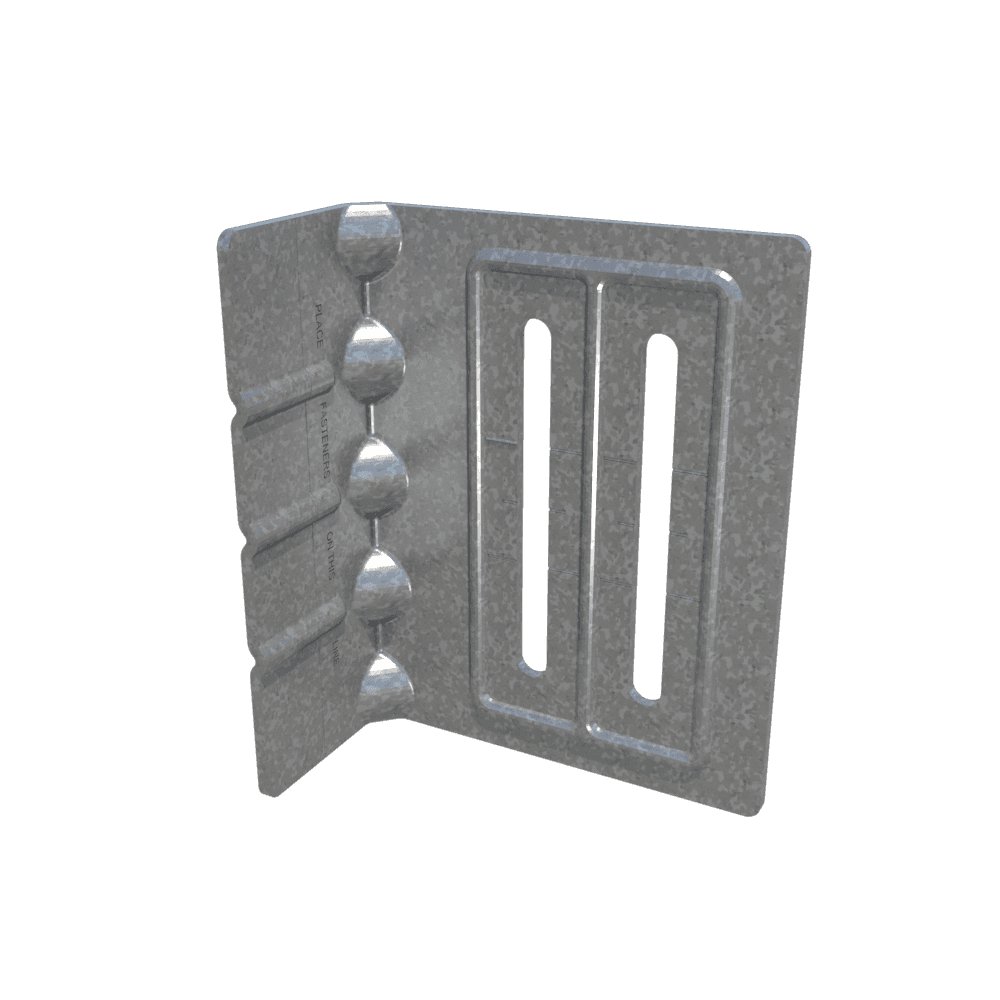

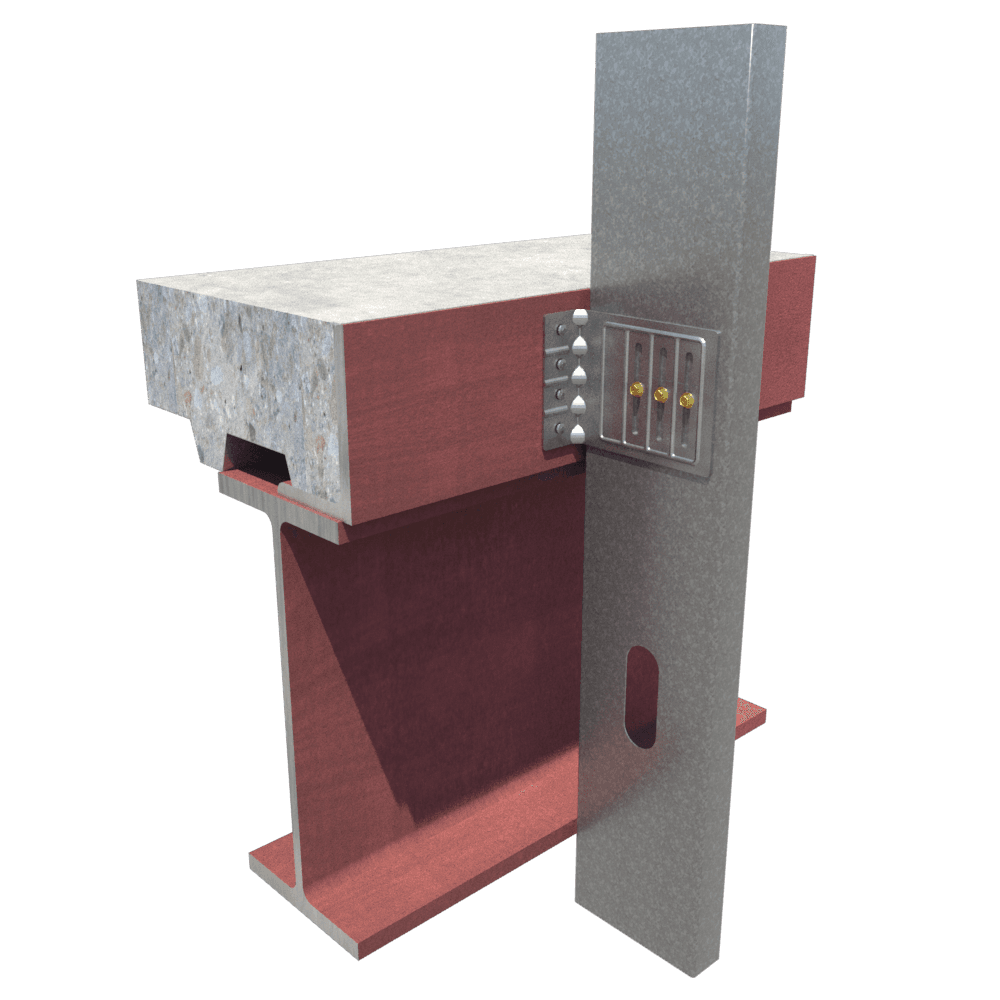

ClarkDietrich FastClip™ Slide Clip deflection clips are used to attach exterior curtain-wall studs to the building structure and provide for vertical building movement independent of the cold-formed steel framing.
Quick Actions:
A FastClip deflection clip installs quickly with screws or powder-actuated fasteners, and provides adjustable standoff to ensure a plumb wall plane. Proprietary Deflection Screws are provided with each clip to ensure friction-free sliding. Each clip is also embossed with fastening patterns to ensure accurate placement of fasteners.
- Vertical movement up to 3" (1-1/2" up and 1-1/2" down).

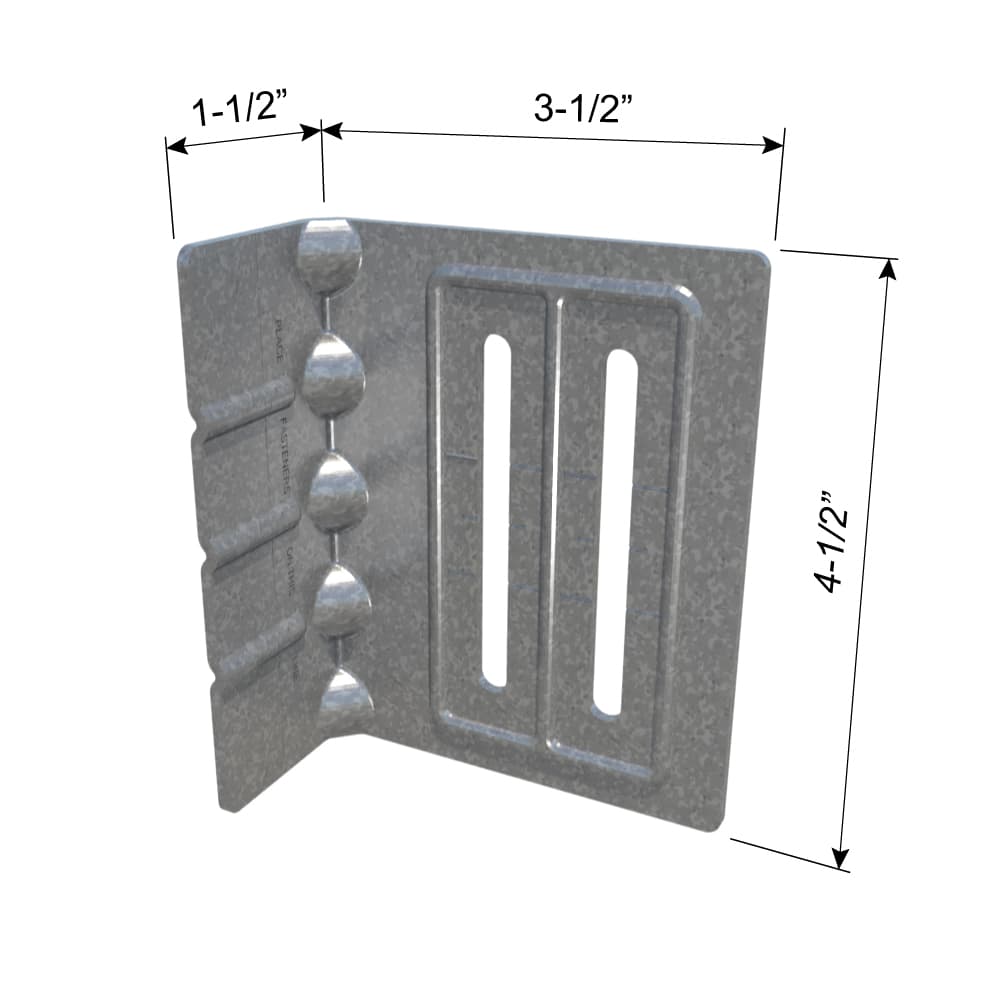

- 3-1/2" FastClip™ permits up to 1" of standoff from the primary frame.

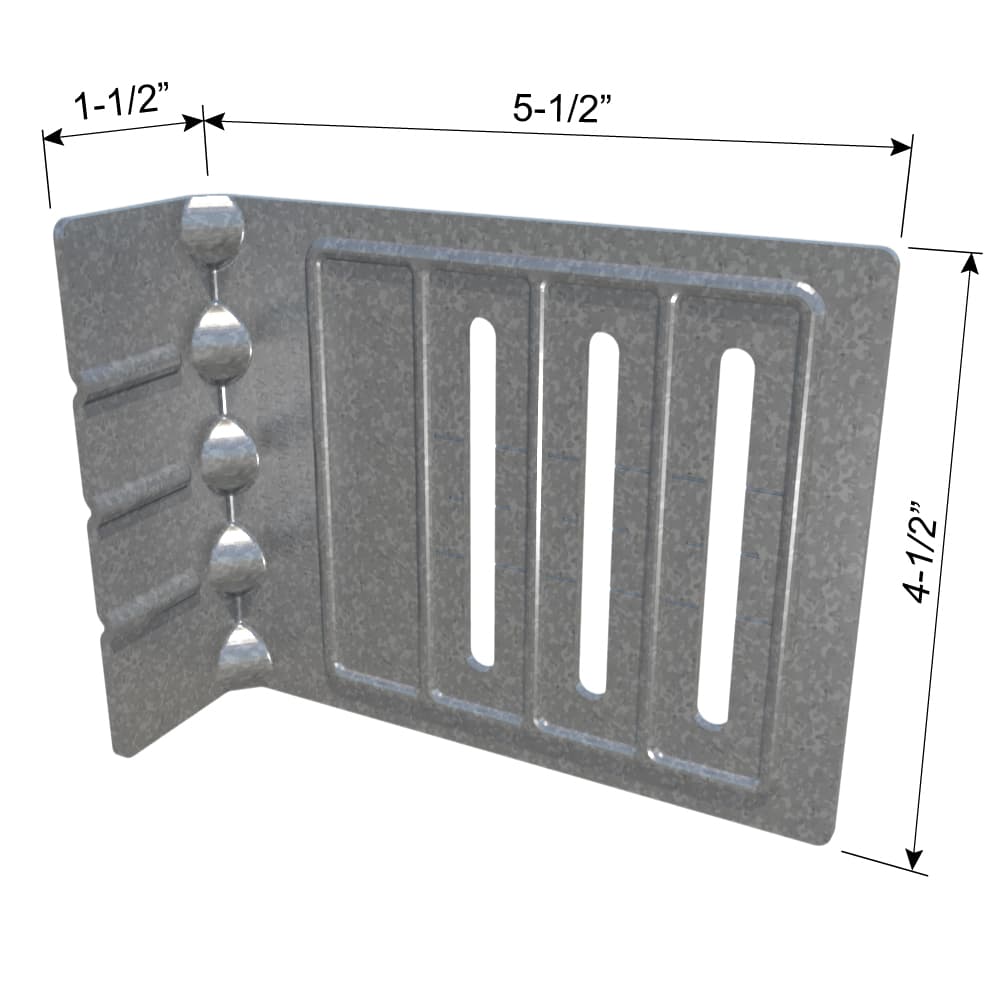

- 5-1/2" FastClip™ permits up to 2" of standoff from the primary frame.

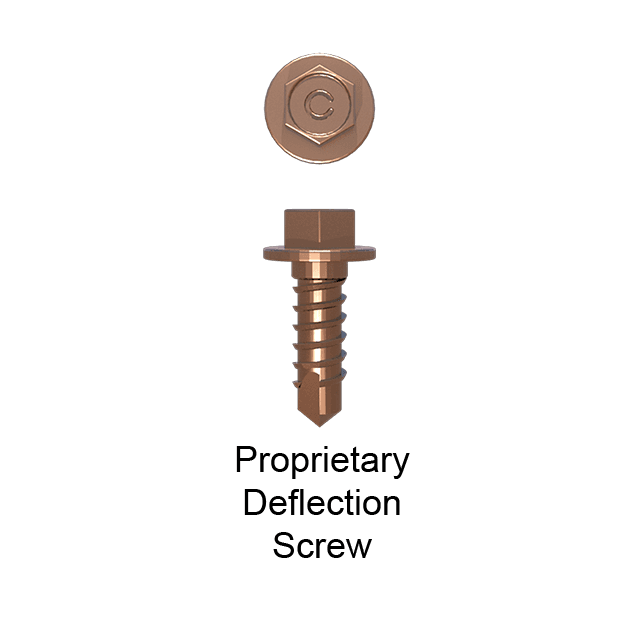

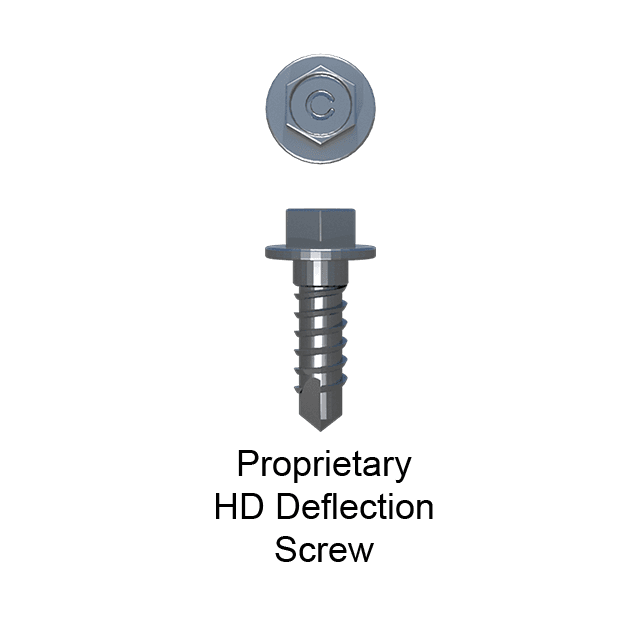

- Proprietary Deflection Screws (included) provide frictionless slip connection.
- U.S. Patent No. 6,688,069
Meets SFIA Certification for Manufacturing Compliance Program for Connectors for Cold-Formed Steel Construction.
Alternative Products:
Product Data & Ordering Information
| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Pcs./box | Screws/box |
|---|---|---|---|---|---|---|
| FCSC 3.5-68 | 14 | 68 | 0.0713" | 1-1/2" x 3-1/2" x 4-1/2" | 25 | 55 |
| FCSC 5.5-68 | 14 | 68 | 0.0713" | 1-1/2" x 5-1/2" x 4-1/2" | 25 | 80 |
| FCSC 5.5-97 | 12 | 97 | 0.1017" | 1-1/2" x 5-1/2" x 4-1/2" | 25 | 80 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
