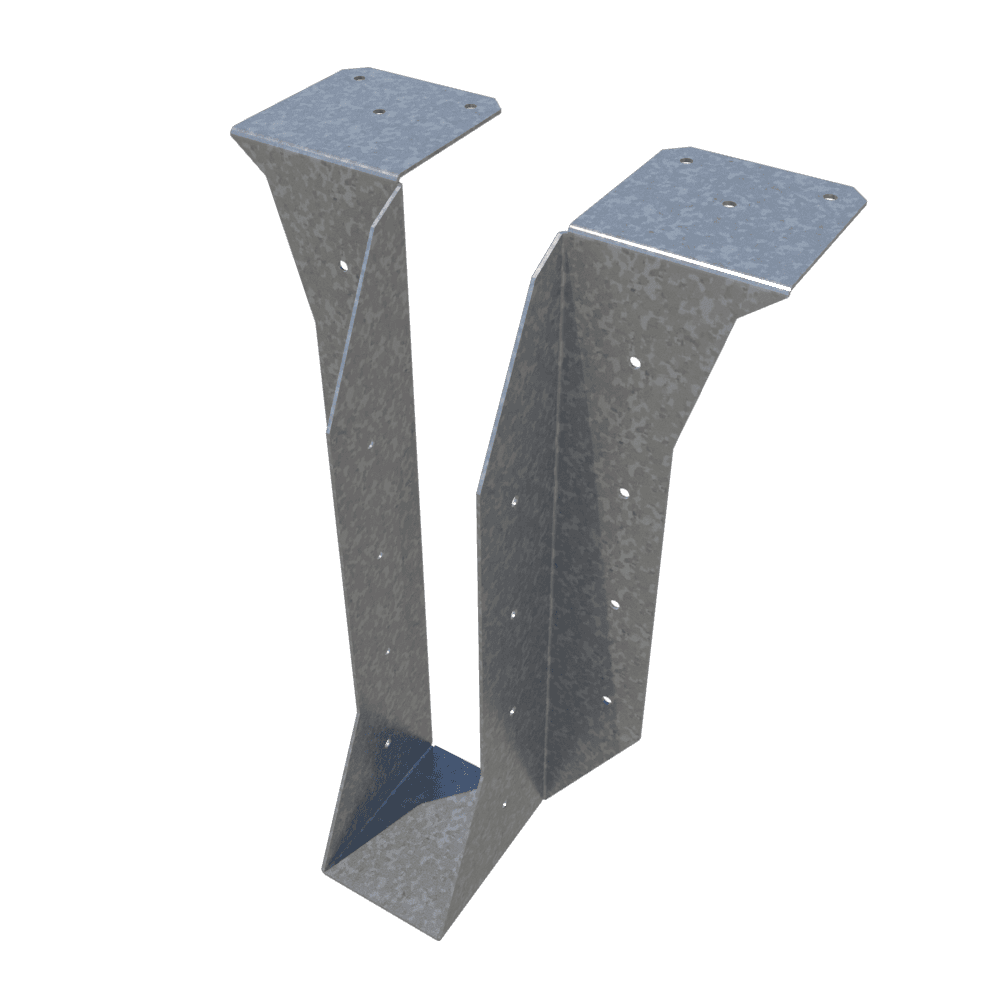

Bridle Hanger (CDBV, CDMB)
for attaching floor joists to structural steel beams or wood ledgers

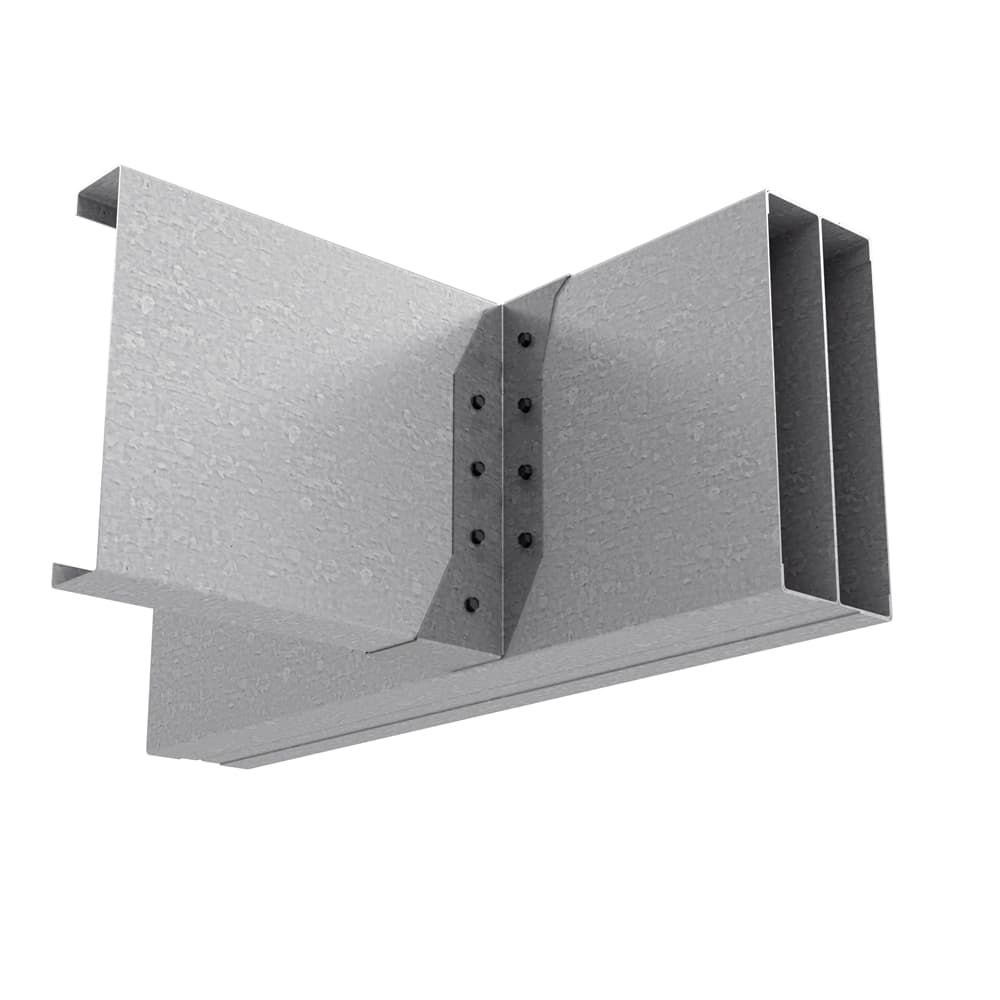

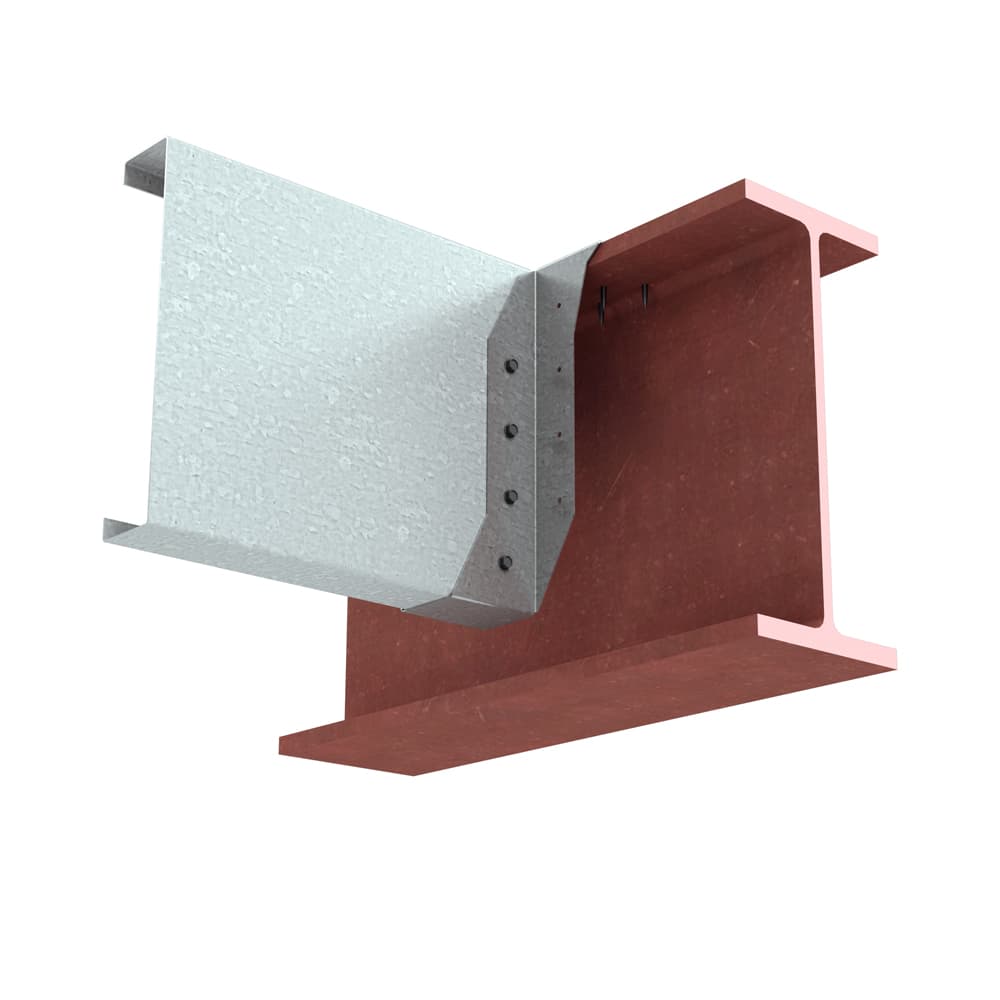

Bridle Hangers are commonly used to attach light-gauge C-joists to structural steel beams or wood ledgers.
Quick Actions:
Connections can be made with screws, powder-actuated fasteners, drill-in concrete anchors or welding.
Single and double-wide bridle hangers are also available in other widths and depths.
Alternative products
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information

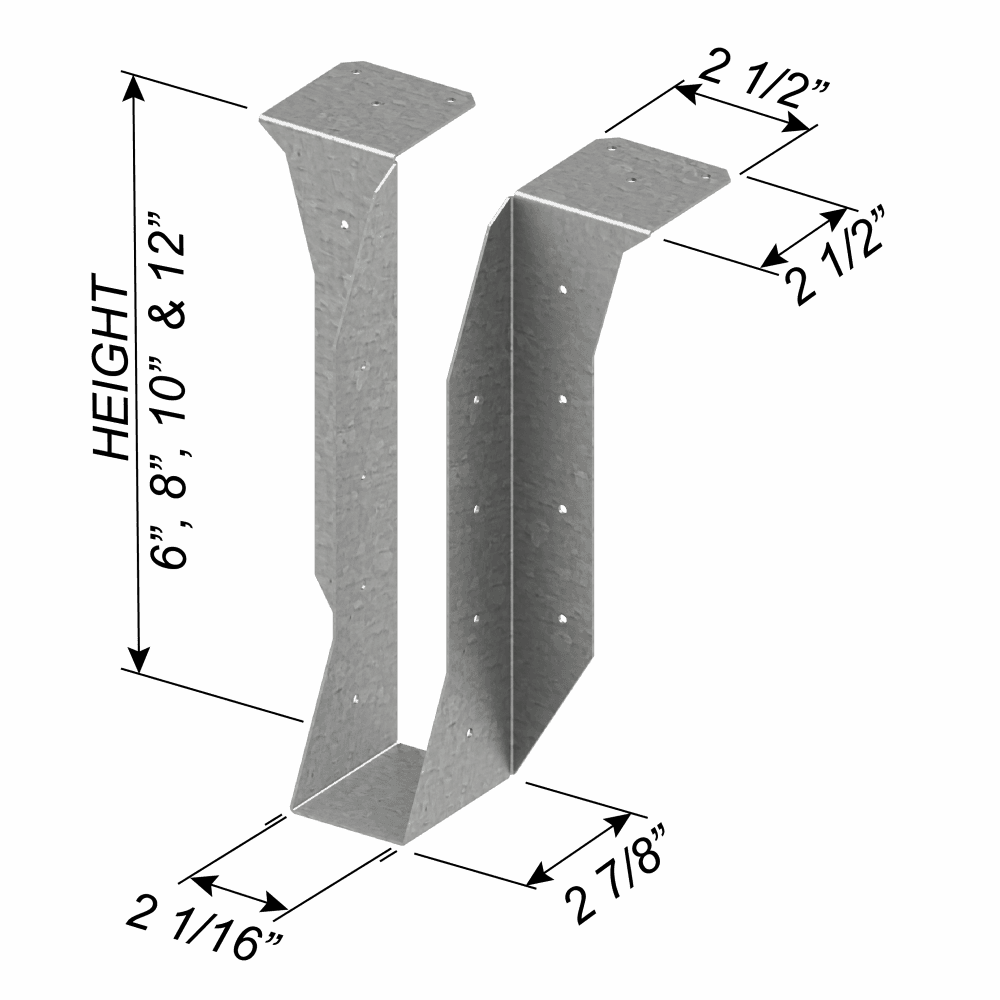

| Product code | Mils (Gauge) | Design thickness (in) | Width (W) (in) | Depth (H) (in) | Packaging Pcs./Carton | |
|---|---|---|---|---|---|---|

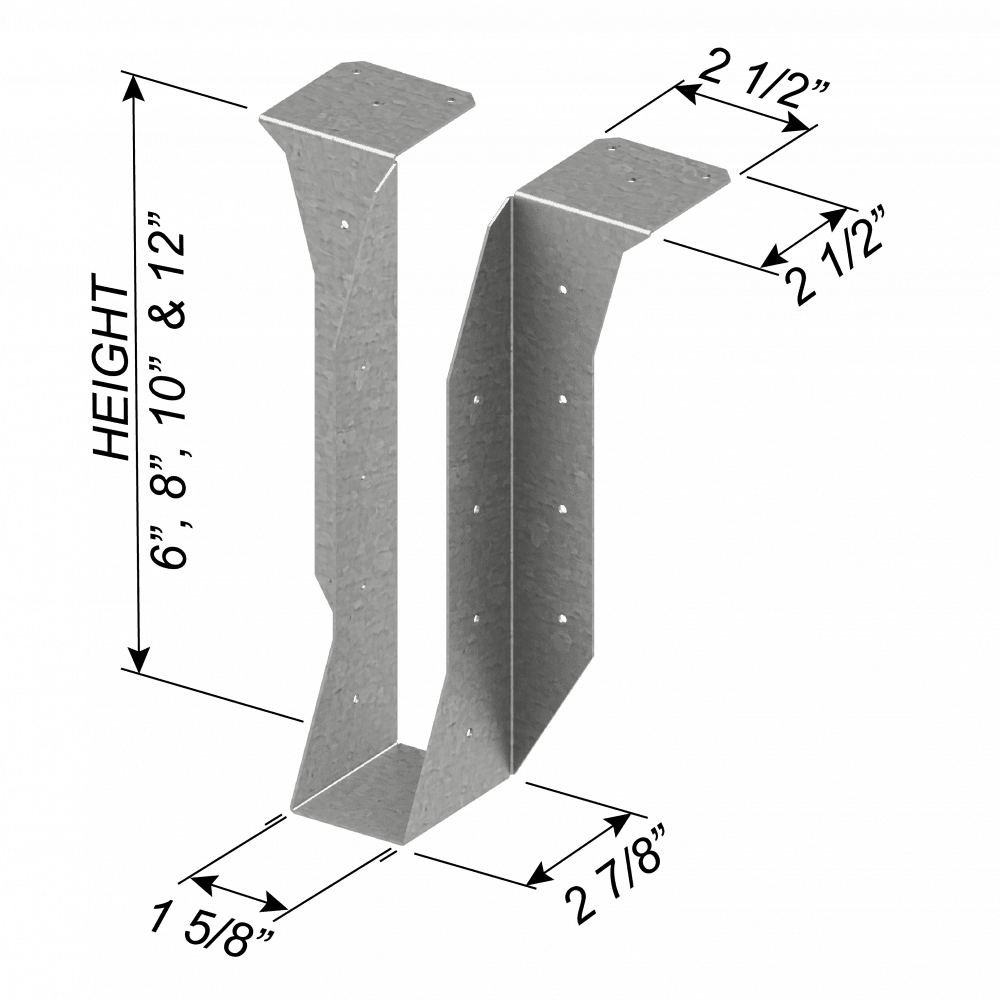

| CDBV | 1-5/8 x 6 | 68mils (14ga) | 0.0713 | 1-5/8 | 6 | 20 |
| 1-5/8 x 8 | 1-5/8 | 8 | 20 | |||
| 1-5/8 x 10 | 1-5/8 | 10 | 15 | |||
| 1-5/8 x 12 | 1-5/8 | 12 | 15 | |||
| CDBV | 2 x 6 | 68mils (14ga) | 0.0713 | 2-1/16 | 6 | 20 |
| 2 x 8 | 2-1/16 | 8 | 20 | |||
| 2 x 10 | 2-1/16 | 10 | 15 | |||
| 2 x 12 | 2-1/16 | 12 | 15 | |||

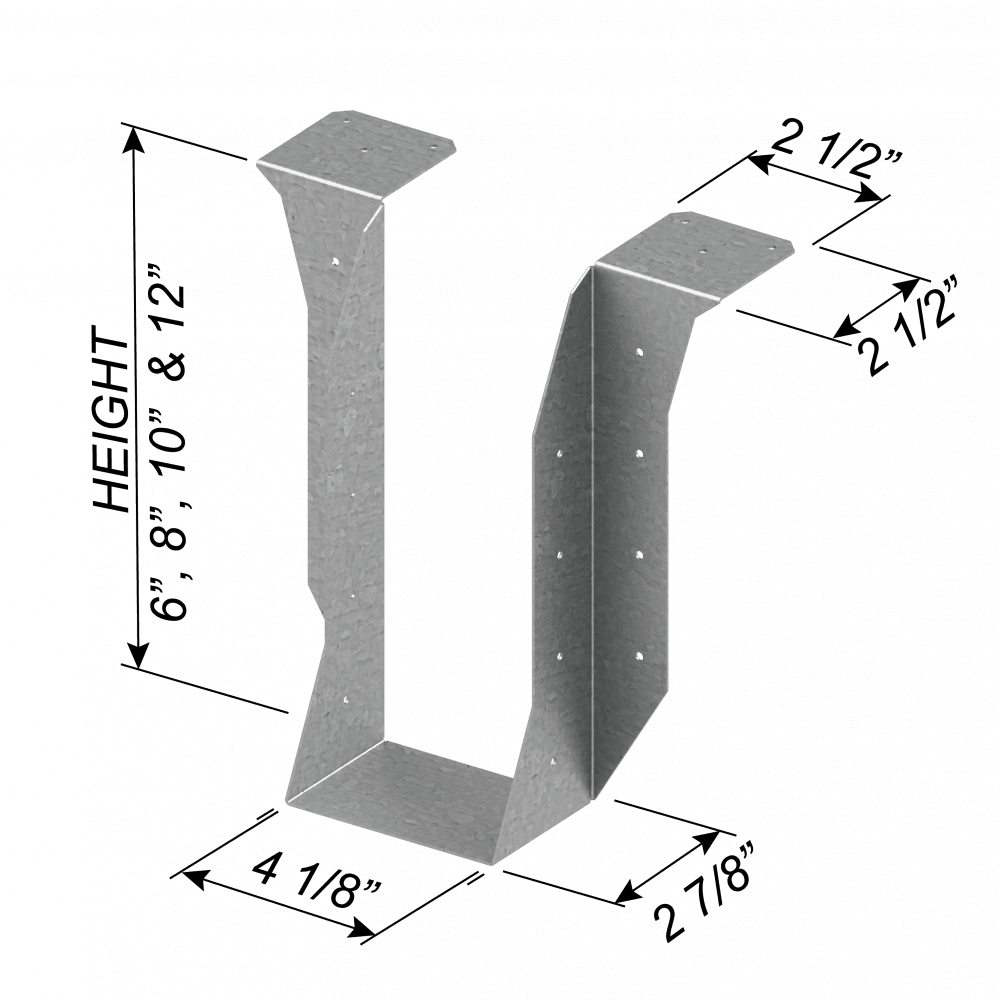

| CDBV | 4 x 6 | 68mils (14ga) | 0.0713 | 4-1/8 | 6 | 15 |
| 4 x 8 | 4-1/8 | 8 | 15 | |||
| 4 x 10 | 4-1/8 | 10 | 15 | |||
| 4 x 12 | 4-1/8 | 12 | 15 | |||
| CDMB | 1-5/8 x 6 | 97mils (12ga) | 0.1017 | 1-5/8 | 6 | 20 |
| 1-5/8 x 8 | 1-5/8 | 8 | 20 | |||
| 1-5/8 x 10 | 1-5/8 | 10 | 15 | |||
| 1-5/8 x 12 | 1-5/8 | 12 | 15 | |||
| CDMB | 2 x 6 | 97mils (12ga) | 0.1017 | 2-1/16 | 6 | 20 |
| 2 x 8 | 2-1/16 | 8 | 20 | |||
| 2 x 10 | 2-1/16 | 10 | 15 | |||
| 2 x 12 | 2-1/16 | 12 | 15 | |||
| CDMB | 4 x 6 | 97mils (12ga) | 0.1017 | 4-1/8 | 6 | 15 |
| 4 x 8 | 4-1/8 | 8 | 15 | |||
| 4 x 10 | 4-1/8 | 10 | 15 | |||
| 4 x 12 | 4-1/8 | 12 | 15 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
