HDSC Header Bracket
Header Clip for RedHeader PRO™ and HDS Framing Systems

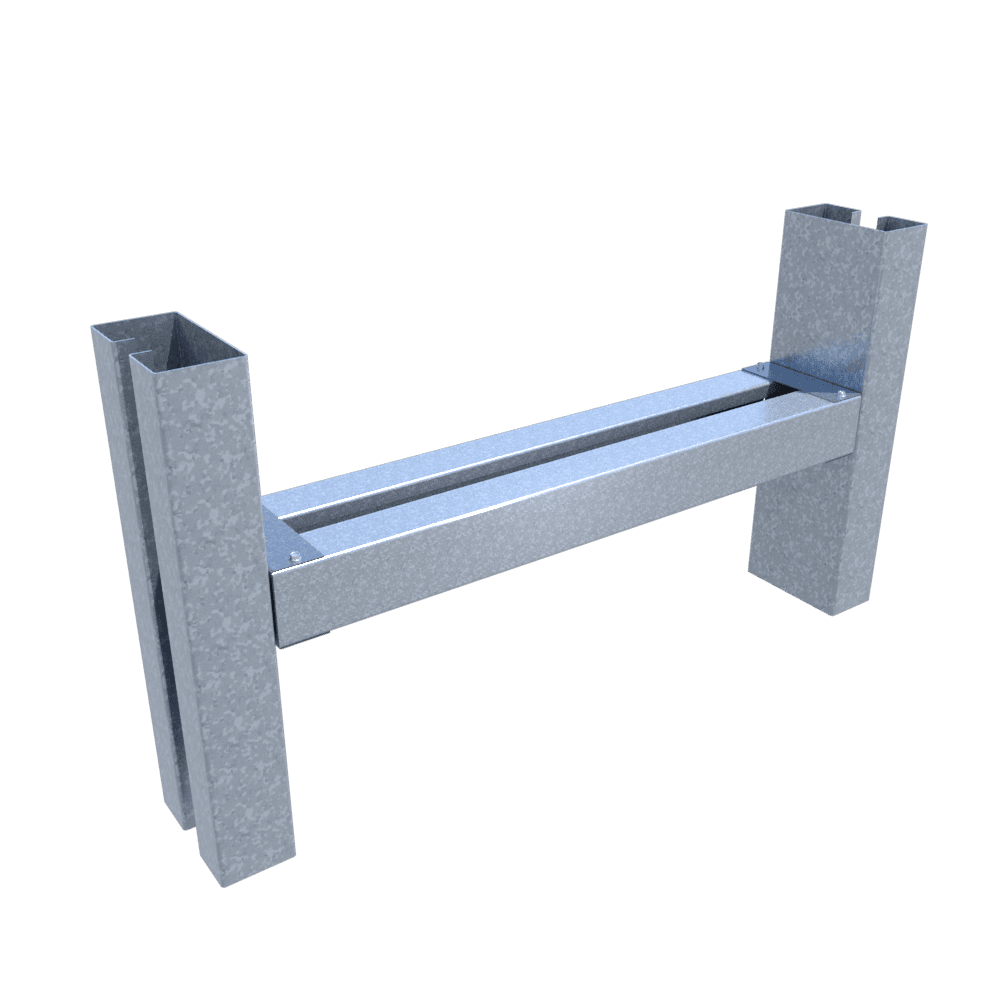

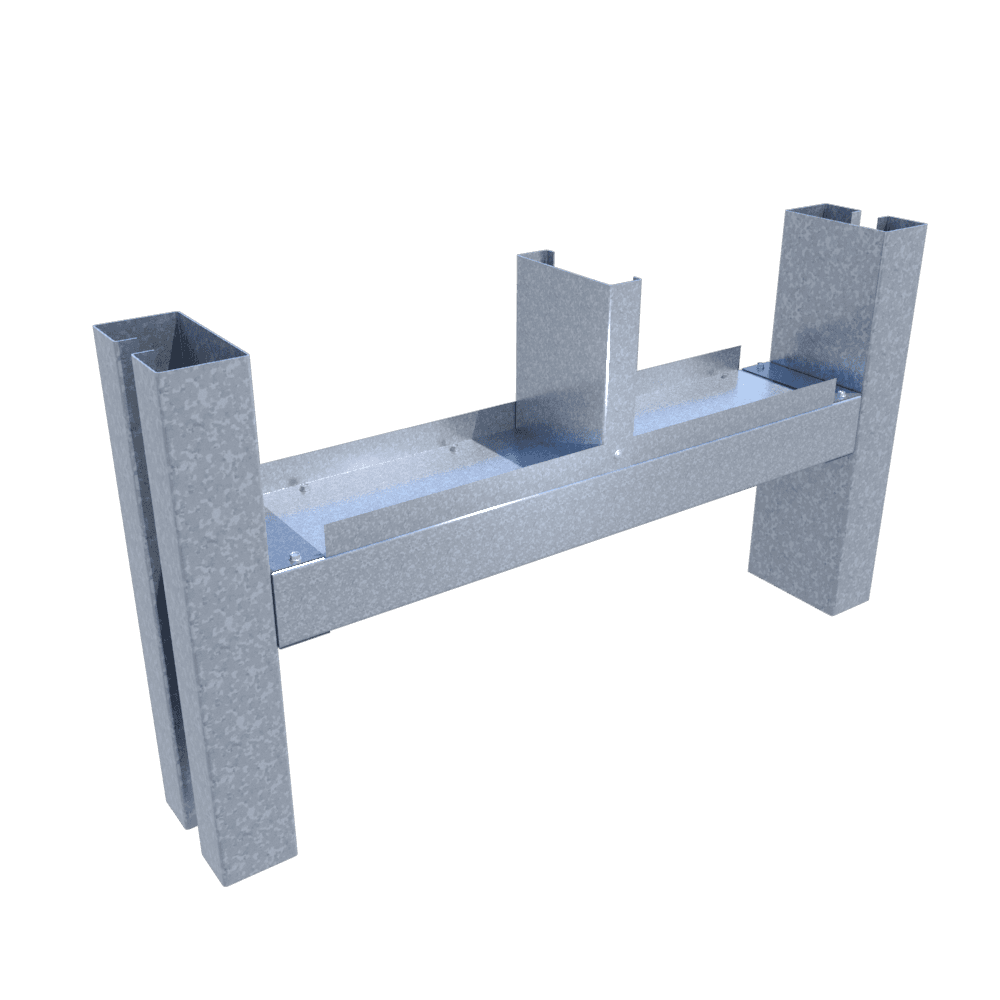

The HDSC Header Bracket (HDSC) is the perfect complement to the RedHeader PRO™ and HDS® Framing system. This simple, yet innovative header bracket turns curtain-wall header installation from a two- man job into a one-person job.
Quick Actions:
This unique, prepunched clip also eliminates surface head fastener buildup that can create finishing challenges.

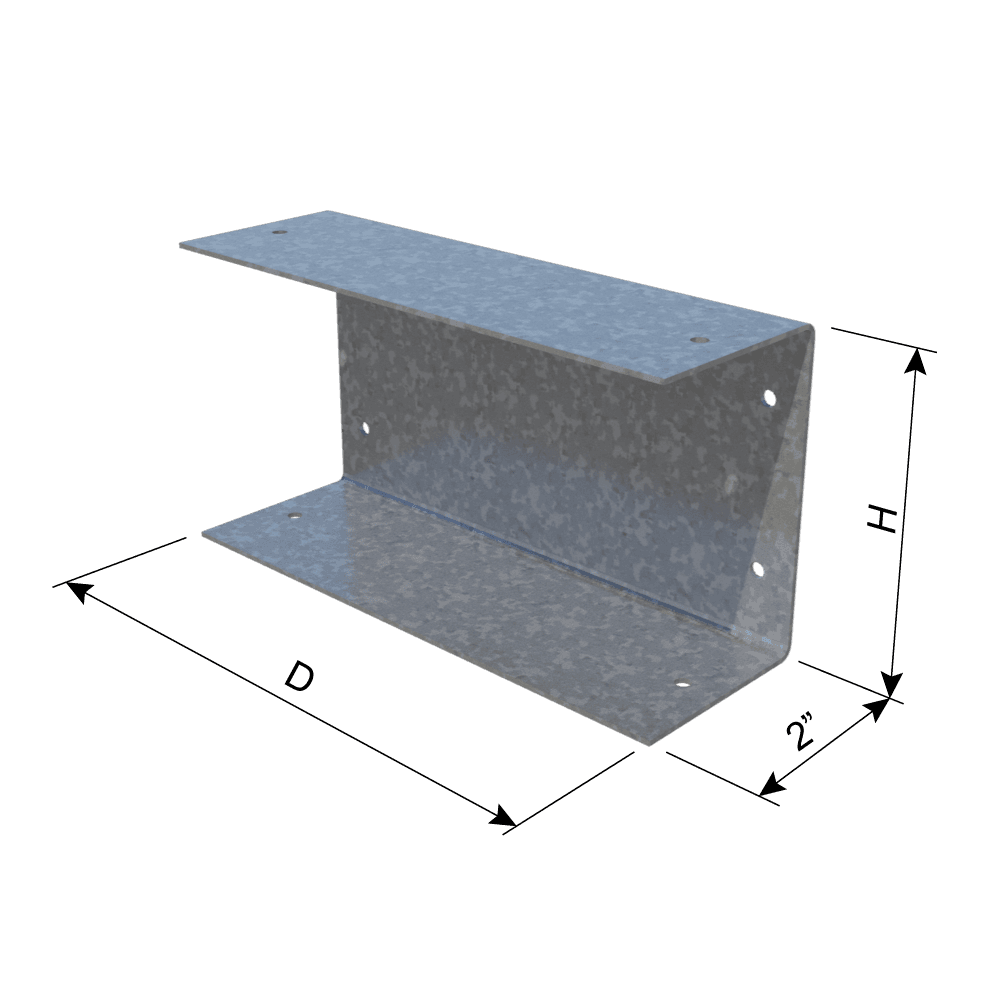

| Product Code | Depth (D) | Height (H) | Thickness |
|---|---|---|---|
| 350HDSC300 | 3-1/2" | 3-1/16" | 33, 68 or 97 mils |
| 350HDSC350 | 3-1/2" | 3-9/16" | 33, 68 or 97 mils |
| 387HDSC300 | 3-7/8" | 3-1/16" | 33, 68 or 97 mils |
| 387HDSC350 | 3-7/8" | 3-9/16" | 33, 68 or 97 mils |
| 587HDSC300 | 5-7/8" | 3-1/16" | 33, 68 or 97 mils |
| 587HDSC350 | 5-7/8" | 3-9/16" | 33, 68 or 97 mils |
| 787HDSC300 | 7-7/8" | 3-1/16" | 33, 68 or 97 mils |
| 787HDSC350 | 7-7/8" | 3-9/16" | 33, 68 or 97 mils |
33mil (20ga) material is 33 ksi material.
68mil (14ga) and 97mils (12ga) are 50 ksi.
All material has a CP90 coating (G90)
