Metal Furring Channel Clips (MFCC)
Quickly facilitates the attachment of metal furring channel to 1-1/2" U-channel in ceiling assemblies

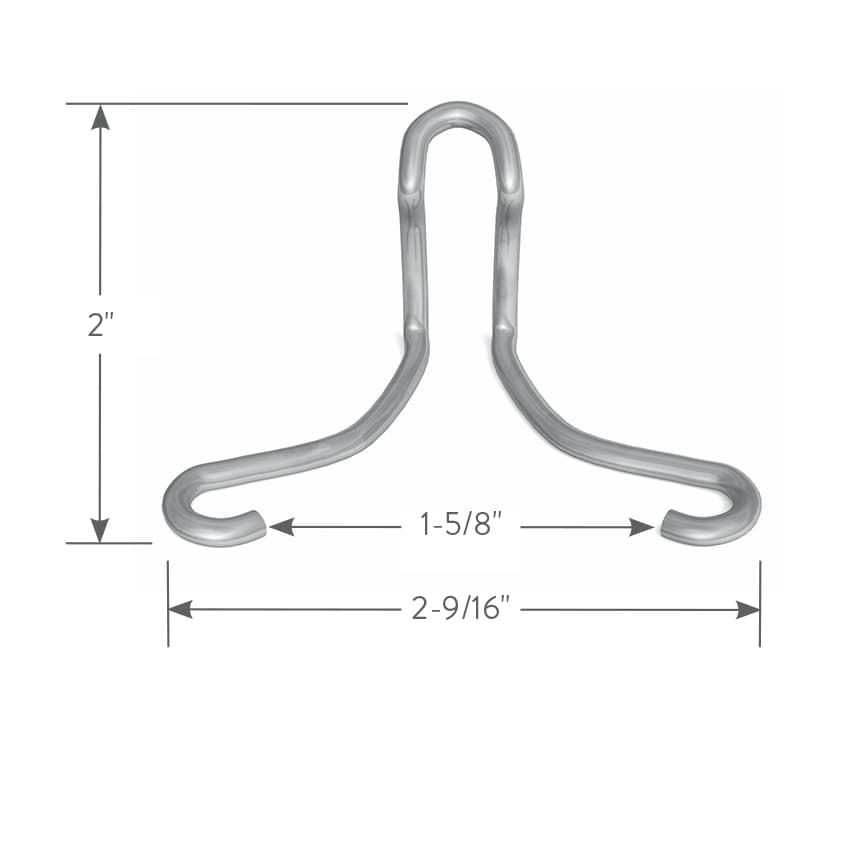

Metal Furring Channel Clips are made of galvanized wire and used to attach Metal Furring Channels to 1-1/2" U-channels in Drop Ceiling Assemblies.
Quick Actions:
Clips must be installed on alternating sides of the 1-1/2" channels. Use tie wire when clips cannot be alternated.
Clips should only be used when single-layer gypsum or single-layer veneer plaster base is used.
- Securely fastens furring channel to U-channel
- Corrosion-resistant galvanized wire
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Informaiton
| Product code | Diameter | Nominal Load1 | Allowable Load (ASD Load)2 |
|---|---|---|---|
| MFCC | 0.134" | 200 lbs | 50 lbs |
1 Nominal Load does not include safety factor
2 Allowable Load (ASD) includes a Safety factor of 4 for each clip used.
