Furring Channel / Hat Channel
Furring Channel for Walls and Ceilings
Economical hat-shaped framing component used to “furr” out ceilings and masonry walls.
Quick Actions:
Economical hat-shaped framing component used to “furr” out ceilings and masonry walls.
- Provides noncombustible furring for interior and exterior walls
- Use to level uneven surfaces
- Available in 7/8” and 1-1/2” depths in 25, 20, 18 and 16 gauge
- Standard lengths are 10’ and 12’. Other lengths available

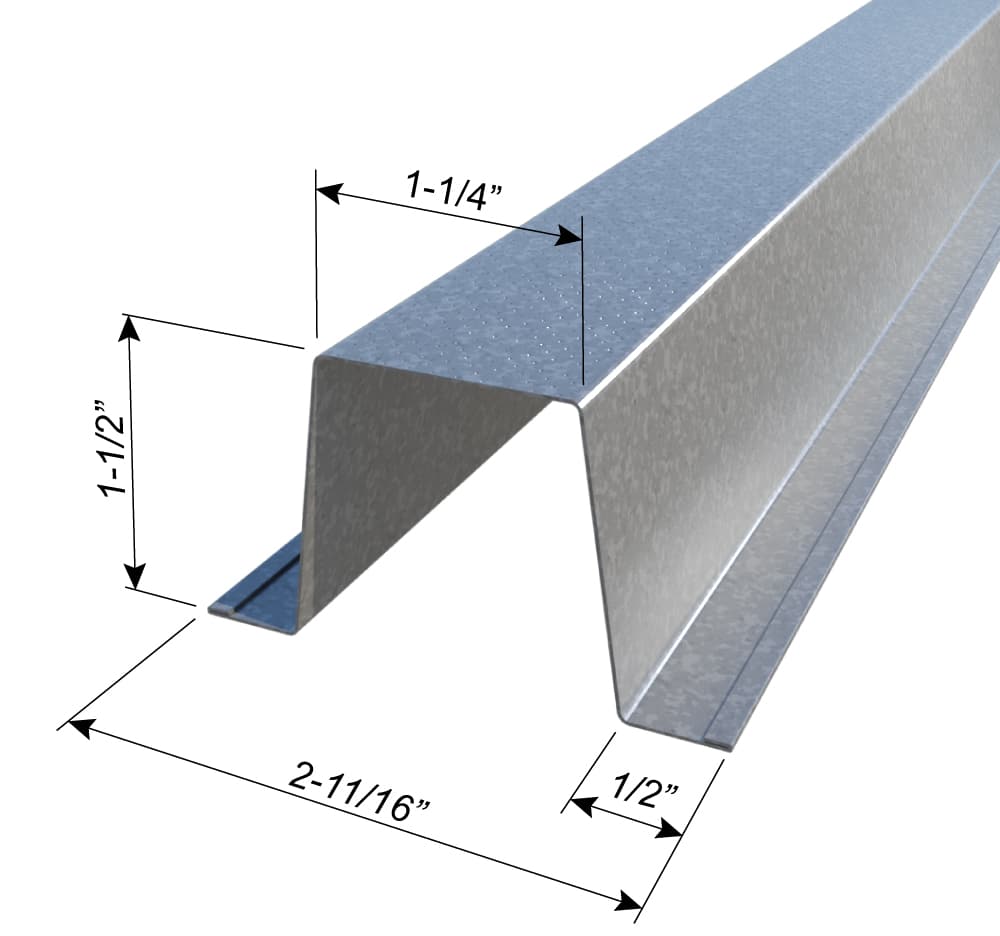

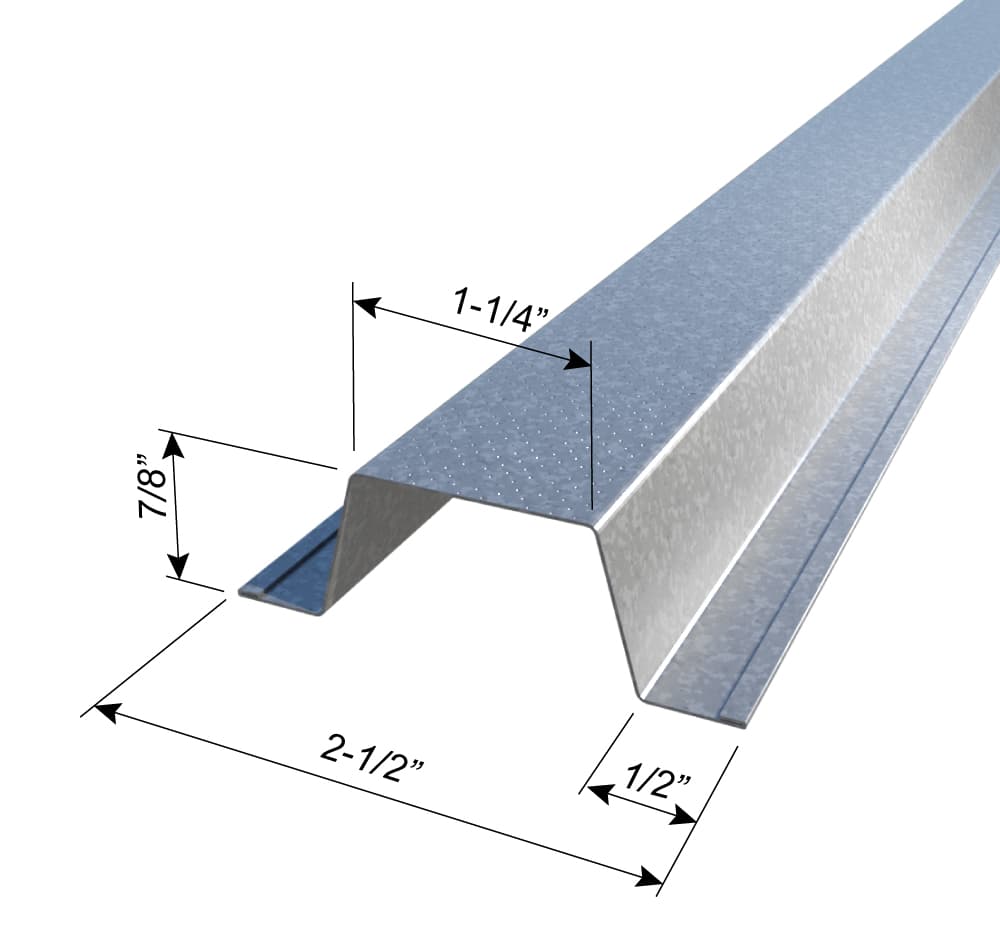

- Hemmed leg furring channel (as shown) is only available in 25 gauge

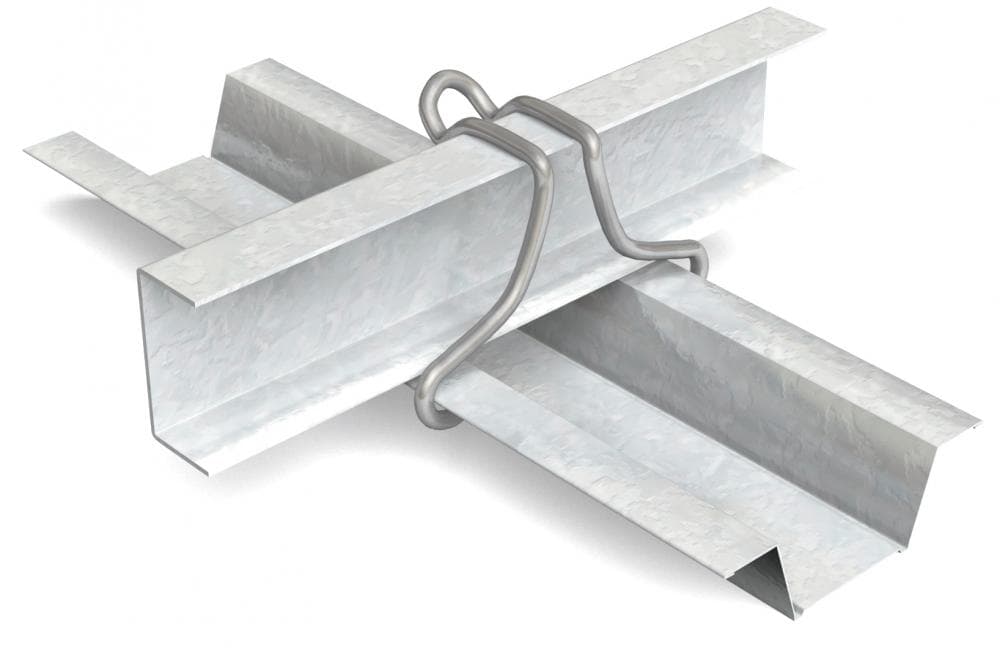

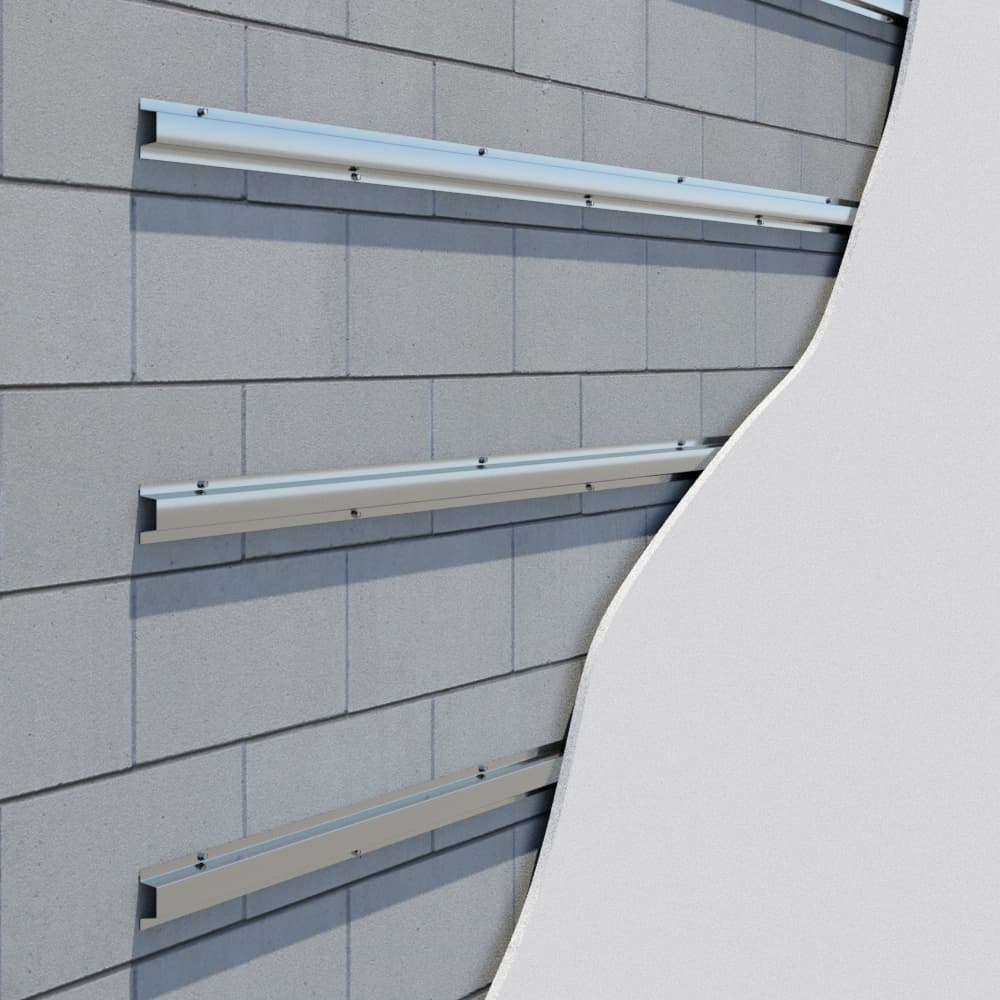

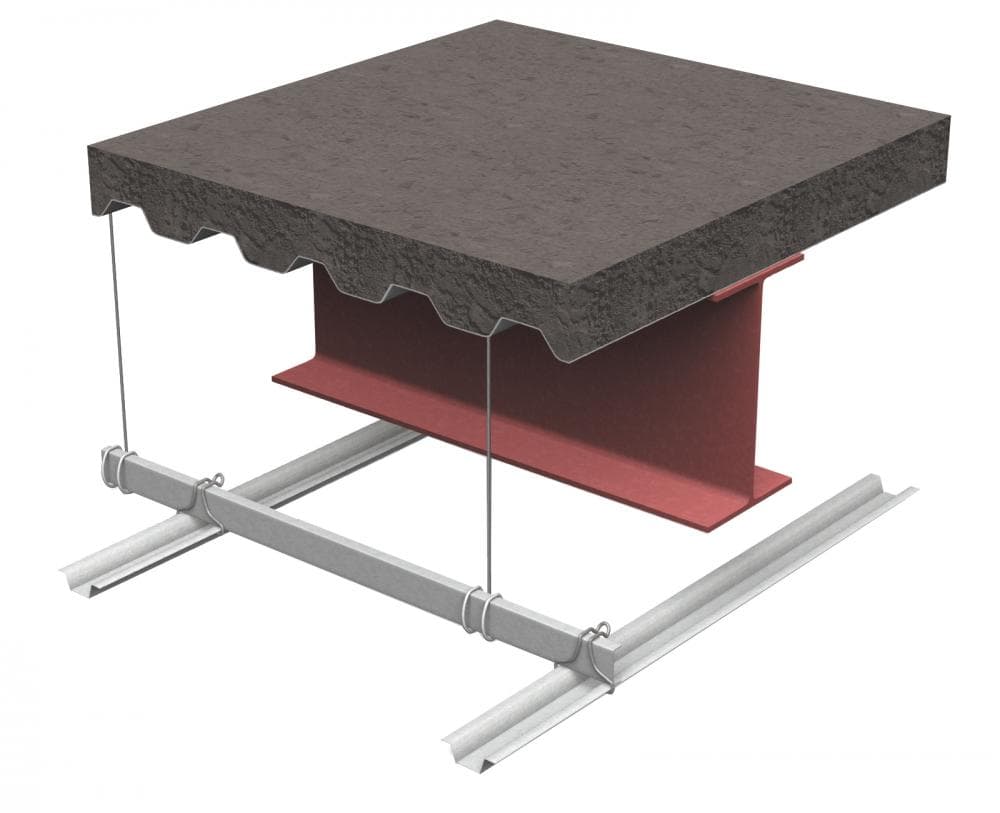

ClarkDietrich furring channel is a hat-shaped corrosion-resistant framing component used to furr out masonry walls and ceiling assemblies. In concrete wall applications, furring channel is installed vertically to the wall surface using concrete nails or power-driven fasteners. Gypsum panels are then screw-attached to the furring channels. In drop ceiling applications, furring channels can be attached directly to 1-1/2" cold rolled channels using Metal Furring Channel Clips, or tie wire. Screws or power-driven fasteners can be used to attach furring channel directly to the building structure. Heavier gauge furring enables greater spans and loading capacity. 18- or 16- gauge furring is commonly used for purlins in exterior applications.

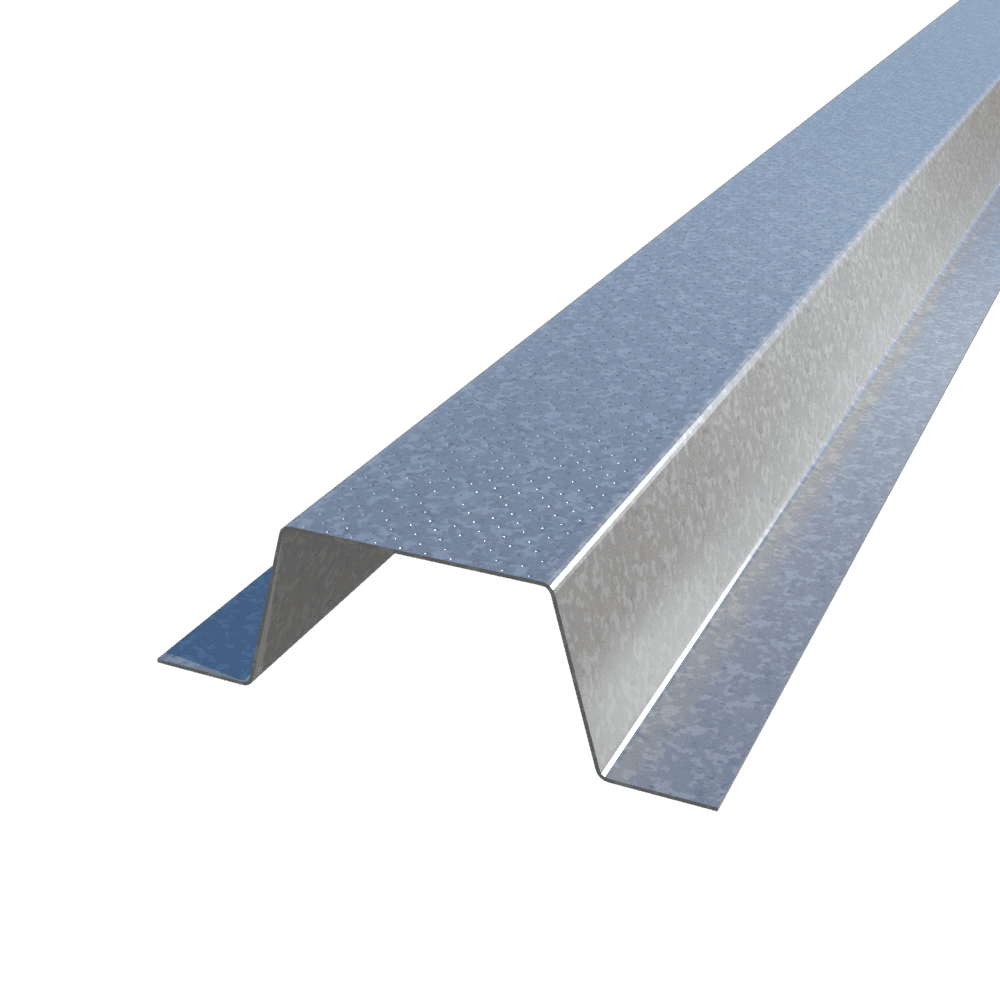

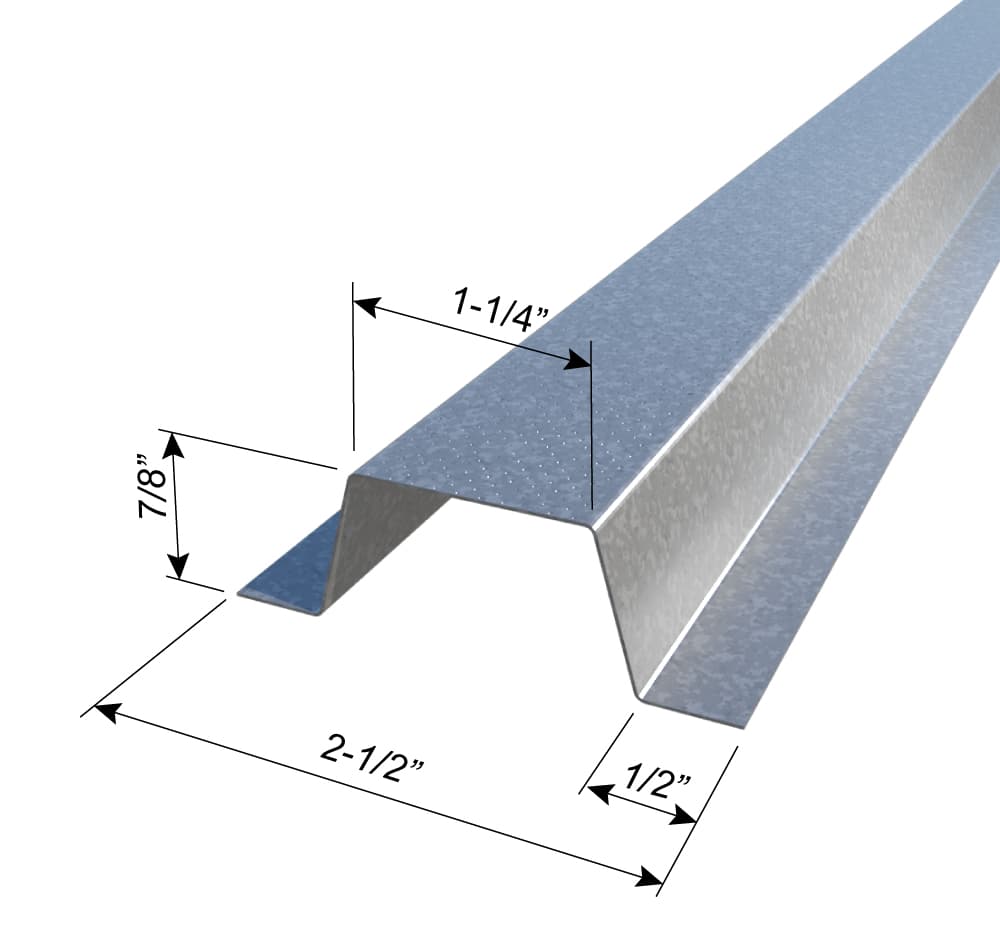

7/8" Furring Channel Systems
| Member | Gauge | Mils | Size | Pcs/Bundle |
|---|---|---|---|---|
| 087F125-18 | 25 | 18 | 7/8" |
10 |
| 087F125-30 | 20 DW | 30 | 7/8" | 10 |
| 087F125-33 | 20 STR | 33 | 7/8" | 10 |
|
087F125-43 |
18 | 43 | 7/8" | 10 |
| 087F125-54 | 16 | 54 | 7/8" | 10 |

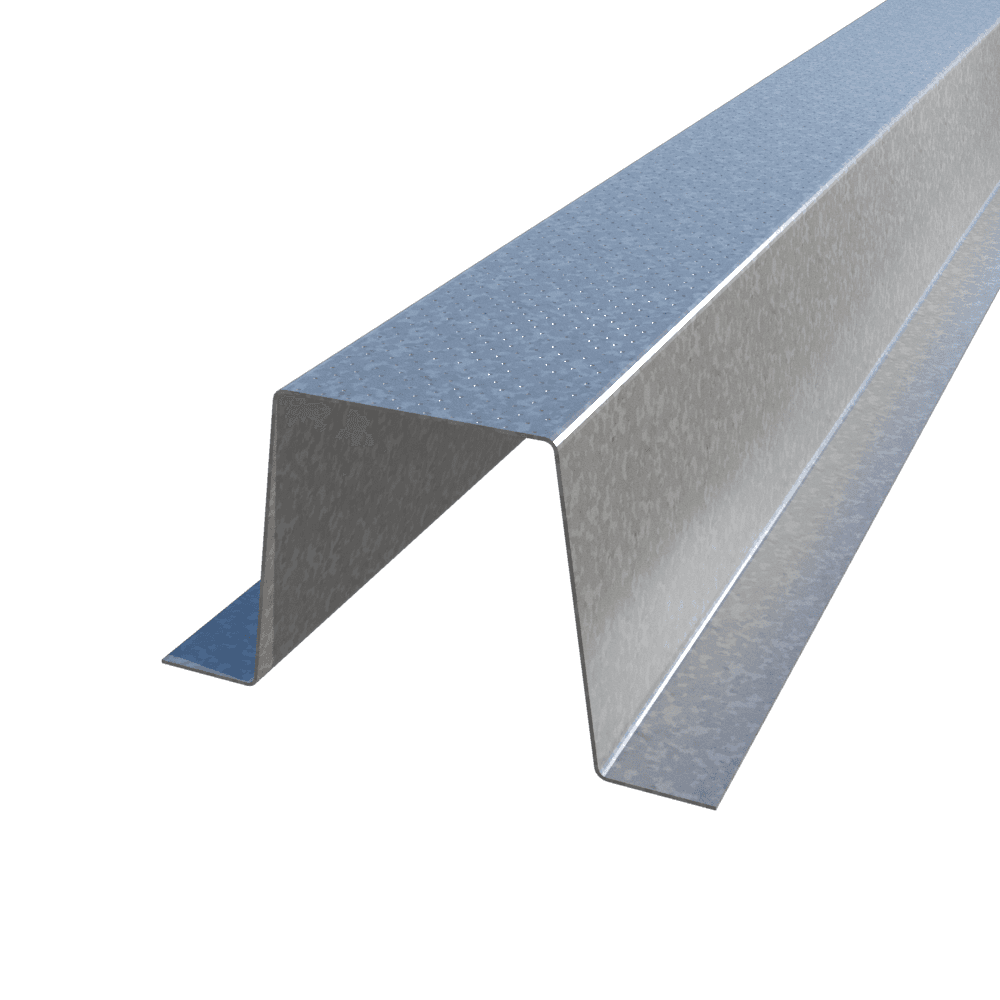

1-1/2" Furring Channel Systems
| Member | Gauge | Mils | Size | Pcs/Bundle |
|---|---|---|---|---|
| 150F125-18 | 25 | 18 | 1-1/2" |
10 |
| 150F125-30 | 20 DW | 30 | 1-1/2" | 10 |
| 150F125-33 | 20 STR | 33 | 1-1/2" | 10 |
|
150F125-43 |
18 | 43 | 1-1/2" | 10 |
| 150F125-54 | 16 | 54 | 1-1/2" | 10 |

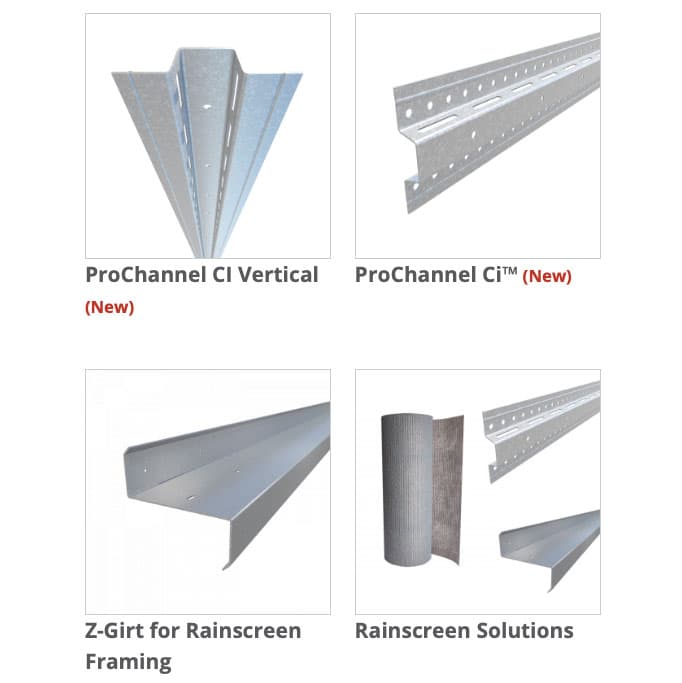

LOOKING FOR STRUCTUrAL Hat Channel SOLUTIONS?
VISIT OUR RAINSCREEN SOLUTIONS PAGE
WHAT IS A RAINSCREEN?
A rainscreen is an exterior wall detail where the siding (wall cladding) stands off from the moisture-resistant surface of an air/water barrier applied to the sheathing to create a capillary break and to allow drainage and evaporation. The ventilated air cavity created by the stand-off can be achieved through framing and/or finishing systems. ClarkDietrich offers Rainscreen Solutions for framing applications or finishing systems.
