Pony WallNew
Partial wall framing connection to floor

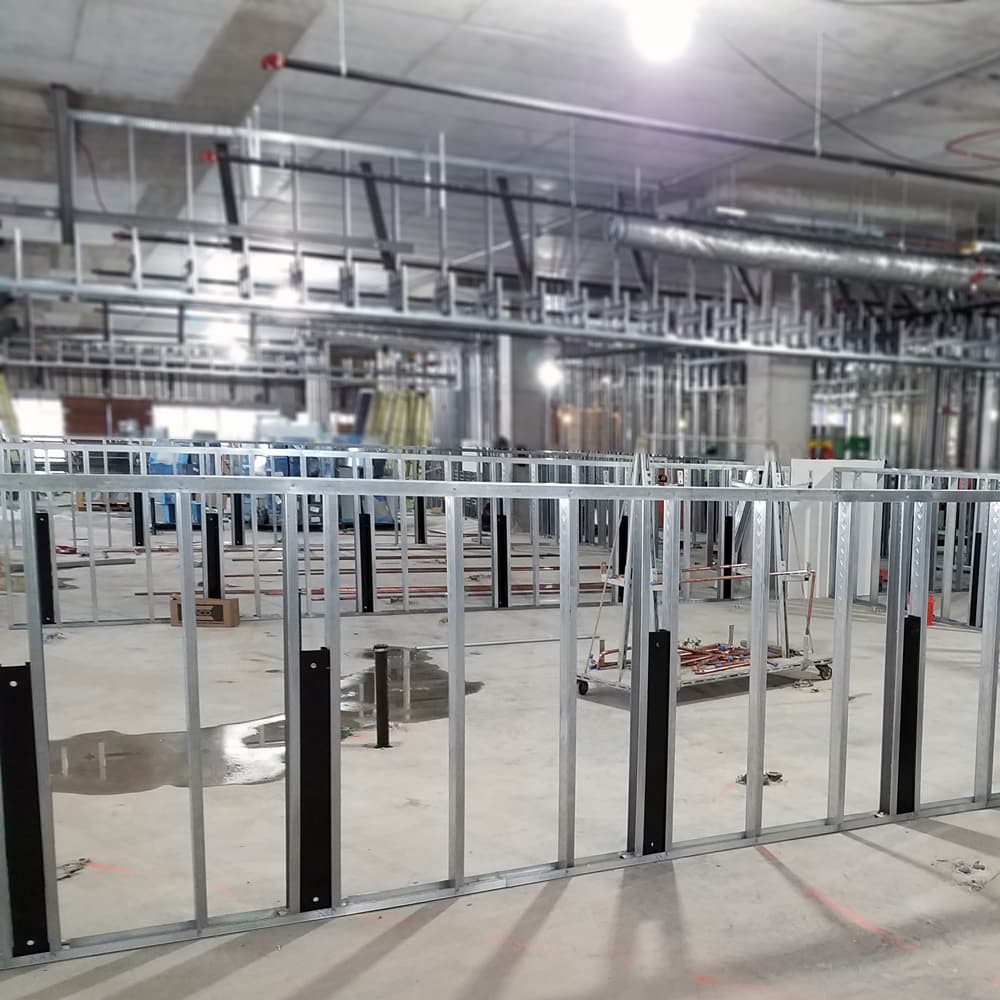

The ClarkDietrich Pony Wall is intended to support out-of-plane loading of cantilevered partial wall systems that are unsupported at the top track.
Quick Actions:

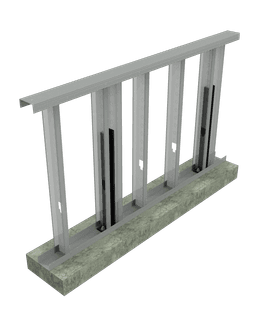

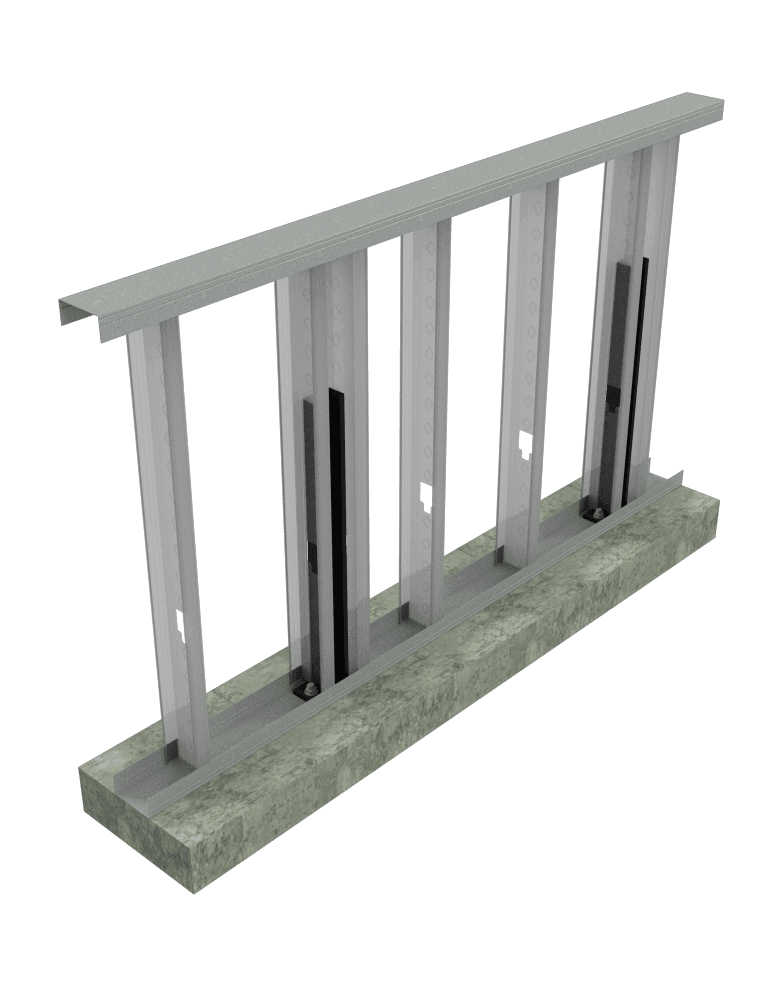

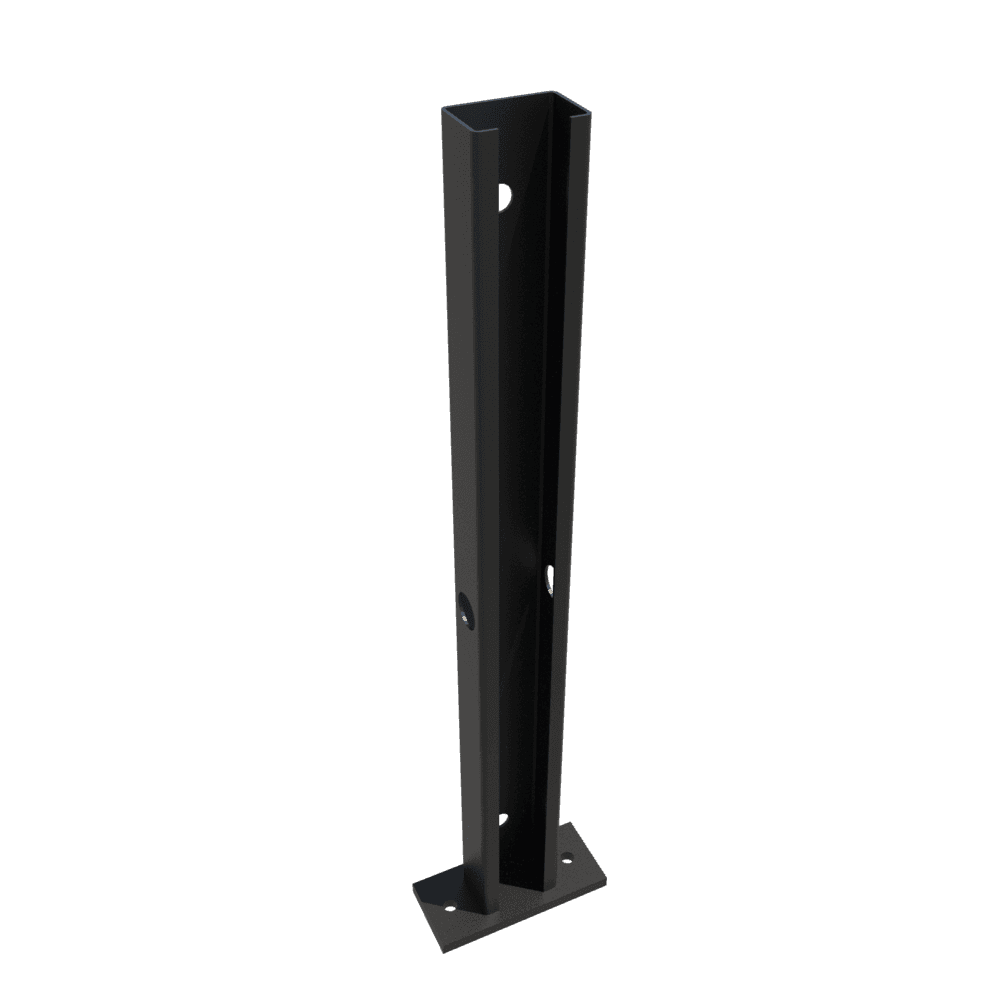

Pony Wall Lite
Out-of-plane loads are transferred to the floor system through the base-plate, which is welded to the Pony Wall stud member.

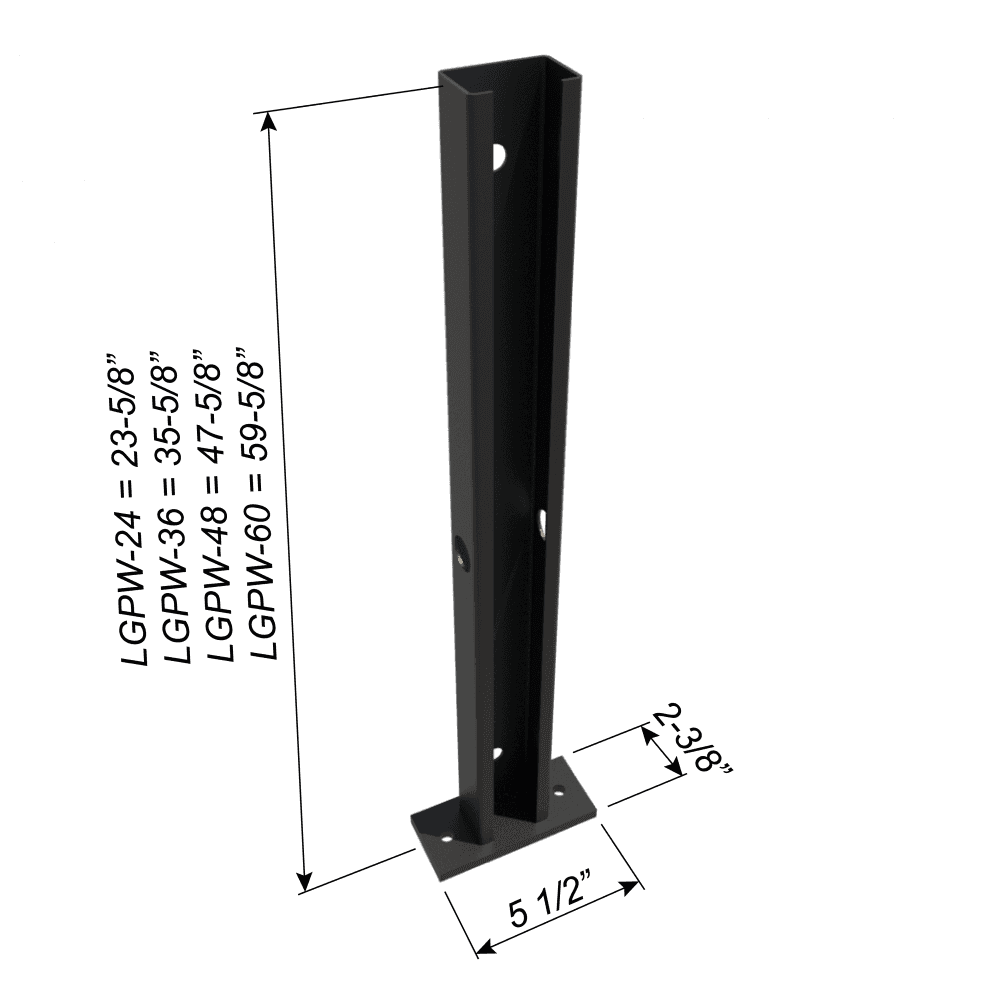

Product Dimensions
LGPW24 = 23-5/8" tall with 2-3/8" wide x 5-1/2" long plate
LGPW36 = 35-5/8" tall with 2-3/8" wide x 5-1/2" long plate
LGPW48 = 47-5/8" tall with 2-3/8" wide x 5-1/2" long plate
LGPW60 = 59-5/8" tall with 2-3/8" wide x 5-1/2" long plate
Material Specifications
Plate Material: ASTM A36 3/8" thick hot rolled steel
Stud Material: ASTM A1011 SS Grade 50, 50ksi (340 MPa)
16ga (54mil), 0.0566" Design thickness, 0.0538" Min. thickness
Packaging: Individually
Alternative Products
Product Data & Ordering Information
| Product code | Overall Height | Packaging |
|---|---|---|
| LGPW24 | 23-5/8" tall | Individually |
| LGPW36 | 35-5/8" tall | Individually |
| LGPW48 | 47-5/8" tall | Individually |
| LGPW60 | 59-5/8" tall | Individually |

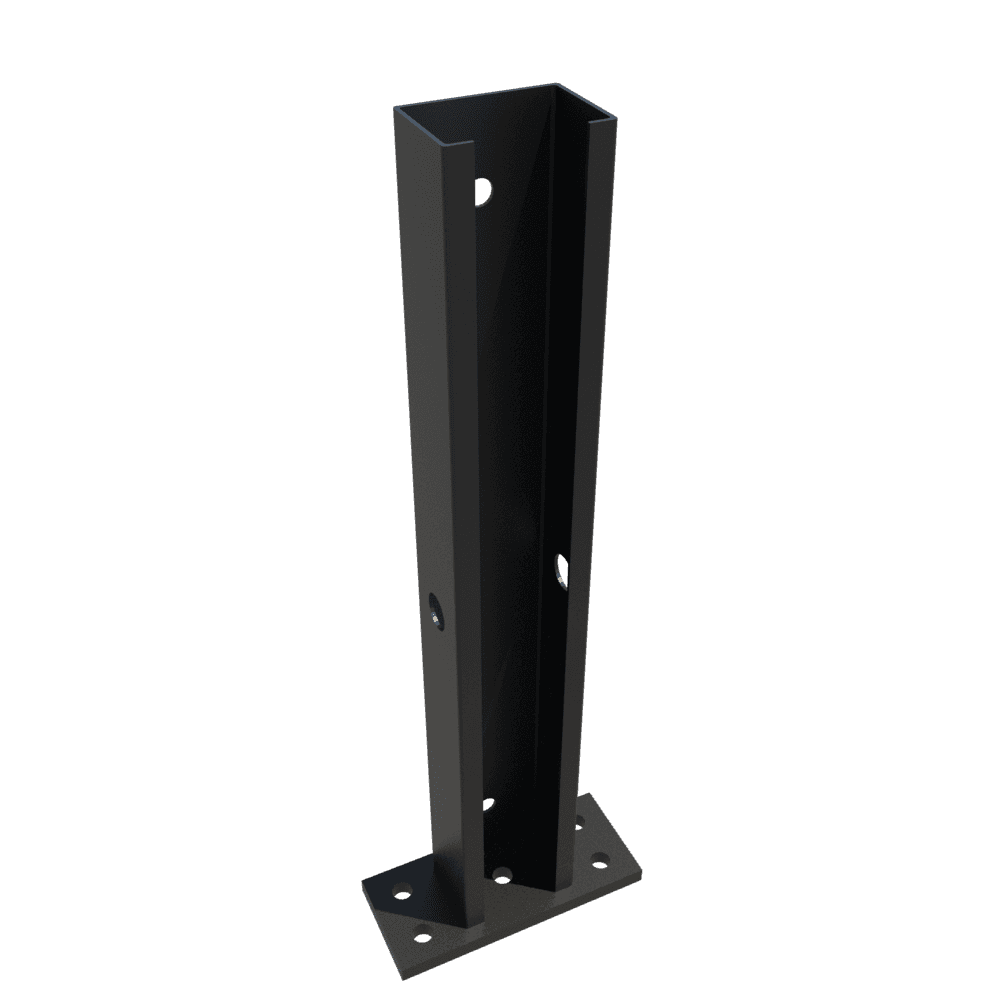

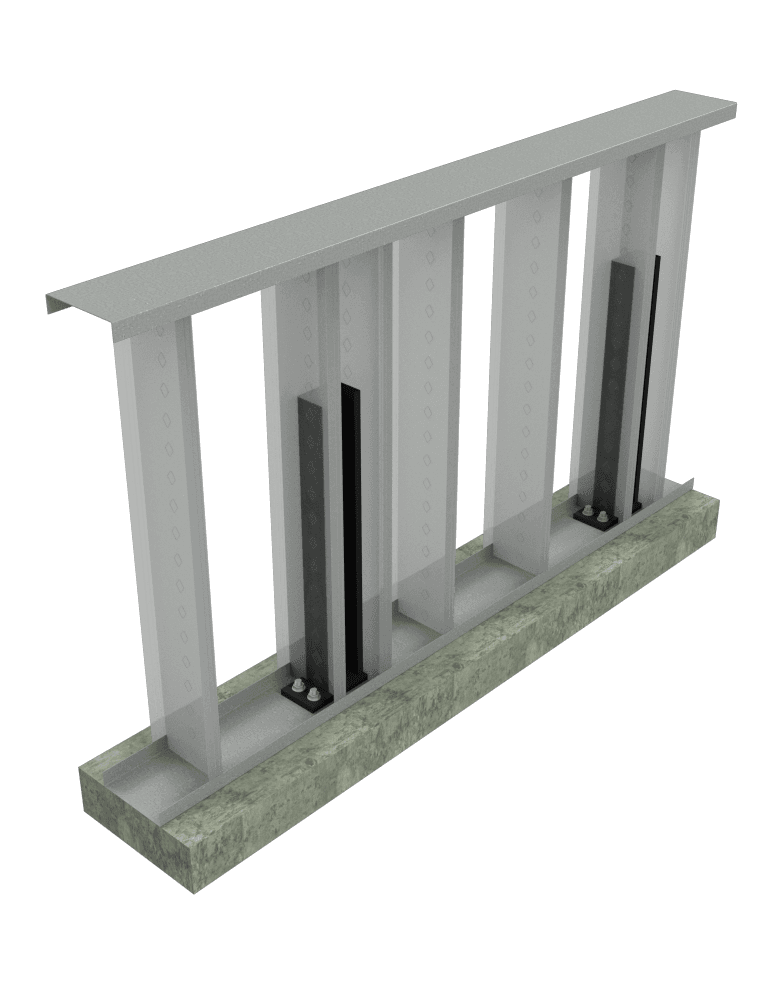

Pony Wall Heavy
Out-of-plane loads are transferred to the floor system through the base-plate, which is welded to the Pony Wall stud member.

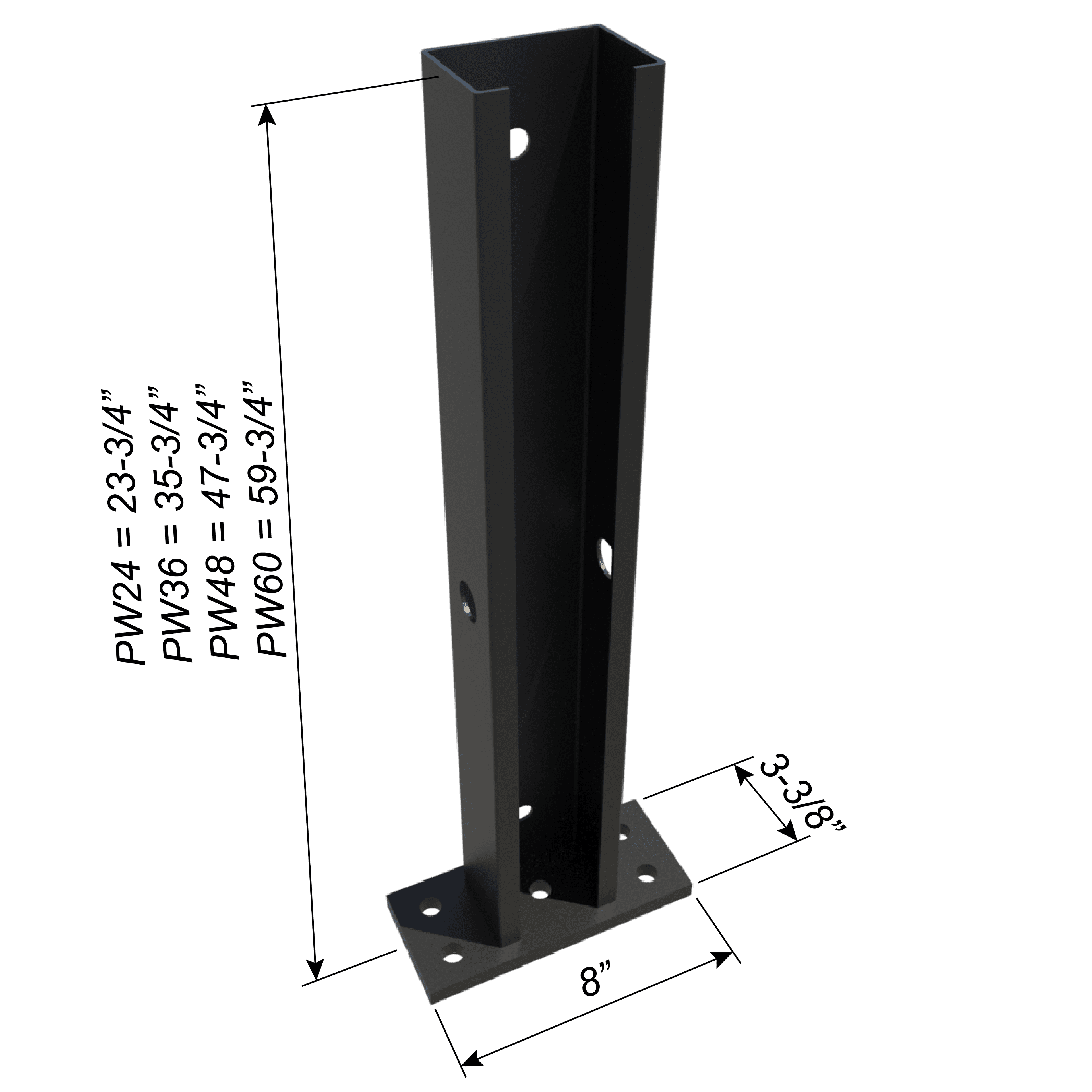

Product Dimensions
PW24 = 23-3/4" tall with 3-3/8" wide x 8" long plate
PW36 = 35-3/4" tall with 3-3/8" wide x 8" long plate
PW48 = 47-3/4" tall with 3-3/8" wide x 8" long plate
PW60 = 59-3/4" tall with 3-3/8" wide x 8" long plate
Material Specifications
Plate Material: ASTM A36 1/2" thick hot rolled steel
Stud Material: ASTM A1011 SS Grade 50, 50ksi (340 MPa)
12ga (97mil), 0.1017" Design thickness, 0.0966" Min. thickness
Packaging: Individually
Alternative Products
Product Data & Ordering Information
| Product code | Overall Height | Packaging |
|---|---|---|
| PW24 | 23-3/4" tall | Individually |
| PW36 | 35-3/4" tall | Individually |
| PW48 | 47-3/4" tall | Individually |
| PW60 | 59-3/4" | Individually |
