ClarkDietrich Moment Clip (MC Series)

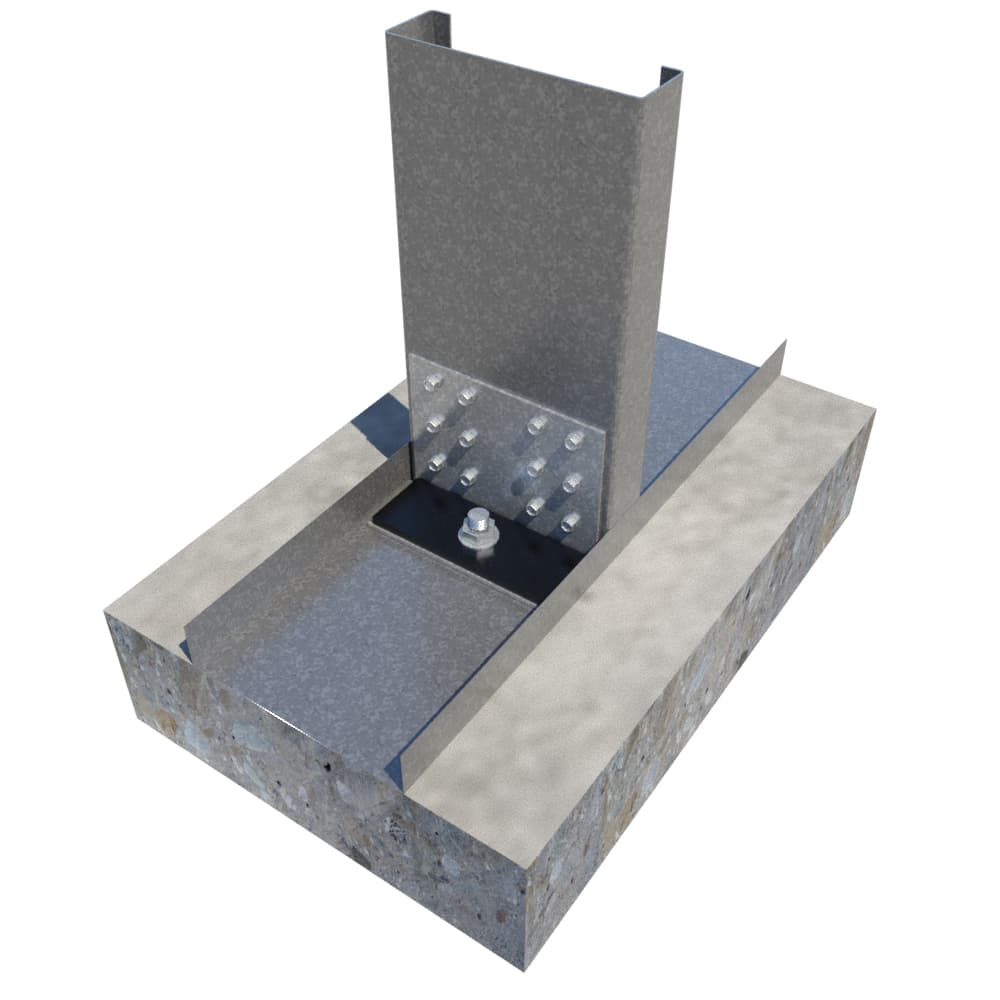

Moment connection for knee walls and shear walls to the structure foundation.

ClarkDietrich moment clips are high-performance, cost effective solutions for knee wall-to-foundation connections and shear wall-to-foundation connections.

Quick Actions:

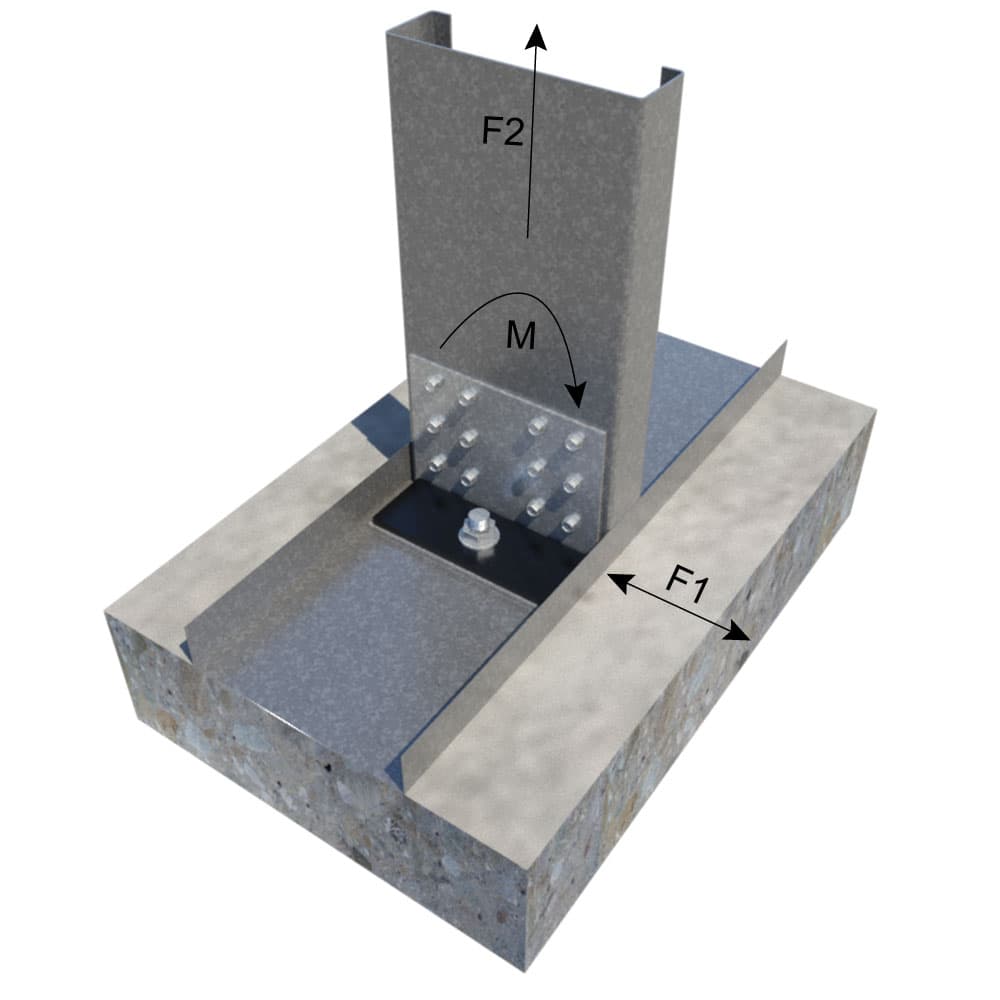

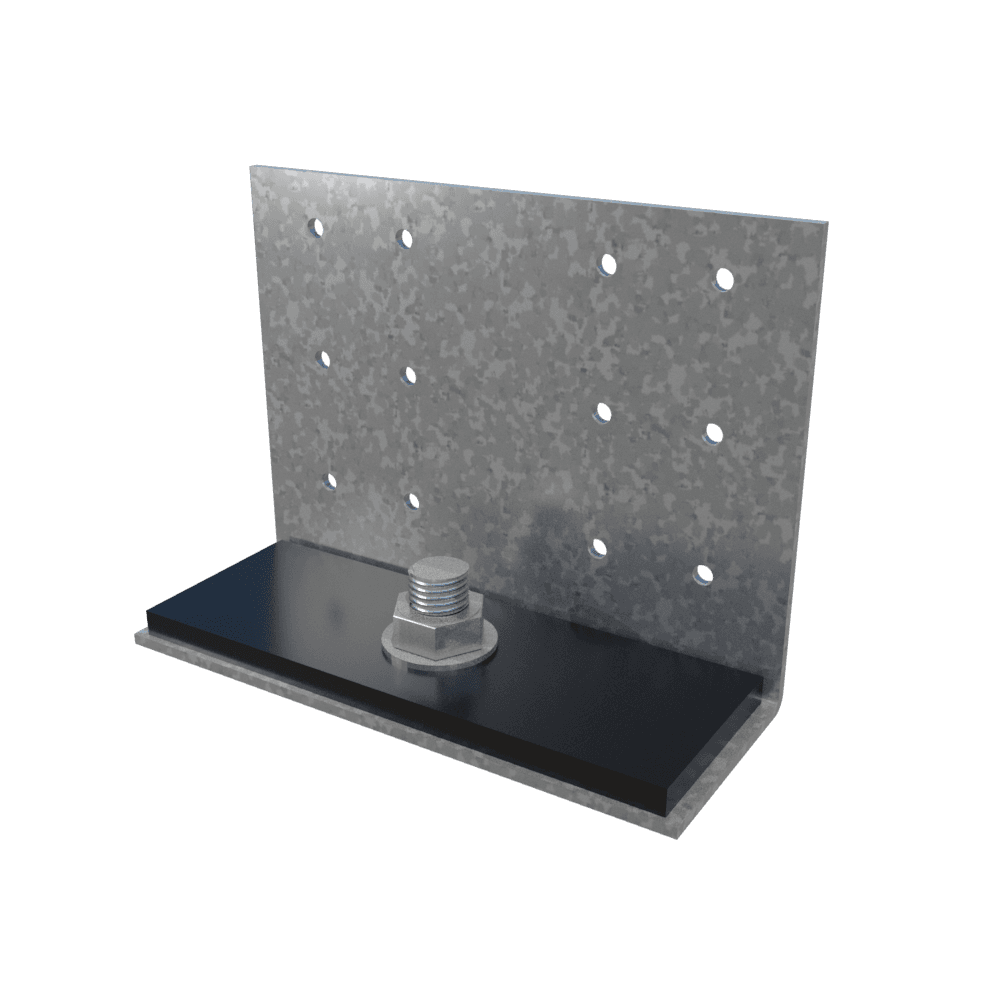

These multi-application clips feature a 1/4" thick A36 steel stiffening plate that provides superior design values for maximum performance. The moment clips are designed to resist horizontal, torsional and vertical (uplift) loads. These clips are prepunched with a series of attachment holes for steel framing connections and a 1/2" anchor bolt hole for foundation connections.

Product Dimensions

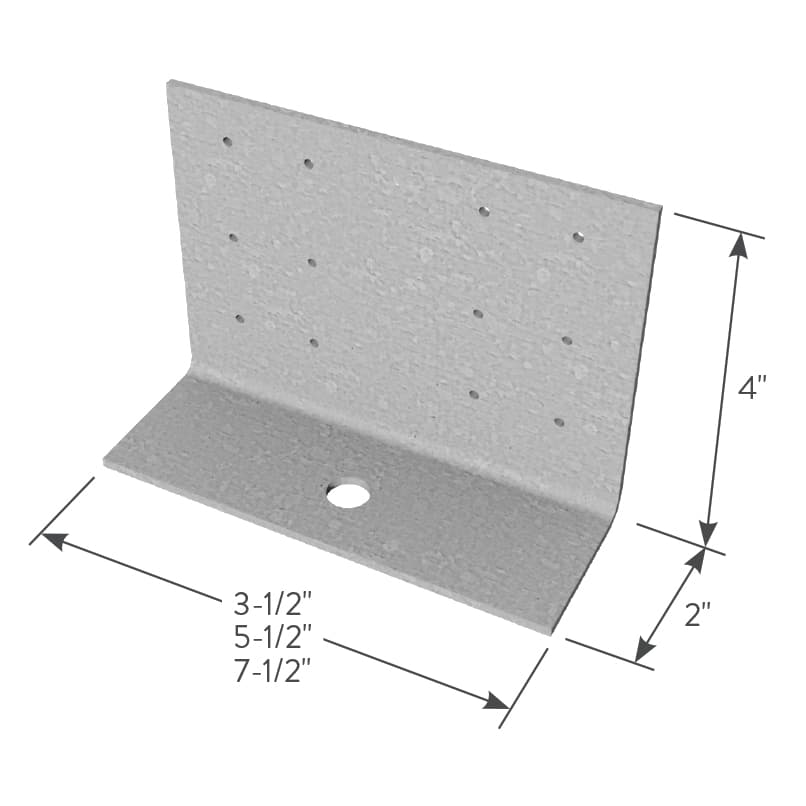

2" x 4" x 3-1/2"
2" x 4" x 5-1/2"
2" x 4" x 7-1/2"

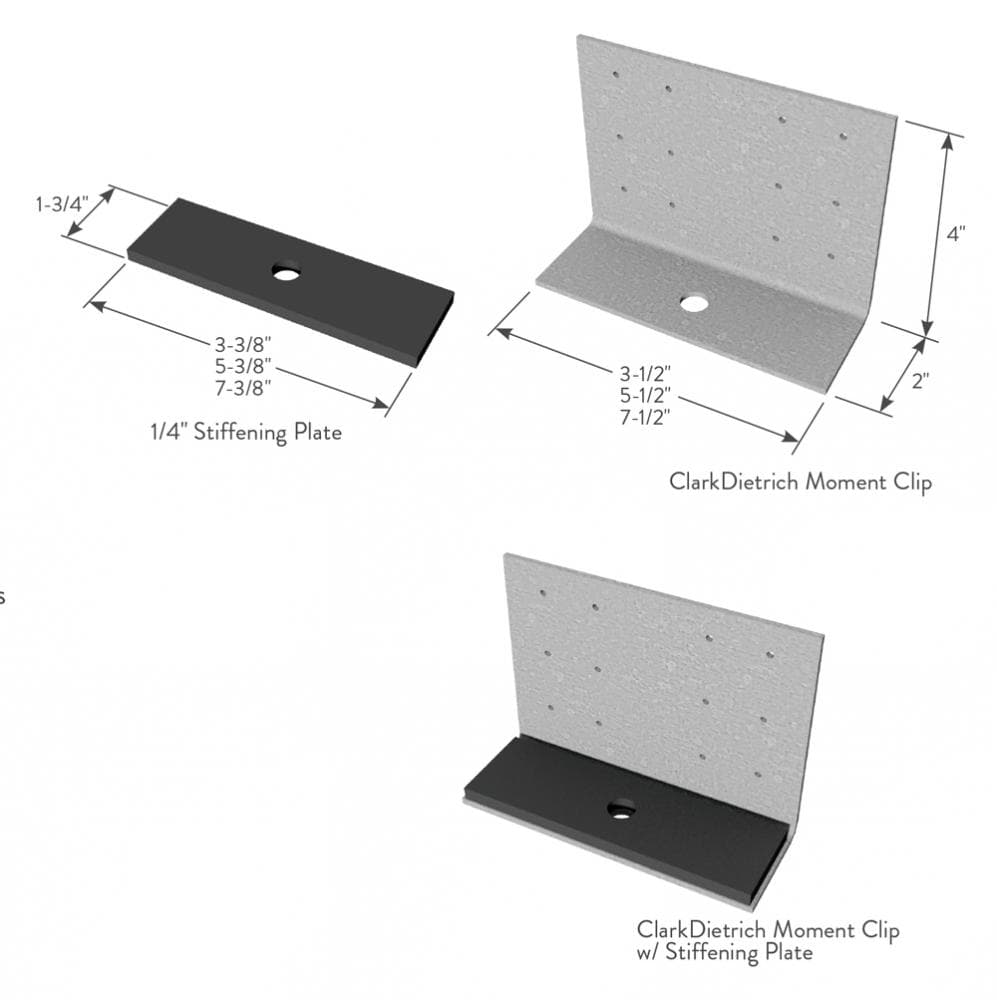

1/4" A36 steel stiffening plate
1-3/4" x 3-3/8"
1-3/4" x 5-3/8"
1-3/4" x 7-3/8"

Material Specifications
Gauge: 68mils (14ga) Design Thickness: 0.0713 inches
Gauge: 97mils (12ga) Design Thickness: 0.1017 inches
Gauge: 118mils (10ga) Design Thickness: 0.1242 inches

Alternative Products

Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
Technical Support at 888-437-3244 or support@clarkdietrich.com

Product Data & Ordering Information

Click the below Product Code to view Tech Datasheet

Product code	Gauge	Mils	Design thickness (in)	Size (in)	Packaging Pcs./Bucket
MC683P	14	68	0.0713	2 x 4 x 3-1/2	25
MC973P	12	97	0.1017	2 x 4 x 3-1/2	25
MC103P	10	118	0.1242	2 x 4 x 3-1/2	25

MC685P	14	68	0.0713	2 x 4 x 5-1/2	25
MC975P	12	97	0.1017	2 x 4 x 5-1/2	25
MC105P	10	118	0.1242	2 x 4 x 5-1/2	25

MC687P	14	68	0.0713	2 x 4 x 7-1/2	25
MC977P	12	97	0.1017	2 x 4 x 7-1/2	25
MC107P	10	118	0.1242	2 x 4 x 7-1/2	25

Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
