EasyClip™ D & T-Series™ Anchor Clips
Provide cost effective tie-down solutions for knee walls, shear walls and truss connections

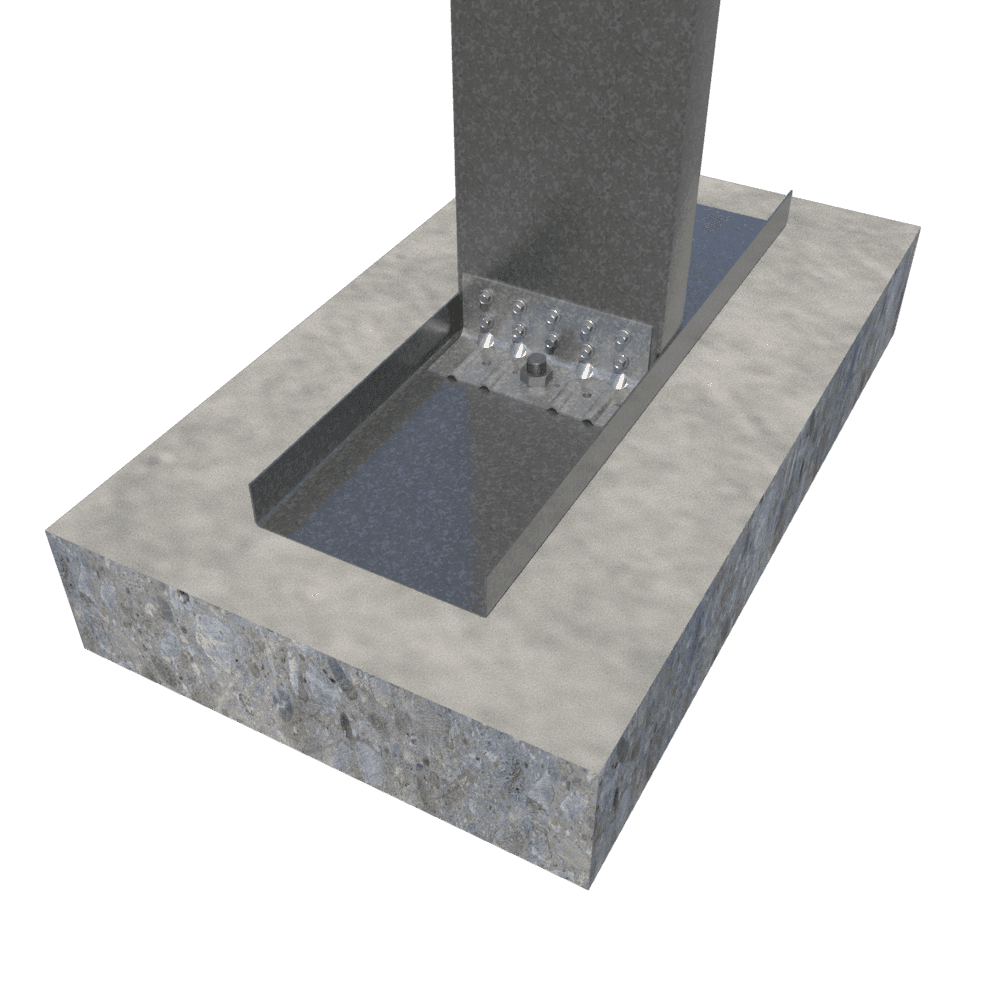

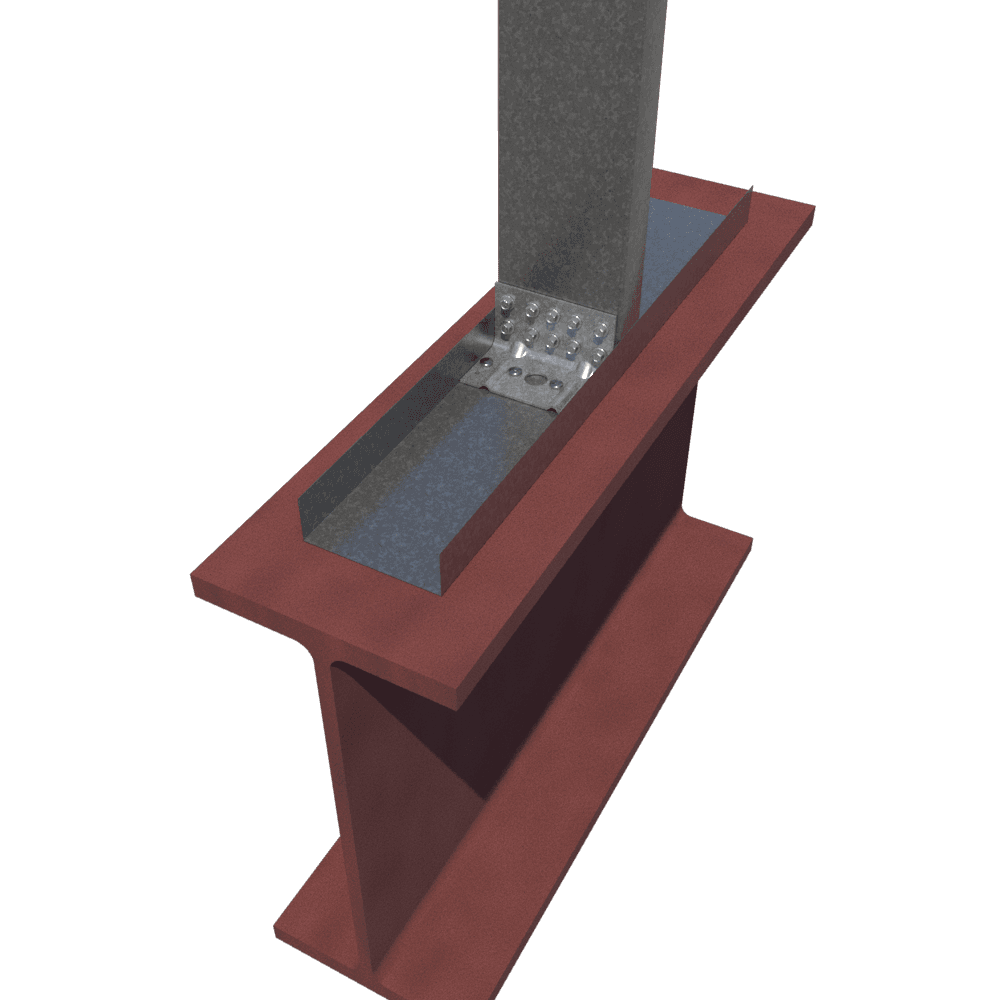

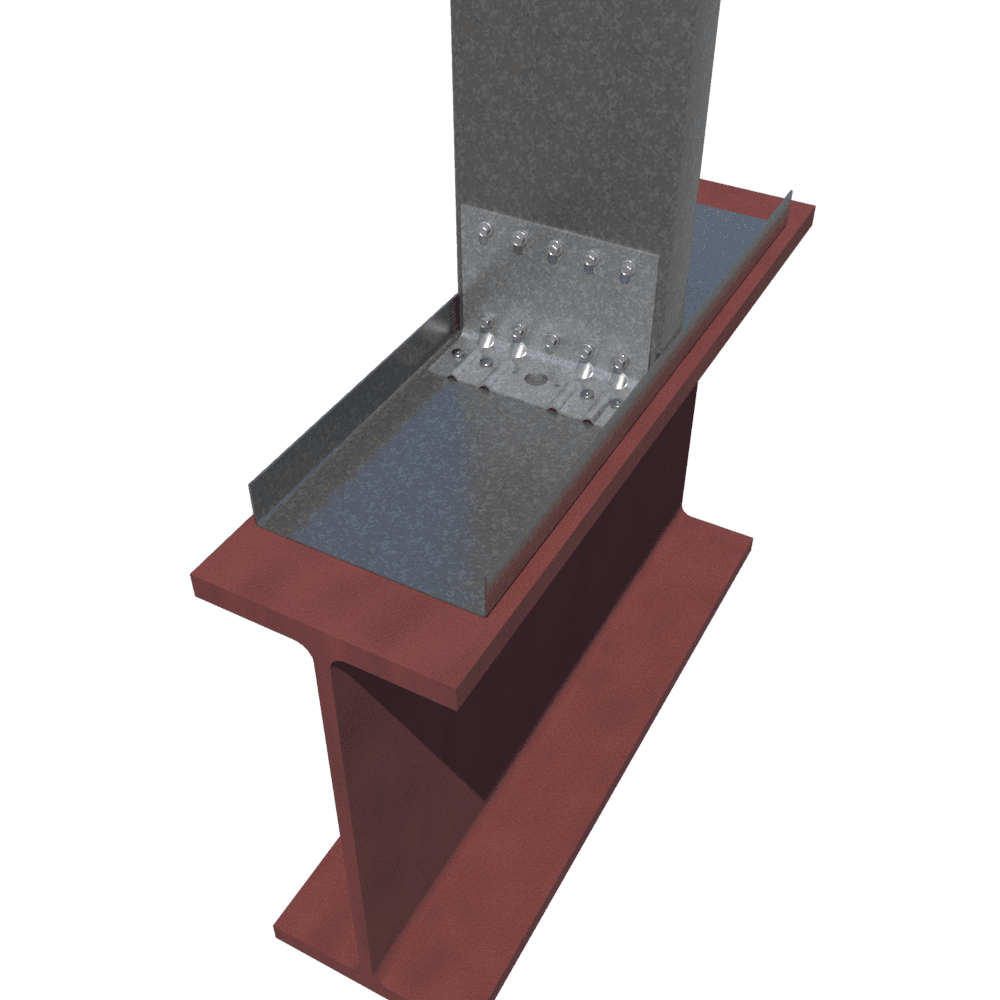

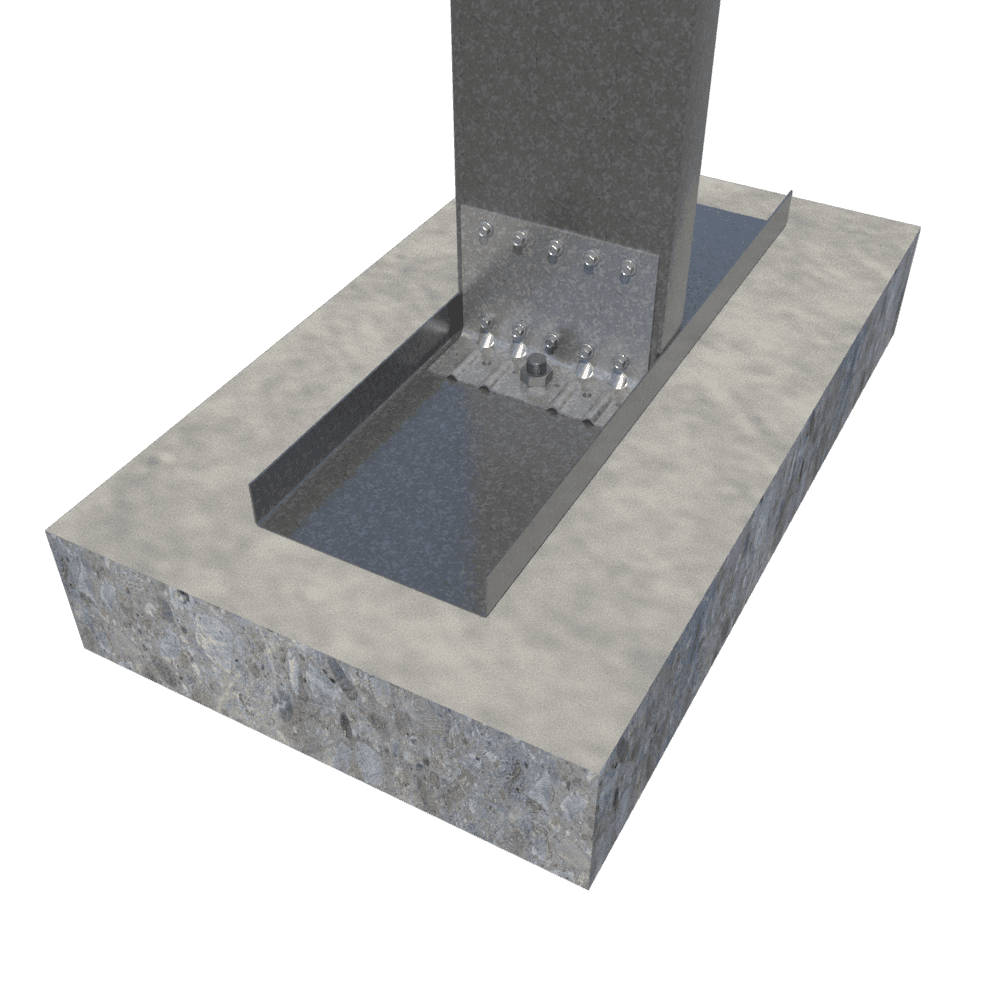

The EasyClip™ D-Series™ & T-Series™ Anchor Clips are high-performance, cost effective solutions for knee wall-to-foundation connections, light duty shear wall-to-foundation connections and truss to wall connections.
Quick Actions:

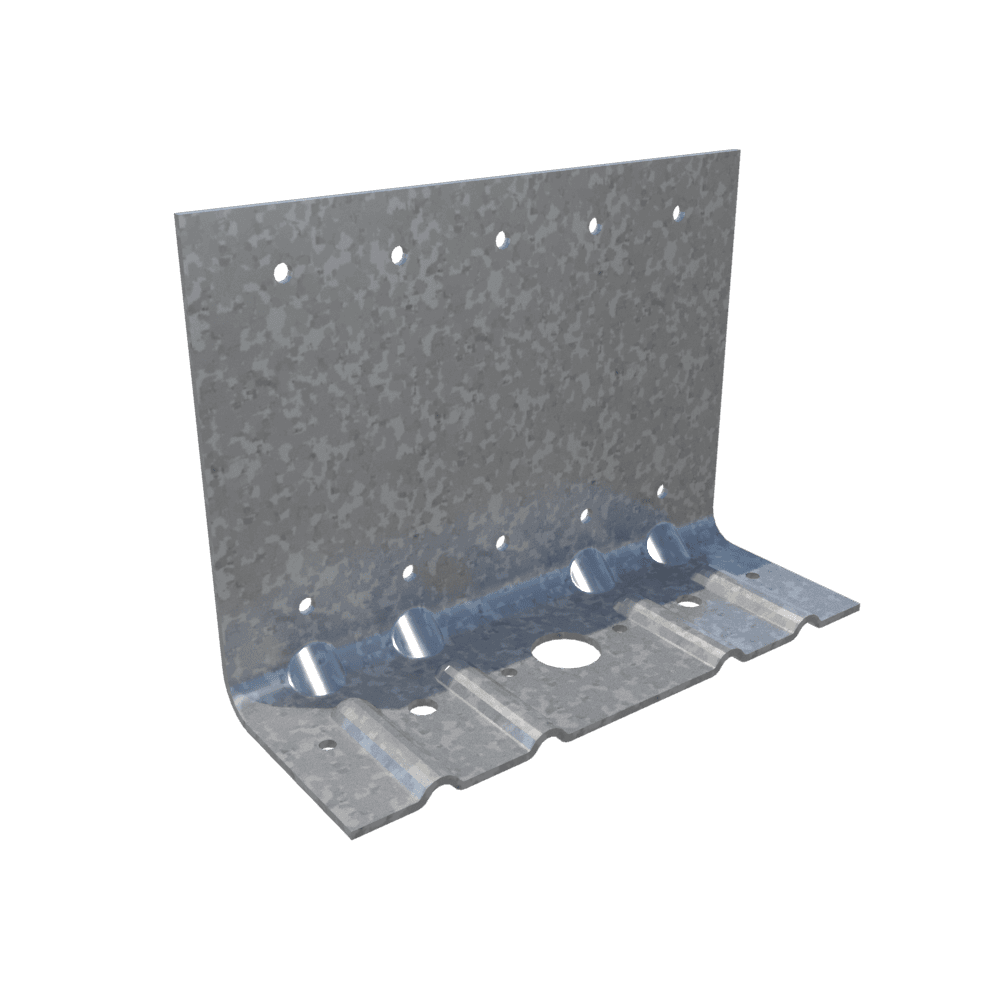

These multi-application clips feature reinforced stiffening ribs that provide superior design values for maximum performance. The EasyClip™ D-Series™ & T-Series™ Anchor Clips are designed to resist horizontal, torsional, and vertical (uplift) loads. These clips are prepunched with a series of attachment holes (including anchor bolt, kwik-con and screw holes) for efficient and accurate fastener placement.
- Resist uplift, horizontal and rotational loads.
- Stiffening ribs for superior design values.
- Prepunched holes for fast attachment.
- Multipurpose applications.
Alternative Products
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information

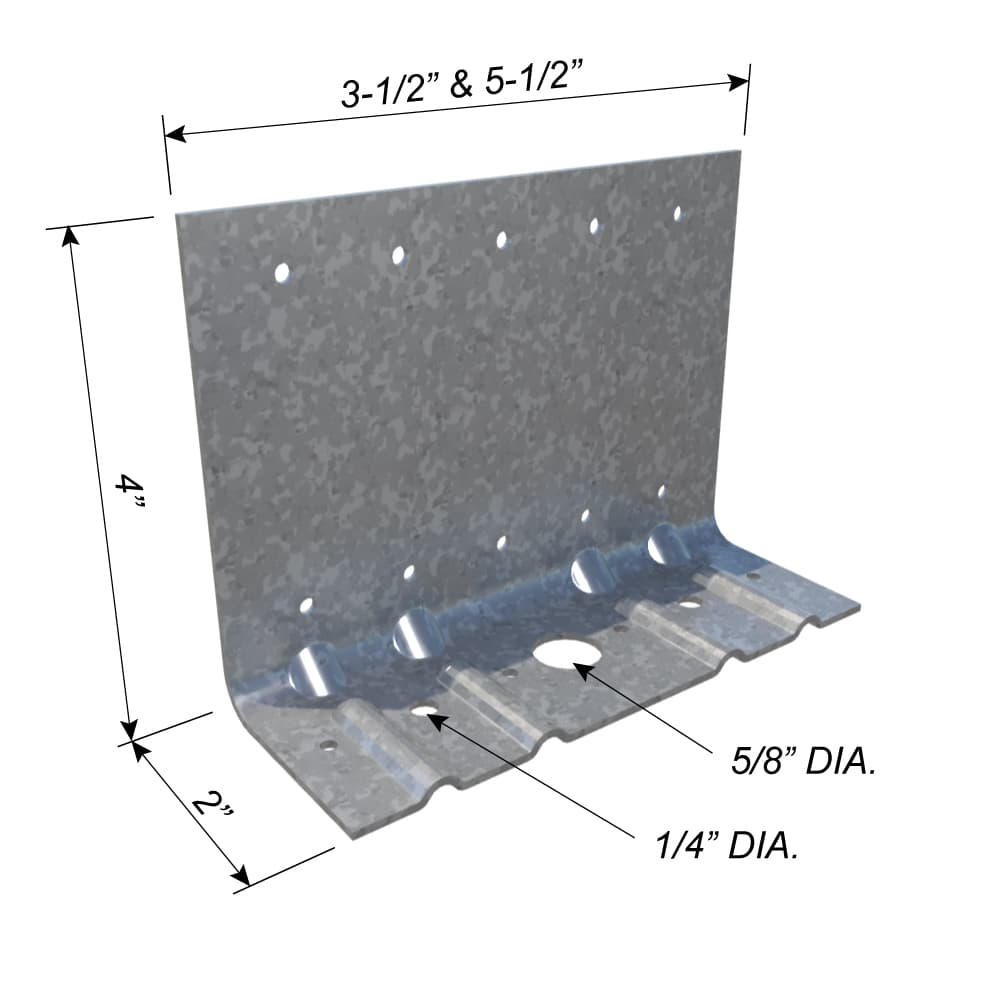

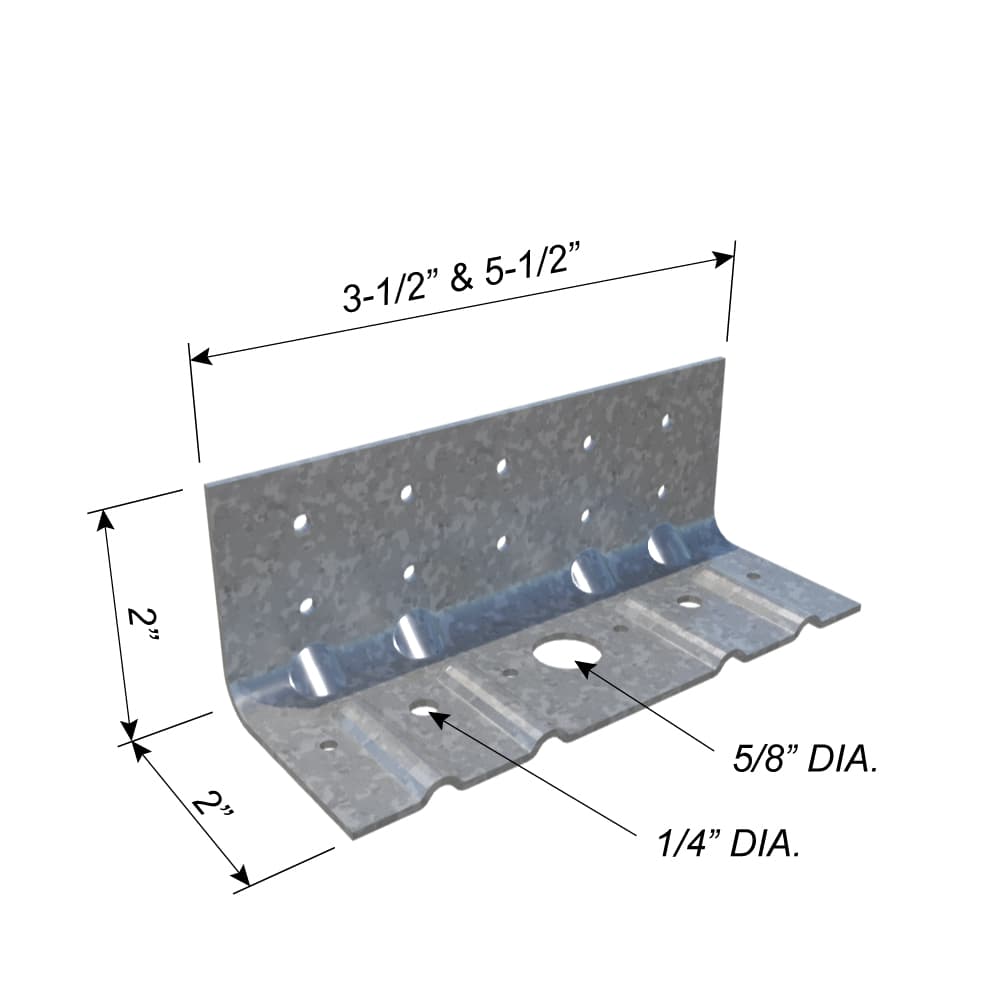

| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Pcs./Bucket |
|---|---|---|---|---|---|
| D683 | 14 | 68 | 0.0713 | 2 x 2 x 3-1/2 | 40 |
| T683 | 14 | 68 | 0.0713 | 2 x 4 x 3-1/2 | 40 |
| D685 | 14 | 68 | 0.0713 | 2 x 2 x 5-1/2 | 40 |
| T685 | 14 | 68 | 0.0713 | 2 x 4 x 5-1/2 | 40 |
| D973 | 12 | 97 | 0.1017 | 2 x 2 x 3-1/2 | 40 |
| T973 | 12 | 97 | 0.1017 | 2 x 4 x 3-1/2 | 40 |
| D975 | 12 | 97 | 0.1017 | 2 x 2 x 5-1/2 | 40 |
| T975 | 12 | 97 | 0.1017 | 2 x 4 x 5-1/2 | 40 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
