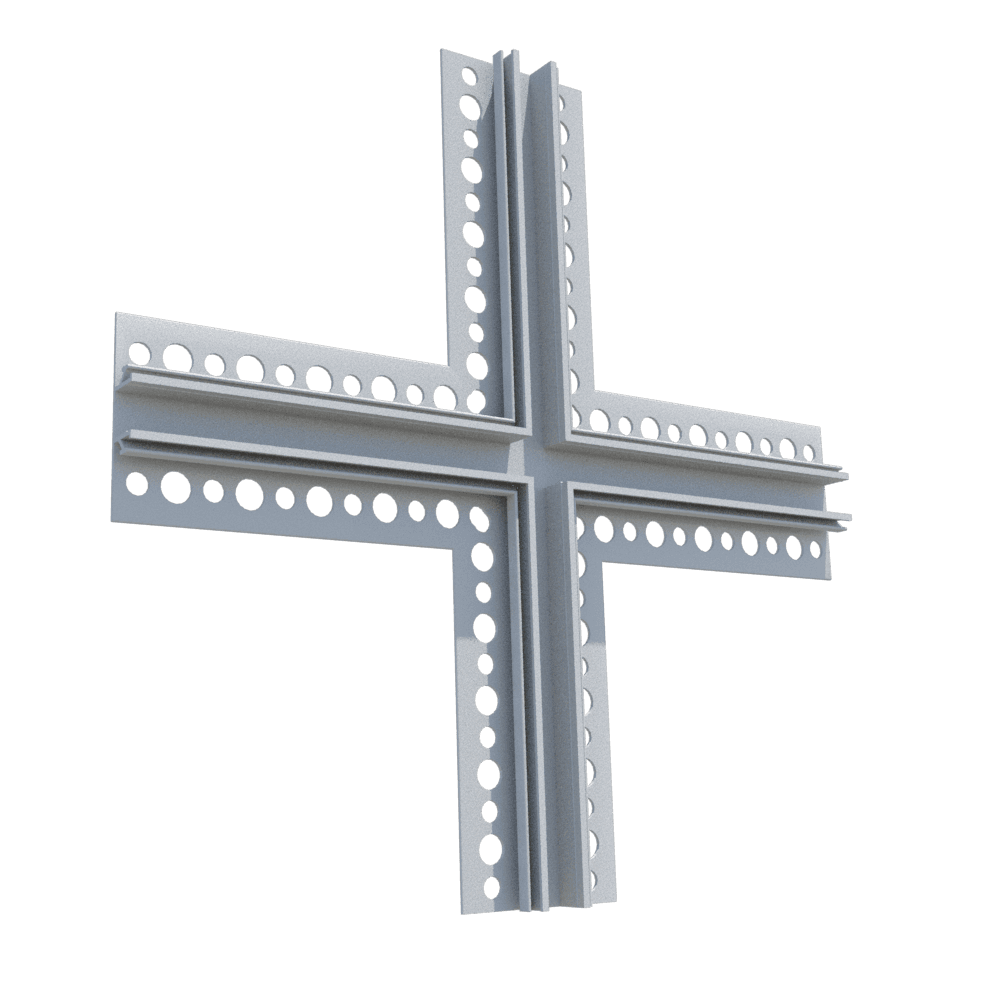

Factory Fabricated Cross
C – 4-way CROSS Intersection for creating crisp, continuous lines and a polished architectural appearance
All intersections are manufactured in a controlled factory environment to the highest quality standards.
Quick Actions:

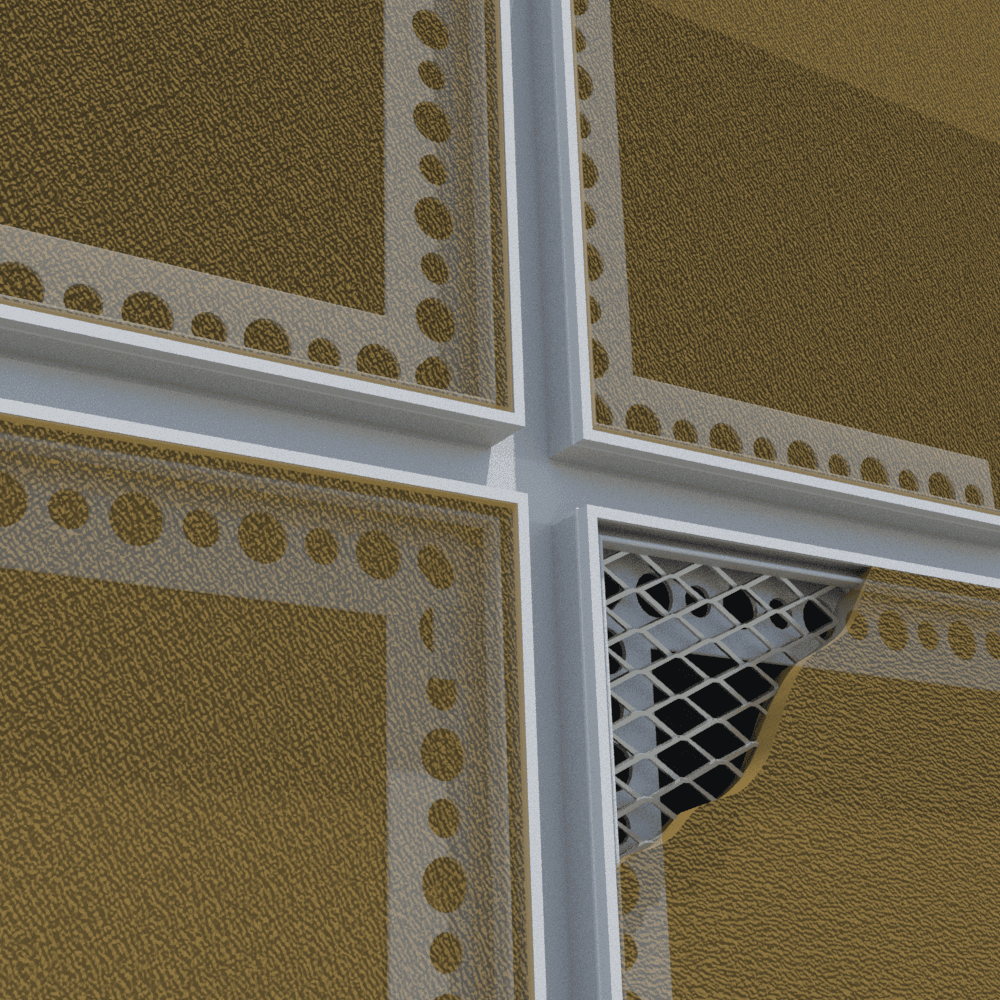

C – 4-way CROSS Intersection allows your profiles to meet seamlessly from all directions, creating crisp, continuous lines and a polished architectural appearance. Engineered for easy installation and consistent alignment, it enhances both the aesthetics and efficiency of wall and ceiling reveal applications in commercial and residential projects.
All ClarkDietrich vinyl intersections are manufactured in a controlled factory environment to the highest quality standards. Miter cuts are made with precision to ensure proper fit at all connections. Hot-melt glue and foil-backed tape are used to create a strong bond for all components. The quality of ClarkDietrich's fabricated channel reveal intersections cannot be duplicated on a job site.
It is recommended that additional 10ft. channel reveal material is ordered along with all intersections to ensure seamless connections. Caulk all intersections, butt joints, ends and corners at time of installation.
All factory fabricated intersections are made-to-order. Please contact us at 1-800-648-4695 for specific lead-times and capabilities on any special intersections.
Product Data & Ordering Information
| Category | Product code |
|---|---|
| Stucco | Channel Reveals (CS and FCS) |
| Control Joints (Flat Flange) (15) | |
| Control Joints w/ tape (15X) | |
| Control Joints with E Flange (15EF) | |
| Control Joints Reval Combo (15R) | |
| DEFS/EIFS | Channel Reveals (DC_SE and FDC_SE)) |
| Control Joints (CJV-E) | |
| Contol Joints (DCJ) | |
| Drywall | Channel Reveals (DC_S and FDC_S) |
| Control Joints (093V) | |
| Contol Joints (DCJ) |
